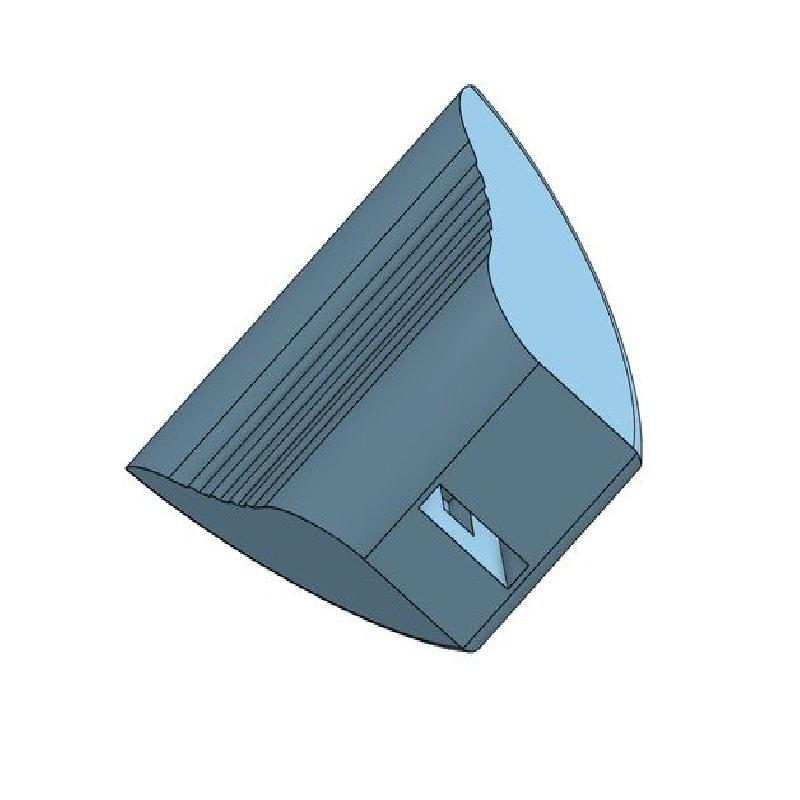

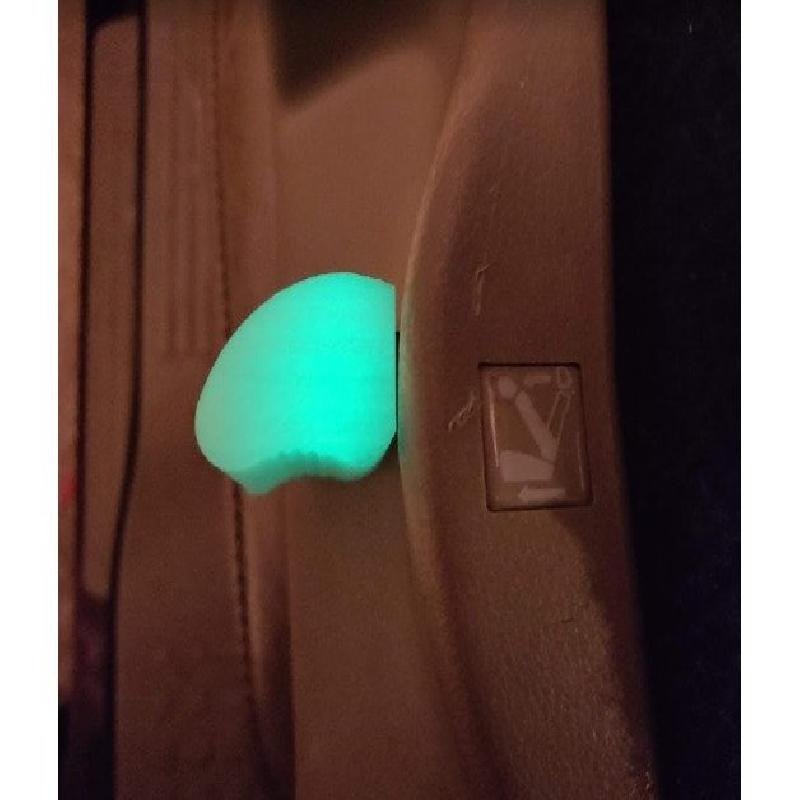

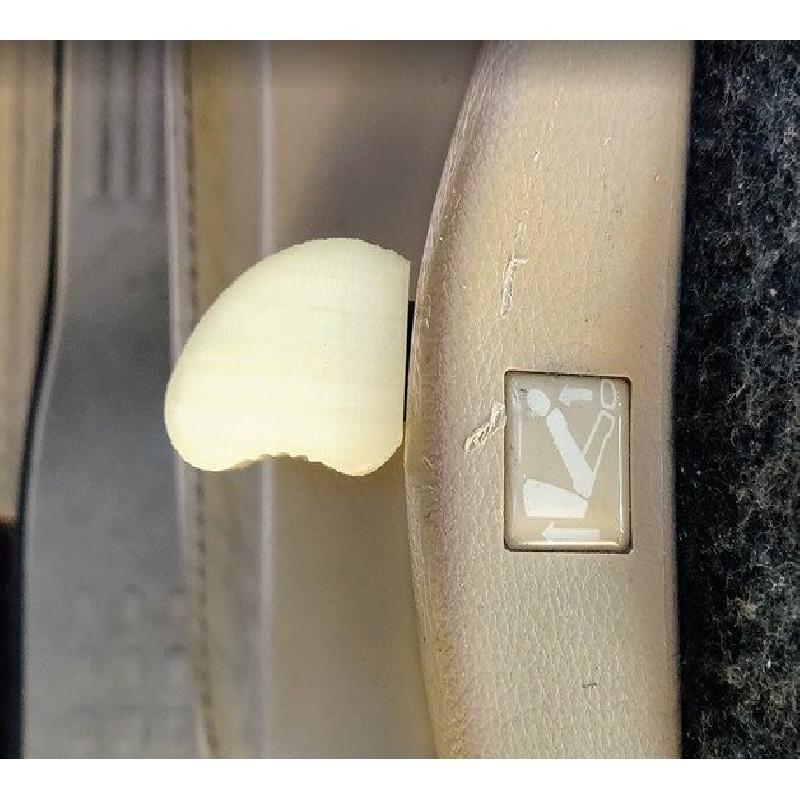

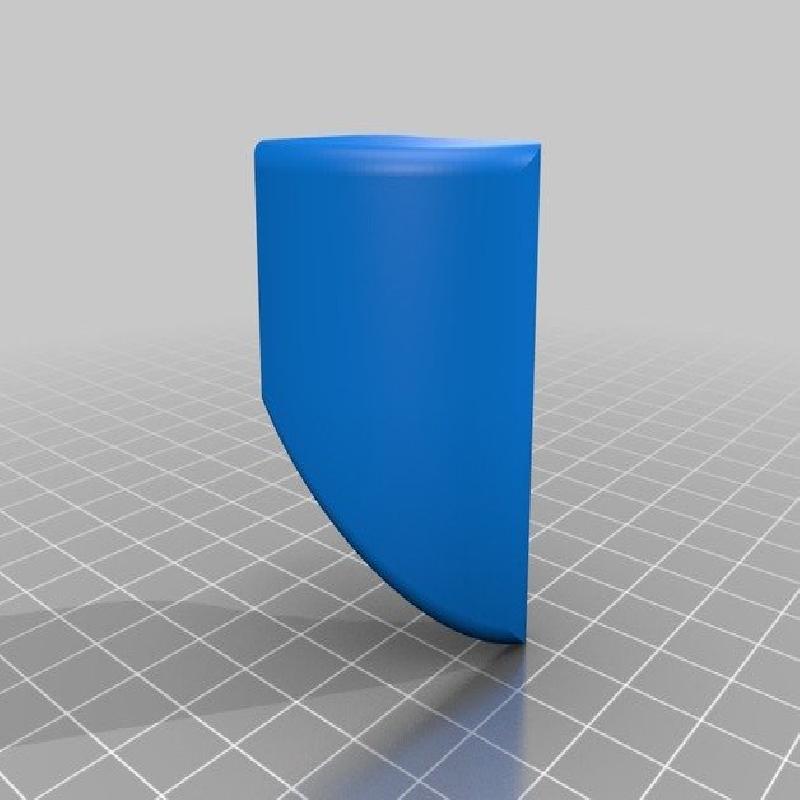

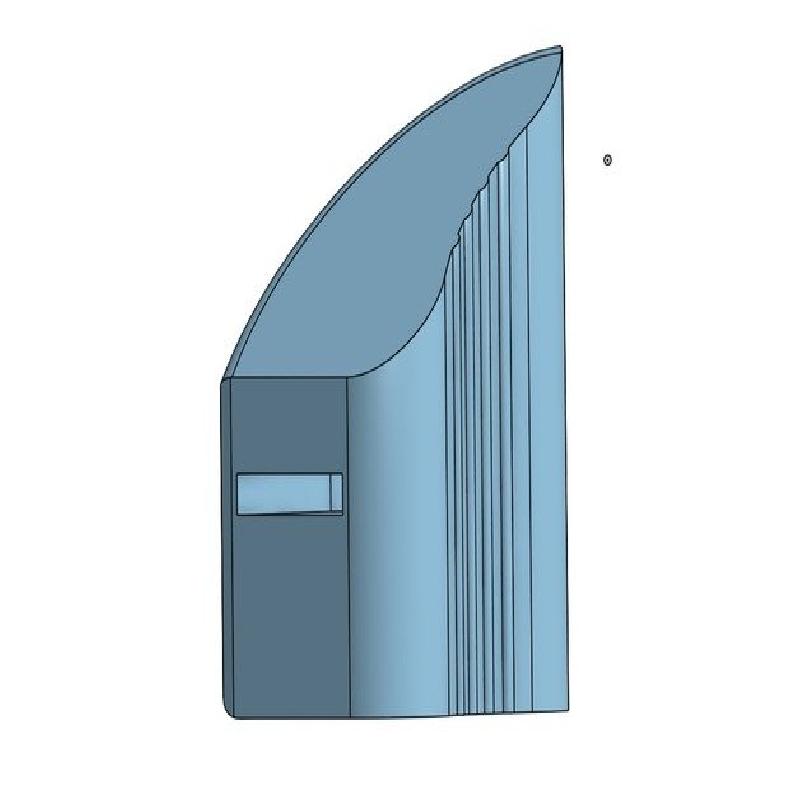

Lost the seat recline lever from the 2nd row in my 2009 Honda Pilot. I believe the part is # 81328-SZA-A01ZD. Best to print it flat side down with a skirt. It is (intentionally) a tight fit and you may need to file down the upper surface of the slot to get it to snap in. I used a rubber mallet to make sure the metal pawl fully snaps into the detent.

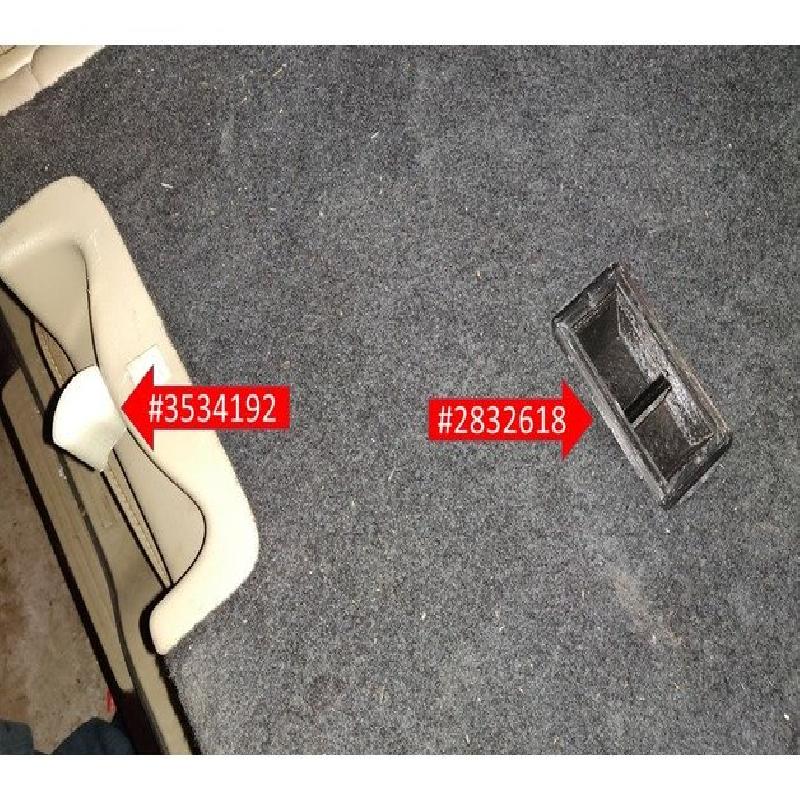

In one of the pictures you can see the lever next to one of my beat-up "child safety seat anchor trim pieces" from #2832618.
Printer Brand:
Monoprice
Printer:
Maker Ultimate
Rafts:
No
Supports:
No
Resolution:
.2mm
Infill:
30%
Filament: unknown PLA Glow in the dark
