by BrickPrints
This is a 1:1 scale Lego Skeleton featuring Lego compatibility, functioning ball joint arms, and a printed skull face. It is designed to be printable with a standard .4mm nozzle. Please read these notes before use.

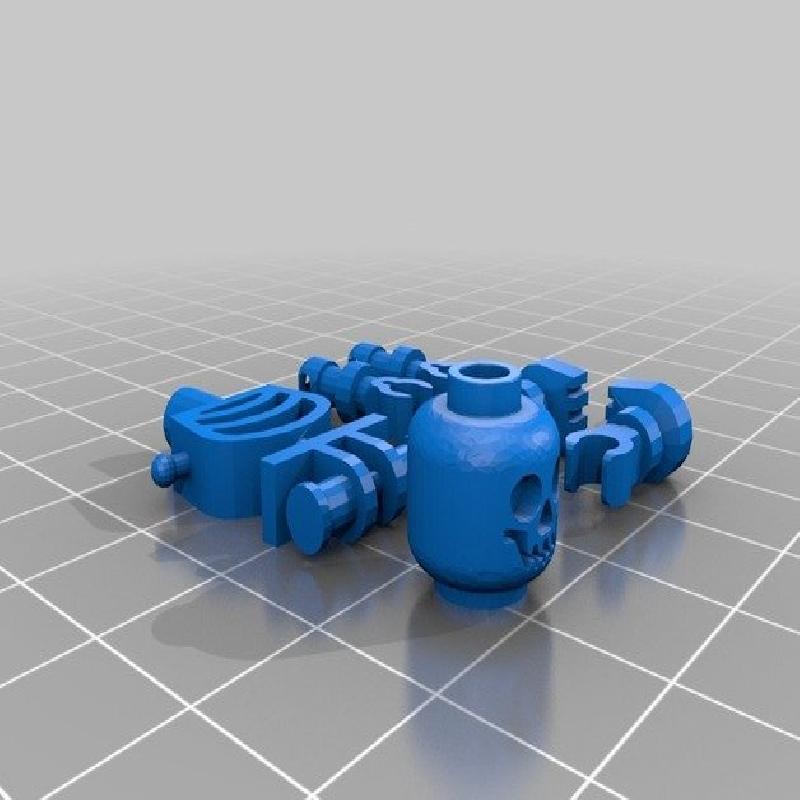

Included Files:
skull stl
torso stl
arm stl
left leg stl
right leg stl (identical to left, but rotated axially 180 degrees)
full skeleton stl
Stock Creality Ender 3 Pro Full Skeleton GCode

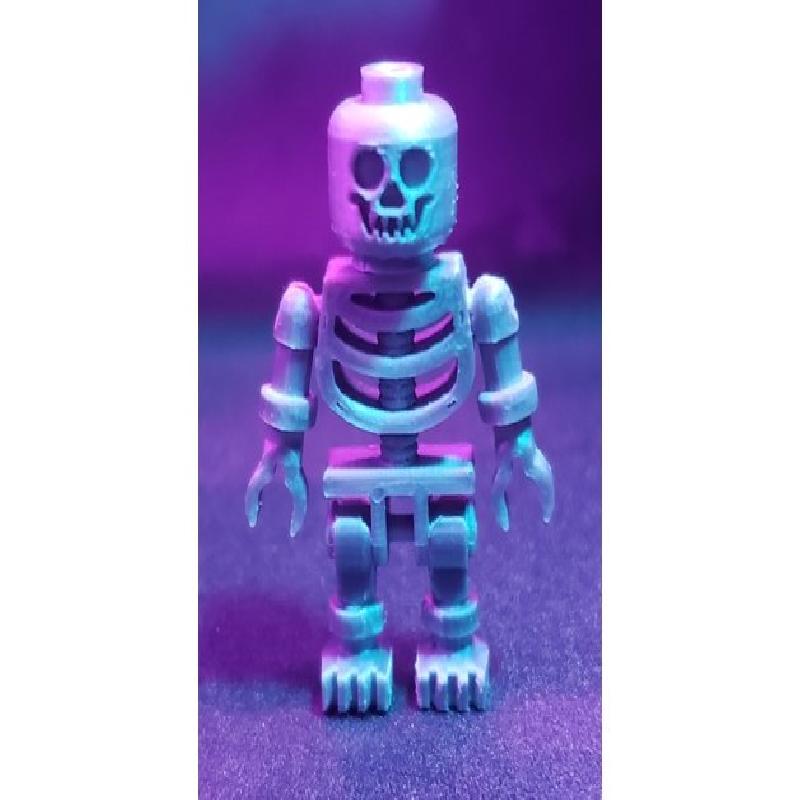

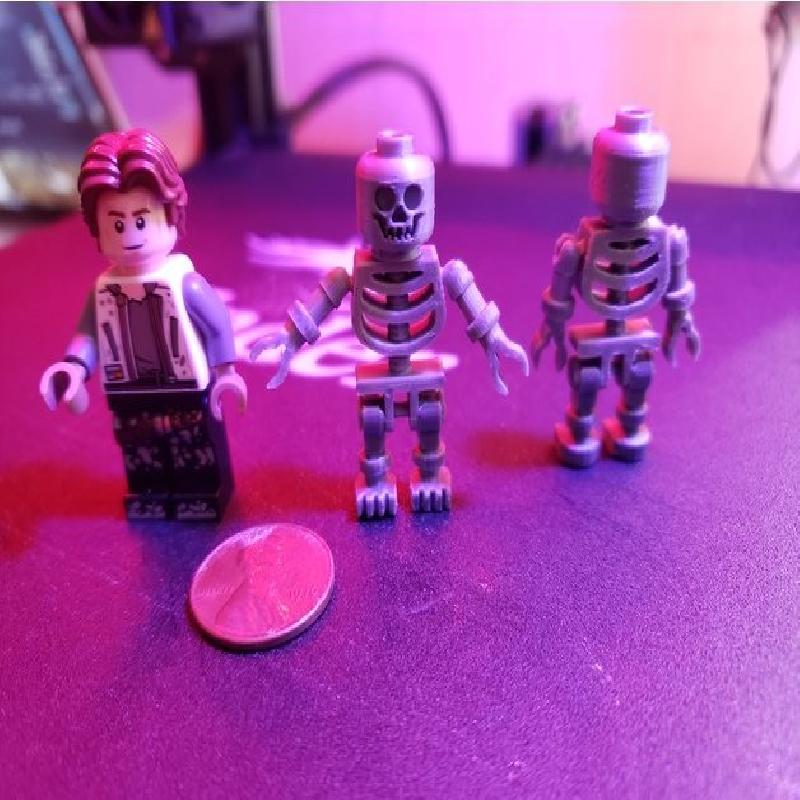

The print shown in the images was done using the included Gcode (SEE NOTES) on a stock Creality Ender 3 Pro with the stock .4mm nozzle and .06mm layer height at 100% infill.
GCODE NOTES: Programmed specifically for use on the Creality Ender 3 Pro. Other printers may not be supported. Use at your own risk. Be advised, gcode uses 215C nozzle temp and 63C build plate temp for the filament I used, you may need to tune your machine on the fly for your filament. Printed directly on the magnetic build plate. First layer prints at .06mm height. Print time 1 hour 45 mins.
Slicer Setting Recommendations:
Support Structures: touching build plate only.
Ensure first layers print at .06mm increments for best surface finish.
Printer Setting Recommendations:
Reduce speed of first 2 layers to 25% of nominal for smooth finish on back of torso and bottom of skull
Other Notes:
The supports for the ball joint socket of the arms can be carefully trimmed with nippers
This project is a compilation of models produced by others as well as my own (see design notes). Not intended for commercial use or resale.
Silver filament makes it look like the Terminator
Patience is a virtue
HAPPY PRINTING!
Printer:
Ender 3 Pro
Supports:
Yes
Resolution:
.4mm nozzle x .06mm layer hieght
Infill:
100%
Filament: Amazon PLA Silver
Notes:
Designed for use with .4mm nozzles.
First 2 layers printed at 25% of nominal speed.
Skull / face redesigned in Fusion 360 using commonly available references. Female ball joint modified for 3D printing (deepened socket, support structures) modeled in TinkerCAD. Sliced with AstroPrint.
