by bradipao

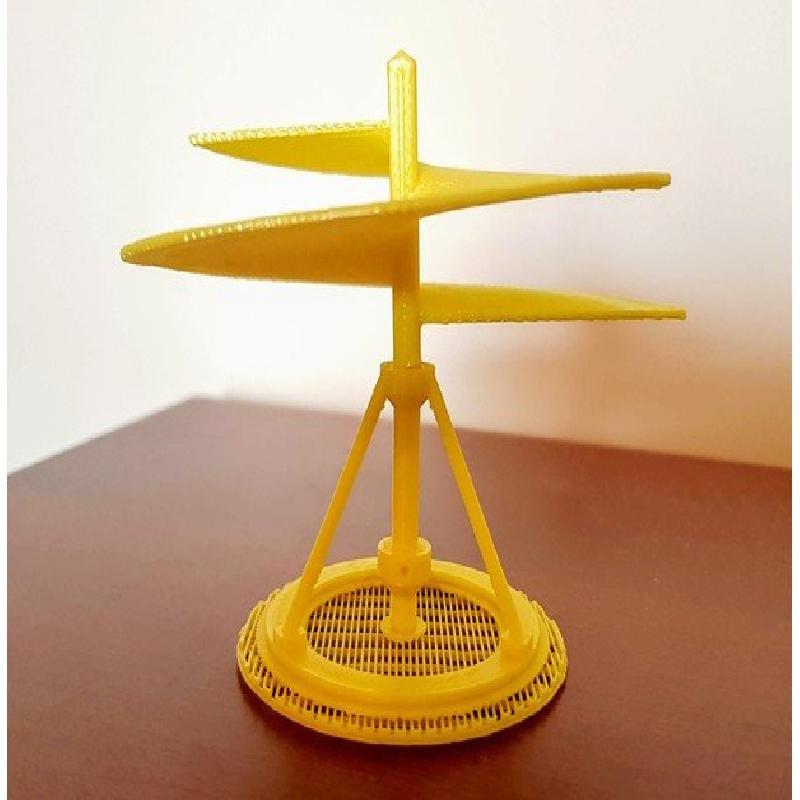

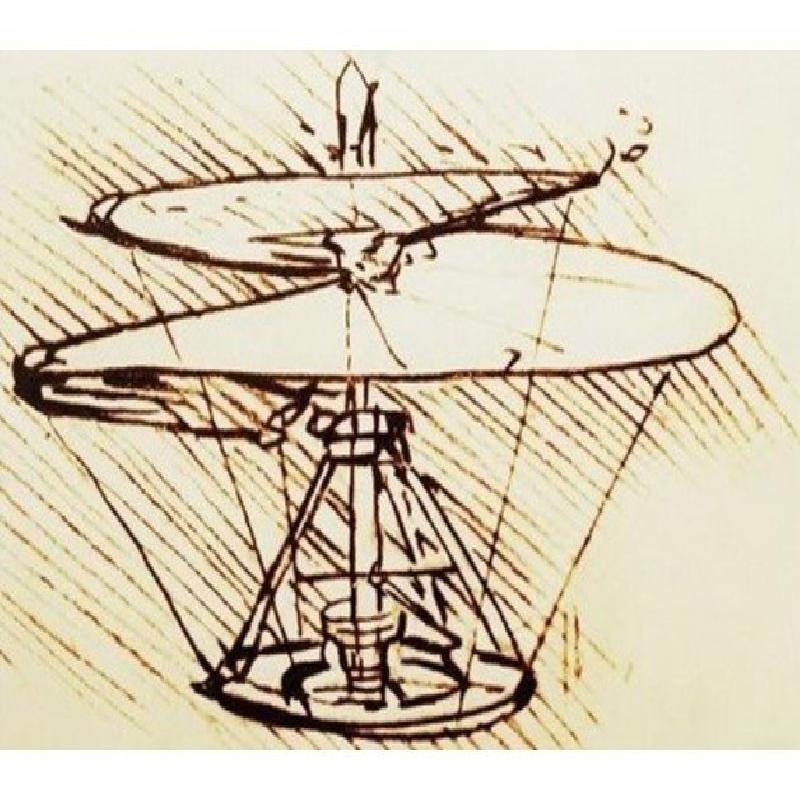

Fully printed replica of the Aerial Screw from Leonardo Da Vinci drawings.
Model is in a single OPENSCAD file, wing profile included.
Printer:
Cetus3D
Rafts:
Yes
Supports:
Yes
Resolution:
0.2mm
Filament: Eumakers PLA Yellow
Printed parts

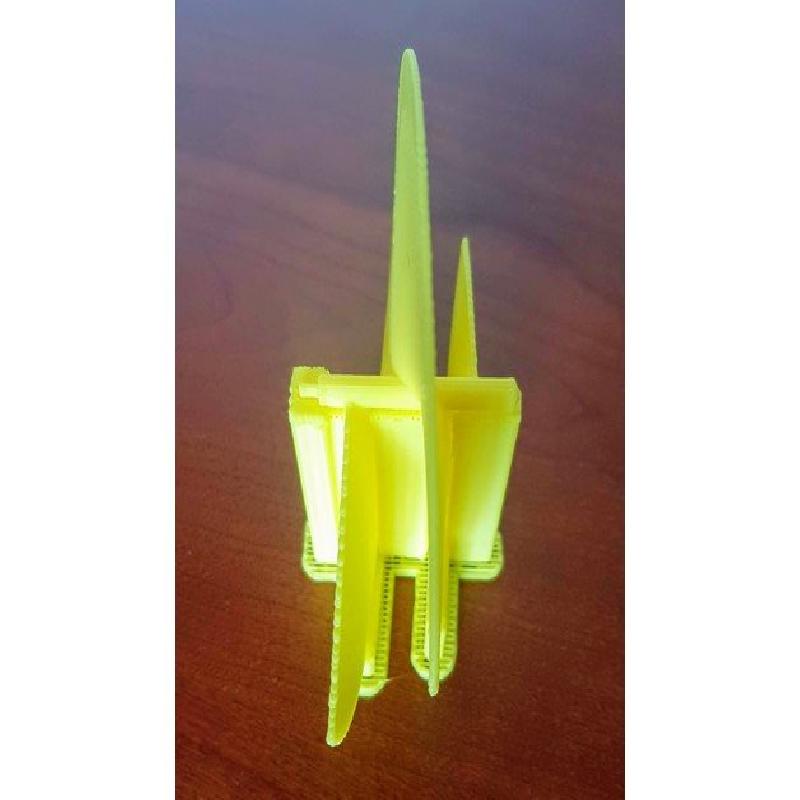

The base can be printed in normal orientation, but the wing has to printed on a specific side, to minimize supports and to achieve a good finished thin surface.
Model details

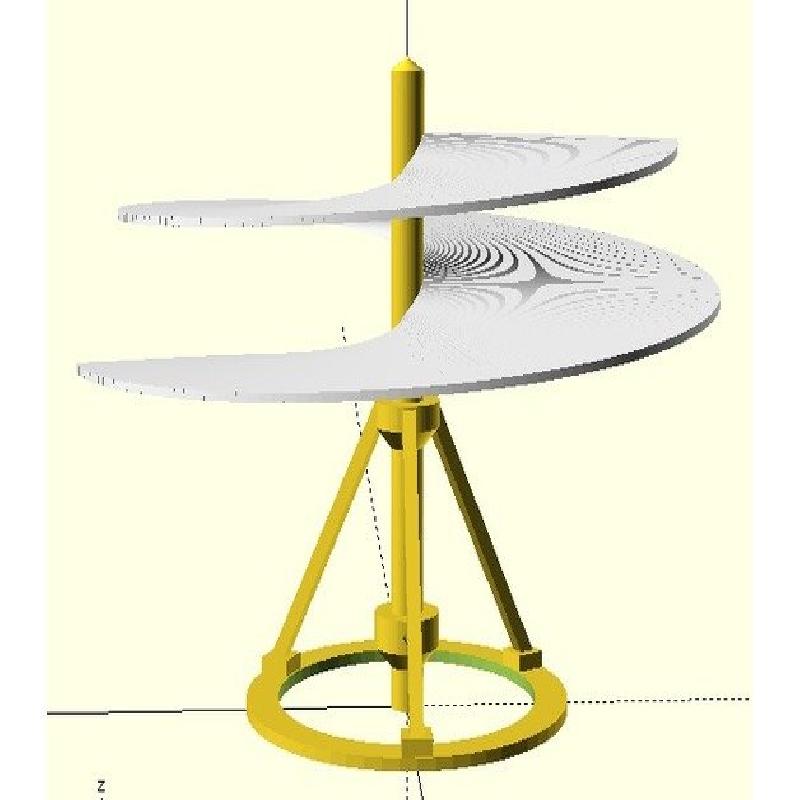

Aerial screw model has been fully developed with OPENSCAD.
The base is quite standard, with a some cylinders and cubes.
The wing has been generated with a for-cycle spanning 540 degrees, rotating, scaling and translating properly a simple cube. The resulting solid is far from being smooth, because of several very small vertexes and edges due to intersecting cubes, but is enough for a decent printed part.
