by sasha19md

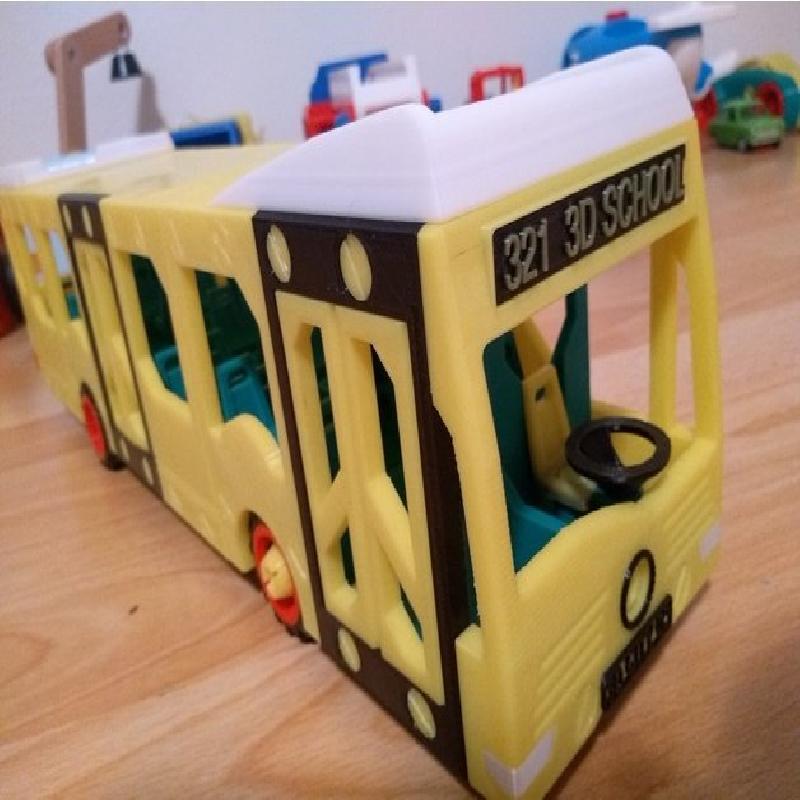

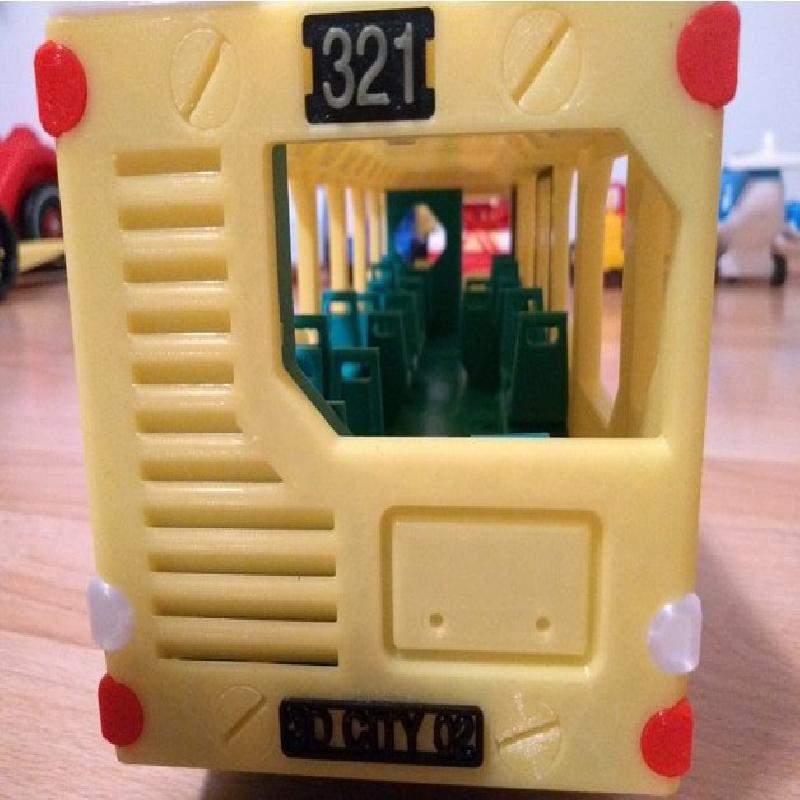

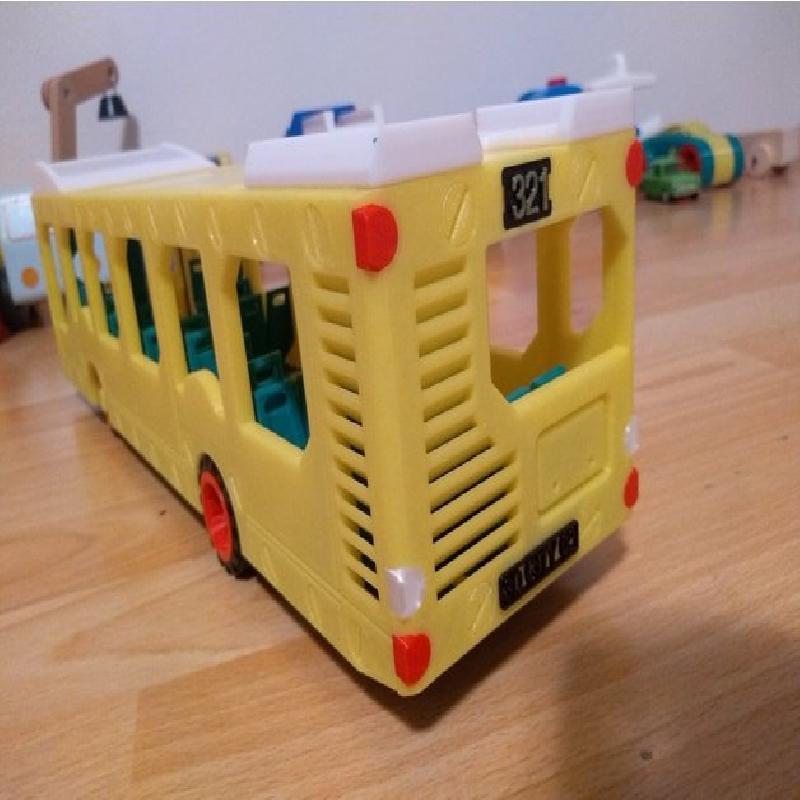

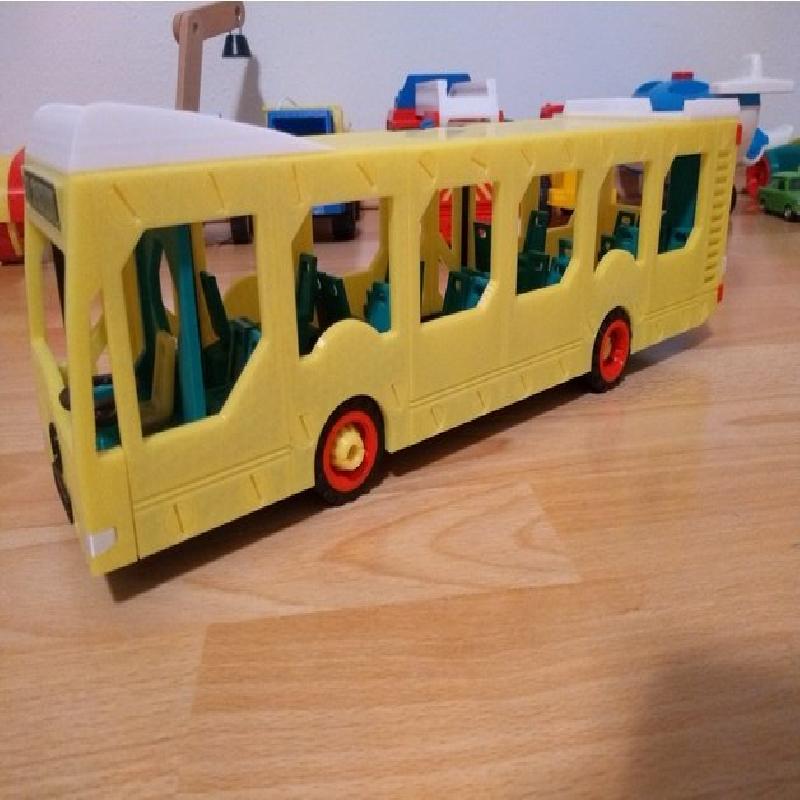

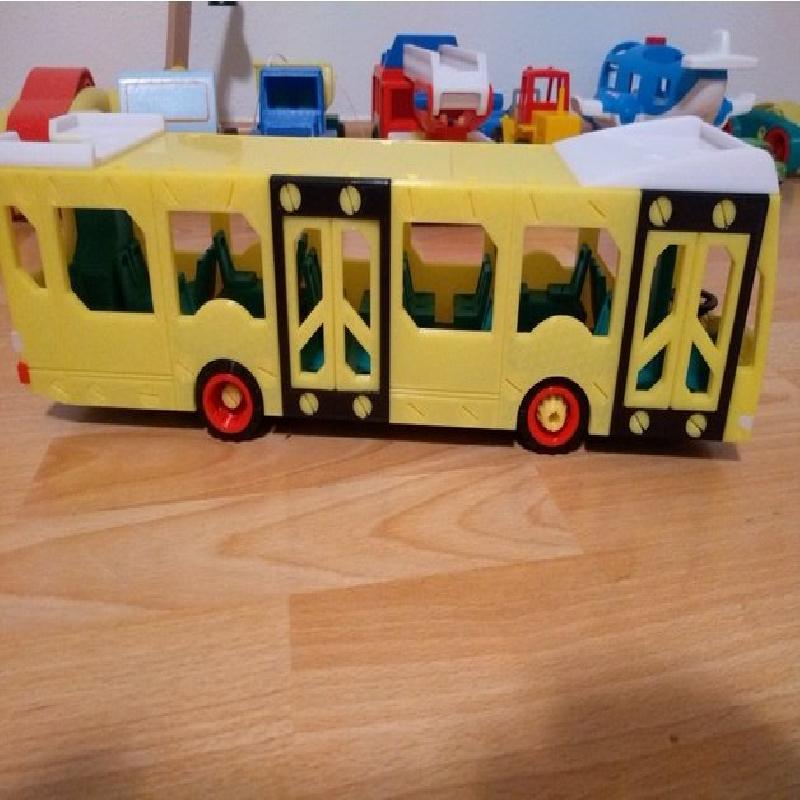

This is a modular city bus toy. It is completely 3d printable, the piece with the biggest area is about 12x9cm, the tallest one about 9cm. The tolerance for pieces that need to fit tightly is 0.1mm, for pieces that need to allow movement (like screws and axles) 0.3mm.

The model is, at least partially modular. This means You can, for example, print a door module for the back part of the bus and have three doors. Or You can print an additional full module (roof, sides and bottom) and make a bus which is a little longer. Also, another reason for the modules was to make the model printable on small machines as well.

The down side of this modularization is that there are a lot of pieces to print (over 80, plus about 90 screws). So this is more of a DIY project, which, hopefully, brings more fun making it than the final result. Write your opinions in the comment sections on this.

Sometime in the future I will add a bottom module for a double rear axle for an "extra long" bus. I might as well design an articulation module to be able to print an articulated bus, but here I  still need an idea for the cover/sides of the articulation (from PLA, not flexible materials), so suggestions are welcome.

Printing list:
Nb. STL file name                     rezolution  support     colour

• 1x face_front.stl                    0.16mm      yes         yellow/black

• 1x front_light_right.stl             0.12mm      no          white

• 1x front_light_left.stl              0.12mm      no          white

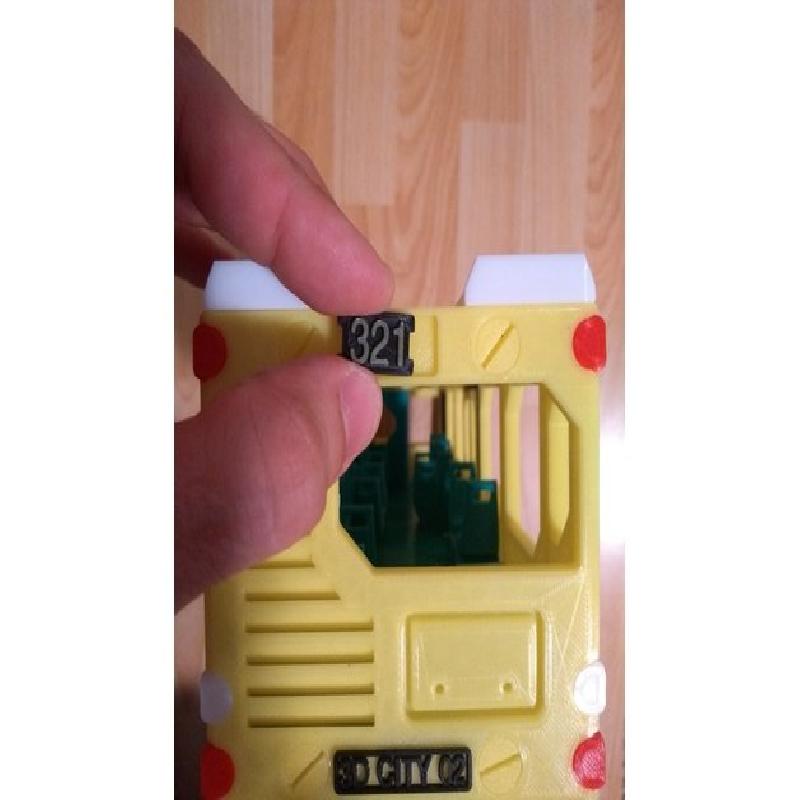

• 1x line_number_front.stl             0.12mm      no          black/yellow

• 1x top_front_optional.stl            0.16mm      no          white

• 1x top_back_optional.stl             0.16mm      no          white

• 1x roof_top_front.stl                0.16mm      no          yellow

• 1x roof_top_module_with_holes2x.stl  0.16mm      no          yellow

• 4x roof_top_module_simple.stl        0.16mm      no          yellow

• 1x roof_top_back.stl                 0.16mm      no          yellow

• 2x doors_pair.stl                    0.16mm      no          yellow

• 2x wall_doors.stl                    0.16mm      no          black

• 2x wall_wheel_right.stl              0.16mm      no          yellow

• 2x wall_wheel_left.stl               0.16mm      no          yellow

• 1x face_back.stl                     0.16mm      yes         yellow/black

• 1x line_number_back.stl              0.12mm      no          black/yellow

• 2x back_light.stl                    0.12mm      no          white

• 4x back_light.stl                    0.12mm      no          red

• 2x wall_window_right.stl             0.16mm      no          yellow

• 1x wall_back_right.stl               0.16mm      no          yellow

• 1x wall_window_driver_left.stl       0.16mm      no          yellow

• 3x wall_window_left.stl              0.16mm      no          yellow

• 1x wall_back_left.stl                0.16mm      no          yellow

• 1x bottom_front_driver_box.stl       0.16mm      no          green

• 1x bottom_base_module.stl            0.16mm      no          green

• 2x bottom_wheel_module.stl           0.16mm      yes         green

• 1x bottom_back_engine_house.stl      0.16mm      yes         green

• 8x seat_screwed.stl                  0.16mm      no          green

• 1x seat_screwed.stl                  0.16mm      no          yellow

• 5x seats_left.stl                    0.16mm      no          green

• 5x seats_right.stl                   0.16mm      no          green

• 1x steering_wheel.stl                0.16mm      no          black

• 2x door_bottom_channel_right.stl     0.16mm      no          yellow

• 2x door_bottom_channel_left.stl      0.16mm      no          yellow

• 4x tyre_with_outter_cuts.stl         0.12mm      no          black

• 2x tyre_no_outter_cuts.stl           0.12mm      no          black

• 2x single_rim.stl                    0.12mm      yes         red

• 2x double_rim.stl                    0.12mm      yes         red

• 2x die_connection_64mm_r5p9.stl      0.16mm      no          green

• 2x screw_double_wheel.stl            0.12mm      no          yellow

• 2x screw_single_wheel.stl            0.12mm      no          yellow

• 71x screw_small_l15mm.stl             0.12mm      no          yellow

• 6x screw_small_l15mm.stl             0.12mm      no          white

• 8x screw_small_l10mm.stl             0.12mm      no          green

In case of support > only on the building plate.

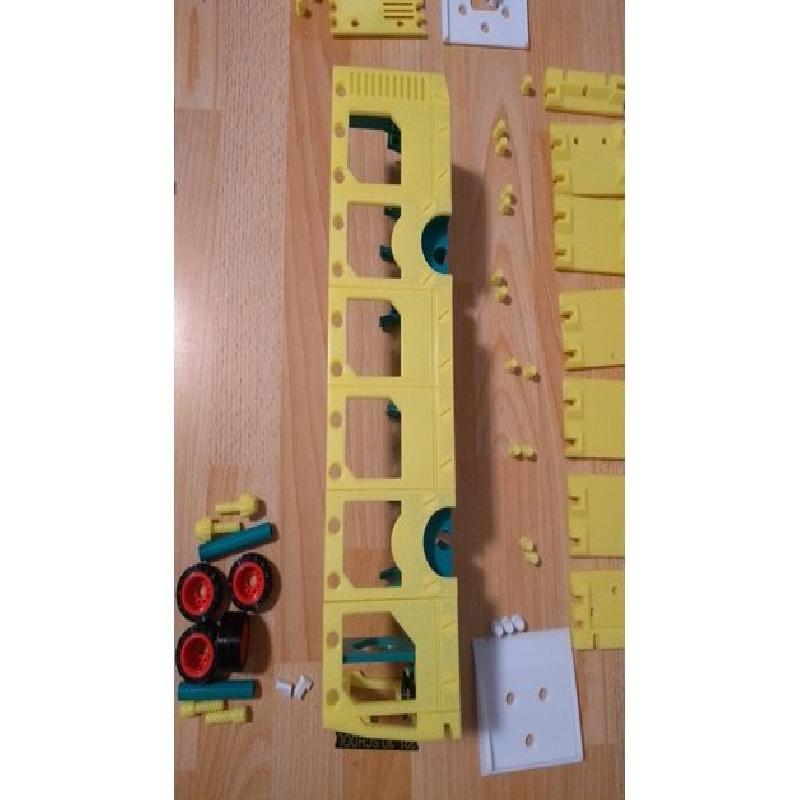

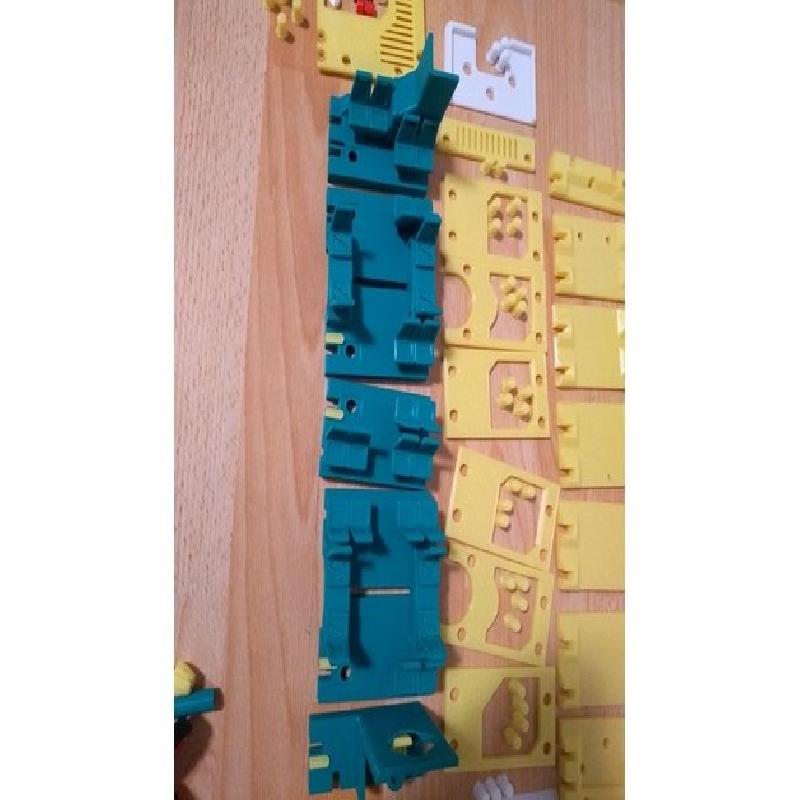

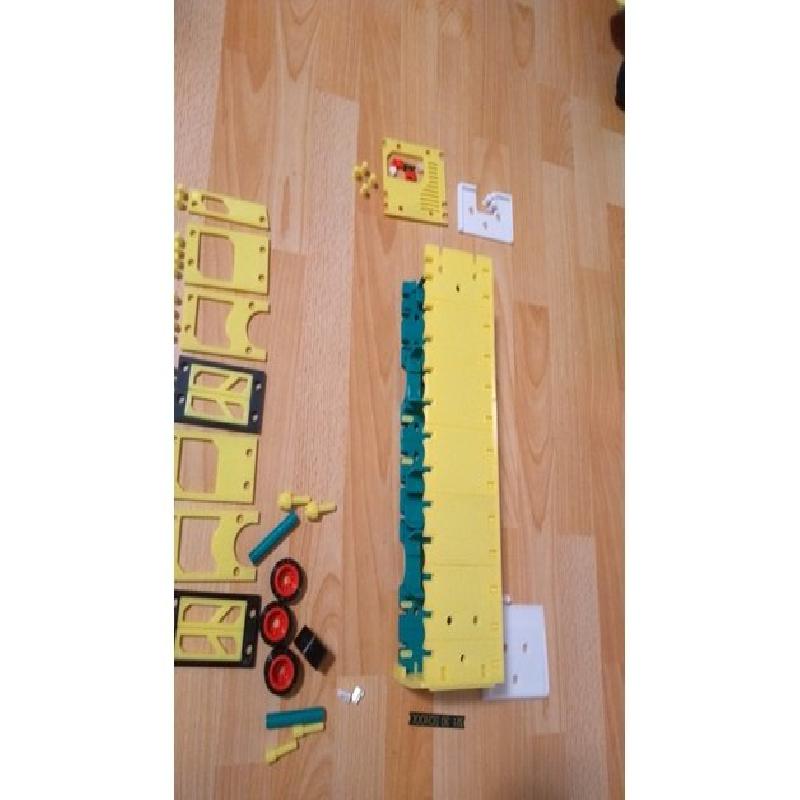

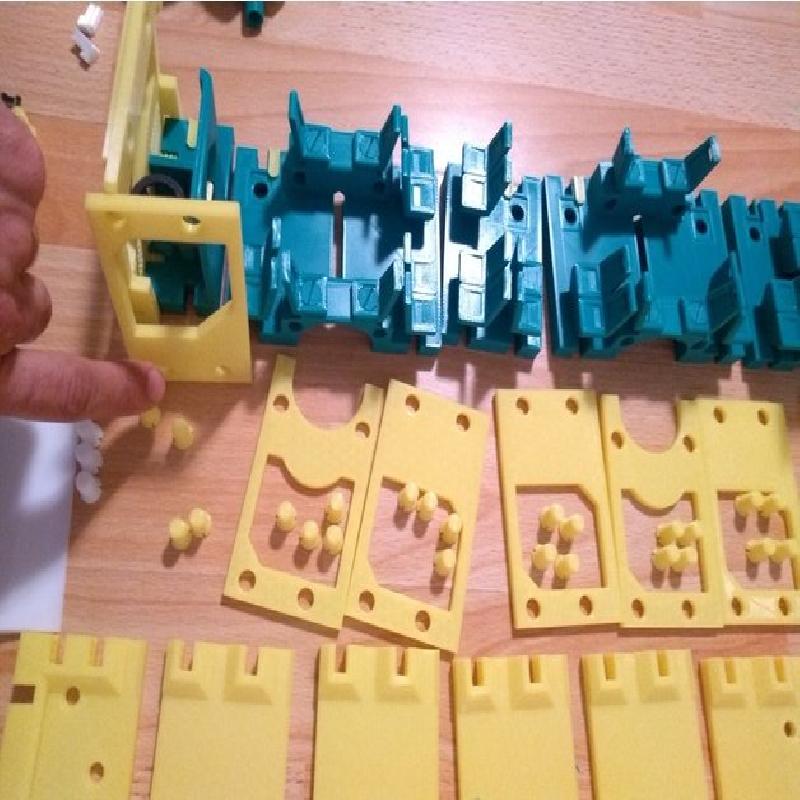

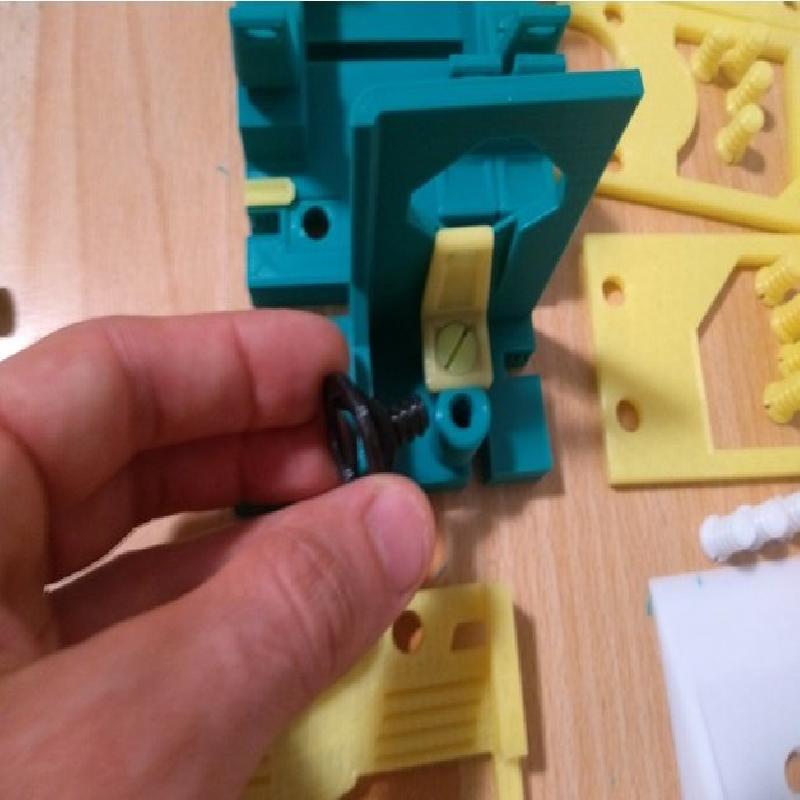

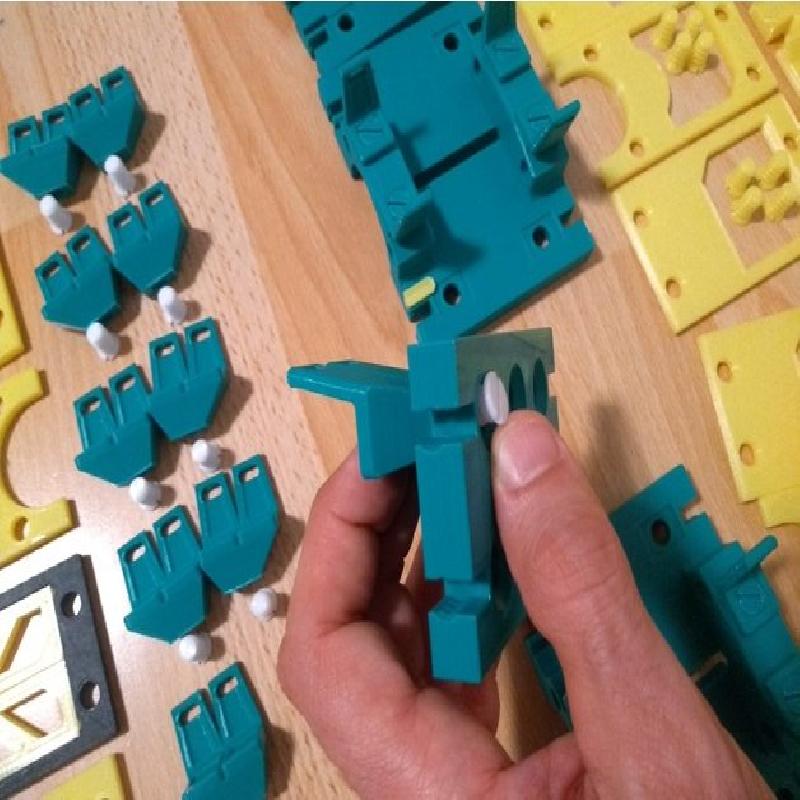

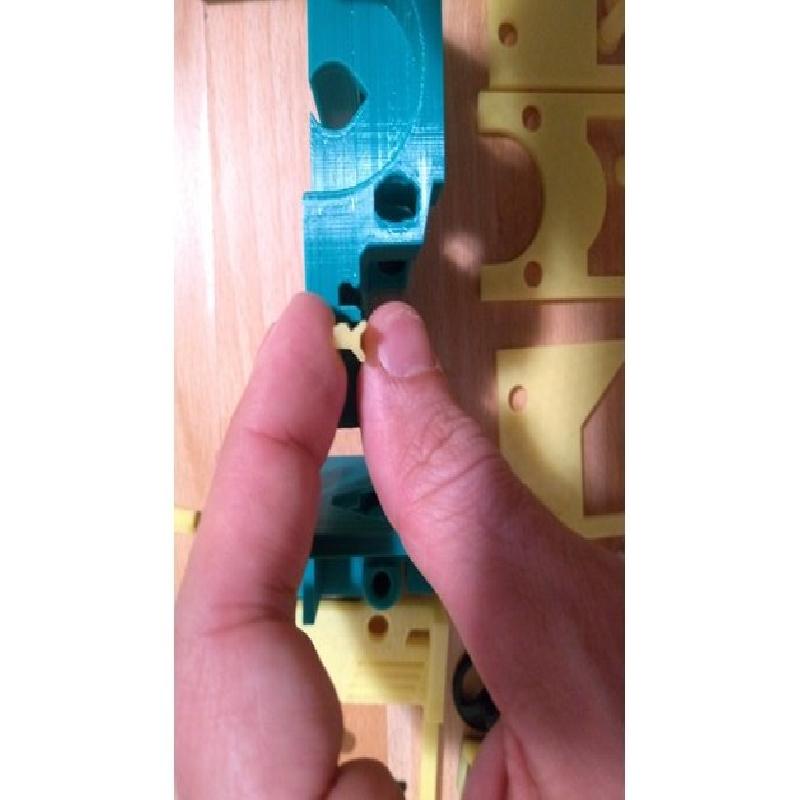

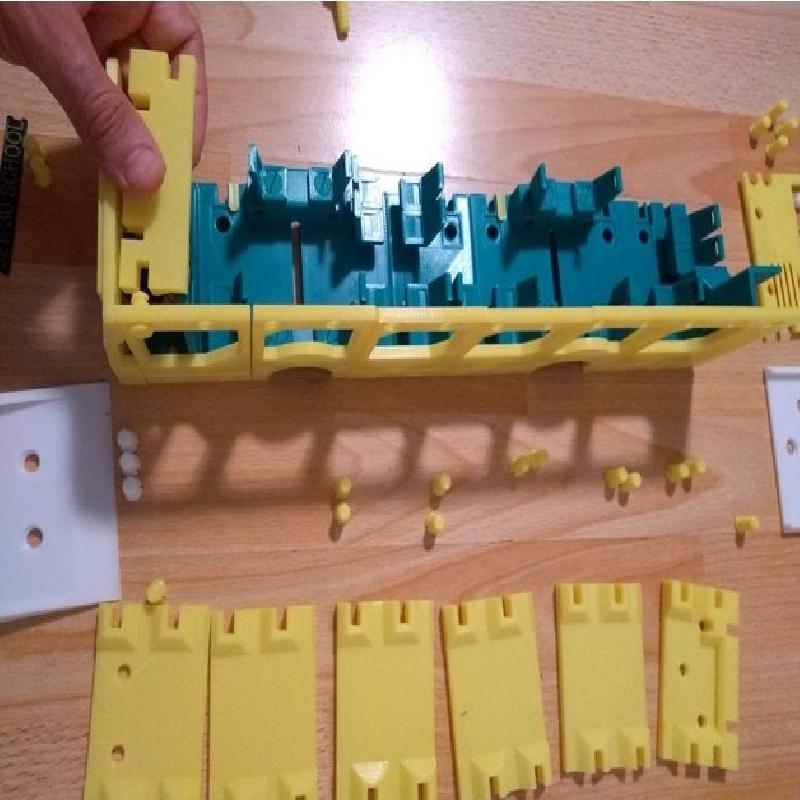

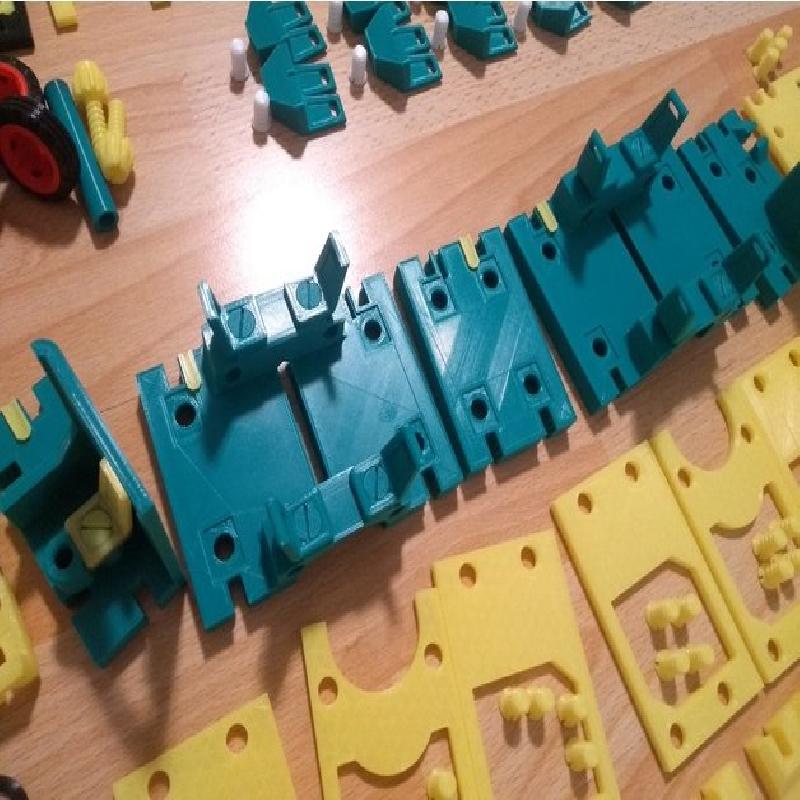

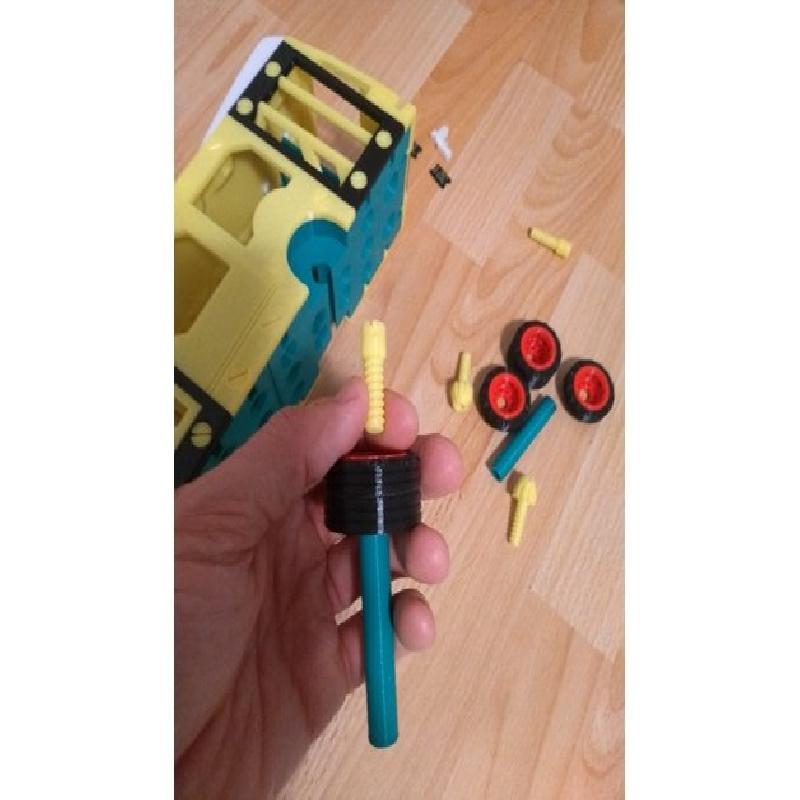

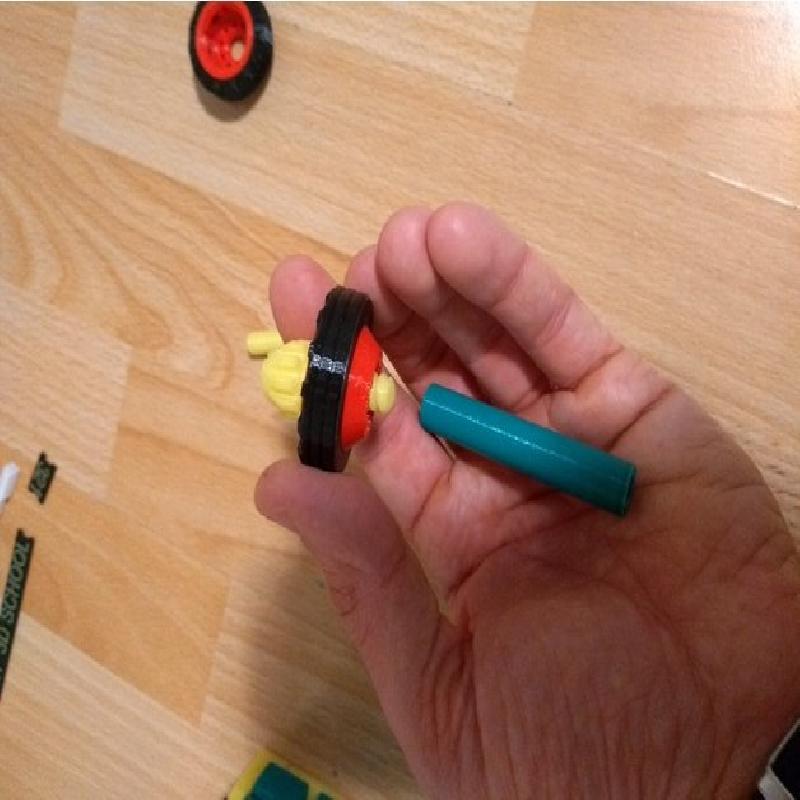

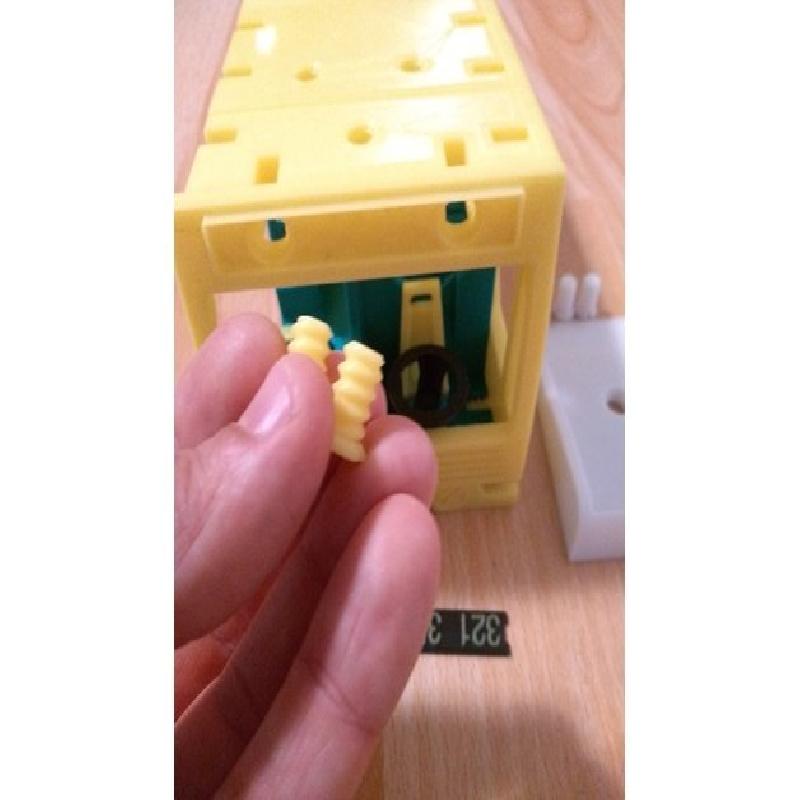

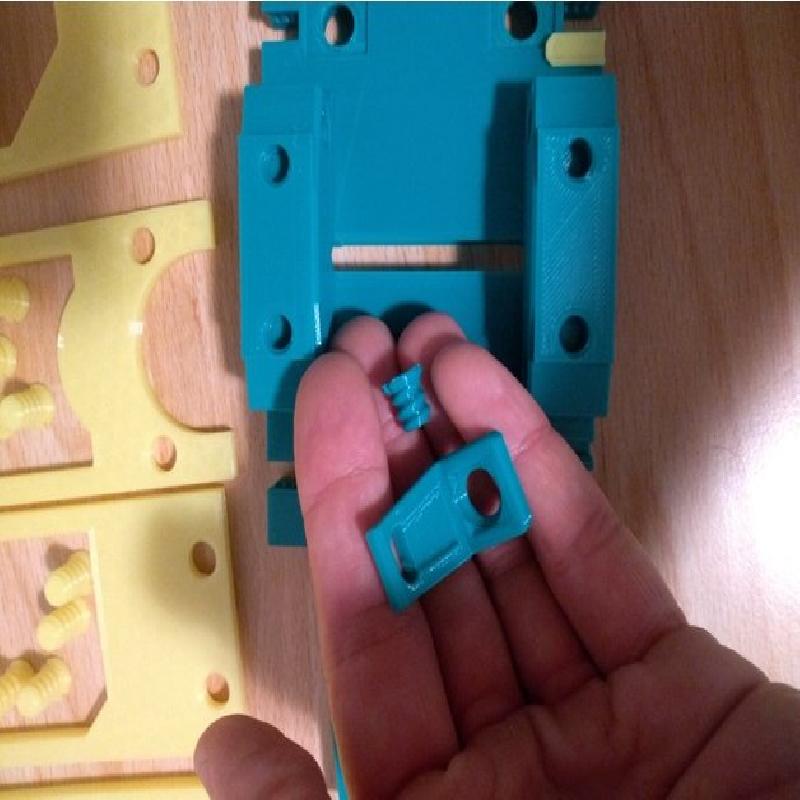

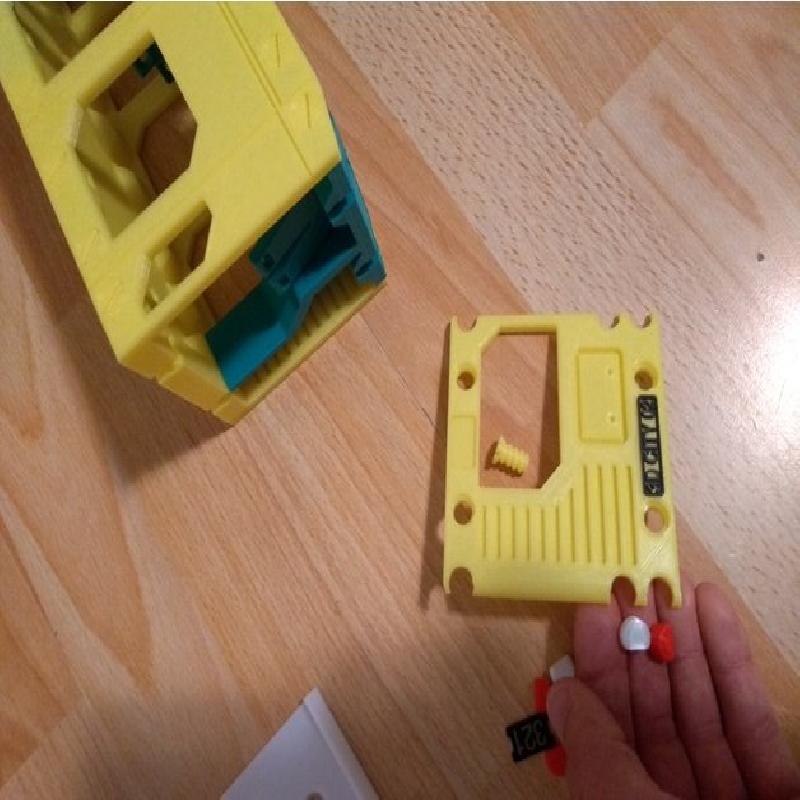

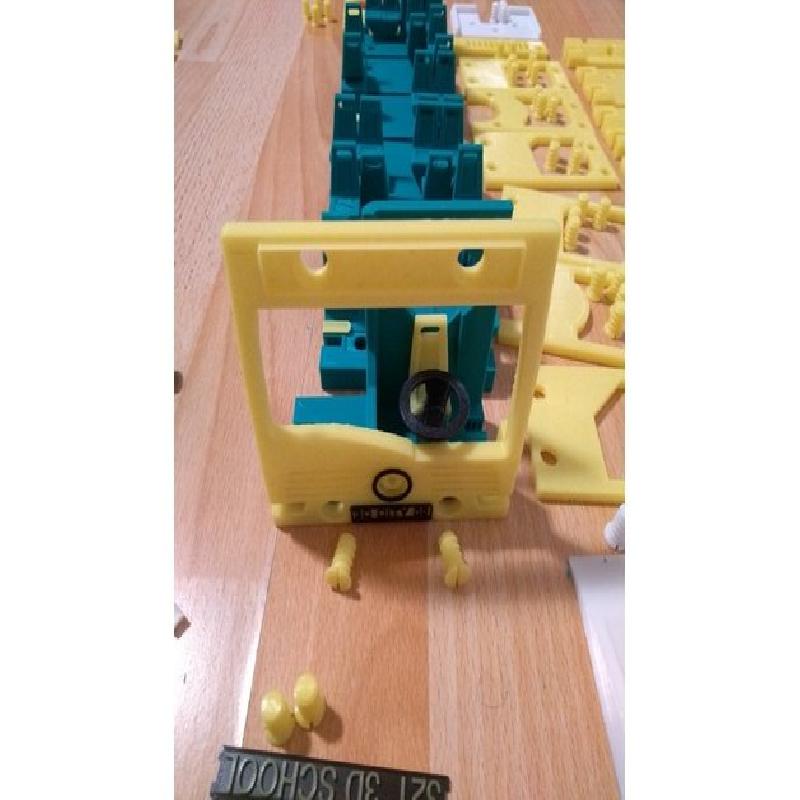

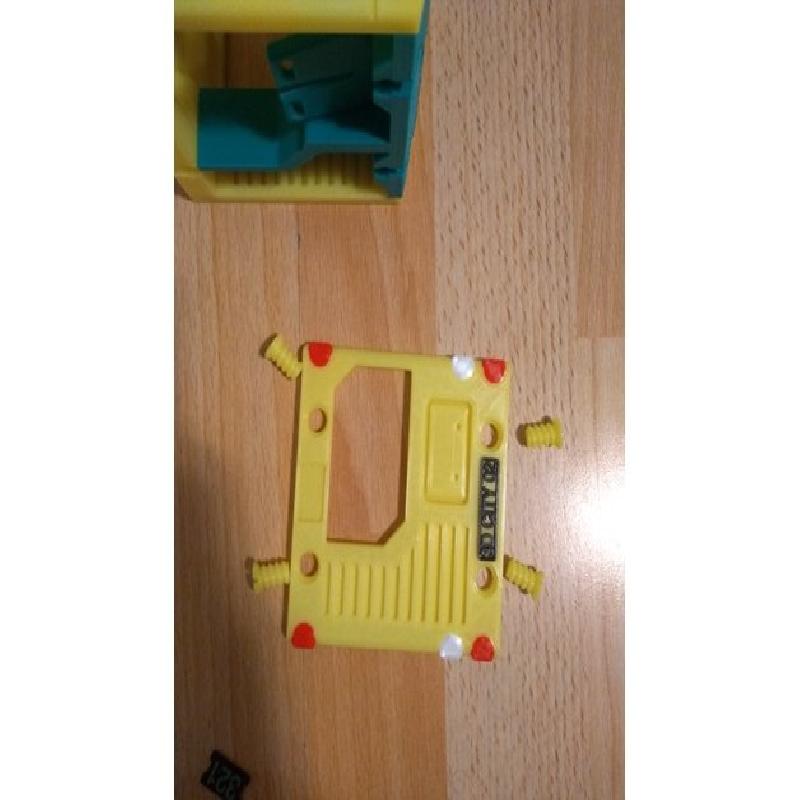

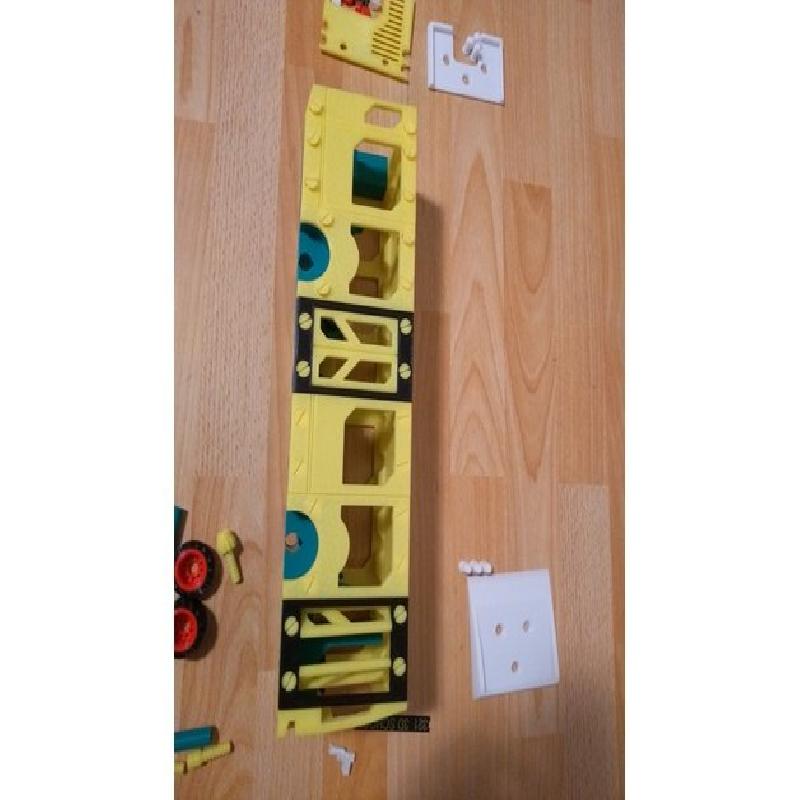

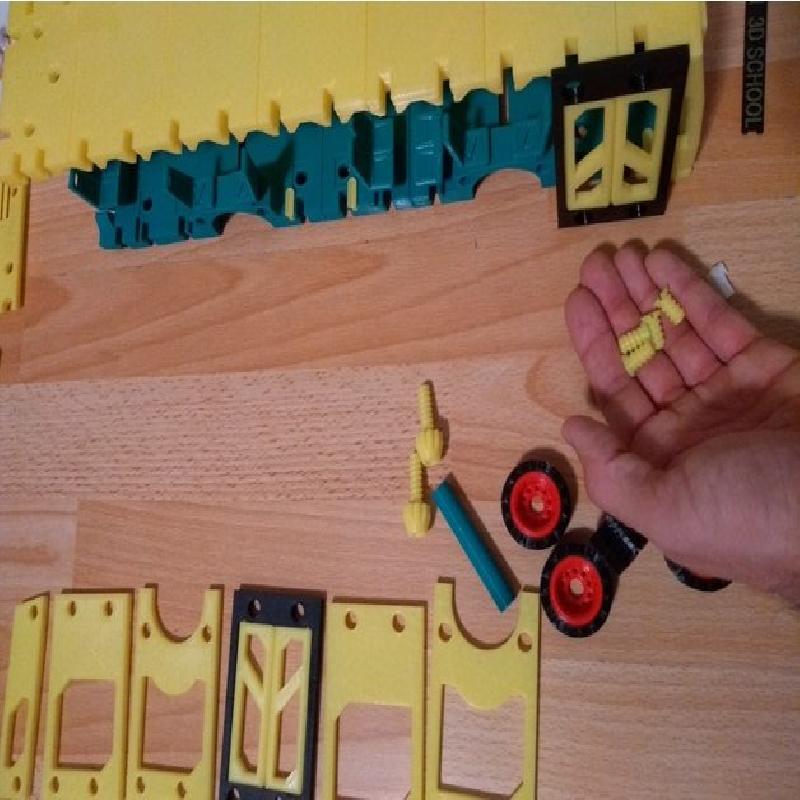

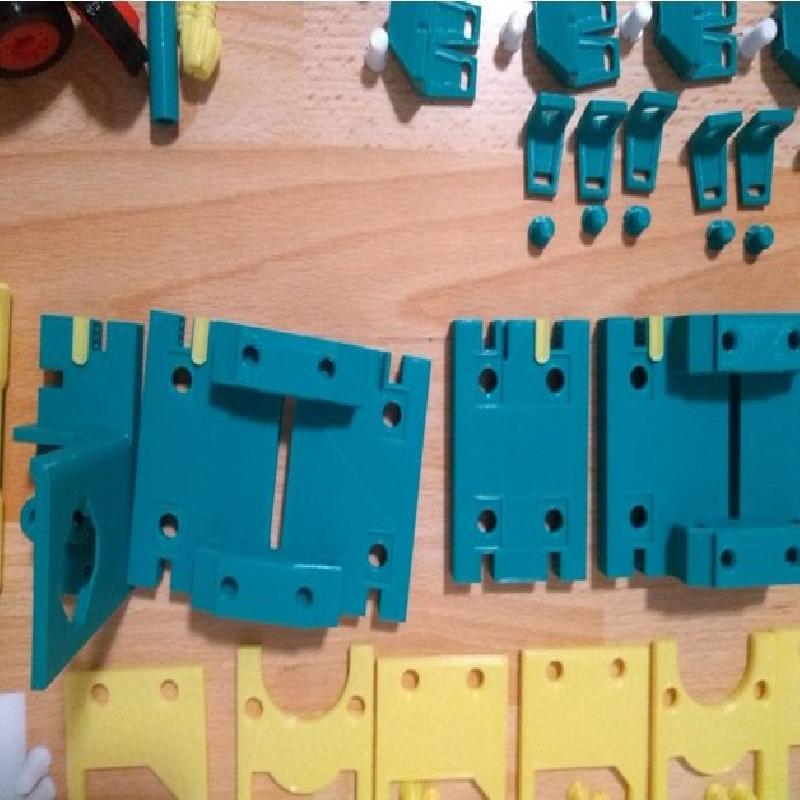

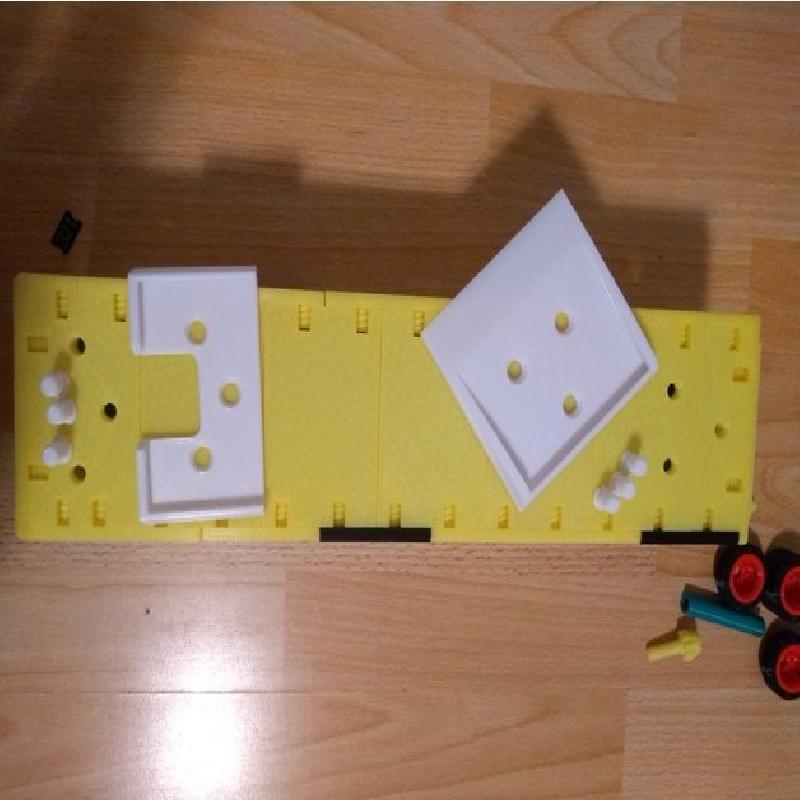

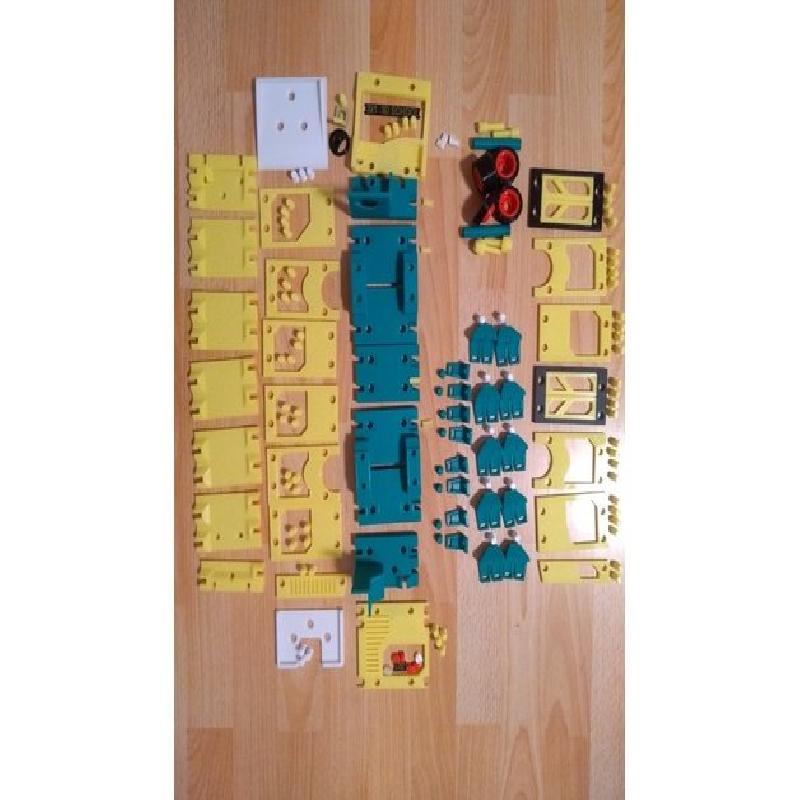

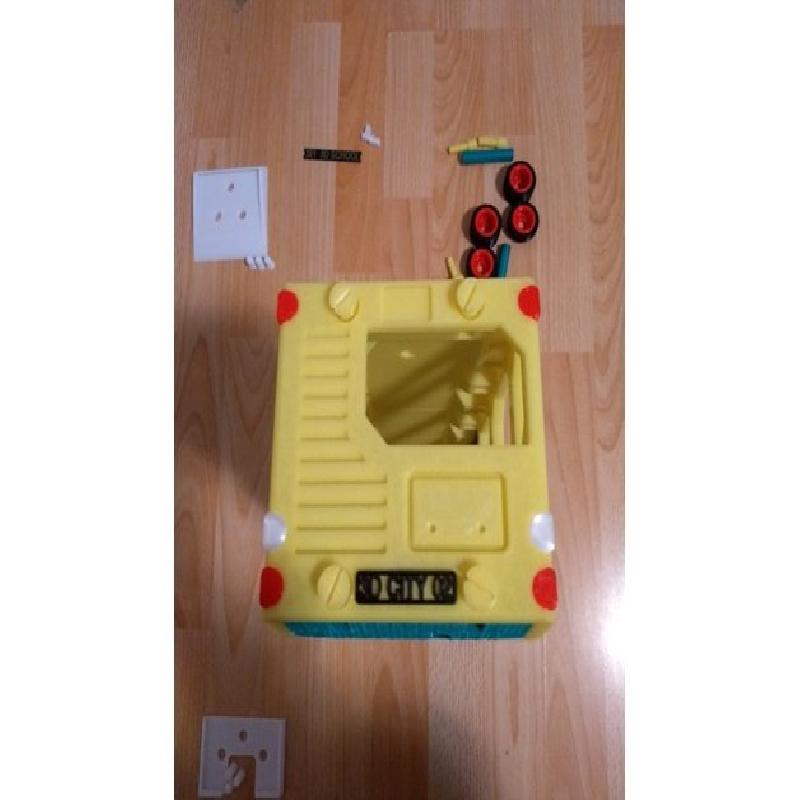

For the model assembly see the uploaded pics, starting from the one with all the pieces laid out. If something is not clear, just ask.

Print Settings

Printer:

Creality CR10 mini

Rafts:

Doesn't Matter

Supports:

No

Resolution:

0.12 to 0.20

Infill:

0.15 to 0.25

Filament:                                            cheap PLA cheap PLA
