I created this for the request of my son.
The idea and the shape is come from a book (Paper Engineering & Pop-ups For Dummies).
On the page is a photo about a "penguin party". Because there is just a small grayscale photo, I needed to start from scratch.

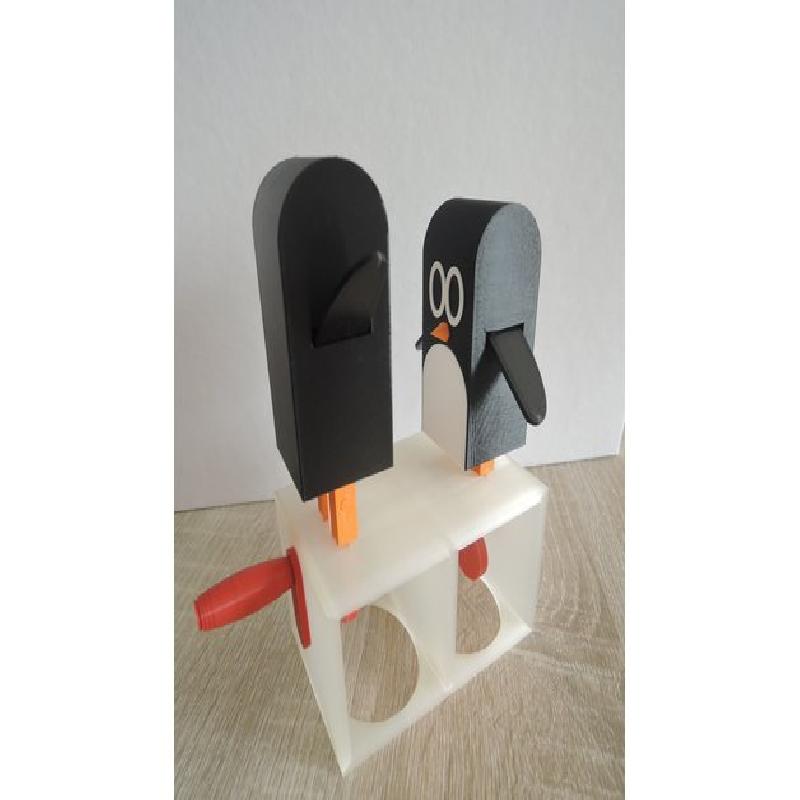

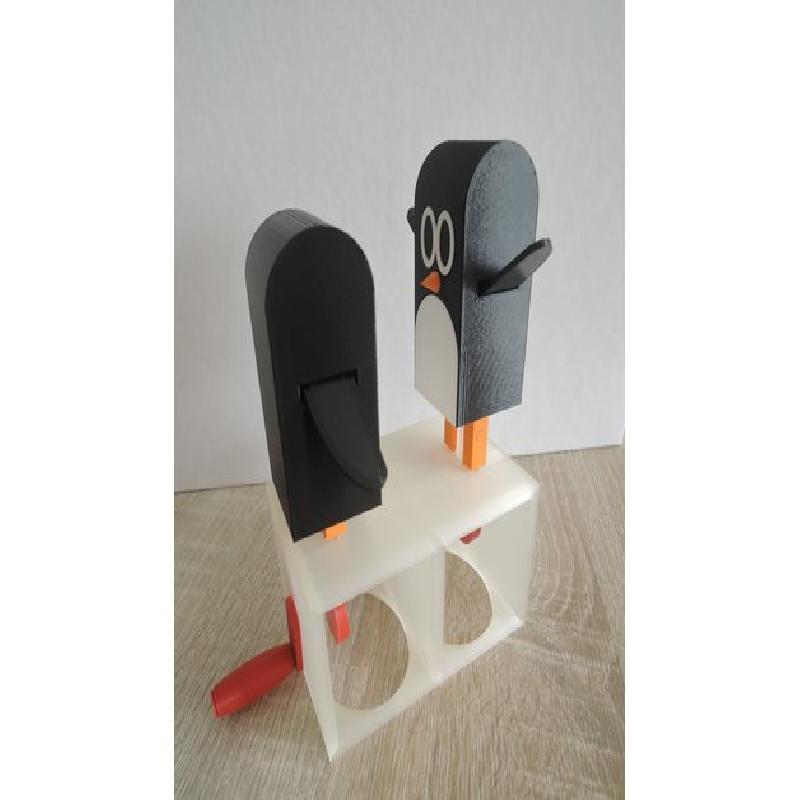

Turn the handle and the penguins start dance (so.. just jumping, and lifting their wings)

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK3

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

15%

Filament:                                            bq pla

Notes:

You need to print:

• 2x body (black)

• 2x wings (black)

• 2x eyes (white)

• 2x front (white)

• 2x beak (orange)

• 2x holder (orange)

• 2x follower

• 1x box (print on back side)

• 1x mechanic parts

Assembly

Penguins

First need to assembly the two penguins:

Holders and the wings

Put the holder (hook pointing outside) into the penguin from bottom.

1, put the holder, 2 put the wing and hook on hook, 3, pull the holder (the wing need to moving up too)

push the second holder. need to pay attention to the directions: the small triangle on the bottom point outside

Push (and glue, if needed) the rest together.

Assembly the box

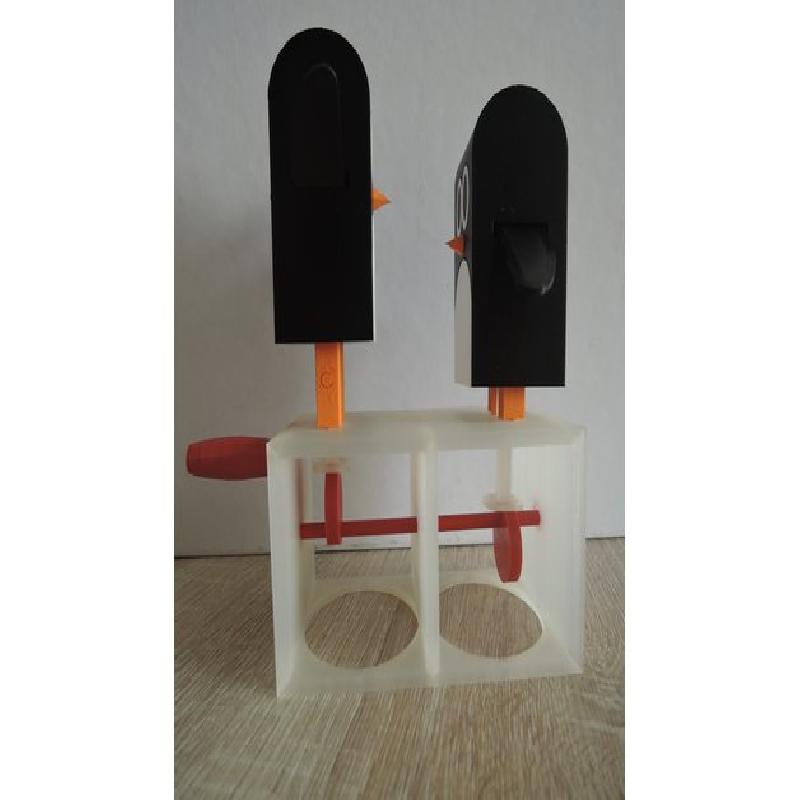

• put the follower the small holes from bottom

• push the longest axis in the hole of the middle.

• push the two cam each end of the axis (need to be opposed) (glue is needed)

• push the two short axis to the hole in the box, and in the cam (glue inside the cam if needed)

• one edge put the small ring

• another edge build the handle:
  ++ push the axis inside the handle
  ++ push (glue) the axis inside the crank
  ++ push the crank (glue) to the end of cam axis.

Final assembly

• glue the follower inside each penguin

• glue the holders into the holes on the box (the penguins face each other)
