by rednom96

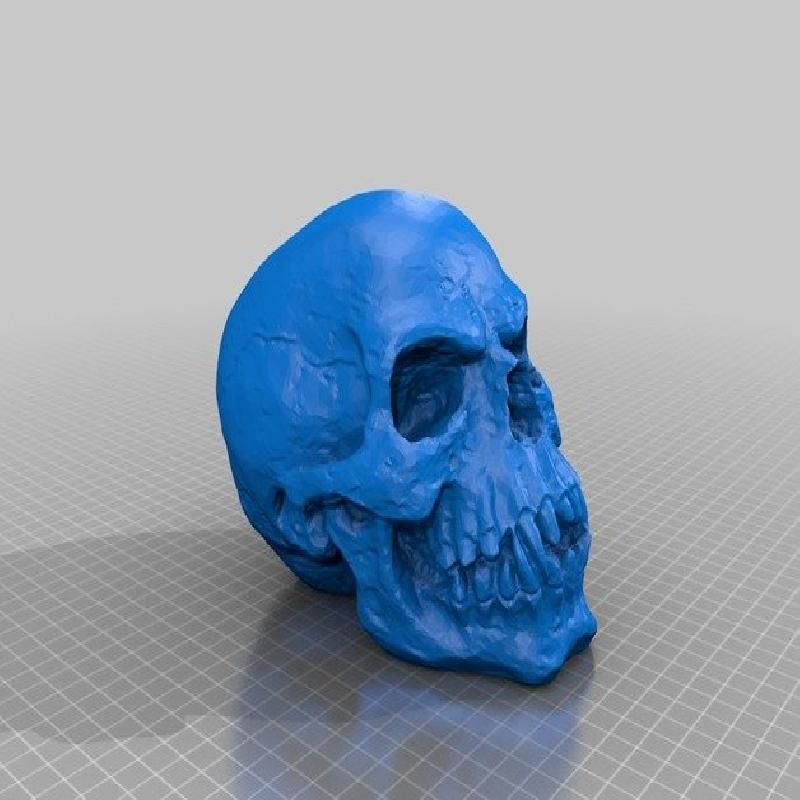

I was asked to make an active acquisition of a Skull model my friend found lying around his house. We used a Leica laser scanner back at University. The alignment, cleanup and meshing was done on Polyworks. The rendered model was intricately detailed given the resolution of the scanner. I decided to print the final .obj file to test the capabilities of my Ender3. I was genuinely surprised to see such good results. I was especially amazed at the resolution of the nose (or lack thereof) hole and the eye-sockets.

A few suggested this would be a good Halloween model to print and I must agree. And if your printer manages to print it as well as mine did, or better, consider sharing it.

I hope you like it. And PLEASE POST YOUR MAKES!!!! Would love to see them!

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

Doesn't Matter

Supports:

Yes

Infill:

20%

Filament:                                            3D Hero PLA                                        White

Notes:

I printed this with :
1) A 0.15mm layer height at 60mm/sec
2) 205 C nozzle and 60 C on the bed
3) At 0.25 scale (if I'm not wrong)

The whole print took me about 6 hours.

Overview and Background

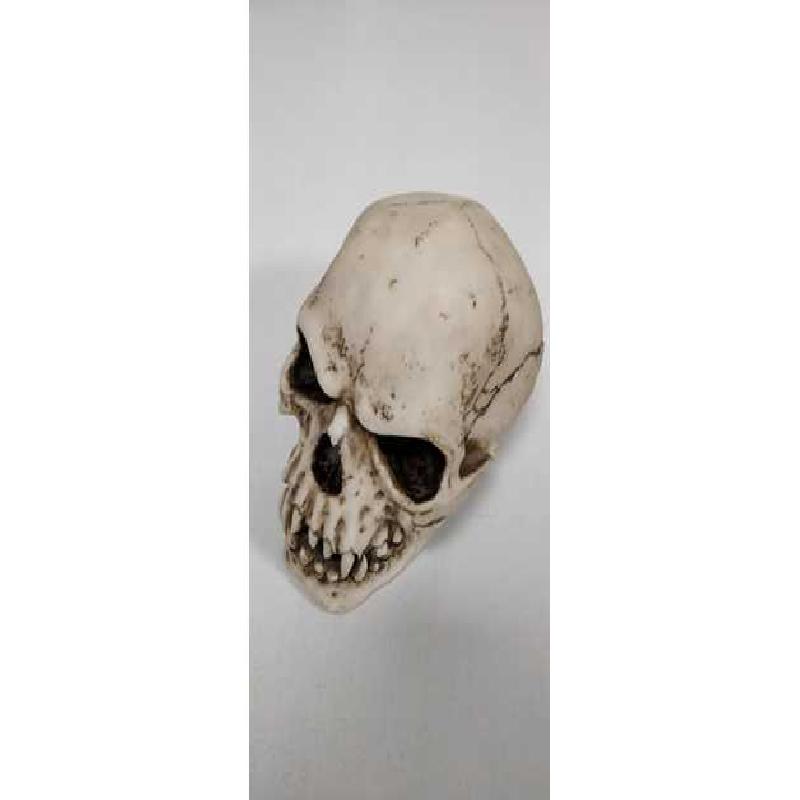

The original skull model we scanned

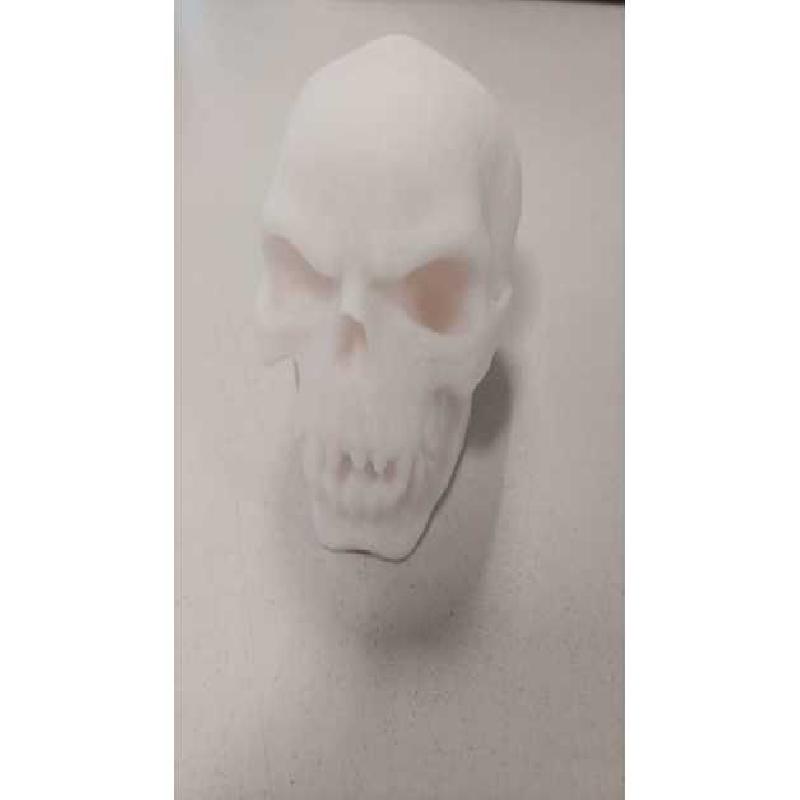

Final Prints
