by TurbulentSphere

This is a small model based on Virgin Orbit’s LauncherOne vehicle (RC 747 not included): https://virginorbit.com/
It is designed to fly on standard 13mm motors.

Additional required materials:

• CA glue

• 2 foot streamer

• 2 feet of Kevlar thread

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK2S

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

0.1mm - 0.2mm

Infill:

100%

Filament:                                            Hatchbox PETG                                        White

Notes:

It is recommended to print all rocket components using PETG. The infill should be solid to achieve the proper nose weight.

Post-Printing

Assembly

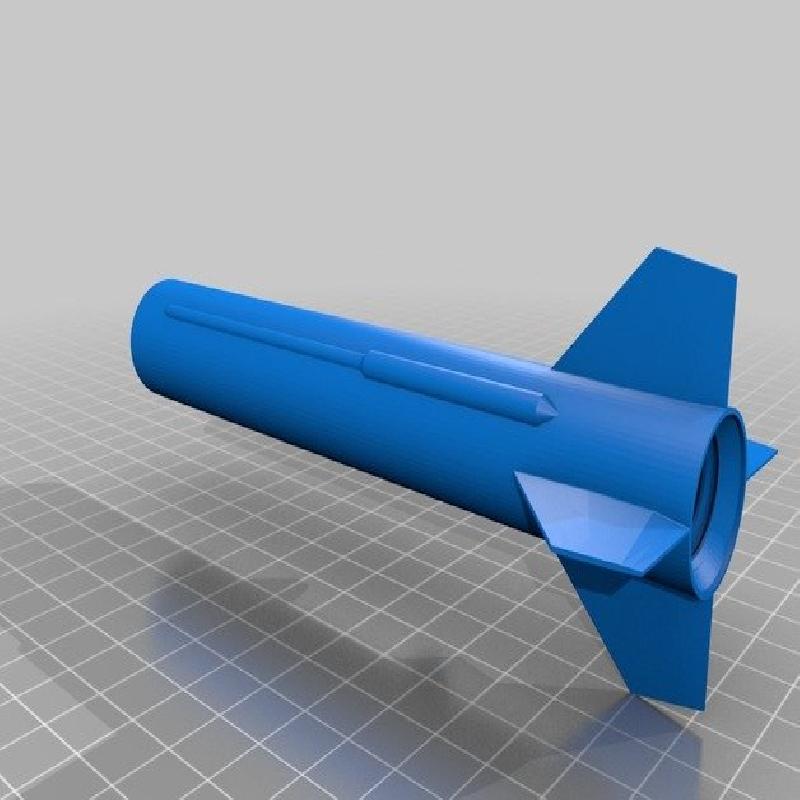

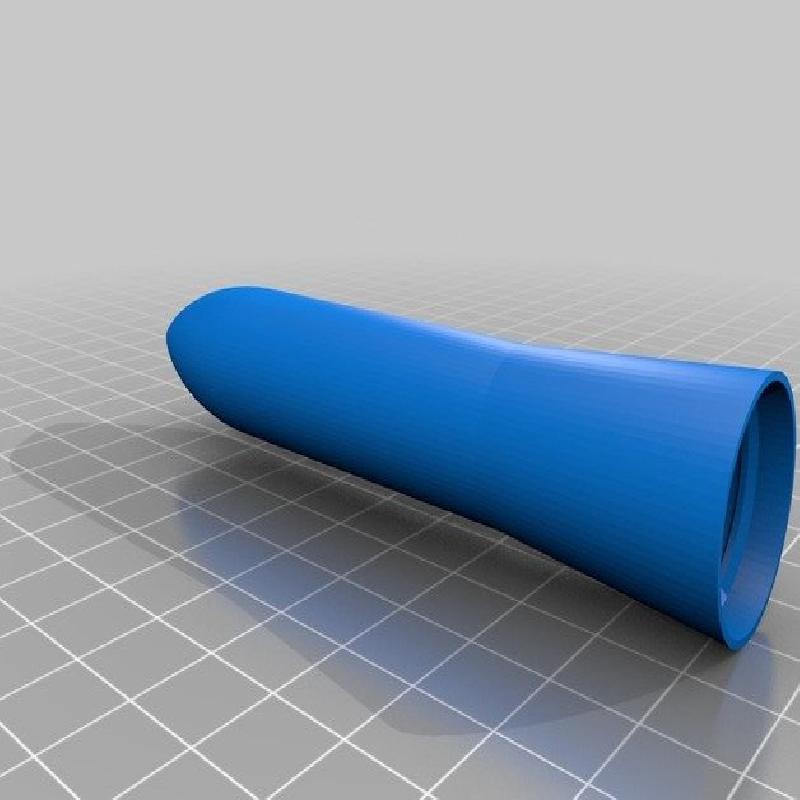

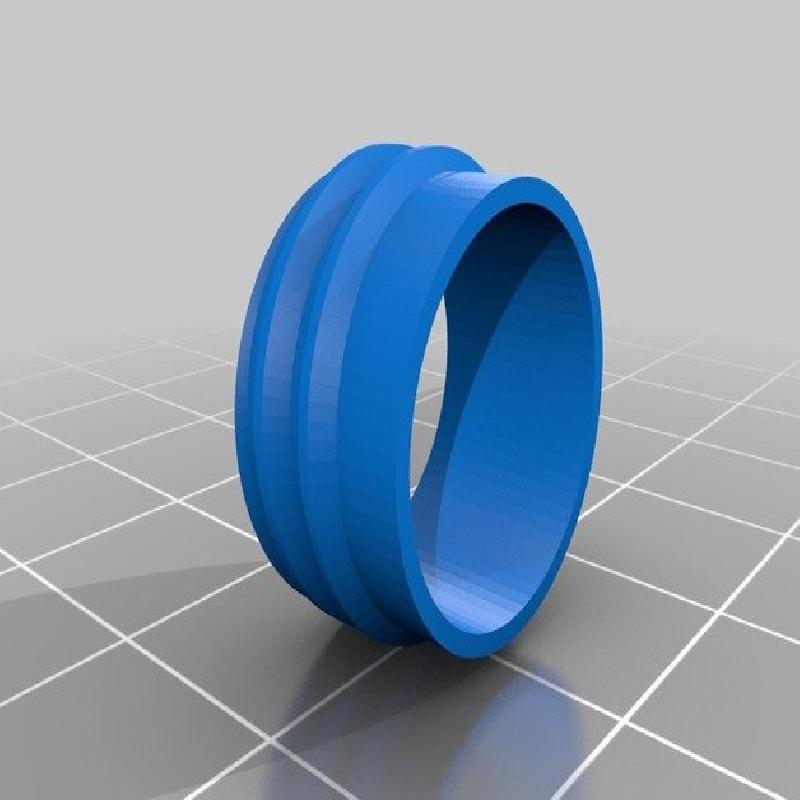

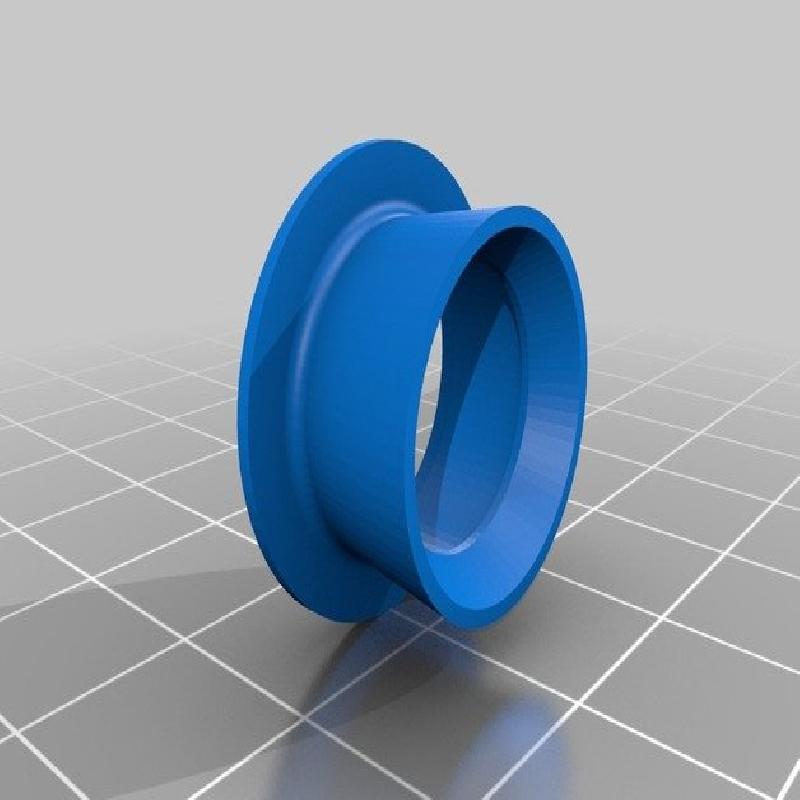

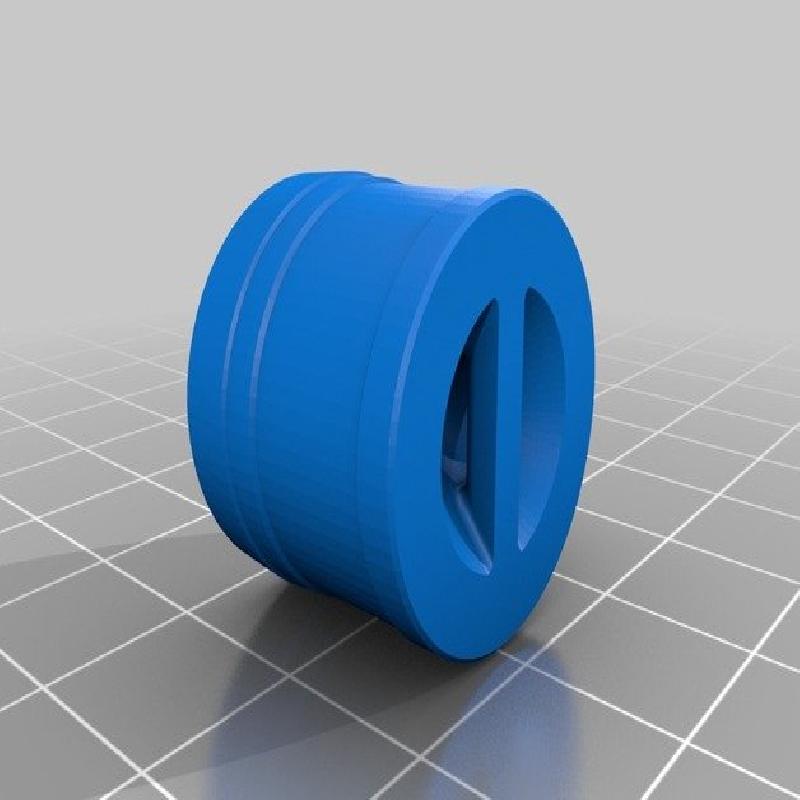

Glue the coupler and nose sections together with CA glue or similar. Tie one end of the Kevlar thread to the mount on the bottom of the coupler and tie the other end to the mount inside the body tube. Tie the streamer to the shock cord about 6 inches behind the nose cone. Glue the nozzle and retainer sections together with CA glue or similar.

Flying

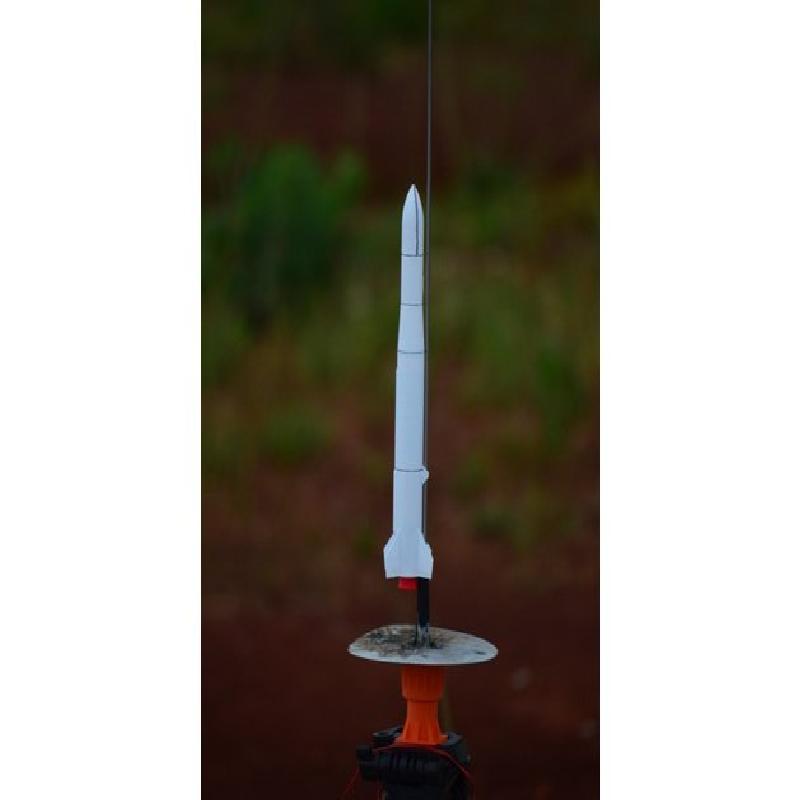

The rocket has been test flown on an Estes A3-4T.

Place the motor into the retainer, and thread it into the base of the rocket until snug. Place 1 sheet of loosely packed recovery wadding into the body tube, followed by the folded streamer and nose cone. The rocket is now ready to fly!
