Summary

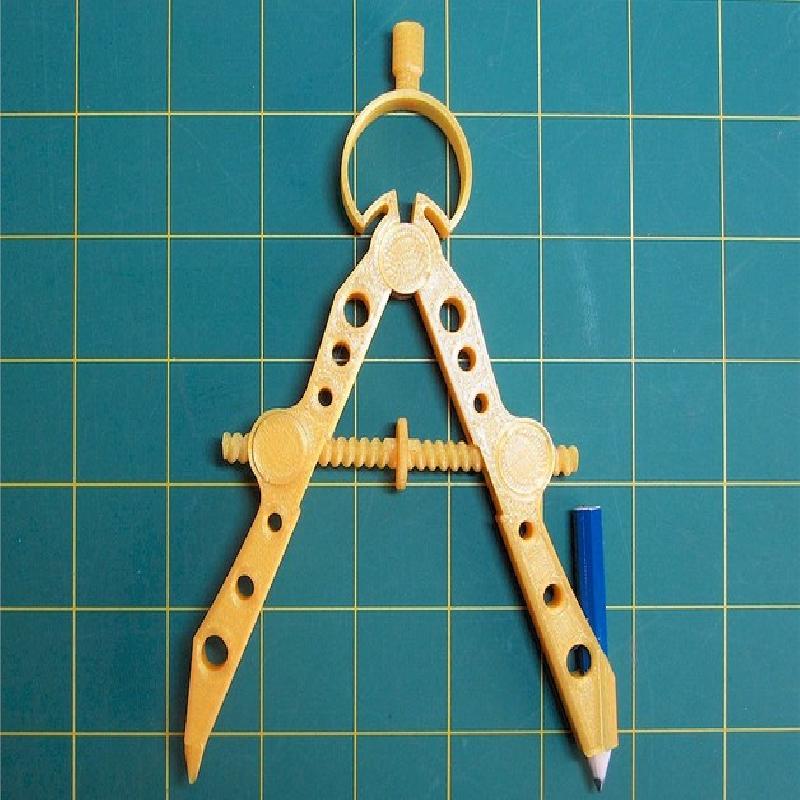

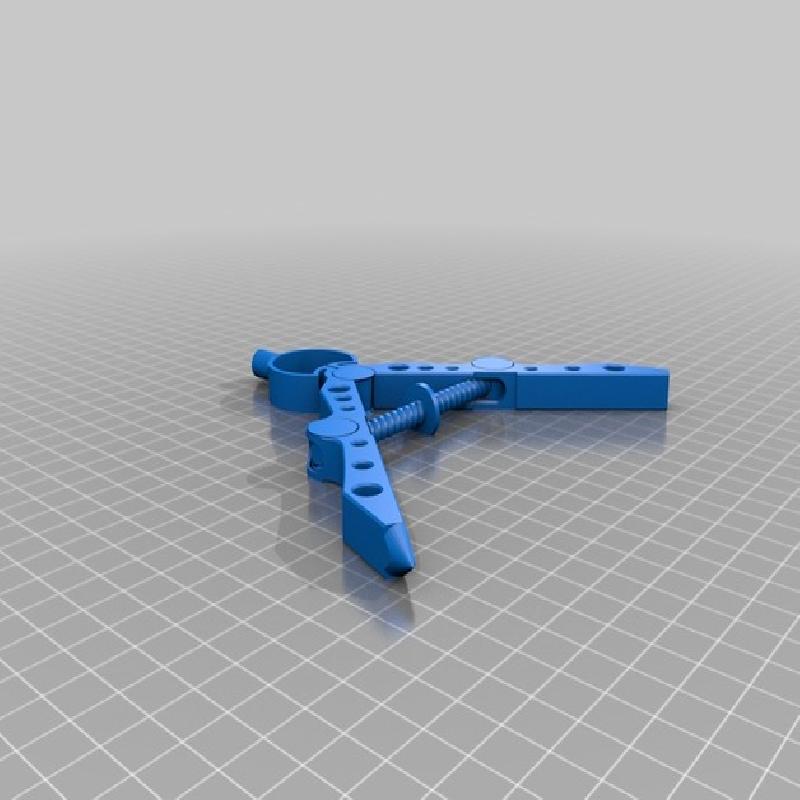

Modeled after precision drafting compasses, this 3D printable one prints as a single piece, pre-assembled! It uses a standard 6-sided pencil.

Print Settings

Printer Brand: MakerGear

Printer: M2

Rafts: No

Supports: Yes

Resolution: 0.2mm

Infill: 20%

Notes:

For best results, set your line width to 0.4mm and print slowly.

Post-Printing

Remove the support material carefully. You'll need to pick it out of the nooks and crannies with a pointy tool or x-acto knife. Then, gently grab the adjuster screw with some small pliers and twist it back & forth slightly to break it free from the pivots. Once free, run the screw back & forth until it operates smoothly. Insert about a 1 1/2" length of pencil and start drafting!
