by Hvmhvm, published

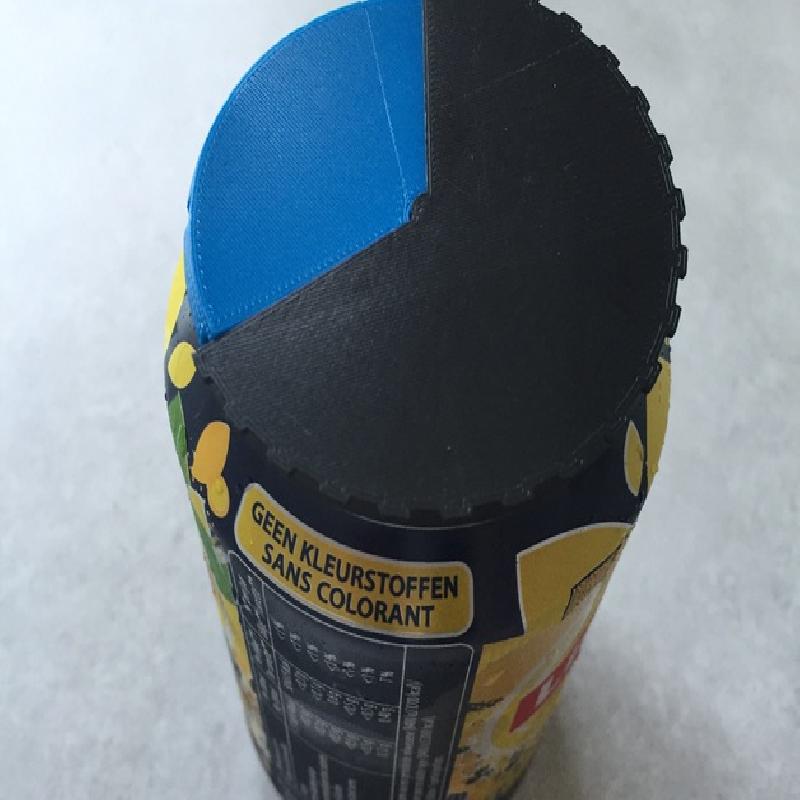

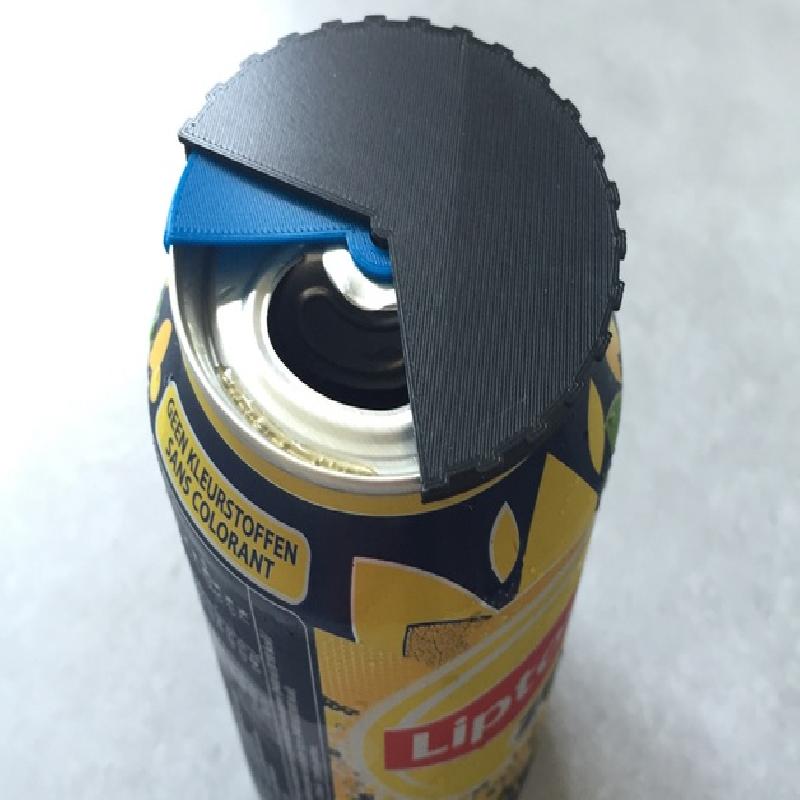

I designed this after hearing about people almost dying from a wasp sting that got in their mouth when drinking from a can of soda. the solution is a lid that clicks on a soda can with a rotating top lid so you can open it when you want to drink, and close it when you are not, keeping wasps and the like out of it.
UPDATE: added serated edge for better grip when opening with index finger, and slightly thicker connector for more strength (may need to update further)
UPDATE 2: changed form of connector slightly for a better connection
Printer: Cubicon Single
Rafts: No
Supports: No
Resolution: 0.15 mm layer height
Infill: 100% infill
Notes:
Printed (upside down) in Cubicon ABS, on a heated bed at 110 degrees celsius and a nozzle temperature of 240 degrees celsius.
Click the top lid on the bottom lid, and click the both of them on an open can of soda.
Designed in Onshape (link to design files).
