by R0undDad
Quote from Namoi Wu's post:
"You are welcome to use this scan for your own projects but kindly remember it is of a real person who will probably see the end result. Be nice."
Also thinking of others who might like to have a Safe(r) For Work version of her. I also wanted to learn how to remix other STL files that I have seen around.
I used her "Update 8/30/15: I've uploaded a much nicer version of the cleaned up scan provided by ESUN. This does not have the distorted face the older file has. It's labeled "best version". They also provided the texture file which is in the zip archive."

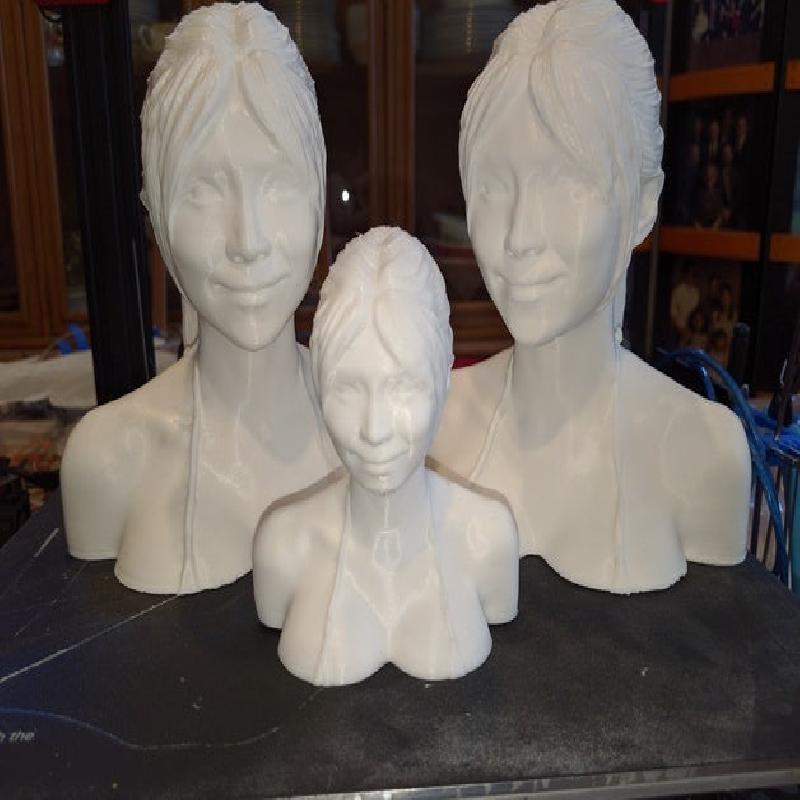

Then using Netfabb I scaled it up to be 300mm on the X axis and removed the lower part of the model.

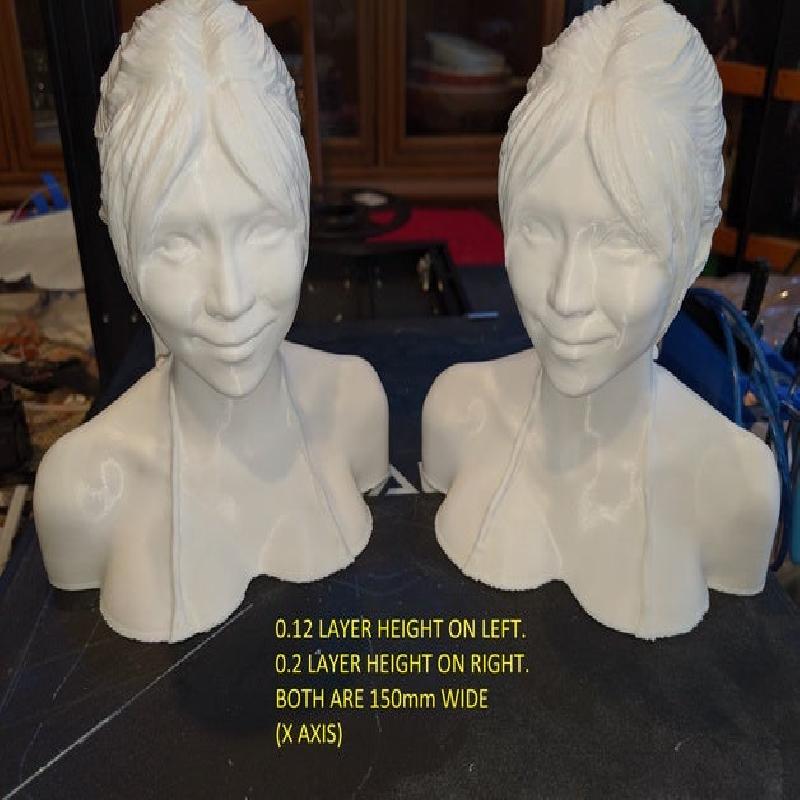

I sliced the STL with Cura 4.3 in both Super quality and Low quality.
I'm getting an odd 1st layer so until I get this fixed it will stay a "Thing in Progress".
Naomi, Thanks for your reviews on YouTube and for inspiring others to get involved in MAKING.
Printer Brand:
Creality
Printer:
CR10S PRO
Rafts:
No
Supports:
Yes
Resolution:
0.2 and 0.12
Infill:
10%
Filament: Overture PLA White
Notes:

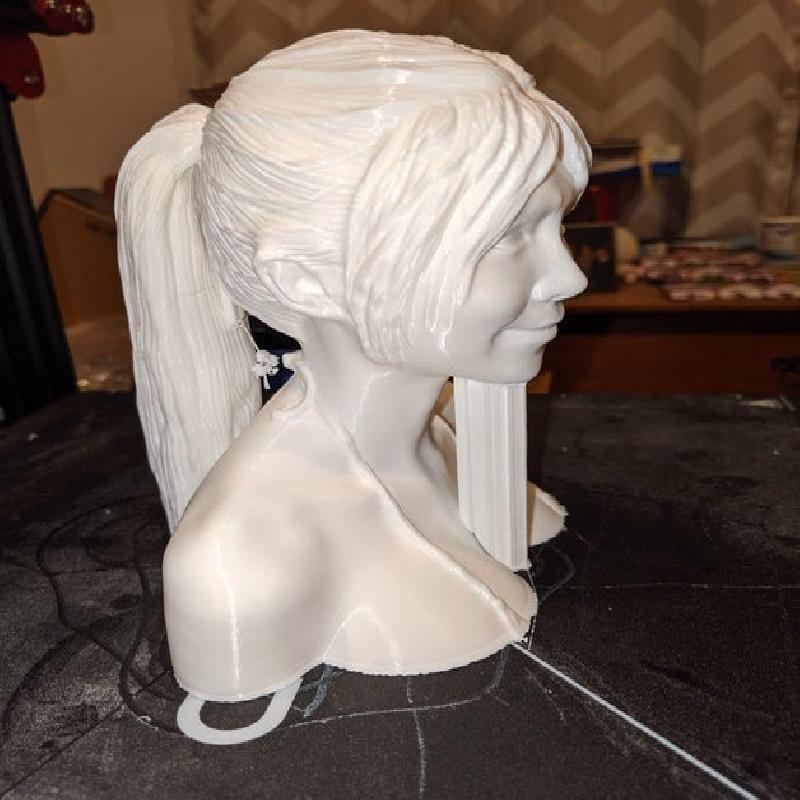

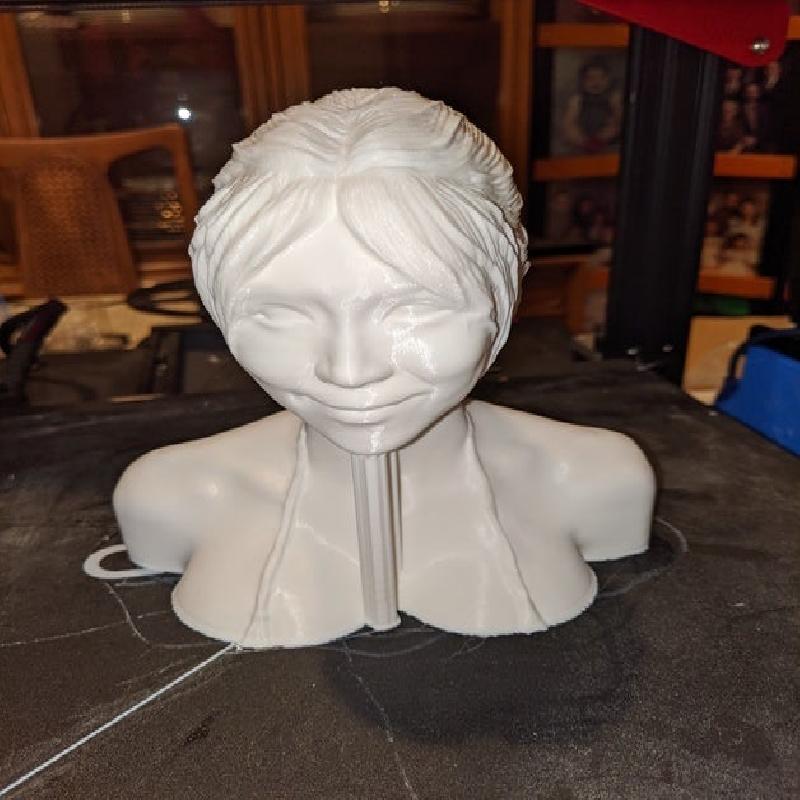

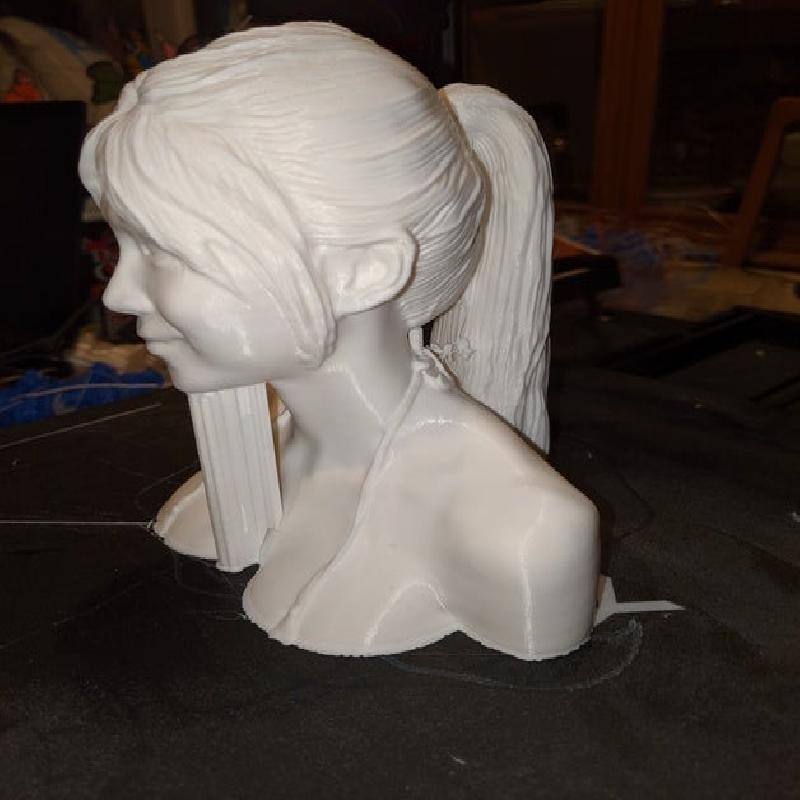

Supports "EVERYWHERE" at 70 to 80 for best results under chin area.
Super quality settings
LAYER HEIGHT 0.12
INITIAL LAYER 0.28 (It still prints oddly)
LINE WIDTH 0.4
WALL THICKNESS 1.6
WALL LINE COUNT 4
Z SEAM CORNER PREFERENCE - SMART HIDING (worked really well)
INFILL DENSITY 10%
PRINT TEMP 200C
PRINT PLATE TEMP 50C
( My machine ignores slicer speed settings but others might like to know these settings)
PRINT SPEED 50mm/s
INFILL SPEED 50mm/s
WALL SPEED 25mm/s
SUPPORT SPEED 25mm/s
TRAVEL SPEED 150mm/s
INITIAL LAYER SPEED 100mm/s
COOLING ENABLED FAN SPEED 100%
