by dragonator, published
A toilet paper holder that can simply be refilled by pushing a roll of toilet paper from beneath. It is completely supportless and can be printed on almost any printer.
A quick demonstration:
http://youtu.be/n13LZ1clkAQ
To make this, you will need several things.

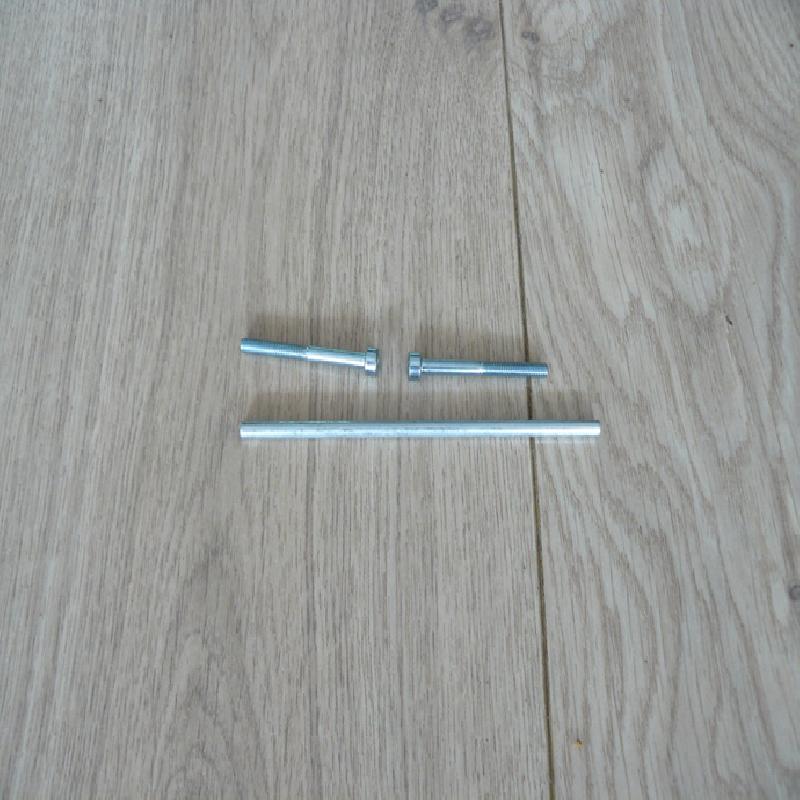

2 M4 30mm+ screws to secure the holder;
1 130mm 4mm axle to hold the lid in place;
All the printed parts supplied on this page;

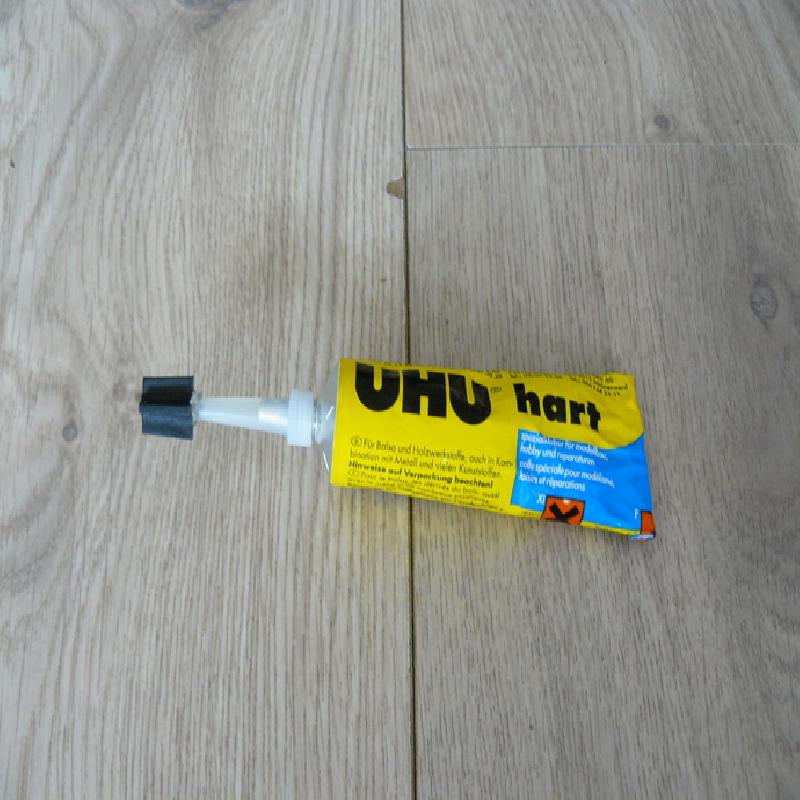

Glue;

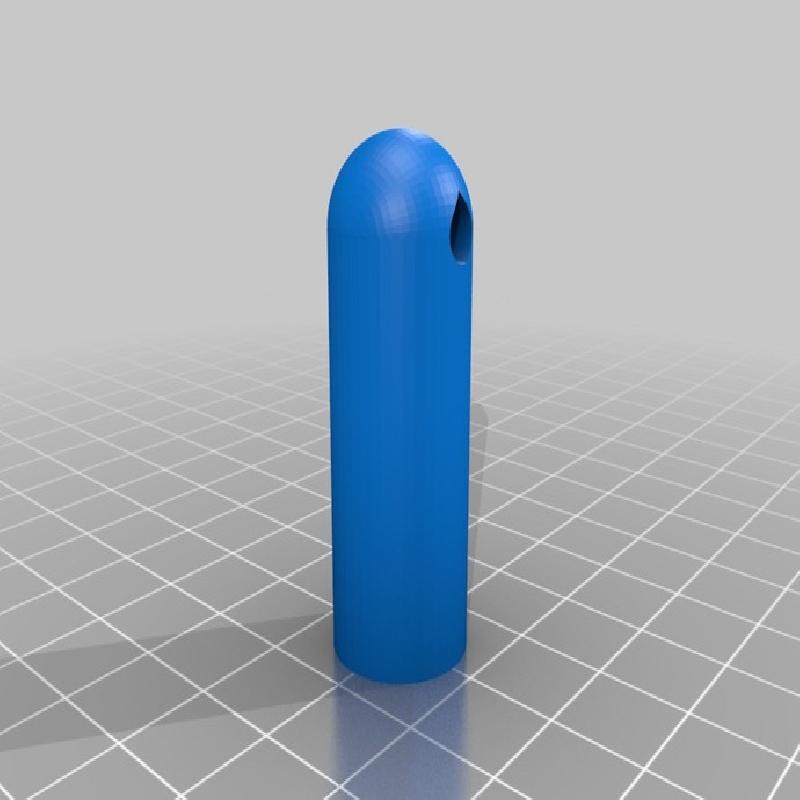

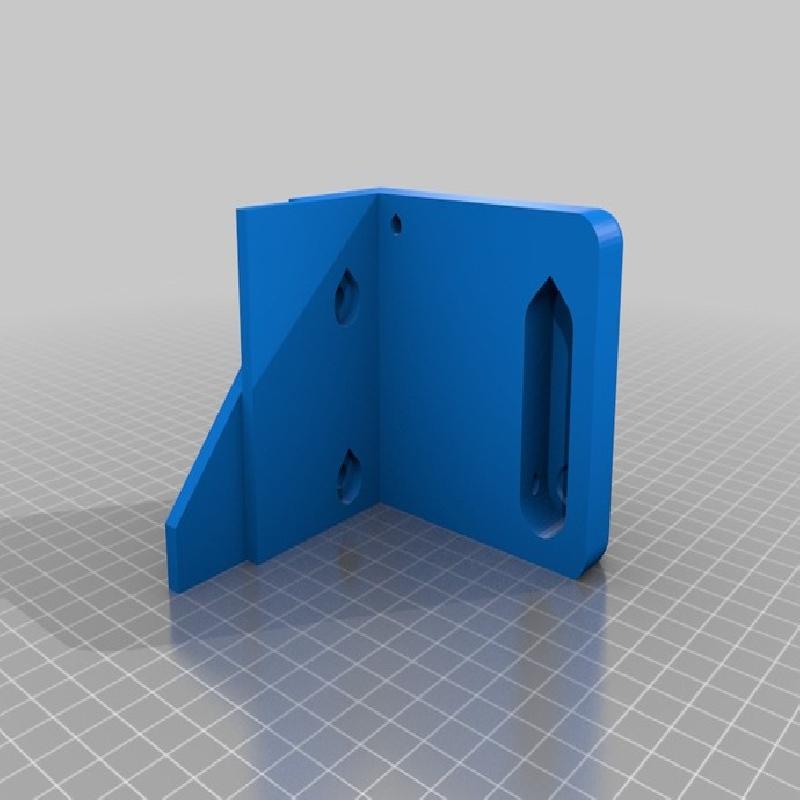

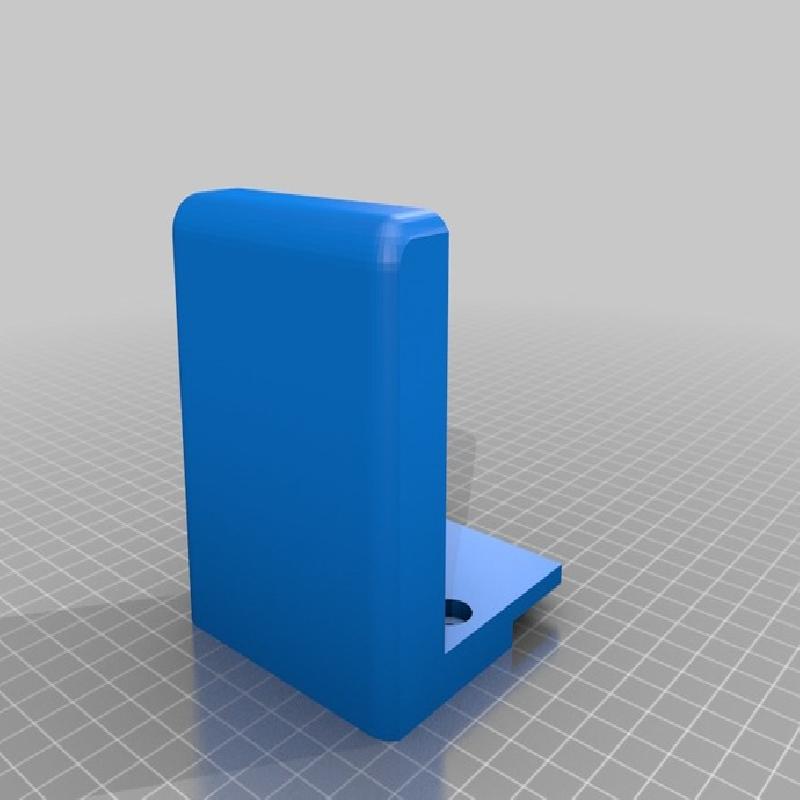

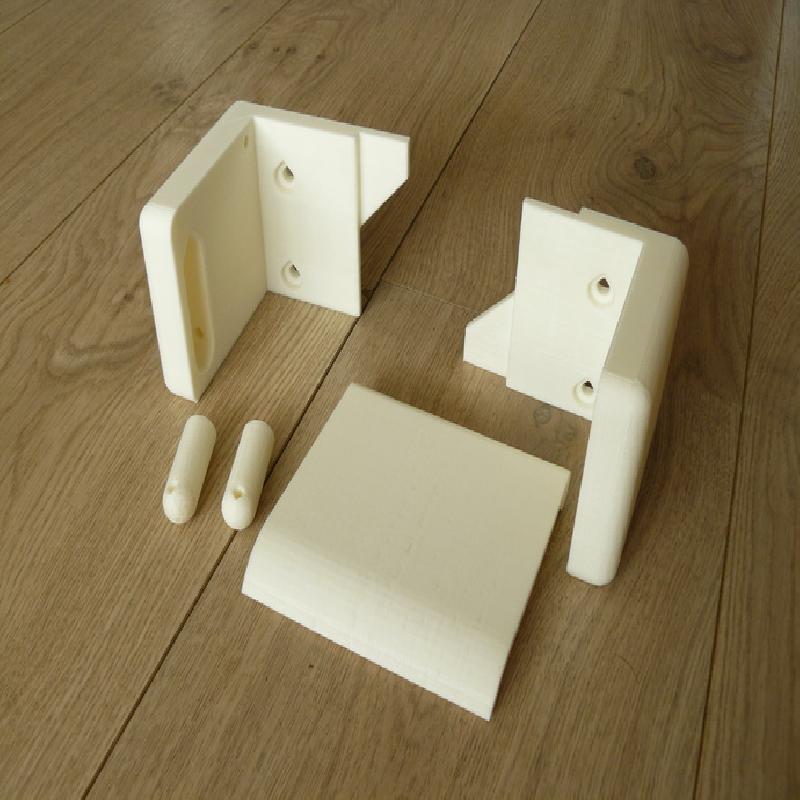

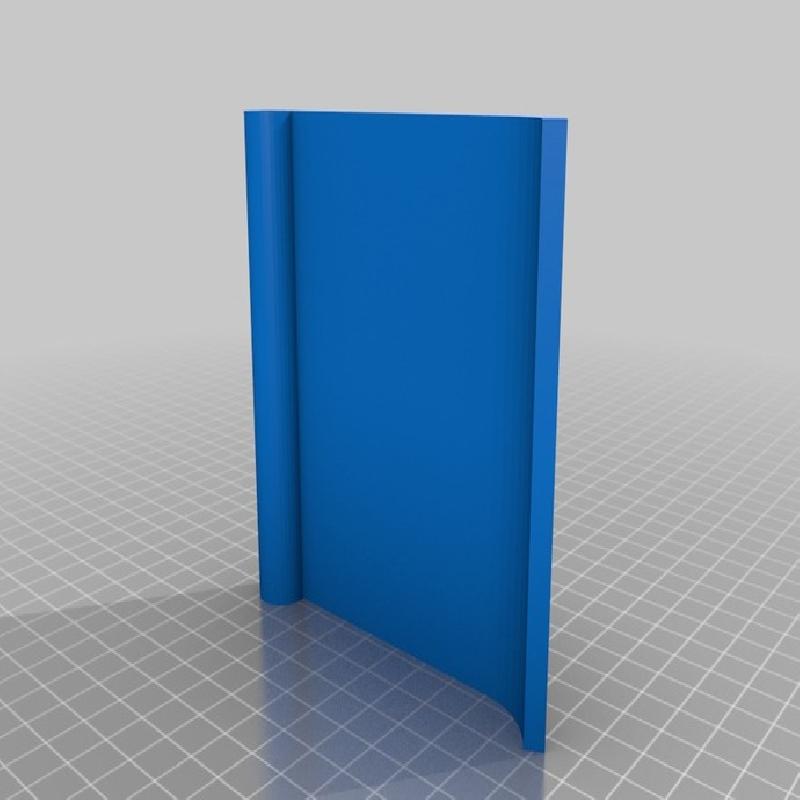

Print: 1 lid, 1 left side, 1 right side and 2 holders. The design is completely supportless and all parts are very easy to print.
mount the holders in either side by inserting them in the slots and securing them with a M4 screw inserted at the back. The screw taps in the plastic on the front side of the slot, so be careful with drilling the holes. The holders are slightly asymmetrical, the thicker side needs to go on the outside so they will naturally fall outward.

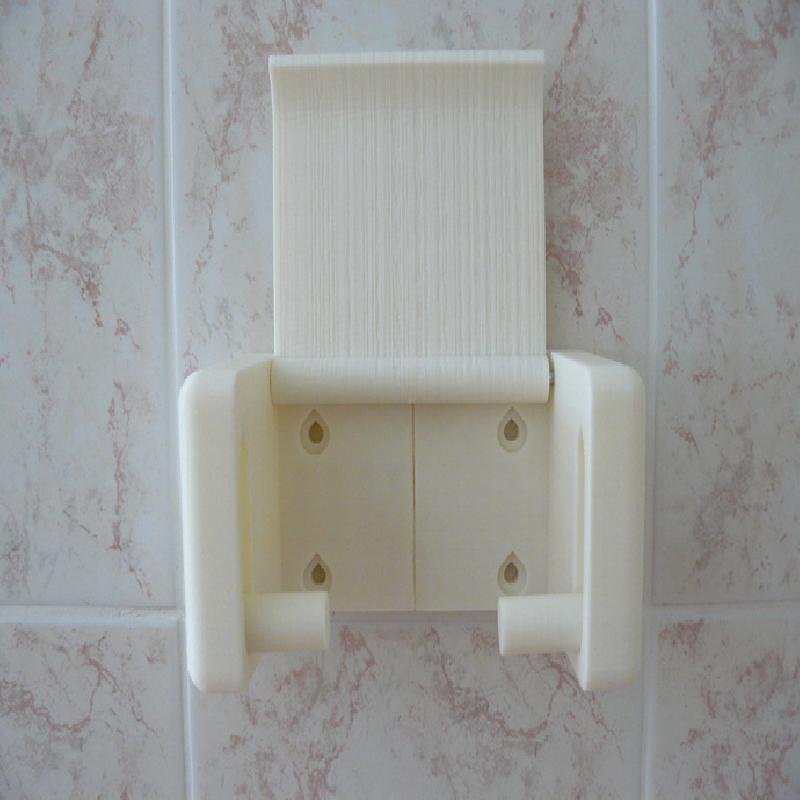

Mount the axle in the lid, then mount the lid between both sides. Glue both sides together when everything fits nicely. After this, you can mount the toilet paper holder to the wall of your bathroom.
