by Dnsn302, published

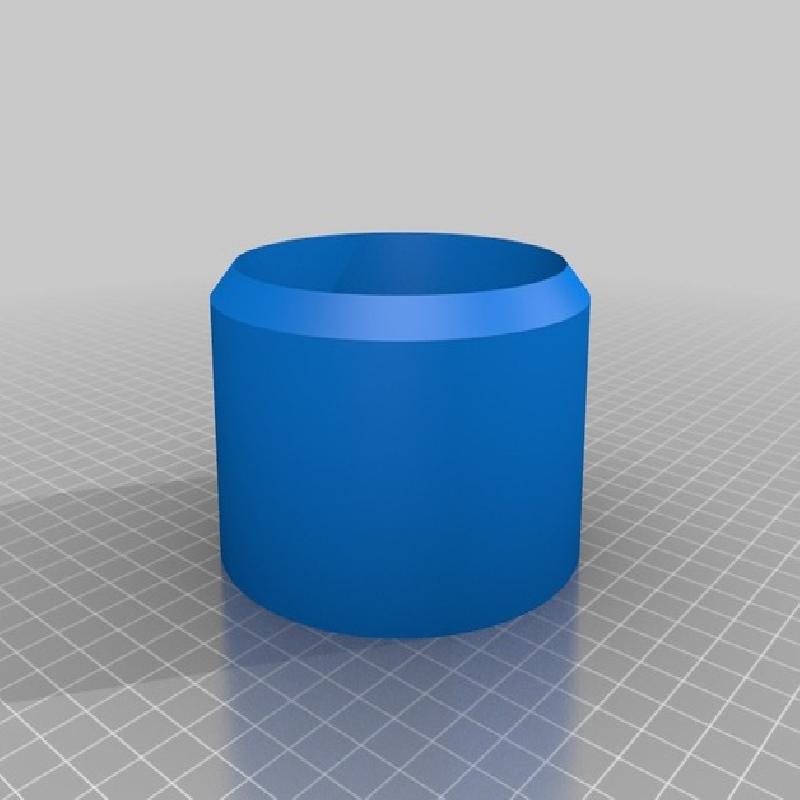

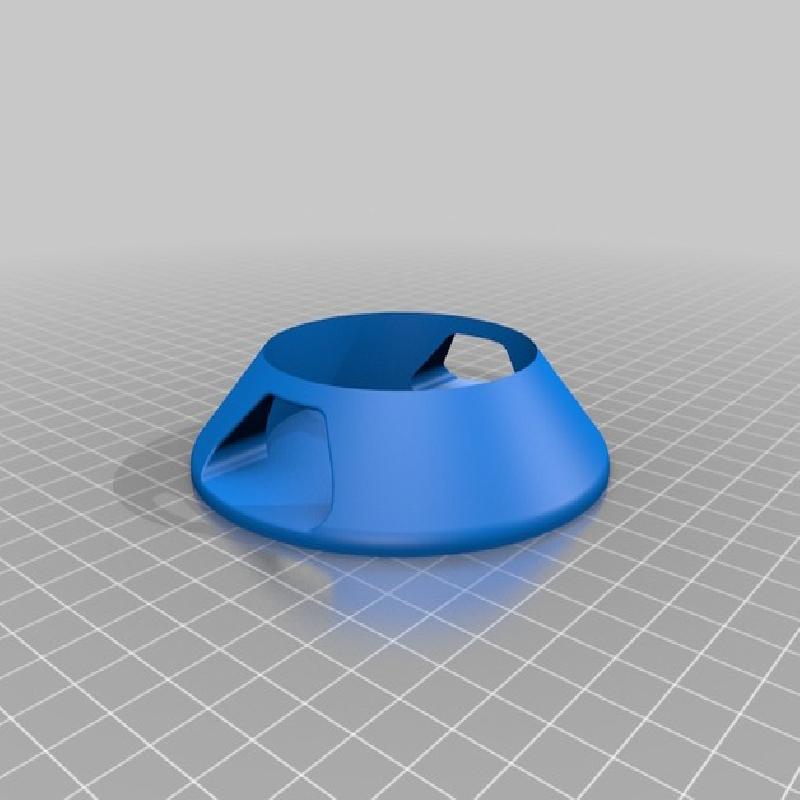

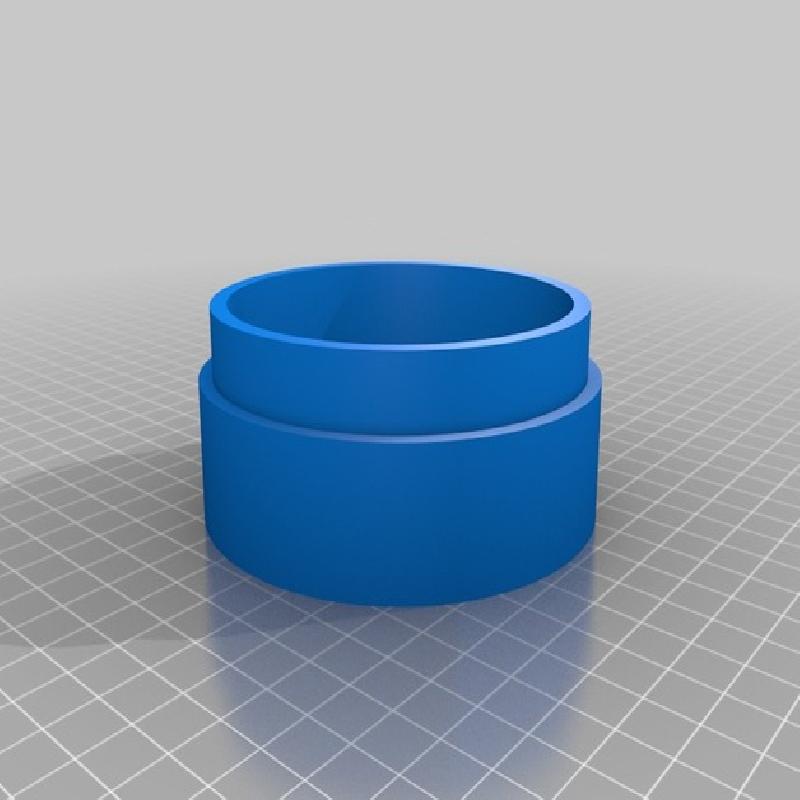

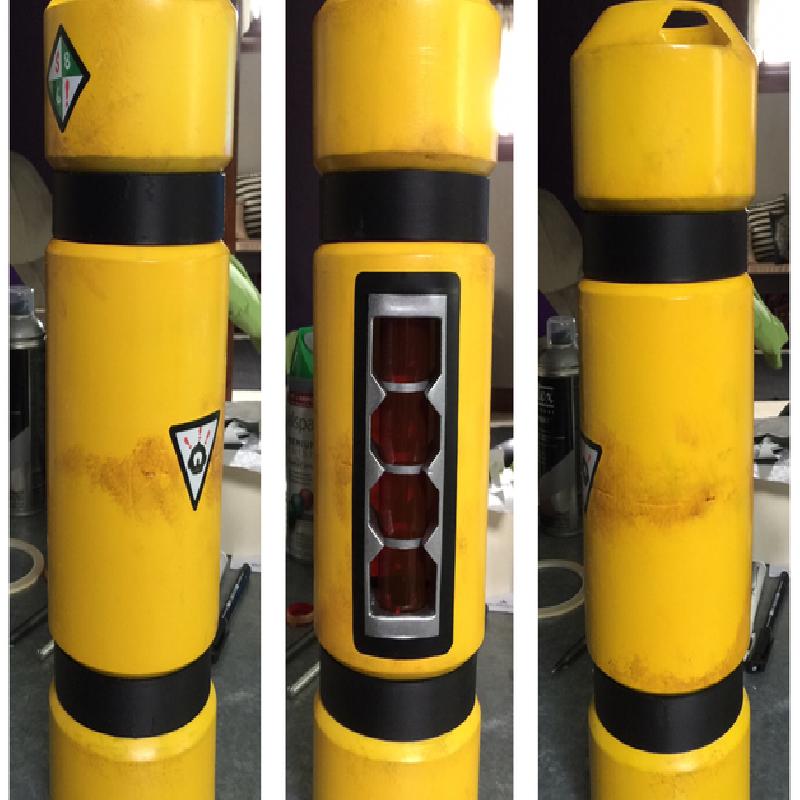

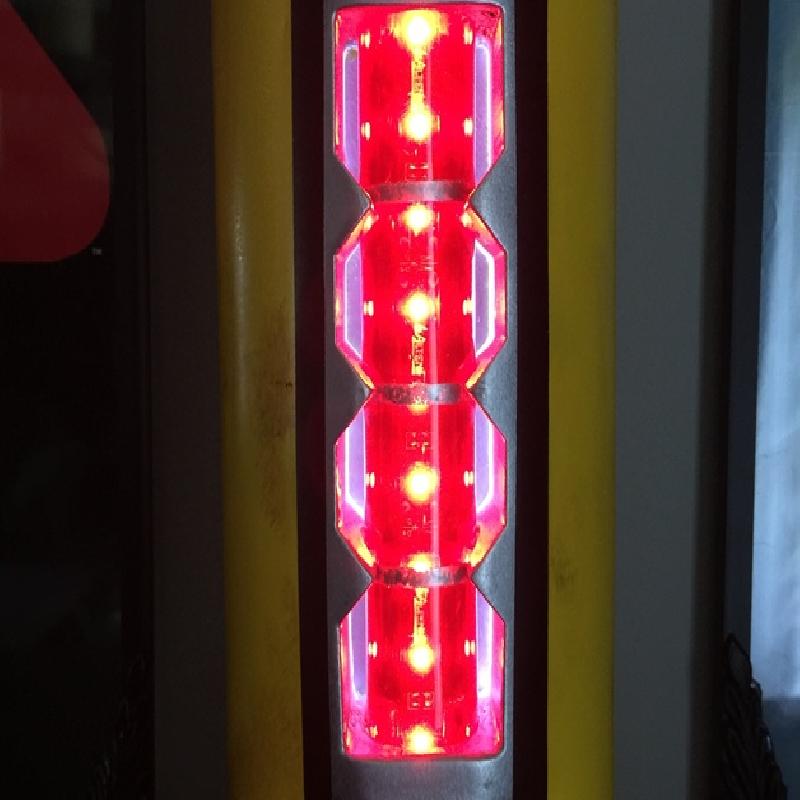

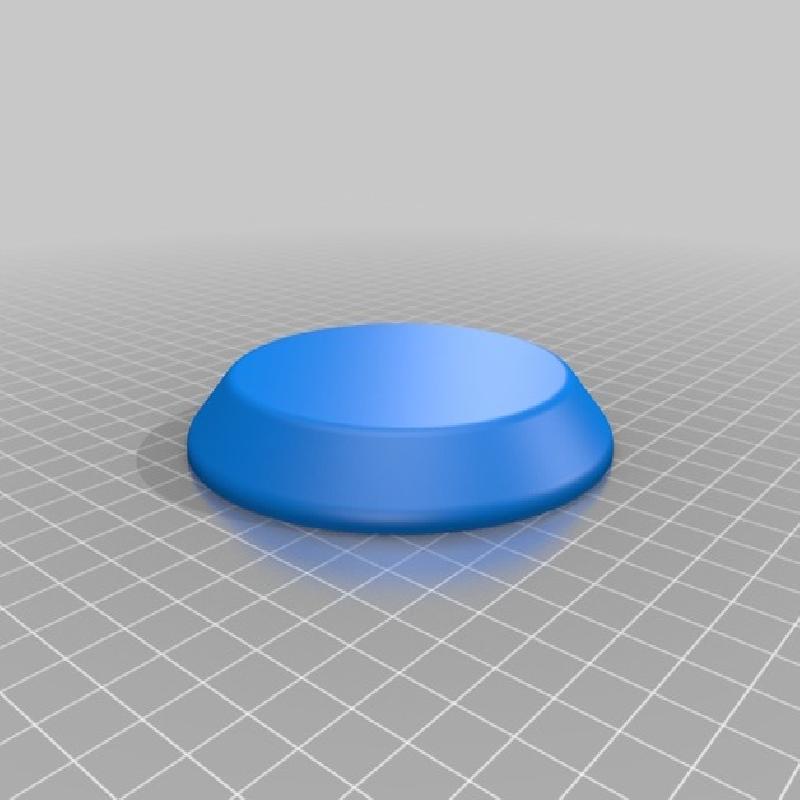

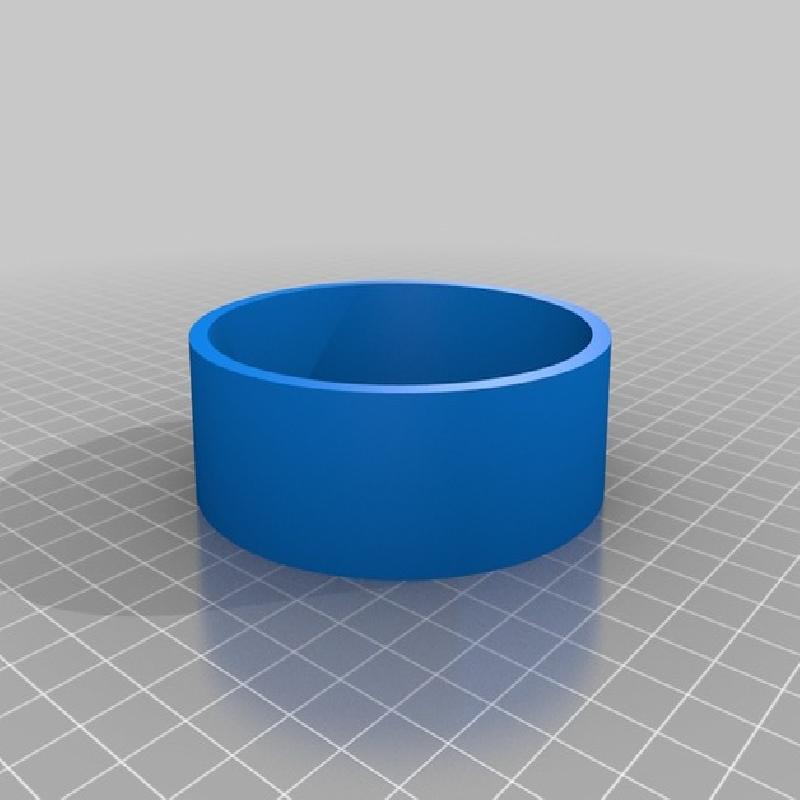

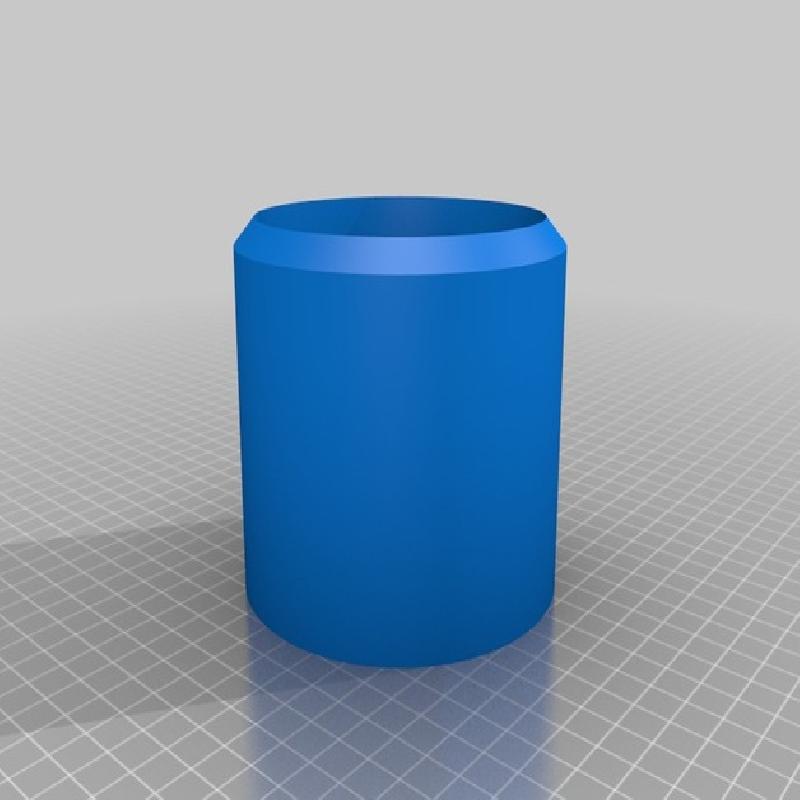

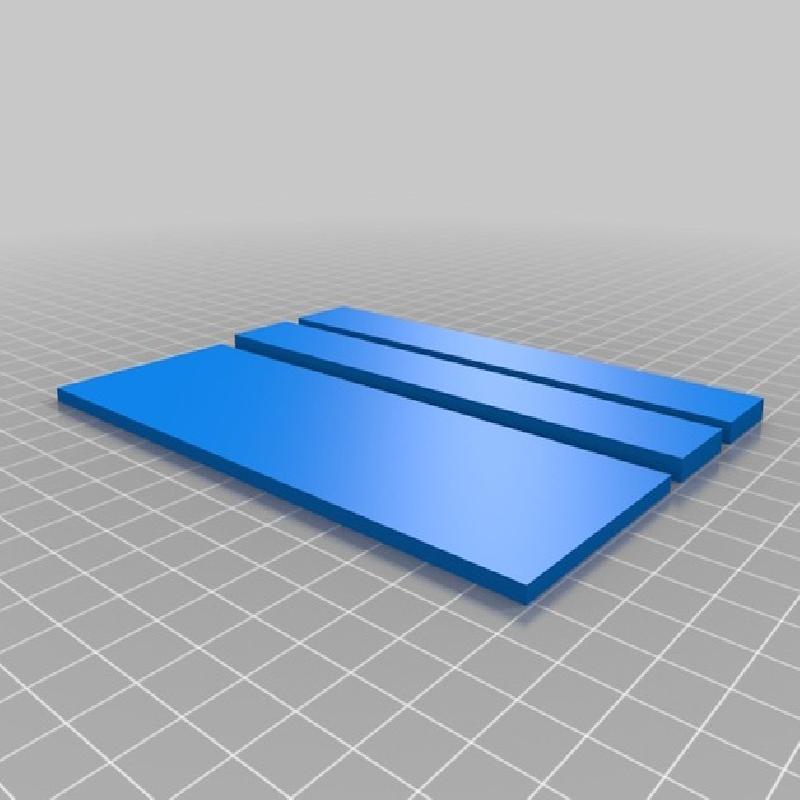

this was a fun but time consuming project printed on my Lulzbot mini. each file was printed, edited, and reprinted many times. only the final files are included. the mid section (SCMidHalfandGauge) will need to be printed 2 times, so will (SCBBpart1)(SCBBpart2) these are the Black rings seperating top and bottom. the black rings and the top and bottom are 2 files each to ensure best print possible. the file(SCbackplateledholder) was designed to hold a strip of leds down the center of the combined 3 parts behind the tube /gauge. the tube its self was a clear plastic tube used to ship or store machined parts and no file is included. All parts were Glued together and then coated with smooth-ons XTC-3d. I did a little light sanding before paint, emblems and area around gauge were masked and painted on. still to do on this is lettering in a few spots and possibly design and add a file for a connector of sorts on the top middle. enjoy!
