by 407s
This solution prevent parking climate damper on climate body/housing.
Print body with 100% infill (3 perimeters - not less)
Print base with 100% infill

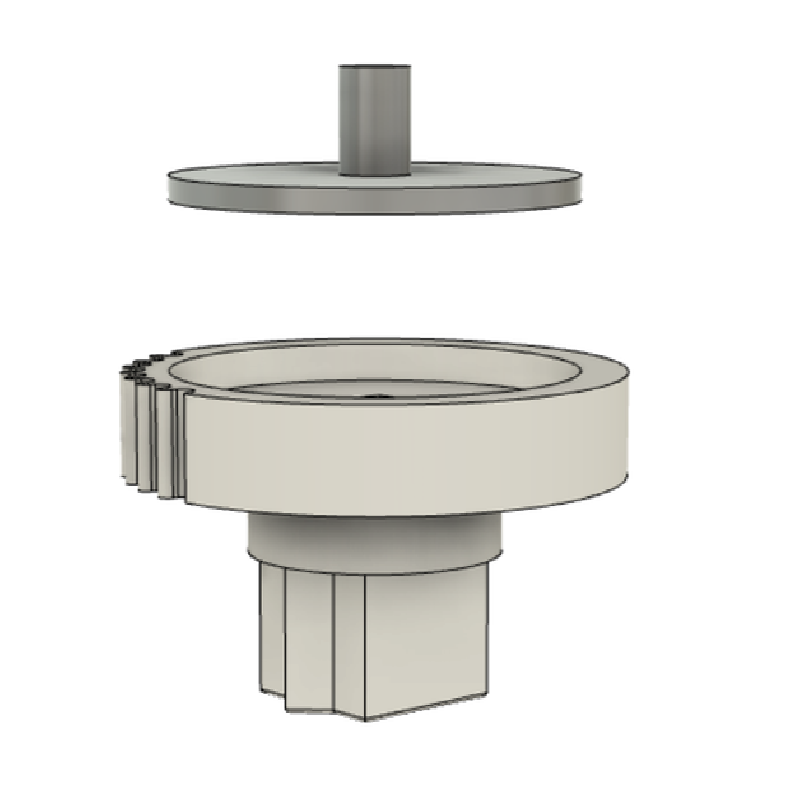

Take epoxy resin (cold welding - not tested) and pour into body. Then insert base in body and you will get monolithic gear.
Tested on my car. 1 year every day - all okay.
Tooths on gear - not ideal. Perhaps need do more prefessional variant :)
Link on model in Fusion360 https://a360.co/2qqTnOn
All for free.
Решение для предотвращения поломок заслонок климата. Шестеренка не дает возможности упереться заслонке в корпус, а сама берет на себя всю нагрузку и вынуждает останавливаться моторчик не доходя до крайних положений 1-2 зубчика.
Thx for all support in any amount of money.
5536 9137 5169 8206 Tinkoff (Russia) Mastercard
2202 2021 3278 5126 Sberbank (Russia) Mastercard
Printer:
Ender 3
Rafts:
No
Supports:
Yes
Infill:
100%
Filament: GREG PETG
Notes:
HOT BED - 75
HOT END - 235
