by MortarGrunt06

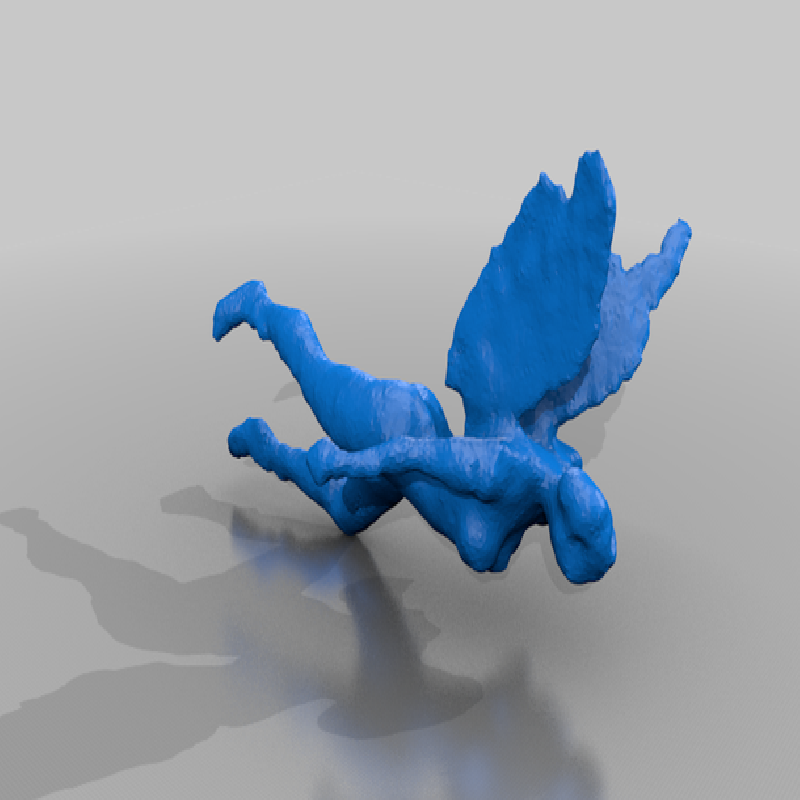

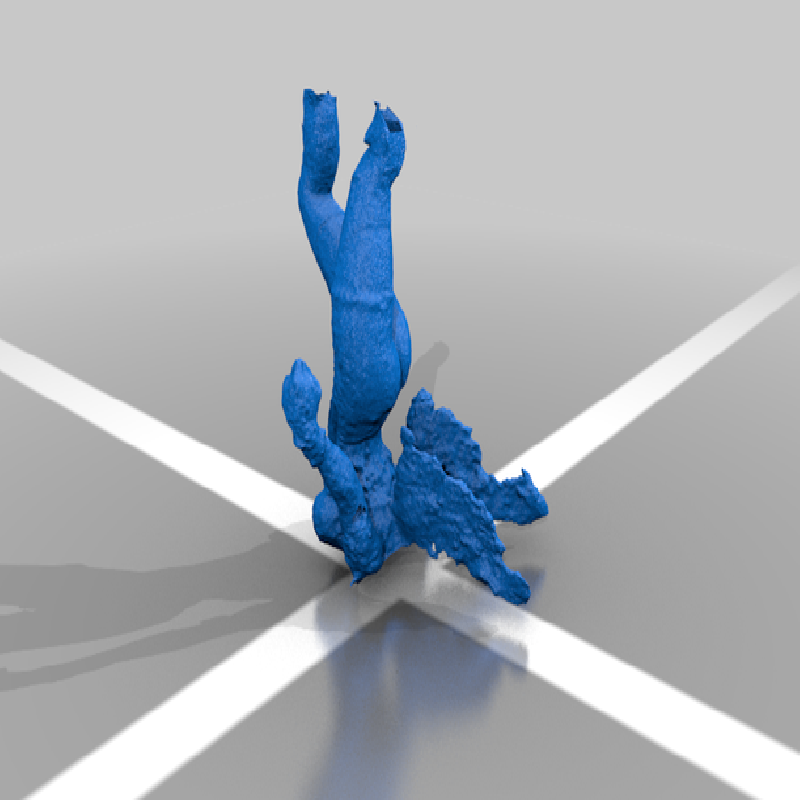

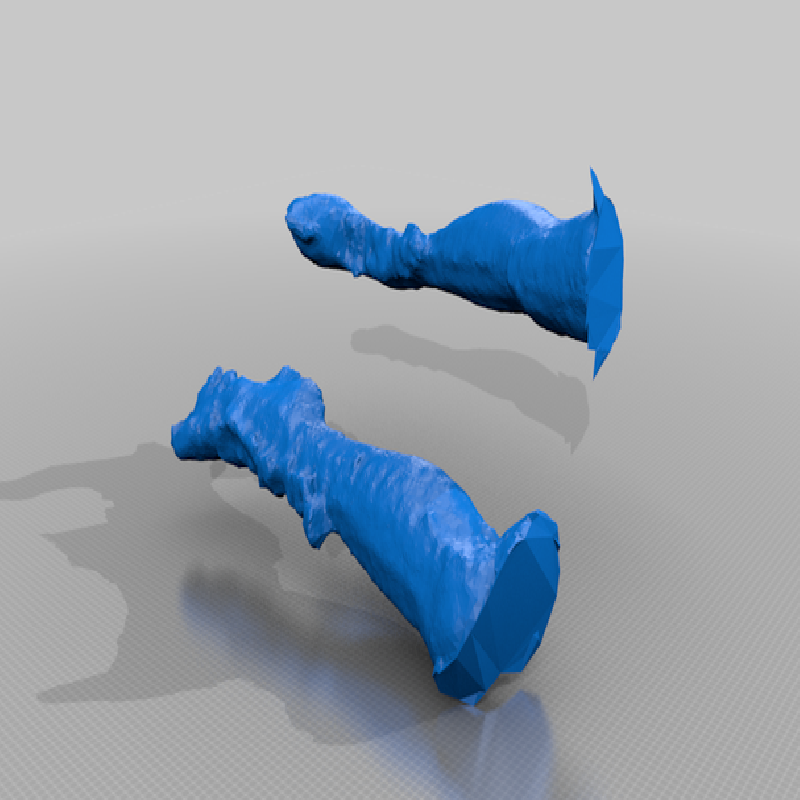

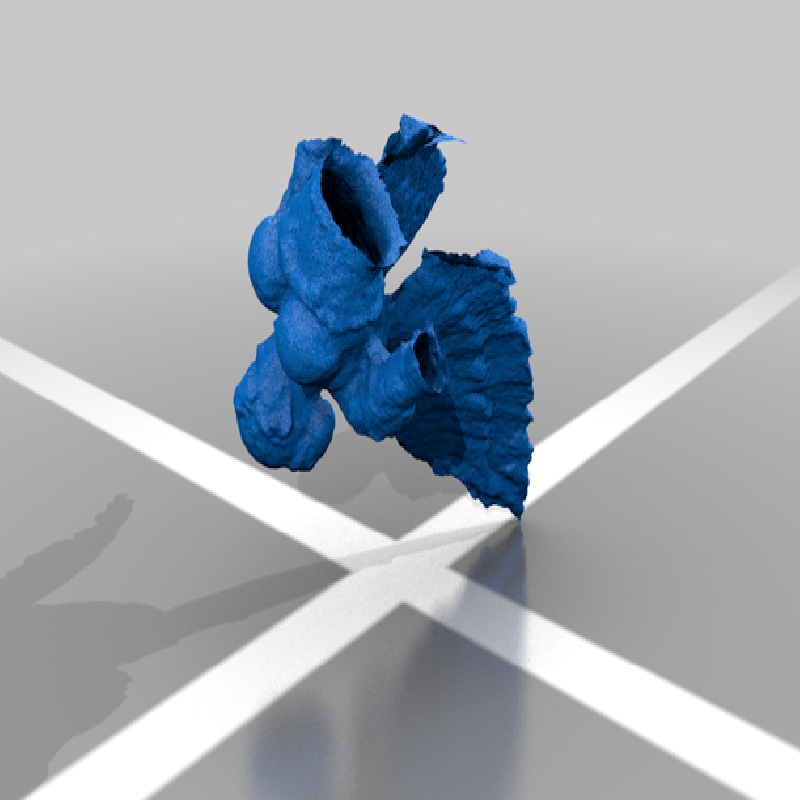

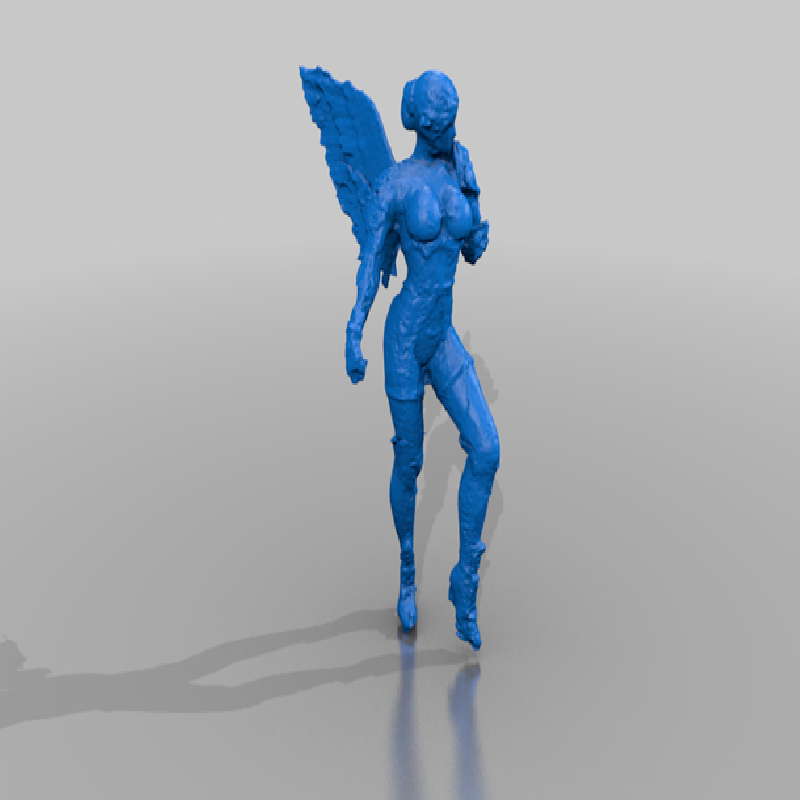

A character designed in a video game and "scanned" into a 3D model using screenshots and photogrammetry.  This is a work in progress, so I will add to and refine the model to improve it's quality.

Print Settings

Printer:

IUse

Rafts:

Doesn't Matter

Supports:

Yes

Resolution:

.4mm

Infill:

20%

Filament:                                            Solutech PLA                                        Clear

Notes:

This model is HUGE (scaled to the height of a person), so my initial print is only at 3.3% of actual size (about 3 inches tall).  I had to keep the model large so I wouldn't lose too much detail when I smoothed out the surfaces.

How I Designed This

Photogrammetry

So, I used a video game to design the character, then took around 500 screen shots to create 4 3D scans in Meshroom.  I then composited them together in 3D Builder and Meshlab.  For a trial run of the concept, I think it came out pretty well.
