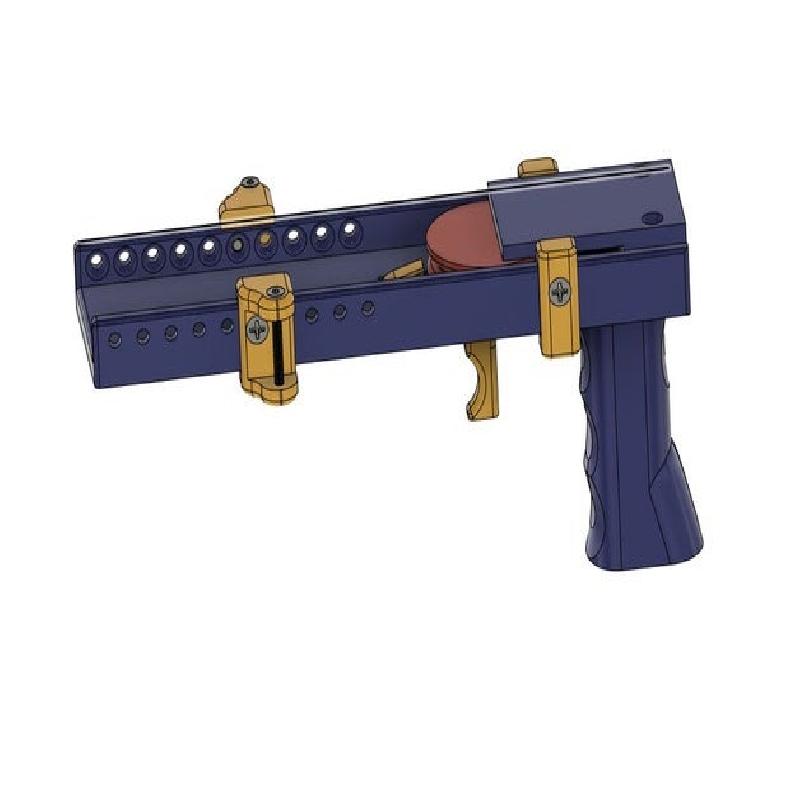

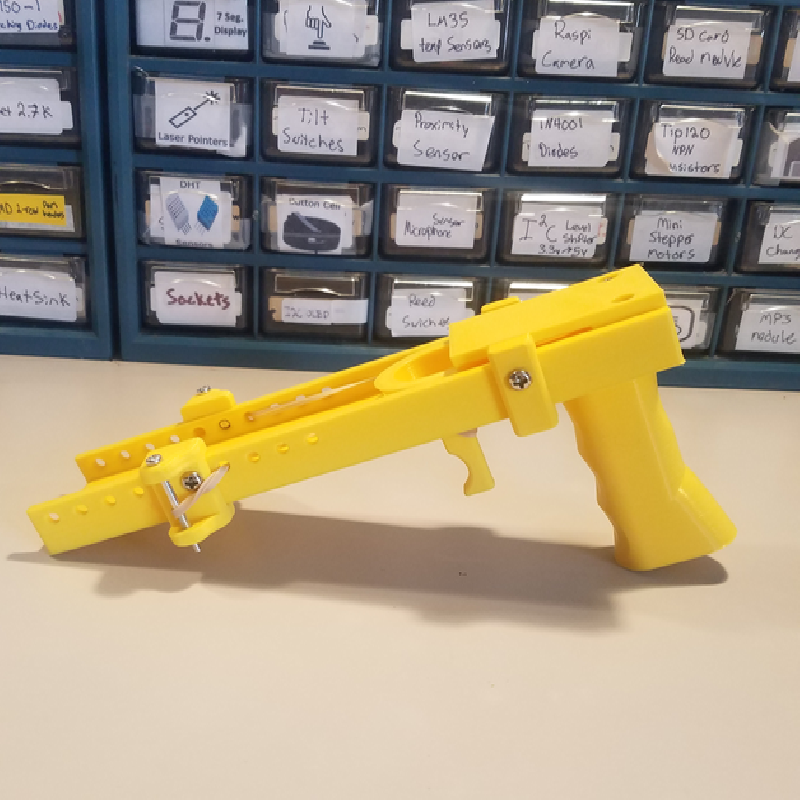

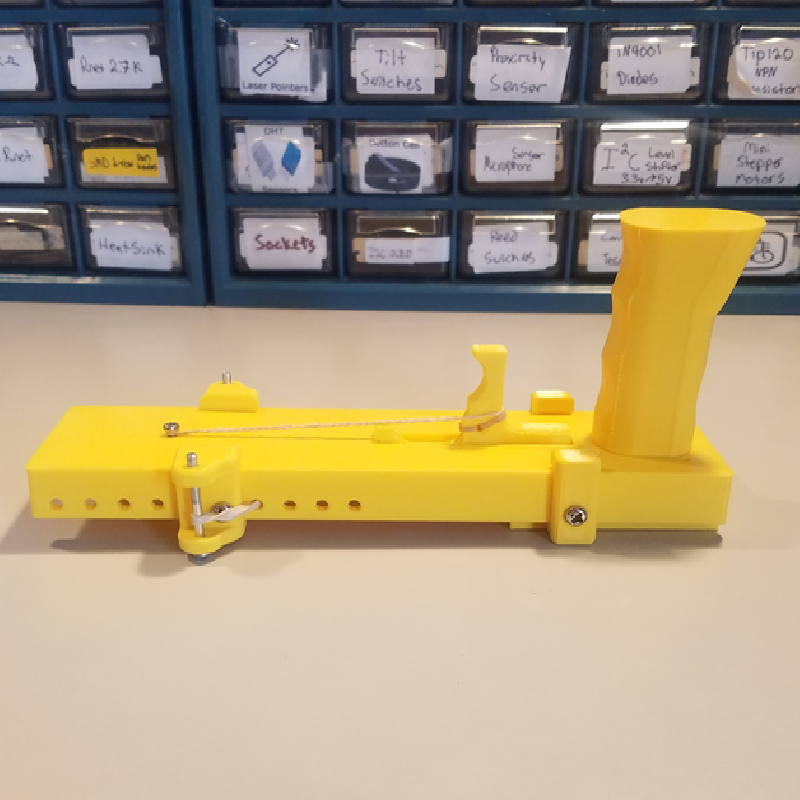

This is a disc launcher made for use with a variety of rubber band sizes. The pieces on the outside can be moved to reach maximum launch based on the rubber bands you have. Also has the added benefit of allowing parents to make them safe for their children by reducing the launch power :)
Tension Pieces/ Rod Caps/Trigger should be printed with supports for best results!!
Pieces have been formatted in suggested printing orientations!
Other parts you need:
2x - Rubber Bands (One for trigger assembly, One for disc launching)
4x - M3-16 screws (Two for Disc Holder mounting, two for Grip mounting)
4x - M4-8 screws (Two for Rod Cap mounts, Two for Tension Piece mounts)
2x - M3-32 screws (Tension piece Rubber band mounting rods)
1x - (1-2mm) 34mm length metal rod (Trigger pivot)
Please let us know in the comments if you have some recommendations for improvements!
