by TrigoKlei

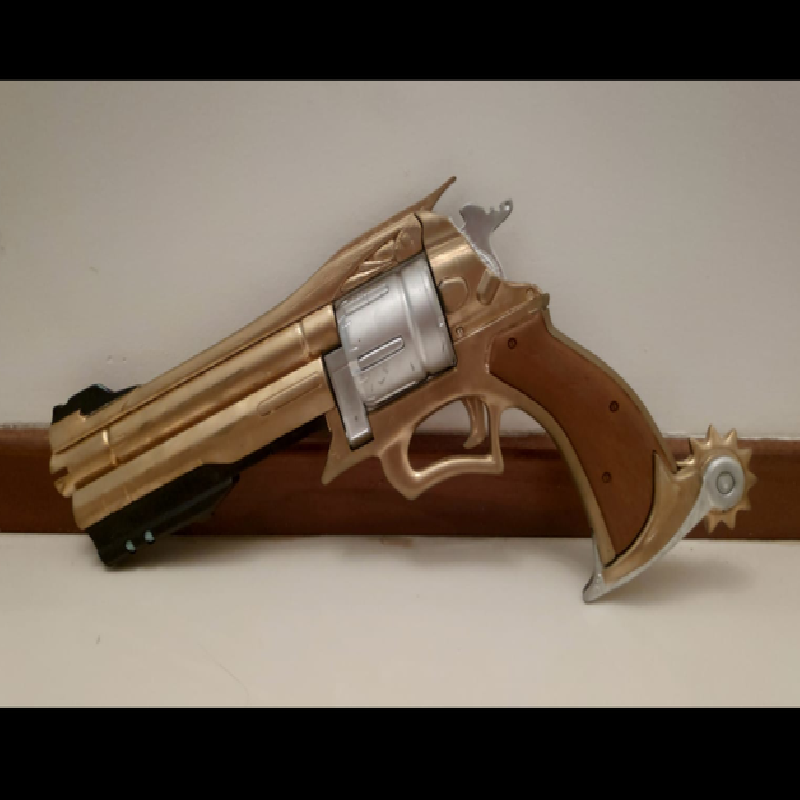

This is the default skin for Blizzard's Overwatch McCree's Peacekeeper ideal for cosplay or as a display prop.

This is a slight redesigning of Rawrbomb's version of McCree's Peacekeeper gun from https://www.myminifactory.com/object/3d-print-mccree-peacekeeper-28725

I have edited certain elements for easier printing and better functionality, some of the features are:

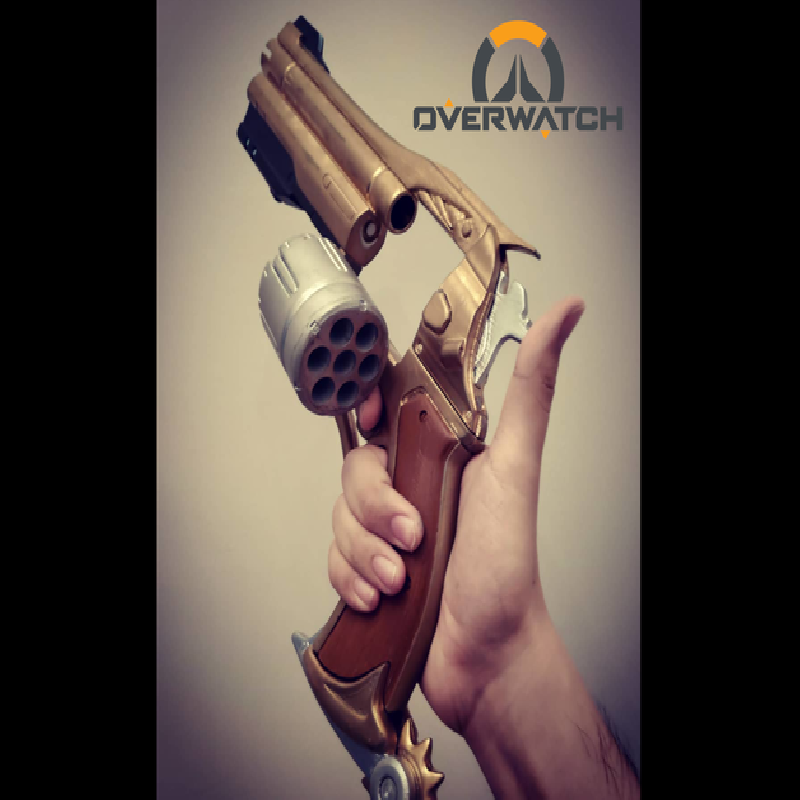

• Drop-down rotatable Chamber

• Bullets fall out of the chamber when reloading (like in the game)

• Spur rotates freely

• More accurate top fin

Please note that this model:

• Does NOT have a working hammer

• Does NOT have a working trigger

• Does NOT account for any LEDs or wiring

Materials you will need:

1. 6mm x 1.5mm circular magnet (At least 2)

2. 1 x 12mm Neodymium Countersunk Ring Magnet

3. Spray paints (Of your desired colours)

4. M4 x 5/8" Screws with complementing washers

5. 2.5" nail (A screw can be used but chamber will not rotate)

6. Superglue or epoxy

Print Settings

Printer Brand:

Creality

Printer:

Ender 5

Rafts:

No

Supports:

Yes

Resolution:

0.12 - 0.28mm

Infill:

10-15%

Filament:                                            Generic Brand PLA                                        Any

Notes:

Only 'McCree_grip_bottom.stl' requires mandatory supports.
It is recommended that for structural integrity of the barrel, 'McCree_L_Barrel.stl' and 'McCree_R_Barrel.stl' be printed with supports. However it can be printed without supports if necessary.

No rafts are necessary.

If bullets feel too loose or tight, simply scale up or down 1-2%. Be sure to test before printing all 6.

Post-Printing

Location of all parts (colour coded) in relation to the model.

Bullet Reloading
