by ProtoPROPS, publishedJul 8, 2016

Summary

"This here's a SoroSuub SSK heavy blaster. It's cut for a quick draw and got a hair-trigger. I call it "Flashy". Flashy can bulls-eye a savrip between the eyes five times before the critter even knows it's dead. Here, take it." - Corso Riggs

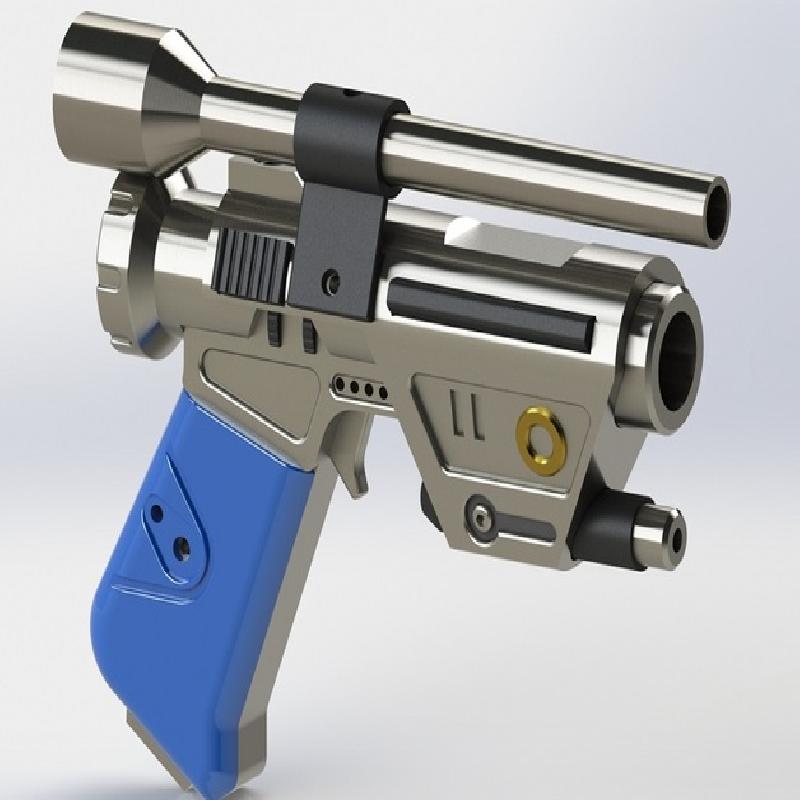

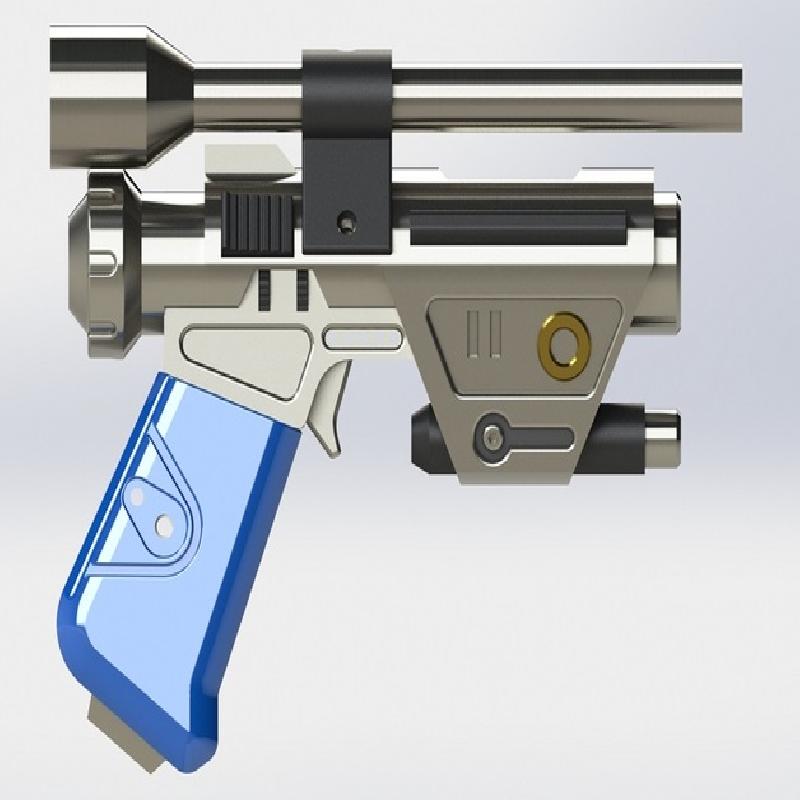

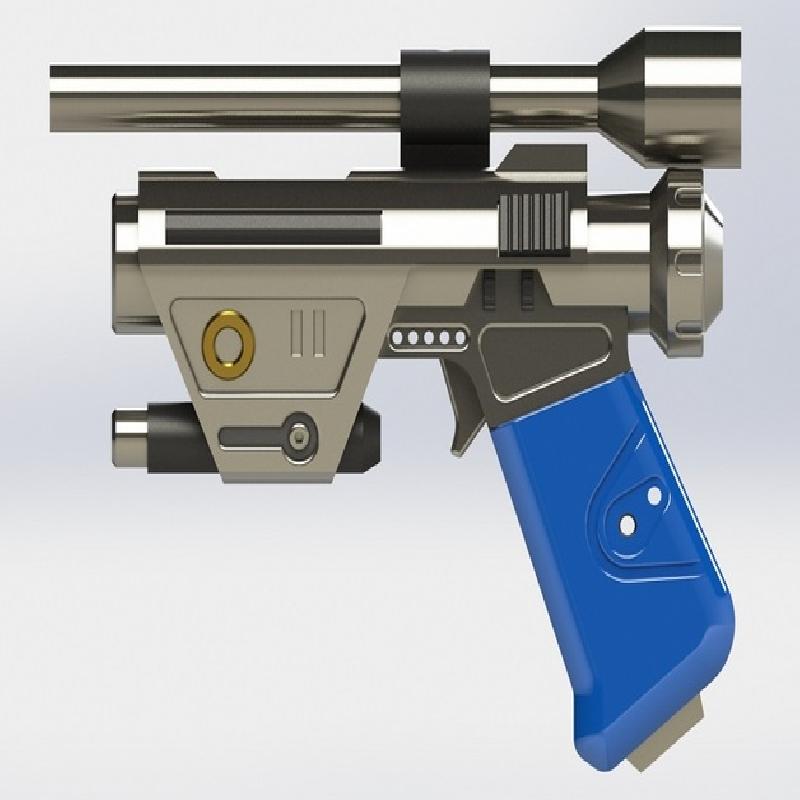

Here is a model of the Iconic SoroSuub SSK Heavy Blaster nicnamed "Flashy".  This is the first Mod-able Blaster you get in the Smuggler story line.  Designed in Full Scale (1:1)

Print Settings

Printer Brand: SeeMeCNC

Printer: Rostock MAX

Rafts: Doesn't Matter

Supports: No

Infill: 20%

Notes:

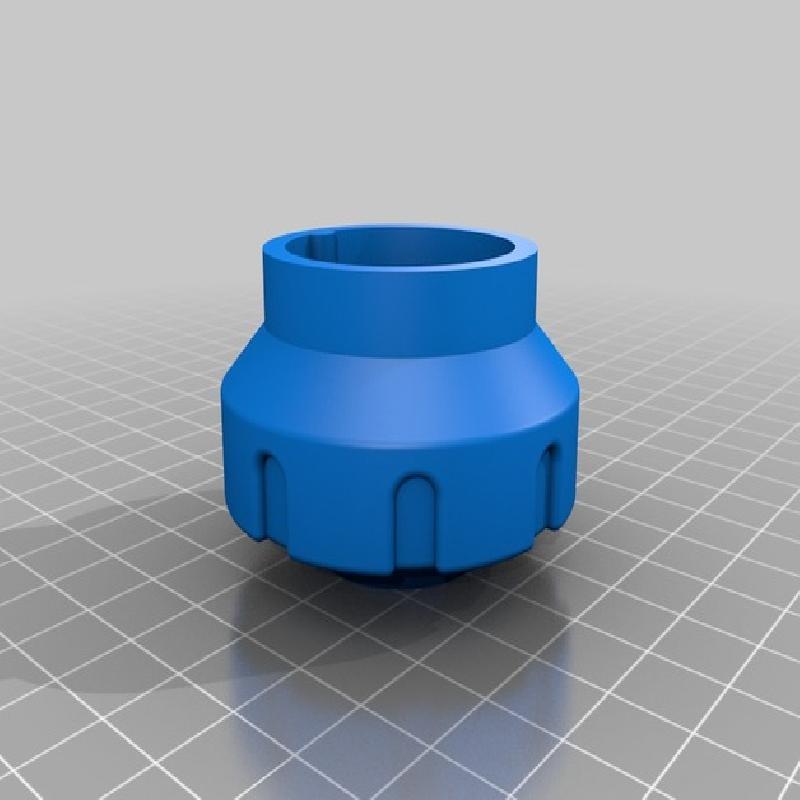

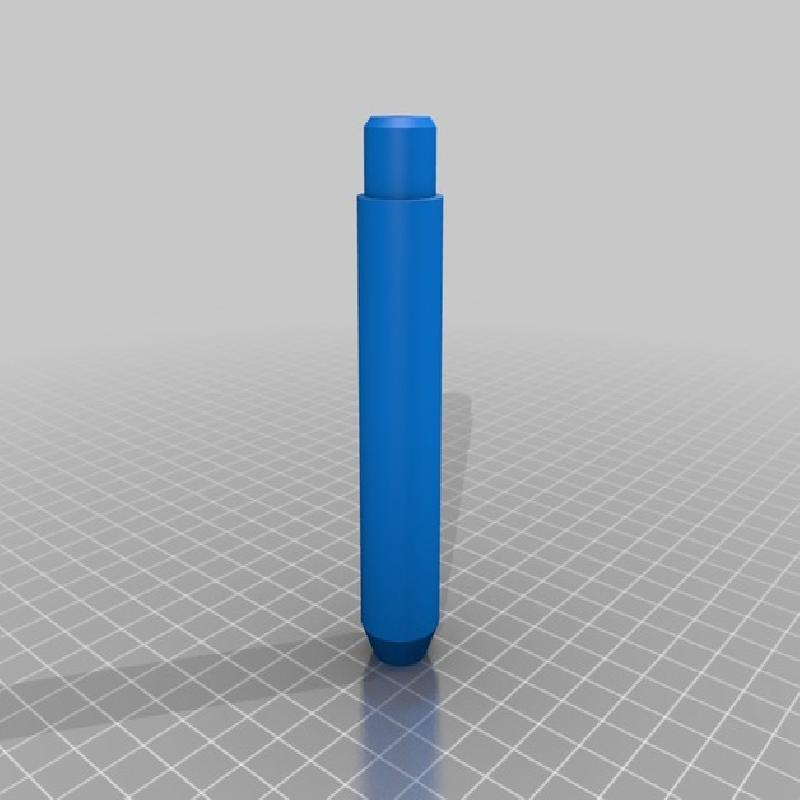

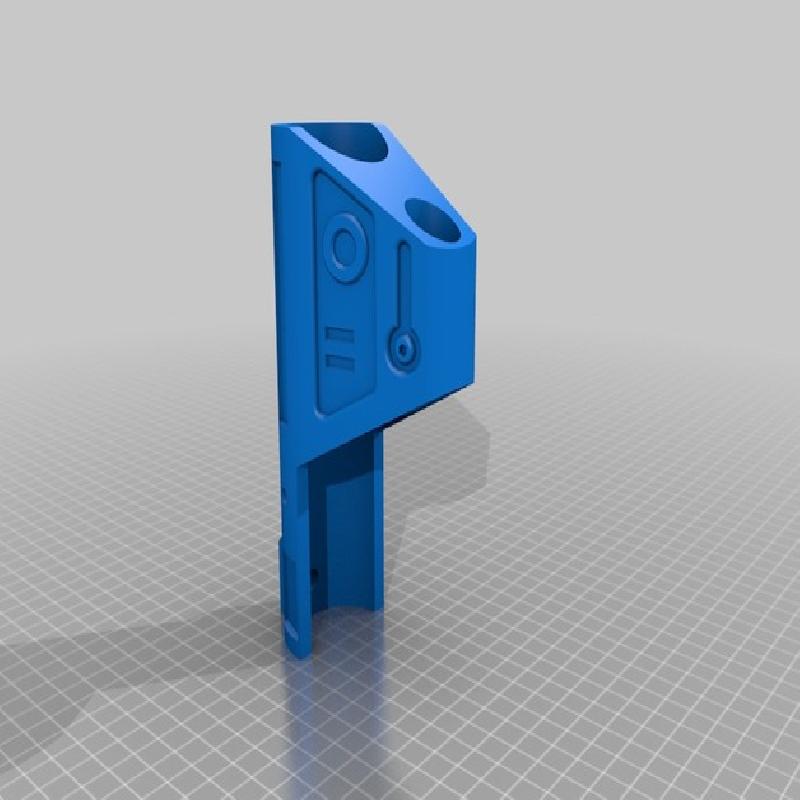

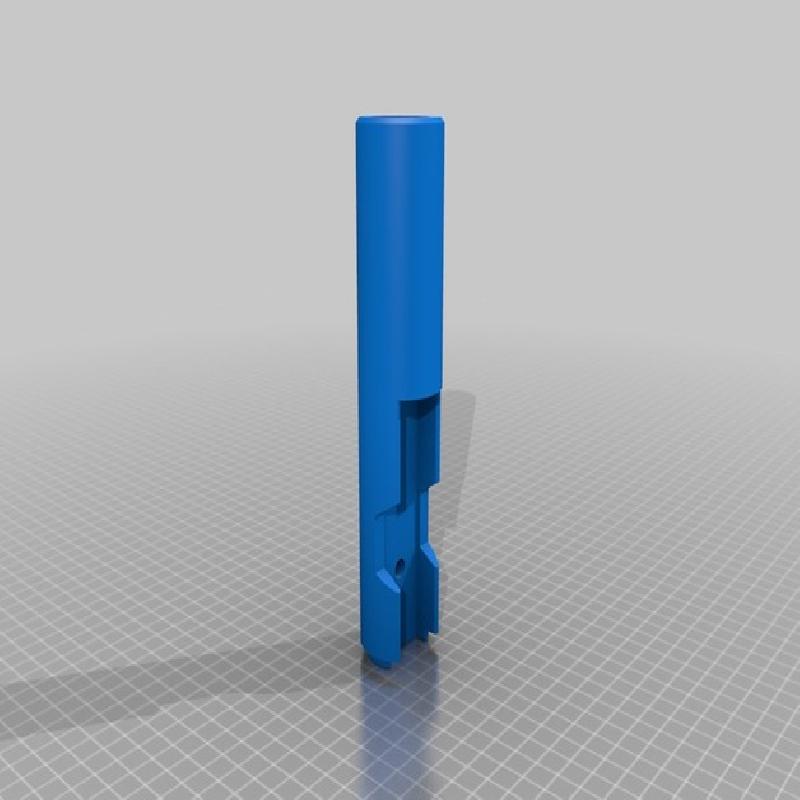

Print Instructions...   [Barrel - Print Muzzle end down]---[Barrel Cap - Print hole down]---[Upper Frame - Print Front angle down]  everything else normally

Post-Printing

Additional Parts Required

2 - 1/4-20 x 3/8" Nylon Hex Bolts (scope & scope mount)

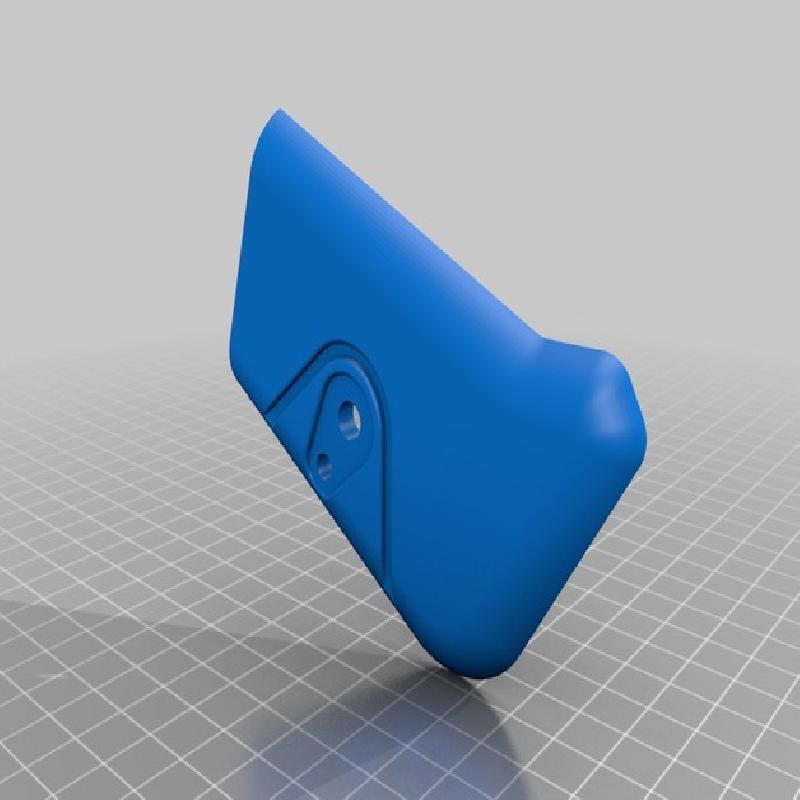

2 - 1/4-20 x 1/2" Pan Head Machine Screws (Grips)
1 - 3/16"dia. x 1-1/4" pin (Grips)
1 - 1/4-20 x 1-1/2" Pan Head Screw  (frame)
5 - 1/8" fiber optic rods - 1" long

Assembly Notes

You will need to manually tap (1/4-20) the following holes

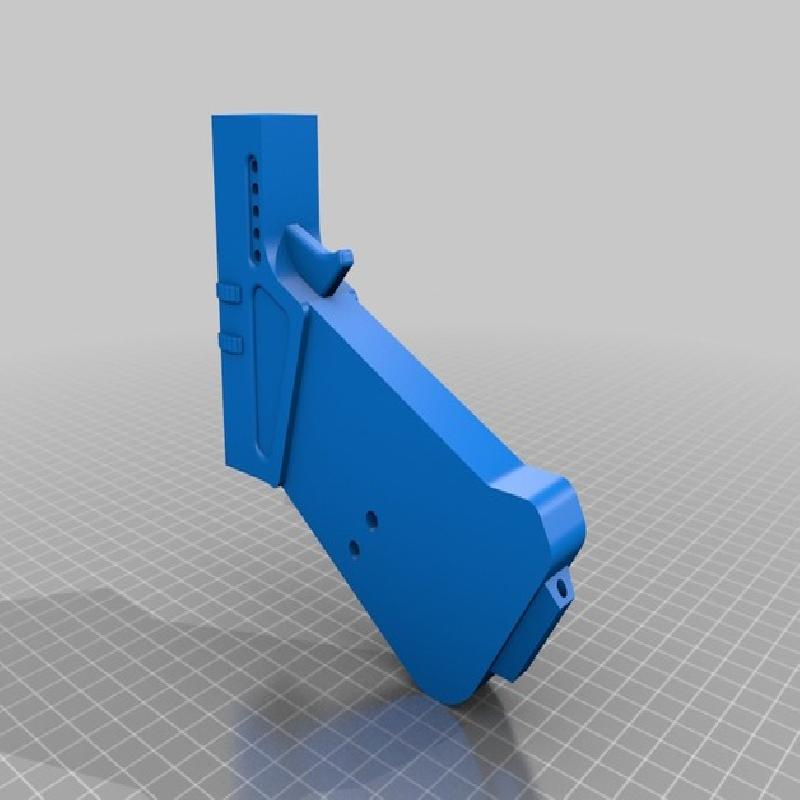

Grip Frame - Central hole for grip
Grip Frame - Top for Upper Frame & Barrel Mount

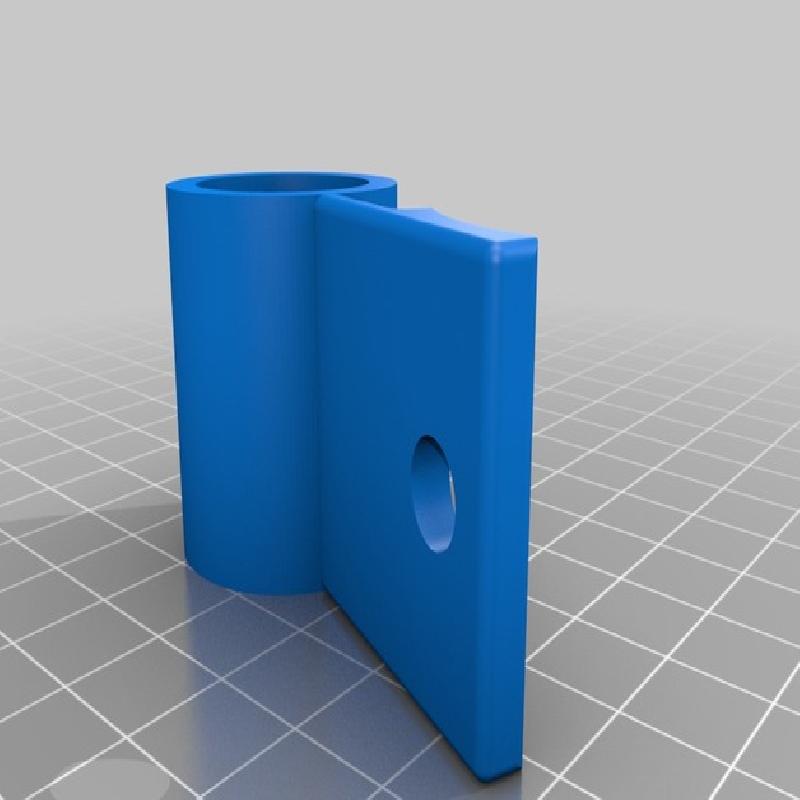

Upper Frame - for scope mount

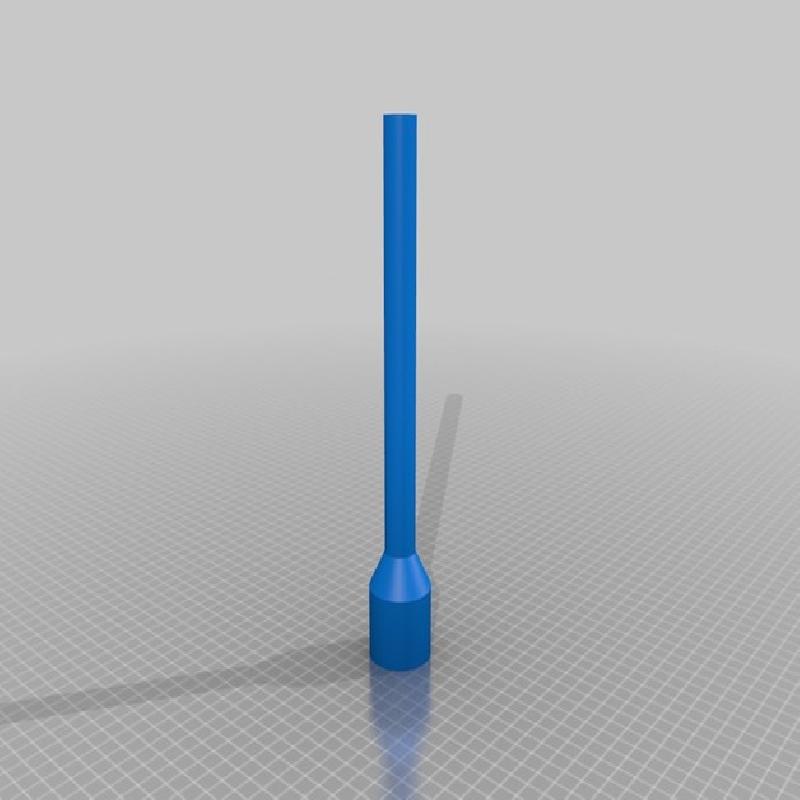

Scope - to attach to scope mount

The 3/16" pin fits in the rear hole on the Grip Frame.

Everything else is glued in place
