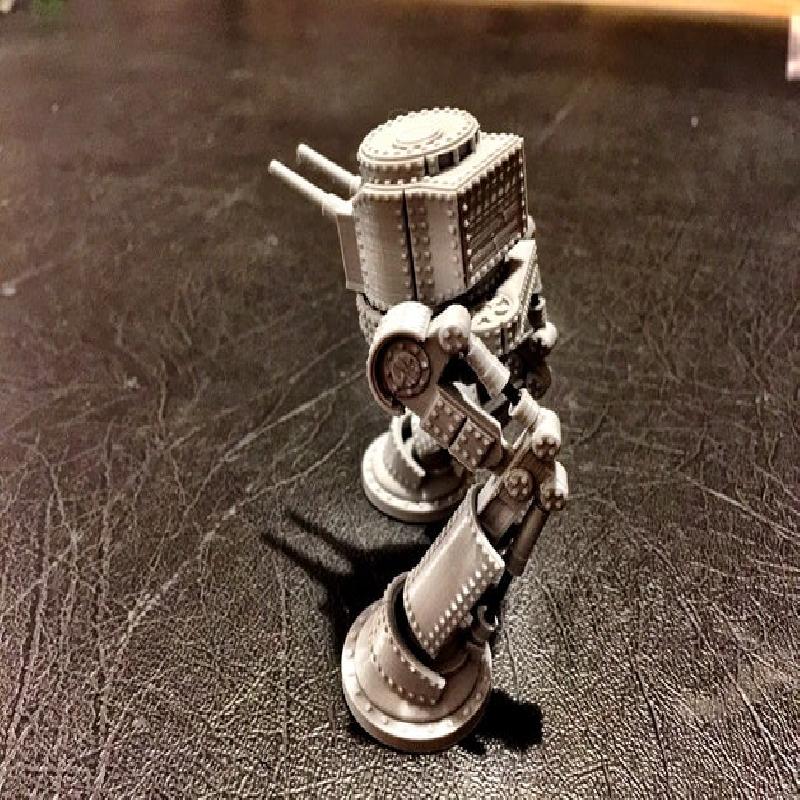

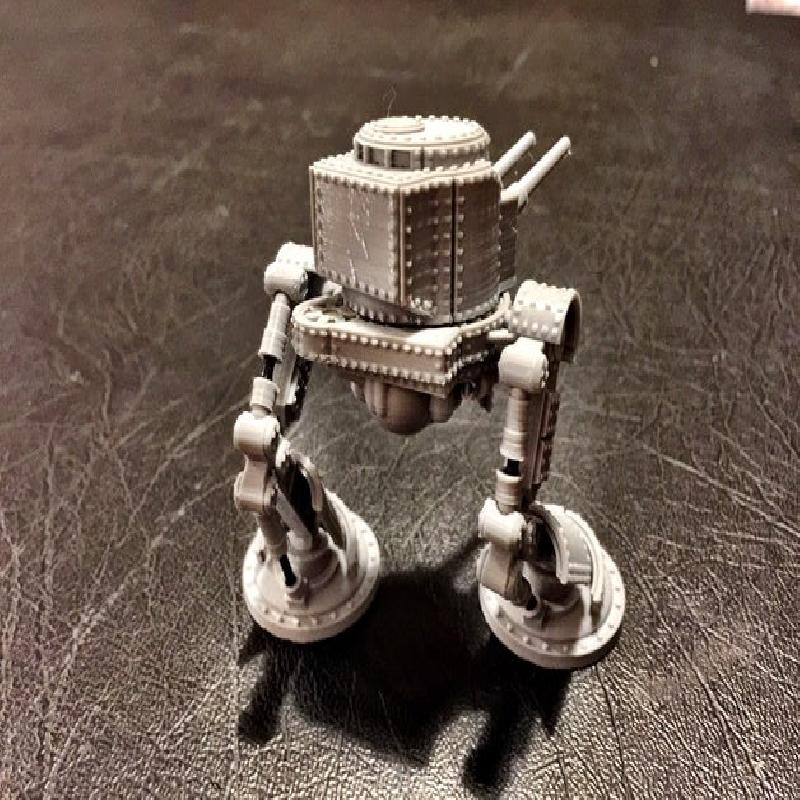

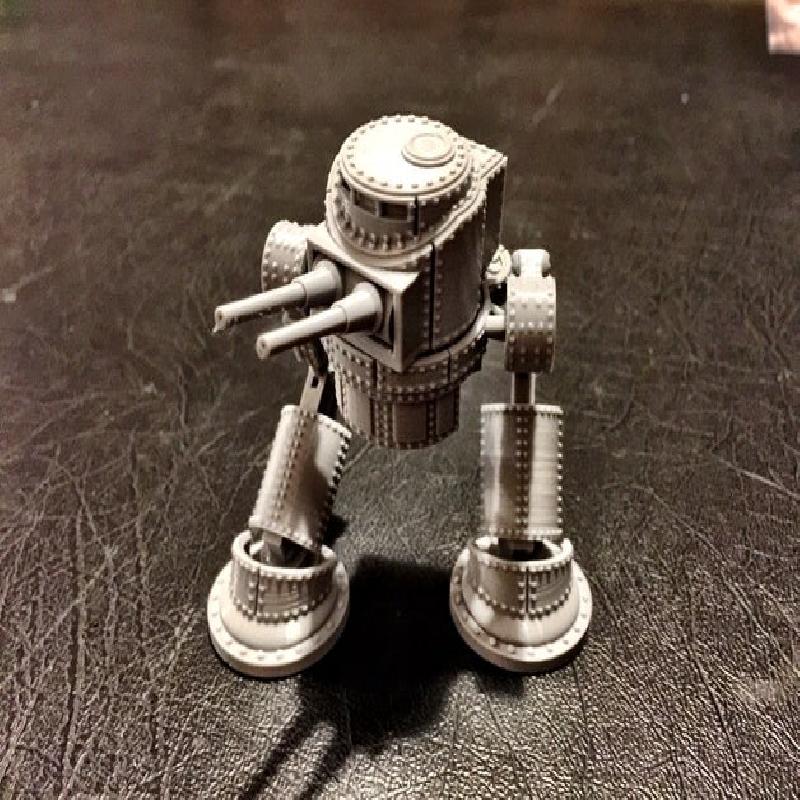

A medium sized low tech mech designed for 15mm scale wargaming.
The design does not require raft or supports as any support needed is built into the model (such as the rods found in the turret opening that need to be snipped out before slotting in the gun).

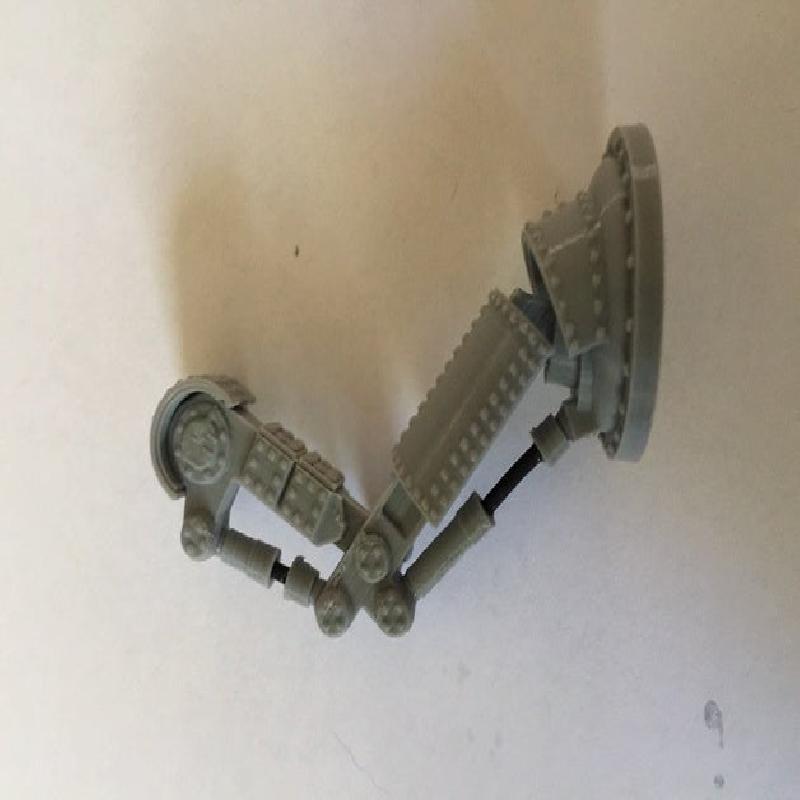

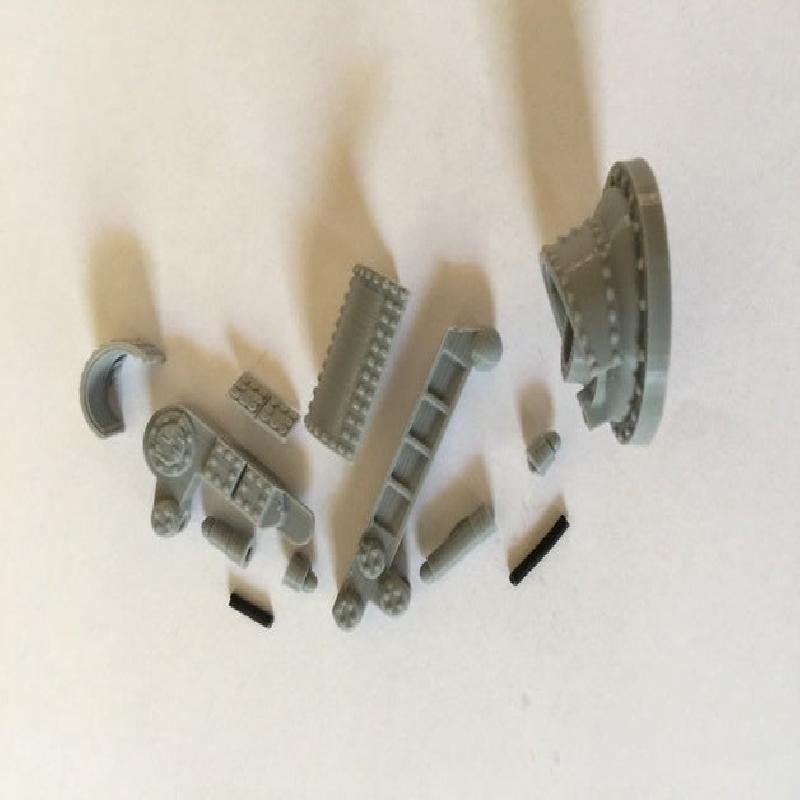

Assembly diagram for the legs is in the photos. Use 1.75mm filament for the piston rods (shown in black in the leg assembly photo).
The turret and engine can be mounted using 3mmx1.5mm magnets so they can be swapped out for future additional parts and upgrades. Alternatively glue them in place.
If you rescale the model you will need to use different magnets and material for the piston rods.
I have many designs on the burn so follow me over at https://facebook.com/buildpaintrollslay to stay up to date with what I am working on and other wargaming projects.
Printer Brand:
Creality
Printer:
CR-20
Rafts:
Doesn't Matter
Supports:
No
