The model is made up of a couple of pieces:
Reaper Top (literally the top half of the model), should print without support - I'd suggest keeping the infill low (~10%) to keep the weight down

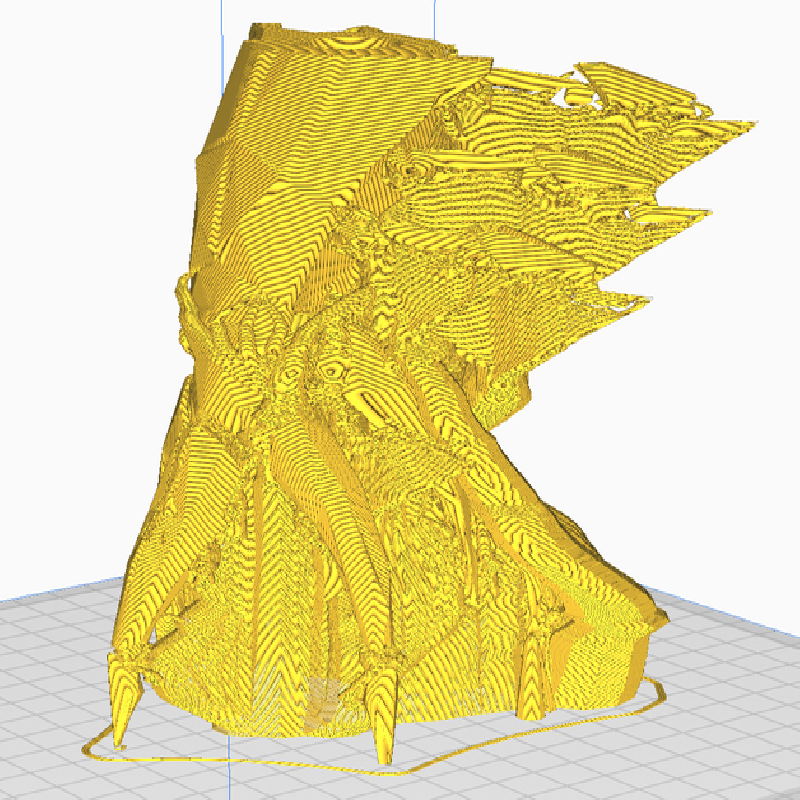

Reaper Bottom (literally the bottom half of the model), will need significant support to print - I used the 'tree' support generation in Cura when I sliced it. - I'd suggest keeping the infill low (~10%) to keep the weight down
Reaper Middle Leg (no idea what this really is, but it's physically separate in the original model), should print without support - I'd suggest keeping the infill low (~10%) to keep the balance right (it's top heavy).
Reaper Pin (the pin to locate the top and bottom when attaching), should print without support - this is scaled for my printer, you may need to scale it up or down a few percent to get a good fit. I'd suggest setting the infill higher (~25%) to there's a fair amount of load on the pin in the completed model.
I've also included the files (both scad & stl) for a support I created for the model, again this is in a number of parts (none of this parts should require supports when printed):
Reaper Support - main body of the support, intended to 'grab' the model a little below the cut. I'd suggest setting the infill higher (~25%) to there's a fair amount of load on the pin in the completed model.
Reaper Support Base - a truncated cone, intended to accept the support - I glued this to the base I used for the completed model - this is scaled for my printer, you may need to scale it up or down a few percent to get a good fit. I'd suggest setting the infill higher (~25%) to there's a fair amount of load on the pin in the completed model.
Reaper Support Wedge - I used two of these (glued into the 'mouth' of the support) to keep the model up right when set into the support.
Reaper leg support - I used this to raise the 'middle leg' from the base, so that it aligned with the model when in position with the support.
Reaper Name Plate - a simple name plate (the scad file uses write.scad, also available on this site).
Printer Brand:
Anycubic
Printer:
All-metal Mega
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
0.2mm
Infill:
varies - see description
Filament: ColorFabb PLA Grey & Black
Notes:
See support and infill information in the main description
Removing the supports from the bottom half of the model was a slow process, but I just stuck with it!
I had to do a bit of fine tuning of the 'grab' of the support, I used a dremel with a sanding disc to adjust the shape of the opening and then used the wedges (stl & scad files included) to 'tip' the model into an upright position.
