F1 Mclaren MP4-30 2015 Steering Wheel.

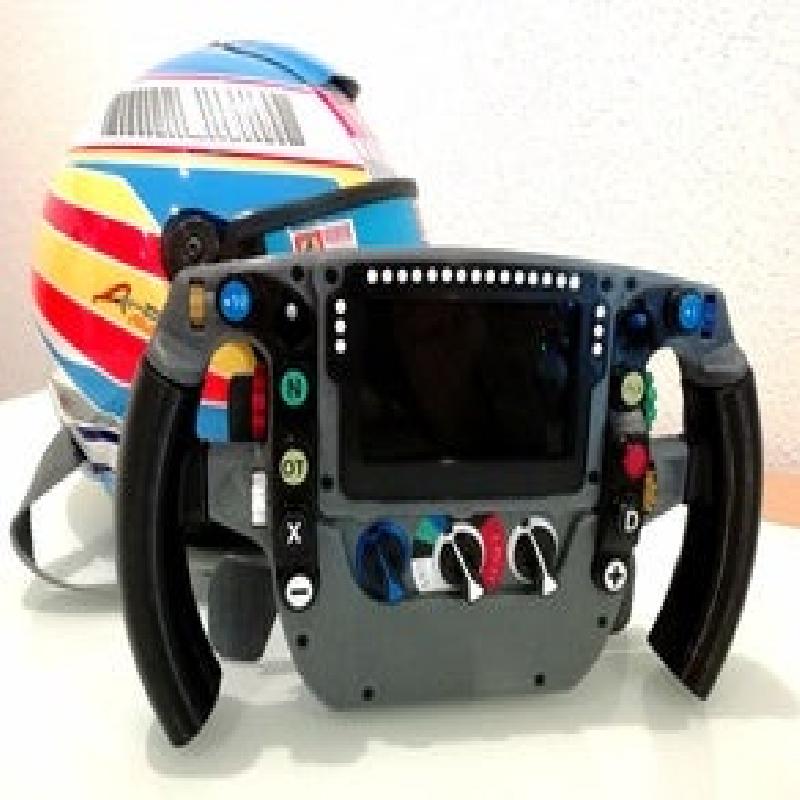

Mclaren MP4-30 2015 Steering Wheel full scale replica.
129 pieces relatively easy to print with the 0,4mm nozzle and simple assembly.
It is a model that requires a little more time than a single print piece but in my opinion the result is spectacular.
I hope you like it as much as I do and that you enjoy its printing and assembly.
I have tried to simplify the design of the pieces to facilitate their printing and assembly.
In total there are about 129 pieces.
Soon the steering wheel exposure stand.
...and soon the terrible video of the assembly!!... although it is quite simple and intuitive.
Printer Brand:
Ultimaker
Printer:
Rafts:
No
Supports:
Yes
Resolution:
0.4 Nozzle
Infill:
10-15%
Filament: Fillamentum PLA Traffic Black, Traffic White, Traffic Yellow, Vertigo Grey, Rapunzel Silver, Gold Happens, Noble Blue, Ruby Red, Green Grass.
Notes:
First I will indicate the CURA general print settings and then detail them for each piece
Nozzle: 0.4 mm
Layer Height: 0.2 mm - According to piece
Line Width: 0.35 mm - According to piece
Wall Line Count: 3
Top/Botton Line Directions: According to piece
Activate “Outer Before Inner Walls”
Initial Layer Horizontal Expansion: -0.1
Infill Density: According to piece.
Infill Speed: 60 mm/s
Outer Wall Speed: 20 mm/s
Inner Wall Speed: 35 mm/s
Top/Botton Speed: 25 mm/s
Support: According to piece
Support Over Hang Angle: According to piece
Support Density: 15%
Support Interface Thickness: 0.6 mm
Support Interface Density: According to piece

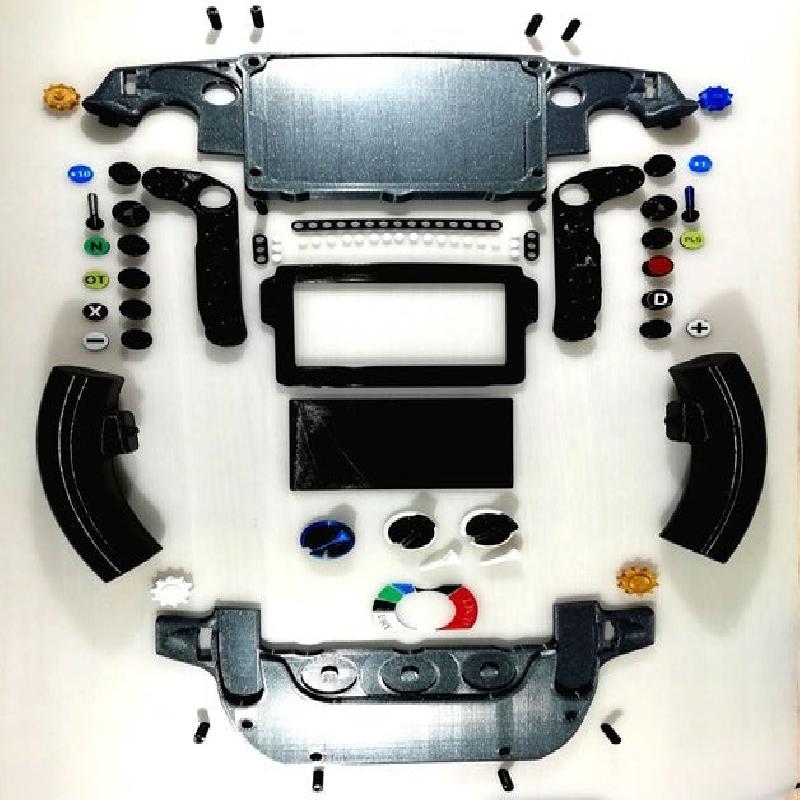

Printable parts:
• 1xSW_Body_Front_A: Aprox.Time: 7 h. Material: 58 gr.
Infill Density: 10%
Support: No
Recommended filament: Fillamentum Vertigo Grey.
• 1xSW_Body_Front_B: Aprox.Time: 6 h. Material: 51 gr.
Infill Density: 10%
Support: Yes
Support Over Hang Angle: 75º
Recommended filament: Fillamentum Vertigo Grey.
• 1xSW_Body_Back_A: Aprox.Time: 7 h 30 min. Material: 72 gr.
Infill Density: 10%
Support: Yes
Support Over Hang Angle: 75º
Recommended filament: Fillamentum Vertigo Grey.
• 1xSW_Body_Back_B: Aprox.Time: 10 h 15 min. Material: 100 gr.
Infill Density: 10%
Support: Yes
Support Over Hang Angle: 75º
Recommended filament: Fillamentum Vertigo Grey.
• 1xSW_Paddle_Shifter_A: Aprox.Time: 2 h. Material: 14 gr.
Infill Density: 15%
Support: Yes
Support Over Hang Angle: 65º
Recommended filament: Fillamentum Vertigo Grey.
• 1xSW_Paddle_Shifter_B: Aprox.Time: 1 h. Material: 10 gr.
Infill Density: 15%
Support: No
Recommended filament: Fillamentum Vertigo Grey.
• 1xSW_Paddle_Shifter_C_Left: Aprox.Time: 1 h. Material: 7 gr.
Infill Density: 15%
Support: Yes
Support Over Hang Angle: 65º
Recommended filament: Fillamentum Vertigo Grey.
• 1xSW_Paddle_Shifter_C_Right: Aprox.Time: 1 h. Material: 7 gr.
Infill Density: 15%
Support: Yes
Support Over Hang Angle: 65º
Recommended filament: Fillamentum Vertigo Grey.
• 1xSW_Button_Case_Left: Aprox.Time: 1 h 30 min. Material: 11 gr.
Infill Density: 15%
Support: No
Recommended filament: Fillamentum Traffic Black.
• 1xSW_Button_Case_Right: Aprox.Time: 1 h 30 min. Material: 11 gr.
Infill Density: 15%
Support: No
Recommended filament: Fillamentum Traffic Black.
• 1xSW_Display_Case: Aprox.Time: 2 h. Material: 15 gr.
Infill Density: 15%
Support: Yes
Support Over Hang Angle: 75º
Recommended filament: Fillamentum Traffic Black.
• 10xSW_Button: Aprox.Time: 5 min. Material: 1 gr.
Line Width: 0.3 mm
Infill Density: 15%
Support: No
Recommended filament: Fillamentum Traffic Black.
• 1xSW_Handgrip_Left: Aprox.Time: 3 h 45 min. Material: 37 gr.
Z Seam Alignament: User Specified (hold in the side)
Infill Density: 10%
Support: Yes (not change the piece inclination)
Support Over Hang Angle: 70º
Recommended filament: Fillamentum Traffic Black.
• 1xSW_Handgrip_Right: Aprox.Time: 3 h 45 min. Material: 37 gr.
Z Seam Alignament: User Specified (hold in the side)
Infill Density: 10%
Support: Yes (not change the piece inclination)
Support Over Hang Angle: 70º
Recommended filament: Fillamentum Traffic Black.
• 1xSW_Display: Aprox.Time: 1 h. Material: 7 gr.
Top Layers/Bottom Layers: 2
Top/Bottom Line Directions: [180]
Infill Density: 15%
Initial Layer Speed: 15mm/s
NO Cooling.
Glass Plate (min.heat 40ºc)
Support: No
Recommended filament: Fillamentum Traffic Black.
• 1xSW_Case_Leds_Display: Aprox.Time: 25 min. Material: 2 gr.
Infill Density: 15%
Initial Layer Speed: 15mm/s
NO Cooling.
Glass Plate (min.heat 40ºc)
Support: No
Recommended filament: Fillamentum Traffic Black.
• 1xSW_Leds_Display: Aprox.Time: 14 min. Material: 1 gr.
Infill Density: 15%
Initial Layer Speed: 15mm/s
NO Cooling.
Glass Plate (min.heat 40ºc)
Support: No
Recommended filament: Fillamentum Traffic White.
• 1xSWSticker Button_+10 (Blue/White)
• 1xSWSticker Button_+1 (Blue/White)
• 1xSWSticker Button_N (Green/Black)
• 1xSWSticker Button_PLS (Yellow/Black)
• 1xSWSticker Button_OT (Yellow/Black)
• 1xSWSticker Button_red (Red)
• 1xSWSticker Button_X (Black/White)
• 1xSWSticker Button_D (Black/White)
• 1xSWSticker Button_+ (White/Black)
• 1xSWSticker Button_- (White/Black)
Aprox.Time: 2 min. Material: 1 gr.
Layer Height: 0.15 mm
Initial Layer Height: 0.2 mm
Line Width: 0.3 mm
Infill Density: 15%
Initial Layer Speed: 15mm/s
NO Cooling.
Glass Plate (min.heat 40ºc)
Support: No
Experimental: Activate “Enable Draft Shield” (purge filament change)
Post Procesing / Pause at layer (change colour): 2.
Recommended filament: Fillamentum Traffic White, Traffic Black, Traffic Yellow Green Grass, Noble Blue, Ruby Red,
• 1xSWStickerA Front_Selector (White/Black)
• 1xSWStickerB Front_Selector (Red/White)
• 1xSWStickerC Front_Selector (Black)
• 1xSWStickerD Front_Selector (Blue)
• 1xSWStickerE Front_Selector (Green)
Aprox.Time: 2 min. Material: 1 gr.
Layer Height: 0.15 mm
Initial Layer Height: 0.2 mm
Line Width: 0.3 mm
Infill Density: 15%
Initial Layer Speed: 15mm/s
NO Cooling.
Glass Plate (min.heat 40ºc)
Support: No
Experimental: Activate “Enable Draft Shield” (purge filament change)
Post Procesing / Pause at layer (change colour): 2.
Recommended filament: Fillamentum Traffic White, Traffic Black, Green Grass, Noble Blue and Ruby Red.
• 2xSW_Big_Front_Selector_Wheel: Aprox.Time: 12 min. Material: 1 gr.
Infill Density: 15%
Support: Yes
Support Over Hang Angle: 70º
Recommended filament: Fillamentum Traffic White and Gold Happens.
• 2xSW_Small_Front_Selector_Wheel: Aprox.Time: 8 min. Material: 1 gr.
Infill Density: 15%
Support: Yes
Support Over Hang Angle: 70º
Recommended filament: Fillamentum Noble Blue and Gold Happens.
• 2xSW_Front_Switch: Aprox.Time: 24 min. Material: 2 gr.
Infill Density: 15%
Support: No
Experimental: Activate “Enable Draft Shield” (purge filament change)
Post Procesing / Pause at layer (change colour): 49 (Layer Height: 0.2 mm)
Recommended filament: Fillamentum Traffic Black, Noble Blue and Rapunzel Silver.
• 3xSW_Front_Selector: Aprox.Time: 30 min. Material: 2 gr.
Infill Density: 15%
Support: No
Experimental: Activate “Enable Draft Shield” (purge filament change)
Post Procesing / Pause at layer (change colour): 28 (Layer Height: 0.2 mm)
Recommended filament: Fillamentum Traffic Black, Noble Blue and Traffic White.
• 3xSW_Inner_Front_Selector: Aprox.Time: 4 min. Material: 2 gr.
Infill Density: 20%
Support: No
Recommended filament: Fillamentum Noble Blue and Traffic White.
• 2xSW_Side_Selector_Wheel: Aprox.Time: 25 min. Material: 3 gr.
Infill Density: 15%
Support: Yes
Support Over Hang Angle: 70º
Recommended filament: Fillamentum Ruby Red and Green Glass.
• 1xSWScrew Side_Selector_Wheel: Aprox.Time: 1 min. Material: 1 gr.
Infill Density: 15%
Support: No
Recommended filament: Fillamentum Rapunzel Silver.
• 1xSW_ Body_Hitch_Paddle_Shifter_C: Aprox.Time: 1 h 30 min. Material: 11 gr.
Infill Density: 15%
Support: No
Recommended filament: Fillamentum Traffic Black.
• 2xSW_Side_Switch: Aprox.Time: 11 min. Material: 1 gr.
Infill Density: 15%
Support: No
Recommended filament: Fillamentum Traffic Black.
• 1xSW_HitchA_Paddle_Shifter_AB: Aprox.Time: 19 min. Material: 3 gr.
Infill Density: 15%
Support: No
Recommended filament: Fillamentum Traffic Black.
• 1xSW_HitchB_Paddle_Shifter_AB: Aprox.Time: 9 min. Material: 1 gr.
Infill Density: 15%
Support: No
Recommended filament: Fillamentum Traffic Black.
• 1xSW_Hitch_Paddle_Shifter_C: Aprox.Time: 26 min. Material: 3 gr.
Infill Density: 15%
Support: Yes
Support Over Hang Angle: 70º
Recommended filament: Fillamentum Traffic Black.
• 4xSWButtom Paddle_Shifter: Aprox.Time: 7 min. Material: 1 gr.
Infill Density: 15%
Support: No
Experimental: Activate “Enable Draft Shield” (purge filament change)
Post Procesing / Pause at layer (change colour): 14, 22, 36 (Layer Height: 0.2 mm)
Recommended filament: Fillamentum Traffic Black, Rapunzel Silver and Ruby Red.
• 1xSW_ Body_Hitch_Quickly_Detachable: Aprox.Time: 7 h. Material: 56 gr.
Z Seam Alignament: User Specified
Infill Density: 15%
Support: Yes
Support Over Hang Angle: 70º
Post Procesing / Pause at layer (change colour): 77, 86, 95, 151, 158, 174. (Layer Height: 0.2 mm). View photo.
Recommended filament: Fillamentum Traffic Black, Vertigo Grey, Gold Happens and Ruby Red.
• 3xSW_Screw_Ring_Quickly_Detachable: Aprox.Time: 11 min. Material: 1 gr.
Infill Density: 15%
Support: No
Recommended filament: Fillamentum Rapunzel Silver.
• 1xSW_Plug_Quickly_Detachable: Aprox.Time: 13 min. Material: 1 gr.
Infill Density: 15%
Support: No
Experimental: Activate “Enable Draft Shield” (purge filament change)
Post Procesing / Pause at layer (change colour): 25 (Layer Height: 0.2 mm)
Recommended filament: Fillamentum Traffic Black and Rapunzel Silver.
• 6xSW_ScrewA Front: Aprox.Time: 5 min. Material: 1 gr.
Fill Gaps Between Walls: Nowhere
Infill Density: 15%
Support: No
Recommended filament: Fillamentum Traffic Black.
• 4xSW_ScrewB Front: Aprox.Time: 5 min. Material: 1 gr.
Fill Gaps Between Walls: Nowhere
Infill Density: 15%
Support: No
Recommended filament: Fillamentum Traffic Black.
• 12xSWScrew Back: Aprox.Time: 2 min. Material: 1 gr.
Fill Gaps Between Walls: Nowhere
Infill Density: 15%
Support: No
Recommended filament: Fillamentum Traffic Black.
