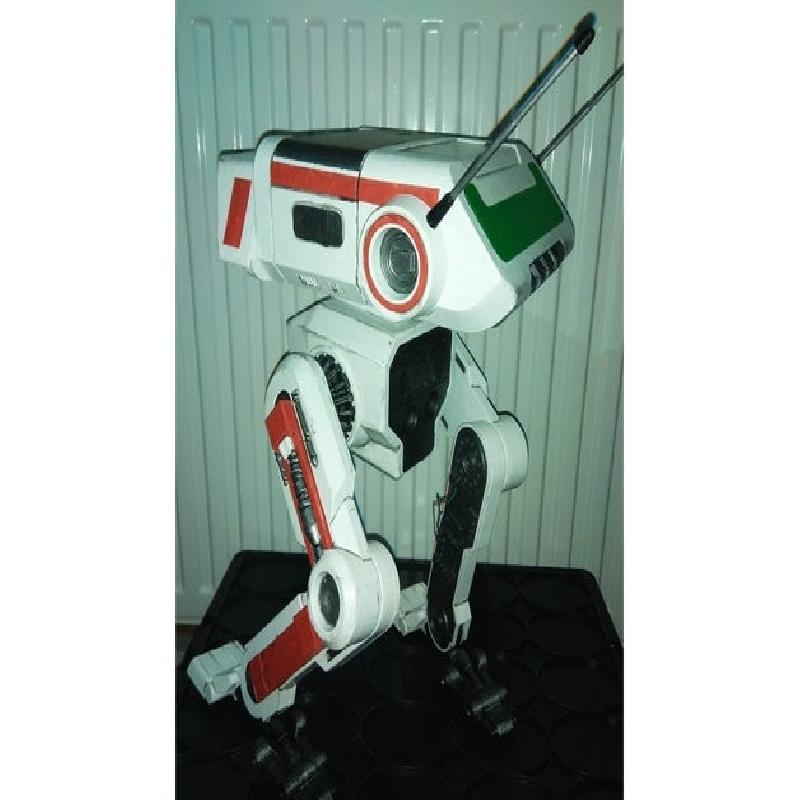

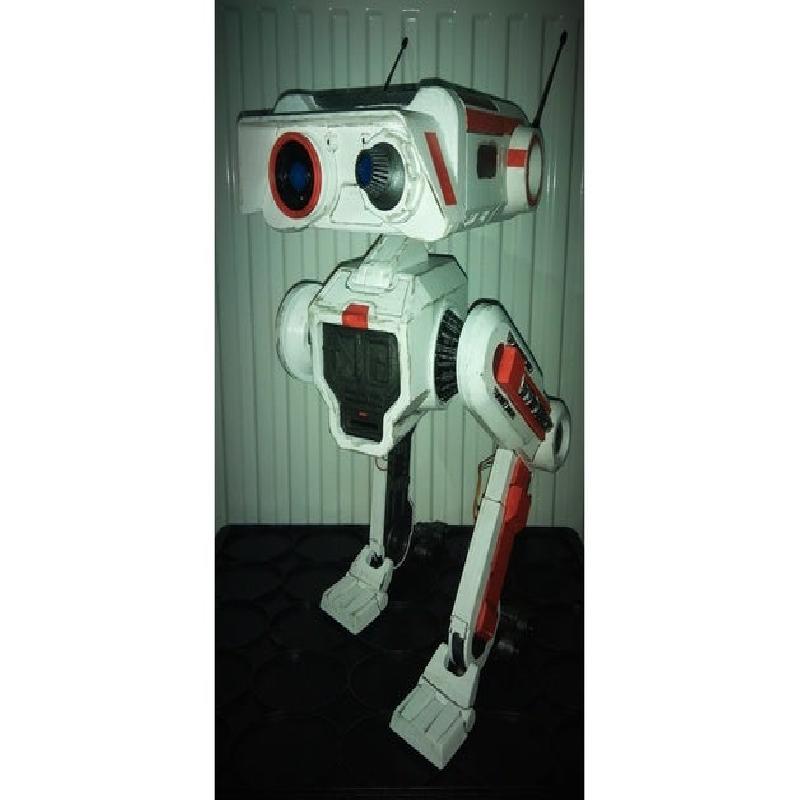

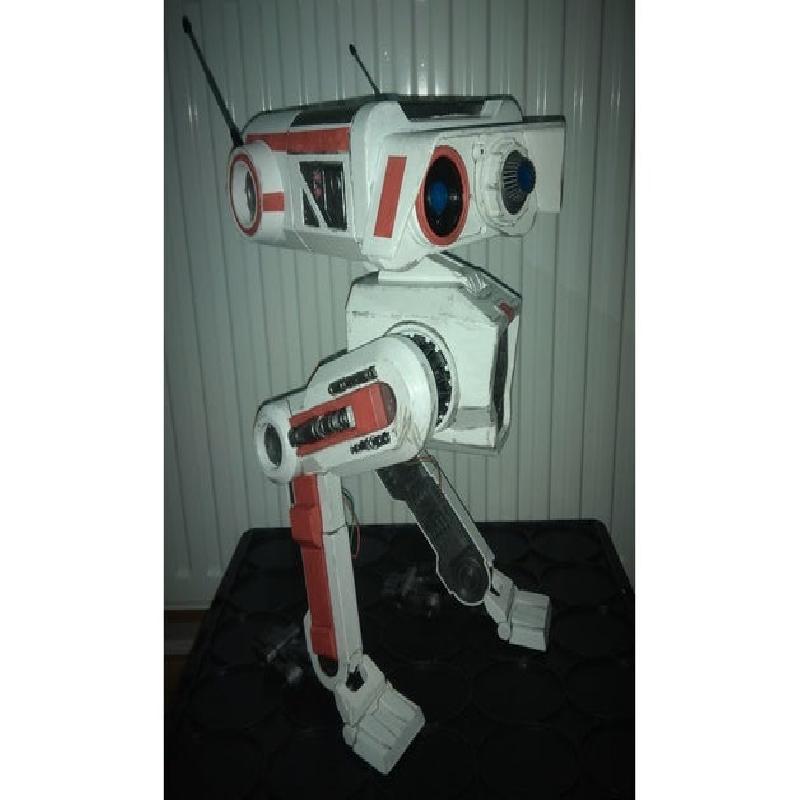

This is a lifesize Modell of BD-1 from the Computer Game Star Wars Jedi fallen order.
It´s completely articulated and can be positioned in any Position seen in the game. The Joints are nearly all fitted with notches so the limbs can be moved in 5-10° steps and sit very tight in this positions so that the model stands in any Position or can be placed on the back für Cosplay.
I have printed and assembled it completely before uploading the files. Printing Time is about 100 hours for all parts, the longest single print time ist about 23 hours for the large head-part.
All parts fit on a Printer with 200x200x205 print bed.
You may shrink it to about 80% of the original size, smaler is not possible due to small Details and wall thickness. For most parts there are no Supports needed.
Printing: When the file Name reads (number)x you have to print the part several times, according to the number. F.E.: if ist named (Name) 4x you have to print it 4 times.
If it reads 2x 2xM you have to print it 2 times normal and 2 times mirrored.
Please see the printing recomendations pdf for the orientation of the parts.
And see the Assembly.pdf for Assembly instructions.
Search for BD-1 screenshots to find a color-scheme for the paint-job. I highly recommend to paint all parts before Assembling it.
I can´t wait to see some other cool makes of this Little Guy.
Nearly 80 Hours of time went into the design, the Assembly and the documents so that it is a accurate representation of BD-1. As I didn´t have any dimensions I had to estimate the size. In crouched Position he´s About 45cm high.
Soon I will add some modifications to the head so the model can be fitted with light and a Stim Thrower so BD-1 can throw the owner three stim packs for healing as in the game.
