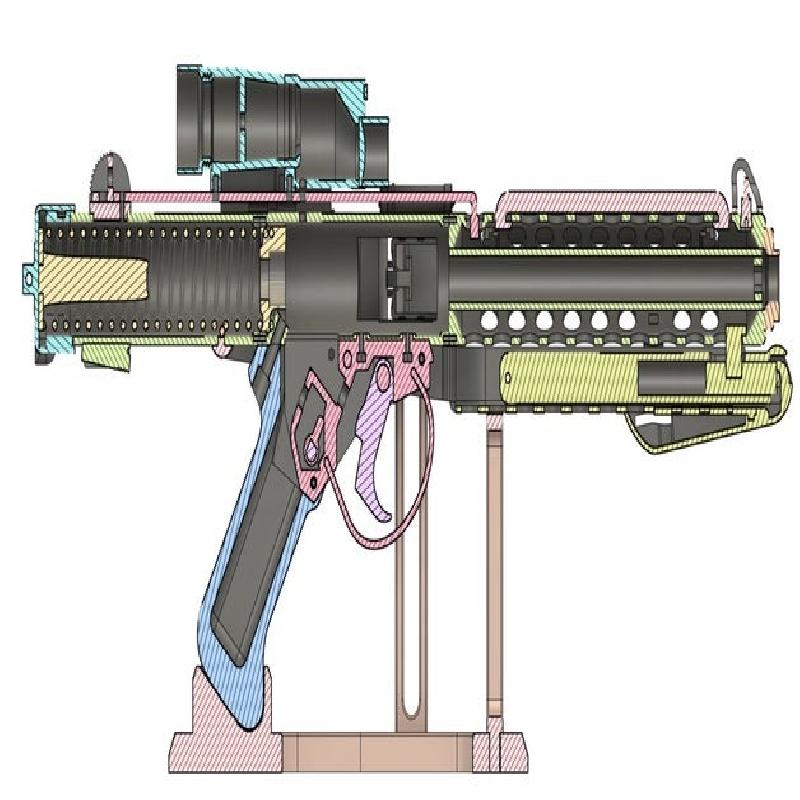

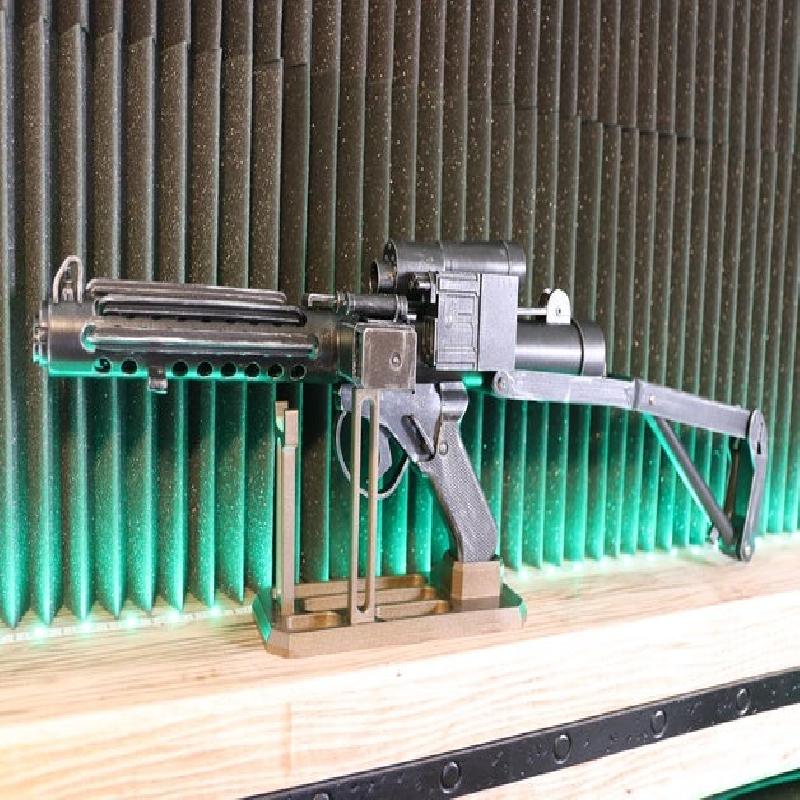

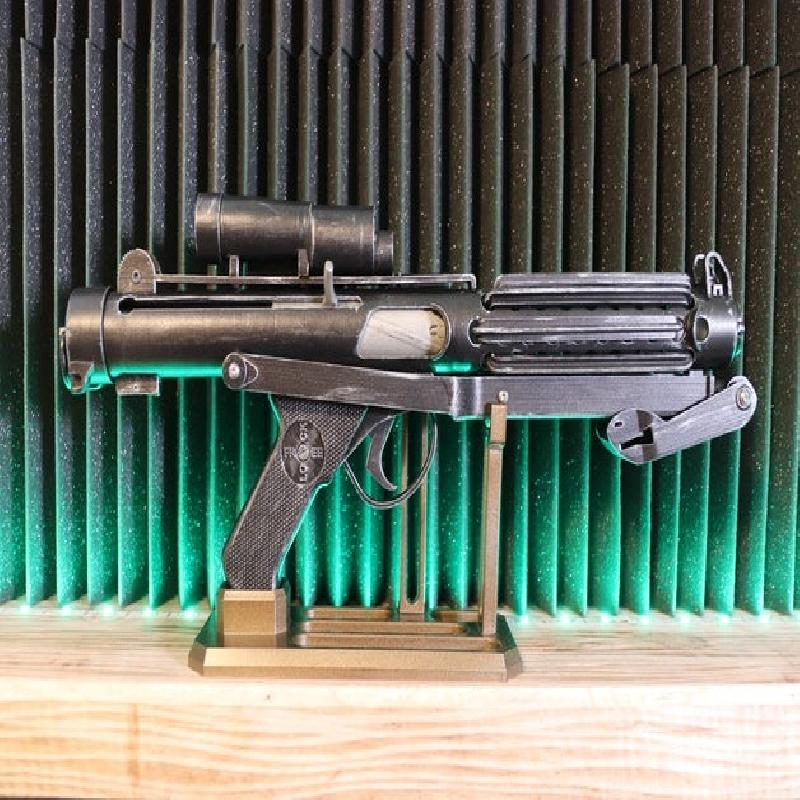

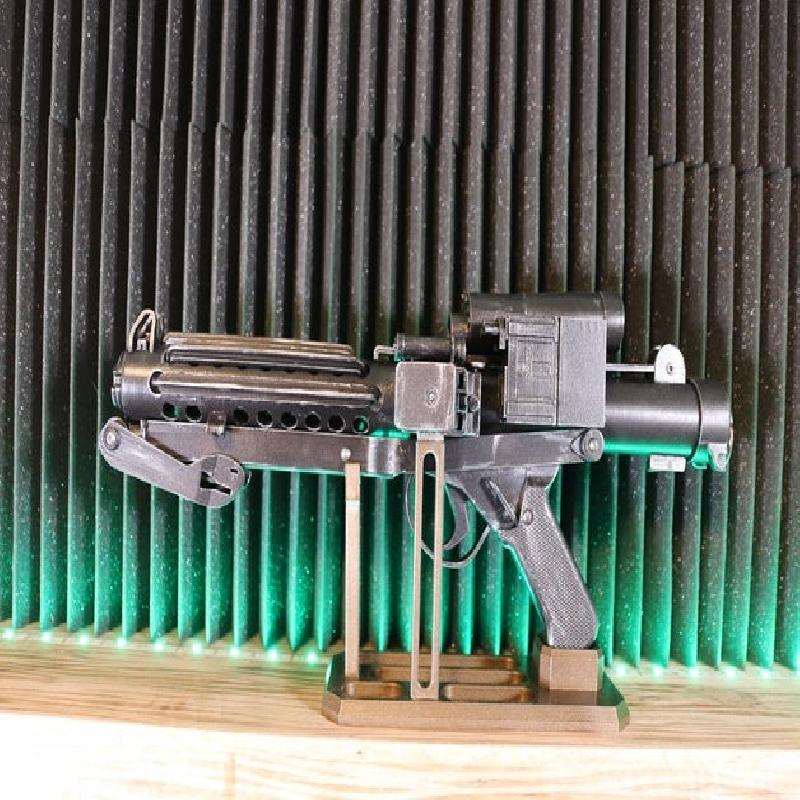

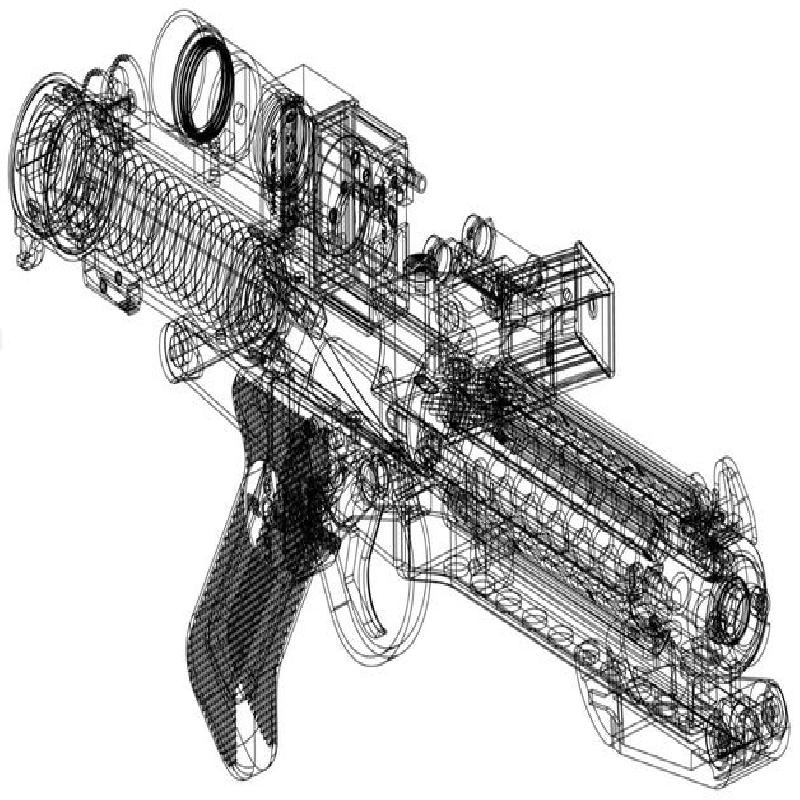

I modeled this from the ground up to be the E-11 I always wanted. I went to Battlefield Vegas and took reference pics of their real Sterling SMG, modeled that, then added the modded parts to it just like they did 40 years ago.

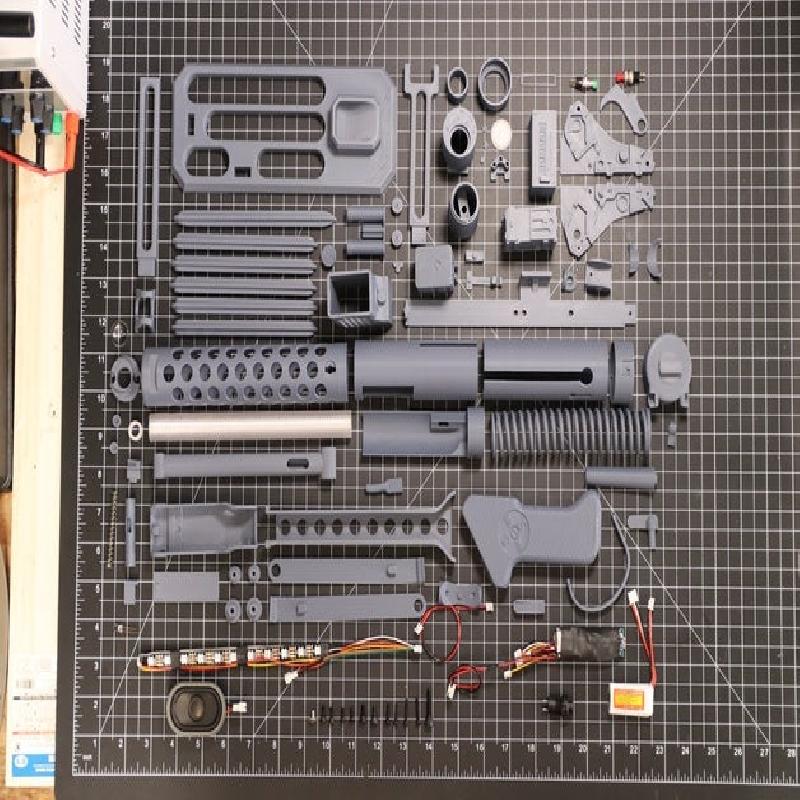

It's 70 mostly support free parts. It has places for switches, lights, an Arduino with an MP3 player and an AMP in the handle, etc. The bolt cycles and will hit a power switch to turn it on and off. The magwell as a grill for a Motorola GM950 speaker for sound. Trigger an selector both work with '7mm Momentary On Off Push Button Micro Switch' (google that for reseller, it's like a buck for 10)

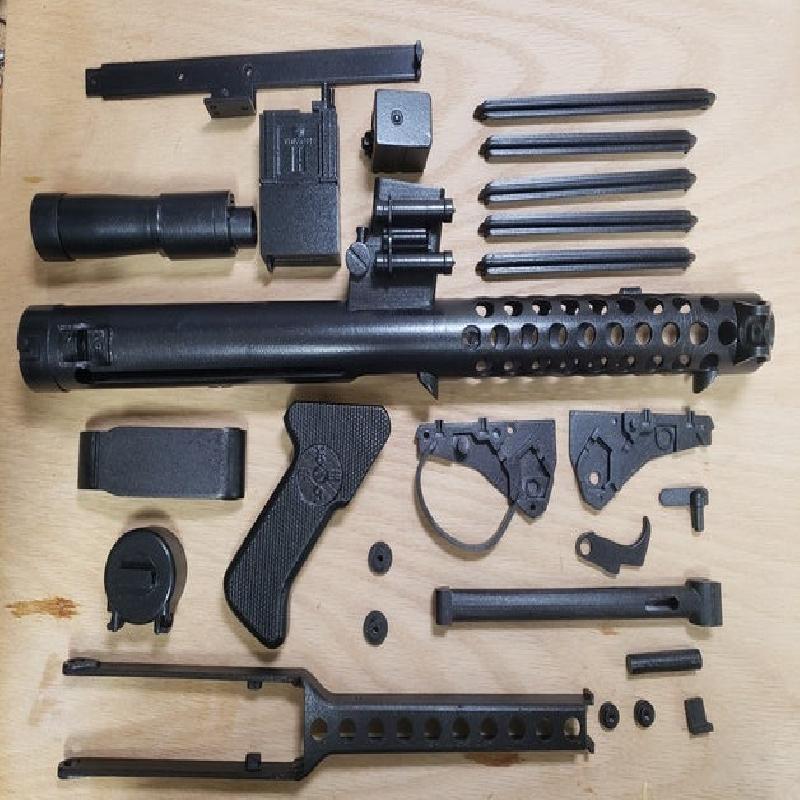

You can see in the shot on the wood background how many parts are snap fit or screwed together, I'm not careful with my props and I don't want to remake the whole thing because I broke something.

I was going to retail this, but I had hiccups with it being 'too real' and rejected from 2 major 3D model retailers because "we don't allow guns". So I give up, here it is for free.

If anyone makes one and wants a parts list/wiring diagram and the Arduino code let me know in the comments and I'll post links soon. As is it's a pretty good DIY base for almost any kind of light and sound setup.
