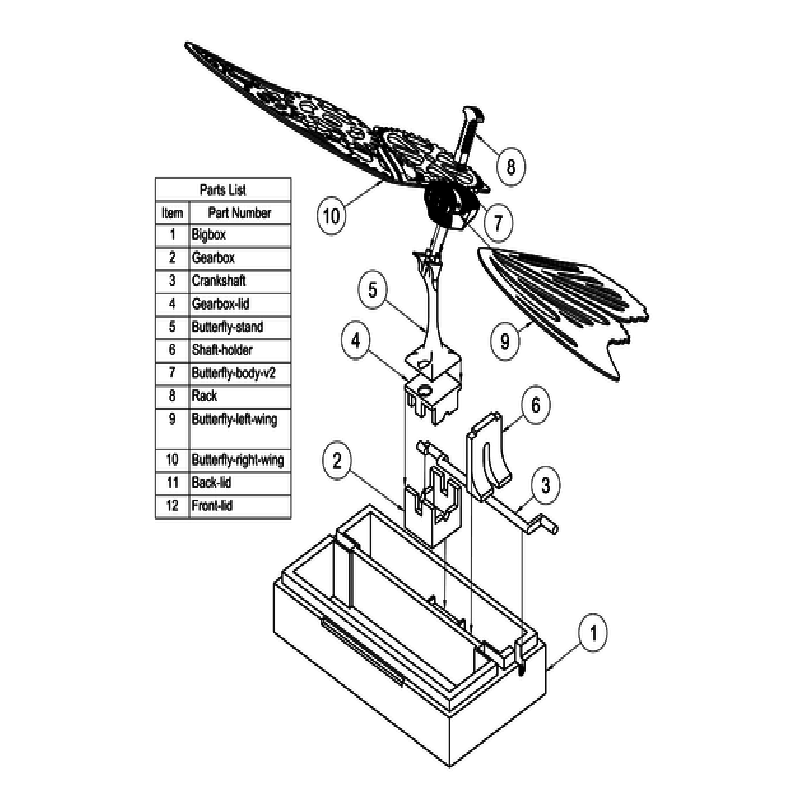

Everything fits together fairly easily, as in the diagram, but welding/gluing the butterfly stand to the crankshaft box's lid.
The only tricky part is the flexible "shaft" on the crank, connecting the crankshaft to the rack.
I recommend using a thin jewellery chain as it slides easily on the crankshaft and the length does not slip.

You may also have to snip the corner pieces if they point too far up/down.

You can put a pin through the wings, but I secured them with glue.

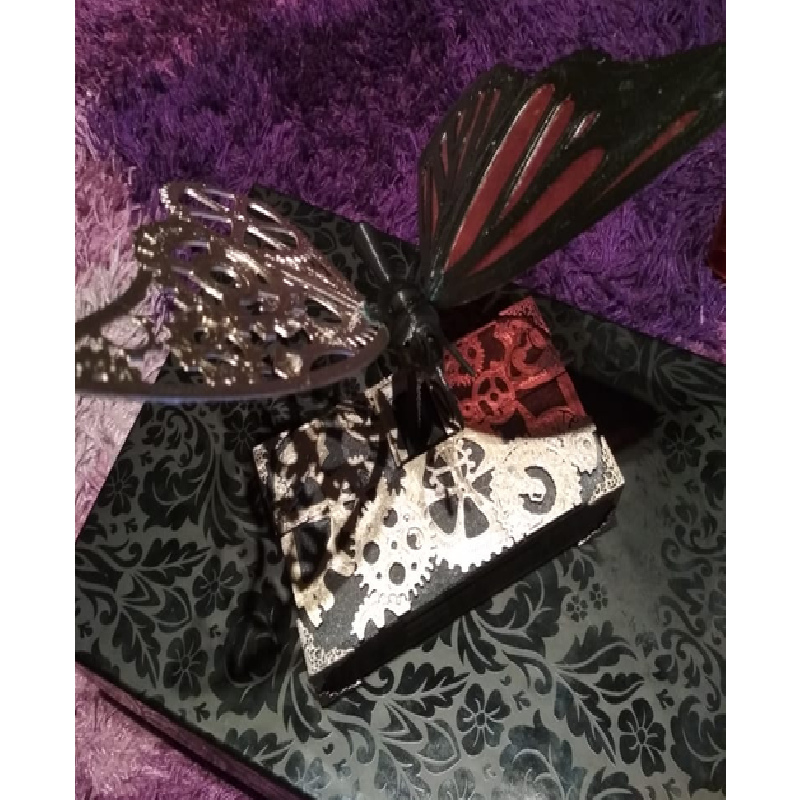

I glued on red cellophane with metallic gold spray paint spattered on top for the left wing membrane.

This version is scaled 80% from the original, so the filament for the feelers and proboscis will need some stretching with a heat gun/hair dyer

Print Settings

Printer:

isycat ic3

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

10%

Filament:                                            eSun PLA+                                        black

Post-Printing

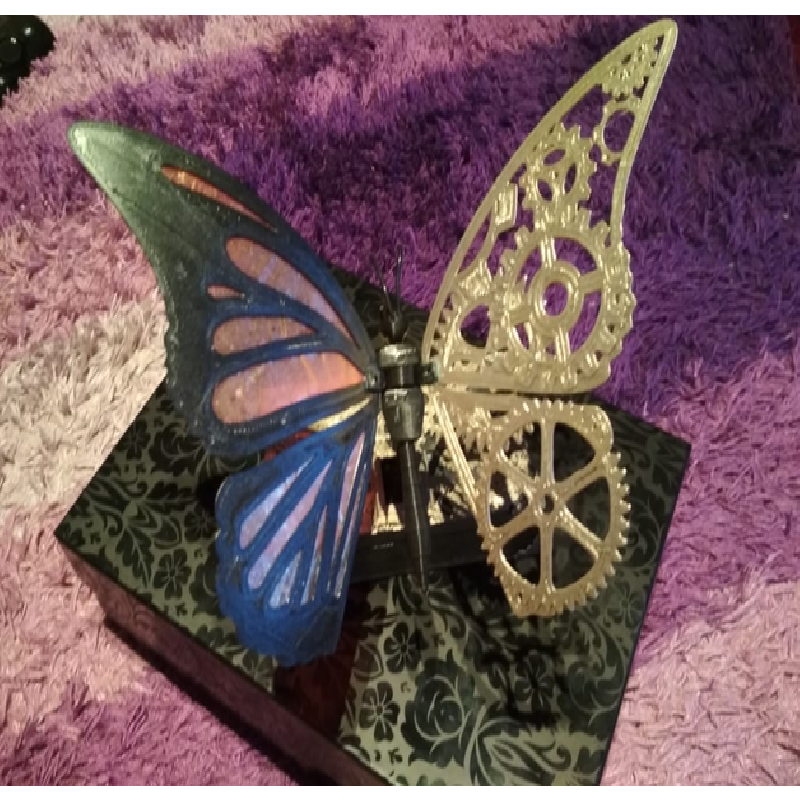

Metallic gold spray paint

On the right wing, lid details, and corner details.

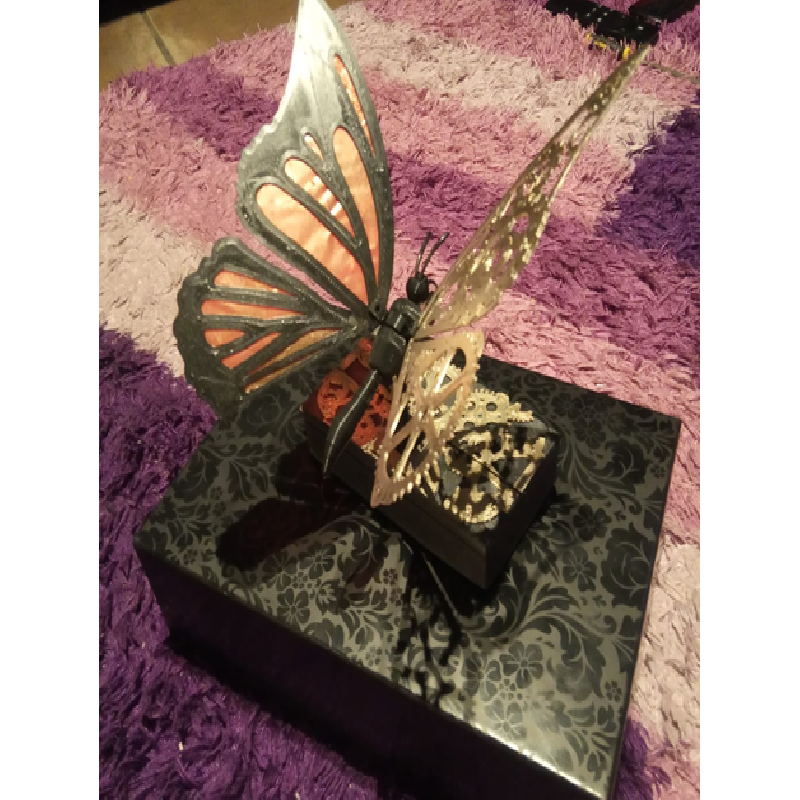

Cellophane wing membrane

Red cellophane glued to the left wing.
NB: Test your glue on your cellophane for reactions first

Glue

Glued crankshaft box lid to the butterfly stand, wings to pinions, and details to the box lids. .

Assembly rack & pinions

Slotted the rack into the pinions and secure with pins (filament also an option)

Chain

Attached thin jewellery chain to rack and crankshaft, twisting the chain to tension the rack to the correct angles.

Attach head, feelers, proboscis, and tail
