by JRad
Hey everyone! Sorry about the delay in getting these updated files up. I've been sitting on them for months and just found the time to get it uploaded.
The big updates form my previous version (https://www.thingiverse.com/thing:2853745) include:
Raceways that are printed separately and then inlayed into the airframes.
More detail all over.

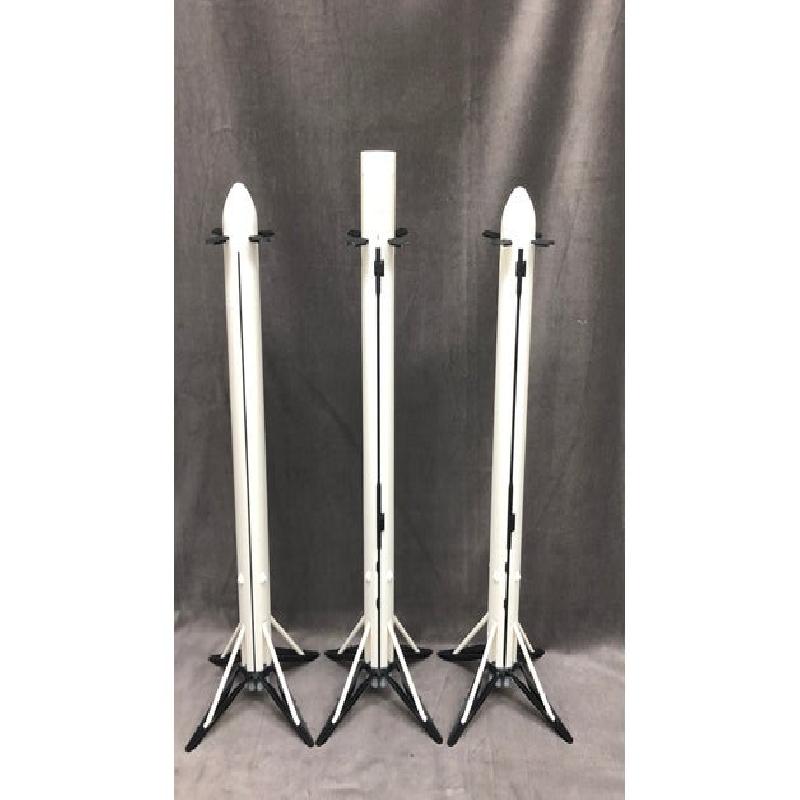

Boosters are closer together (closer to scale)

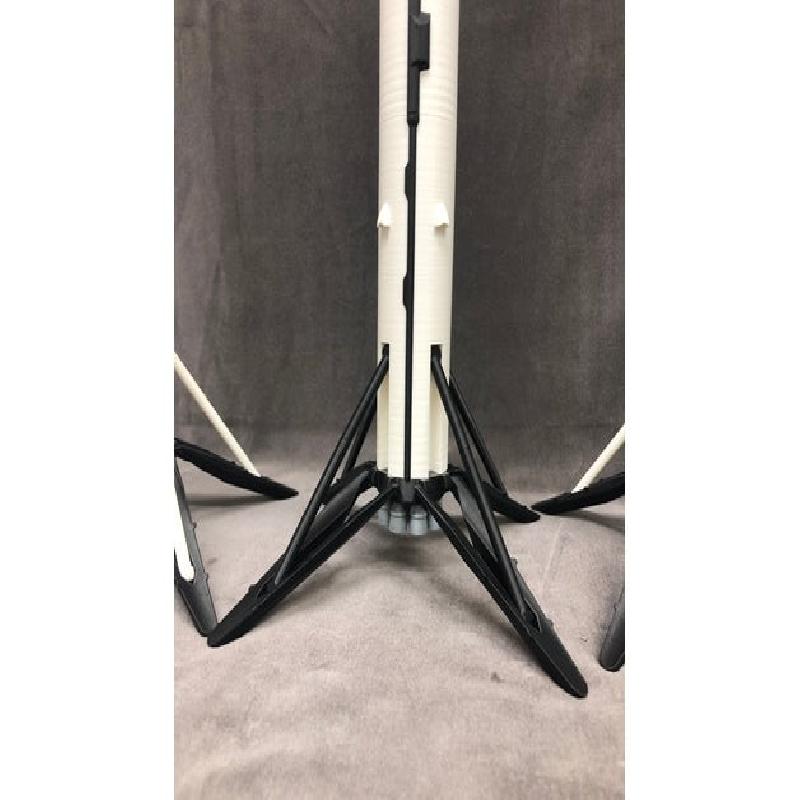

Landing legs are longer (closer to scale)

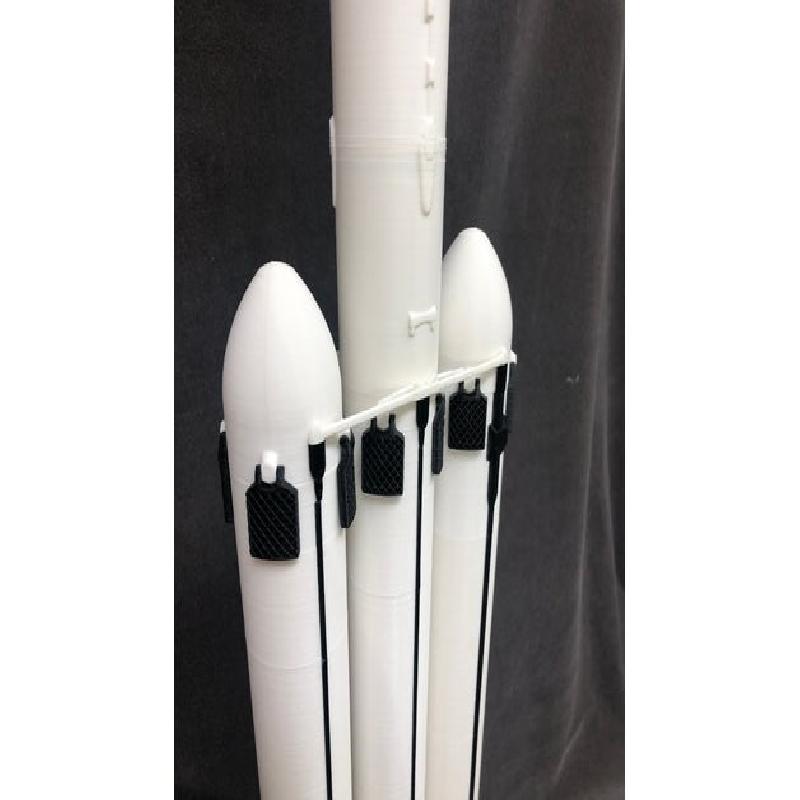

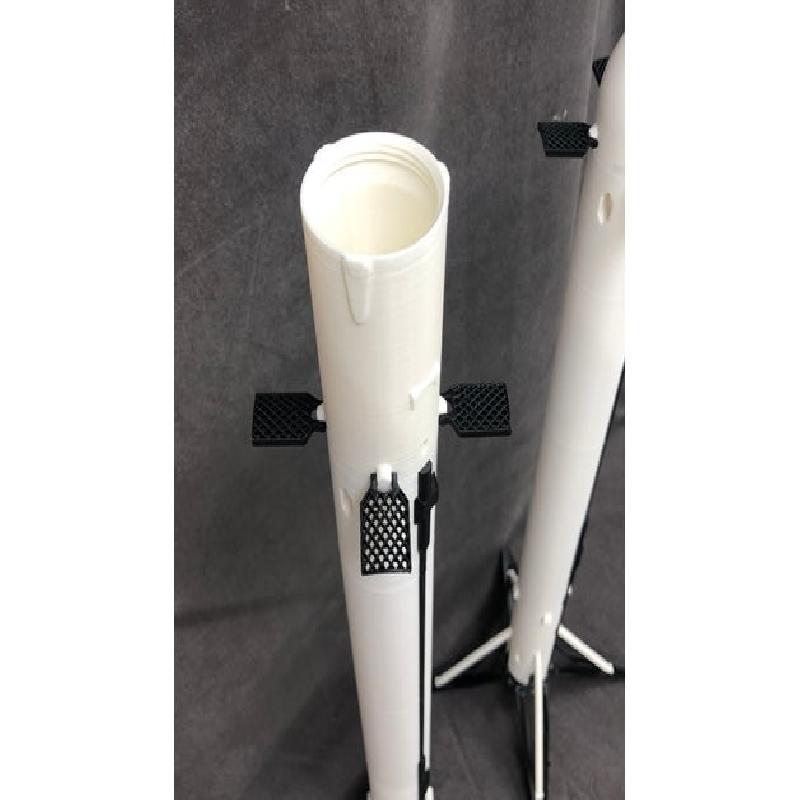

Grid fins moved up onto the nose cones / second stage (closer to scale).
Other parts and remixes from/for Chemteacher's model should still fit (thing 2478927 & 2457148)

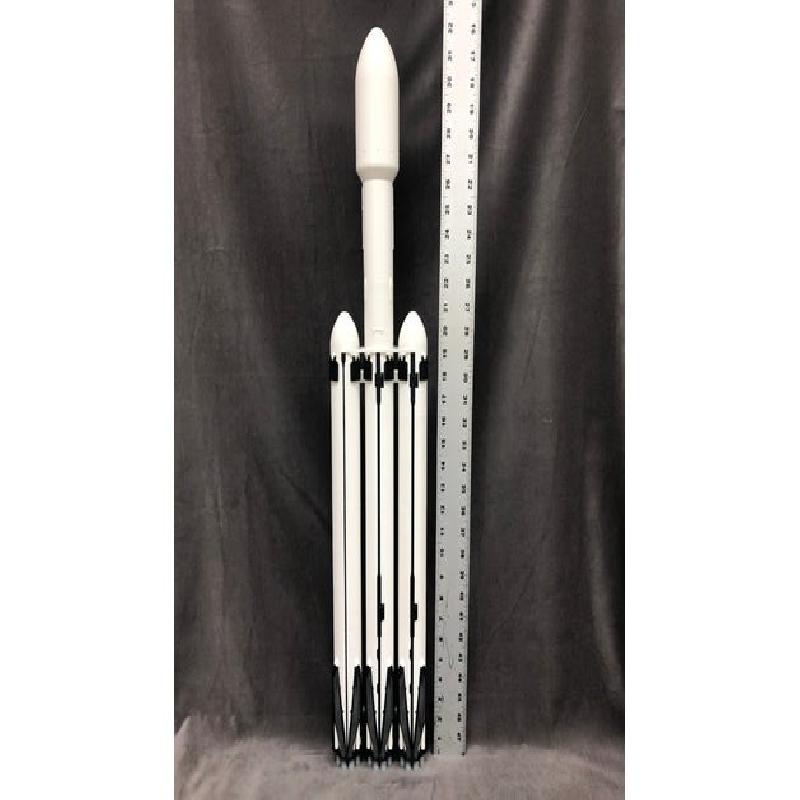

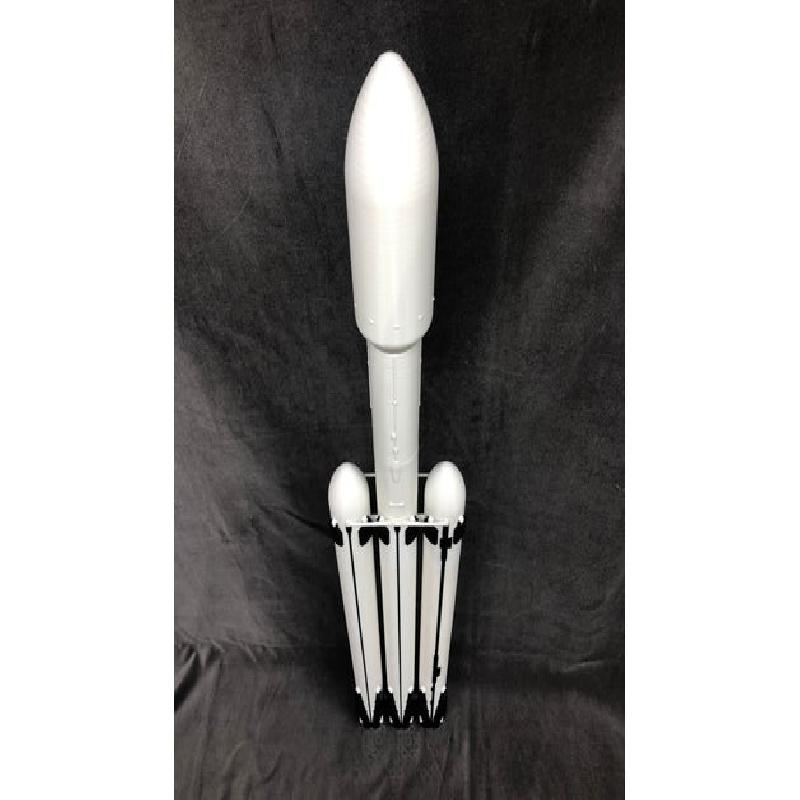

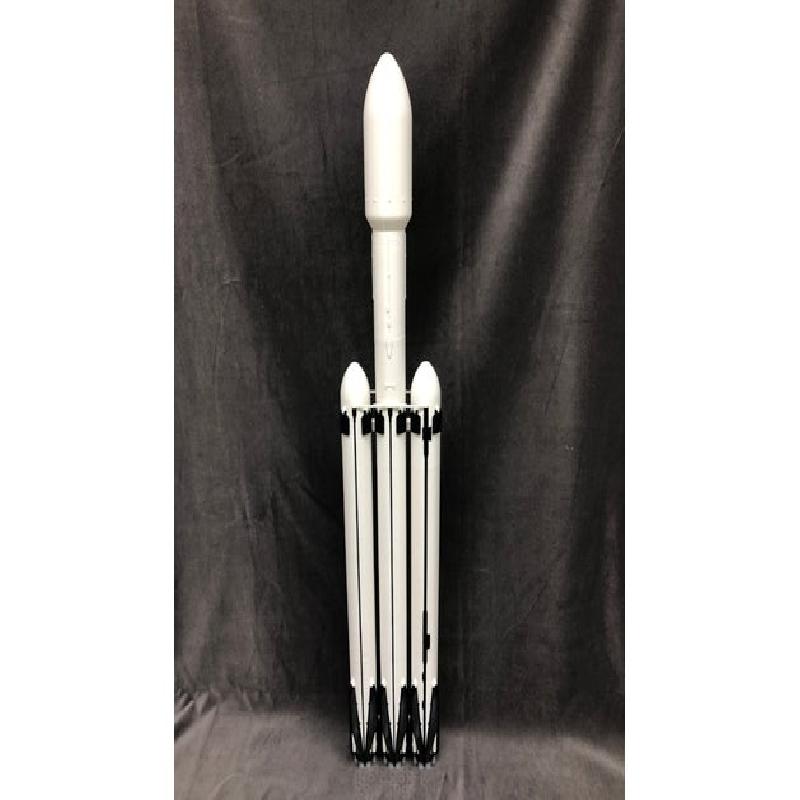

Falcon Heavy
QTY Description
4 Actuator Female
4 Actuator Male
1 Booster Aft Section 1 - Center
2 Booster Aft Section 1 - Sides
3 Booster Aft Section 2
3 Booster Aft Section 3
1 Booster Forward Heavy Center
2 Booster Forward Heavy Sides
2 Nose Cone Bolt

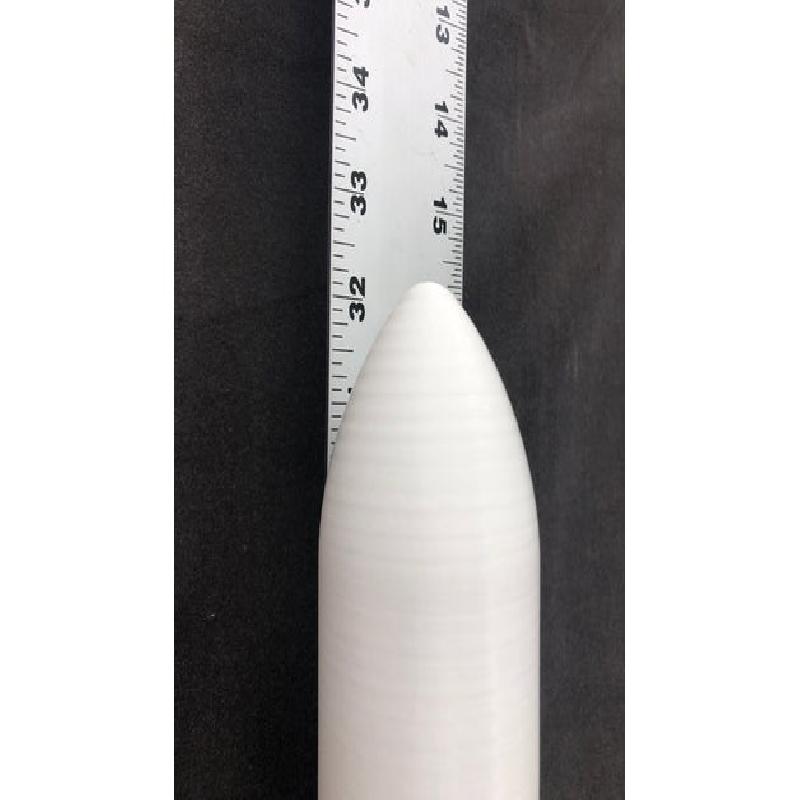

2 Nose Cone
27 Engines-2 Part - Engines
3 Engines-2 Part - Octaweb
12 Grid fin (or grid fin filled holes)
1 Heavy Connecting Conduits BACK
1 Heavy Connecting Conduits FRONT

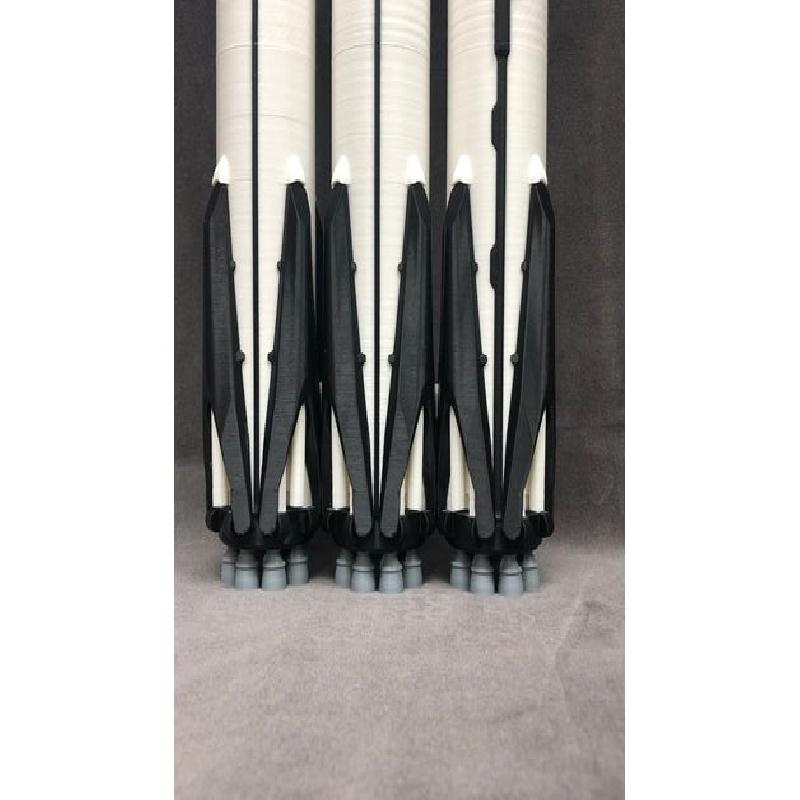

12 Landing Leg

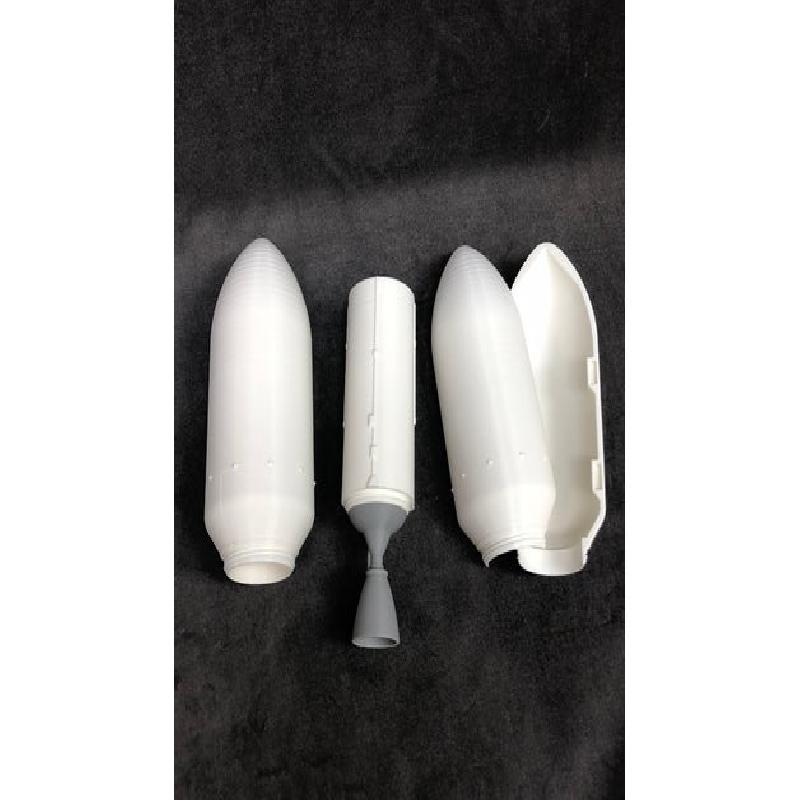

2 Payload Faring (or 1x Payload Fairing 1-piece)
1 Second Stage Engines
1 Second Stage Interstage - Falcon Heavy

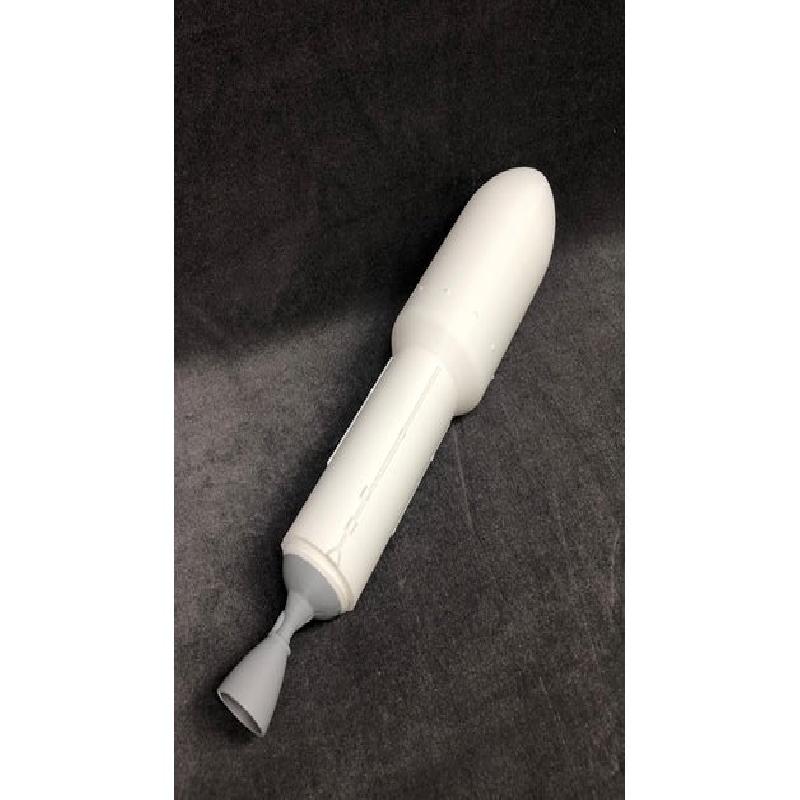

1 Second Stage
Falcon 9
4 Actuator female
4 Actuator male
1 Booster Aft Section 1 - Falcon 9
1 Booster Aft Section 2
1 Booster Aft Section 3
1 Booster forward Falcon 9
9 Engines-2 Part - Engines
1 Engines-2 Part - Octaweb
4 Grid fin (or grid fin filled holes)
4 Landing Leg
2 Payload Faring (or 1x Payload Fairing 1-piece)
1 Second Stage Engines
1 Second Stage Interstage - Falcon 9
1 Second Stage
