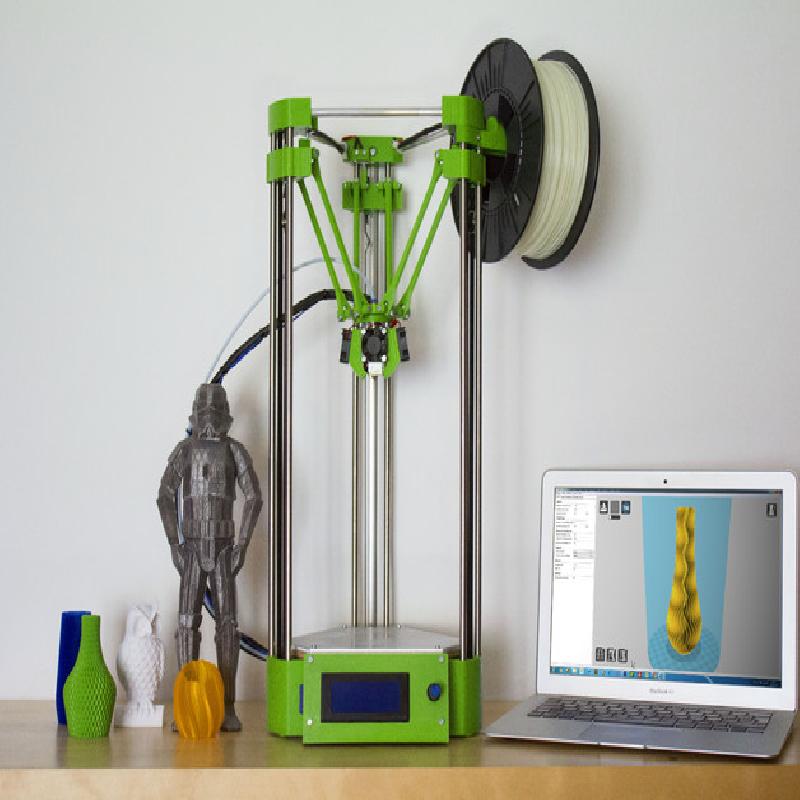

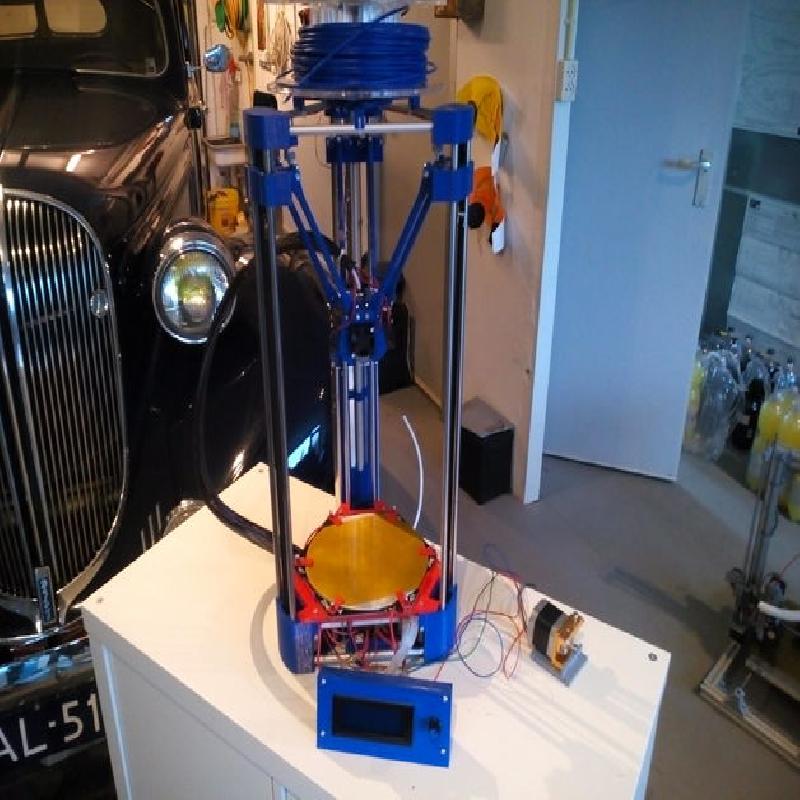

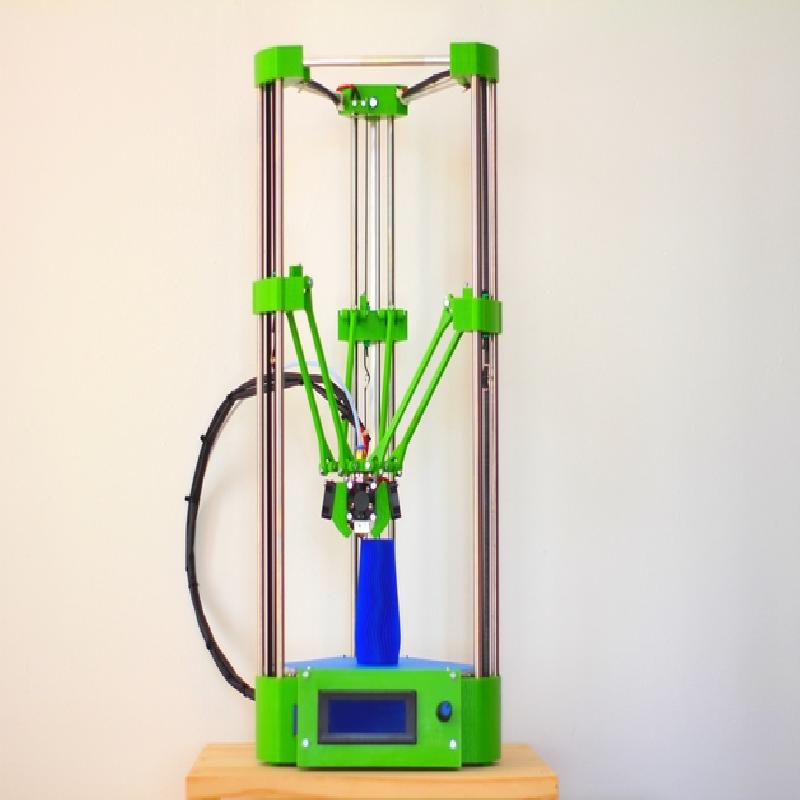

The Sculptr Delta is a low-cost delta style 3D printer created for beginners and makers.
Instagram : sculptr3d
Snapchat : sculptr3d
Facebook : https://www.facebook.com/sculptr3d/
Twitter : https://twitter.com/sculptr3D
Website : http://www.sculptr.fr
Ø16 x 25cm print volume
Precision from 250 to 80 microns
Slicer : Cura
Heated bed & screen controller included
Mechanical parts :
6x stainless steel smooth rod 500mm (Ø 8mm)
9x stainless steel smooth rod 180mm (Ø 8mm)
6x LM8UU bearings
1x 500mm aluminium hollow rod (Ø 8mm)
3x 20 tooth GT2 pulleys
3x GT2 belt 1m
4x 624ZZ bearings
3x GT2 belt tensioner
Extrusion :
E3Dv6 hotend for 1.75mm filament
2x 1/8" pneufit
80cm PTFE tube (Ø 4mm)
11mm extrusion wheel
20mm spring
Heated bed (optional but recommanded) :
Thermoelectric heater (peltier effect) 40x40x4mm
Thermistor
5mm cork sheet
Polyimide adhesive
Thermal pad
Electronics :
Arduino MEGA + RAMPS 1.4
3x 30mm fan
4x NEMA17
4x stepper driver
ReprapDiscount Smart Controller
12V 120W (or more) power supply
ON/OFF switch
5.5/2.5 power plug
3x endstops
Screws & Nuts :
35x M3 16mm screw
40x M3 "nylstop" nut
40x M3 nut
50x M3 10mm screw
12x M3 10mm hex screw
4x M4 25mm screw
1x M4 10mm screw
4x M3 30mm screw
M3 washers
M4 washers
15x M2.5 20mm screw
15x M2.5 nut
Printed parts :

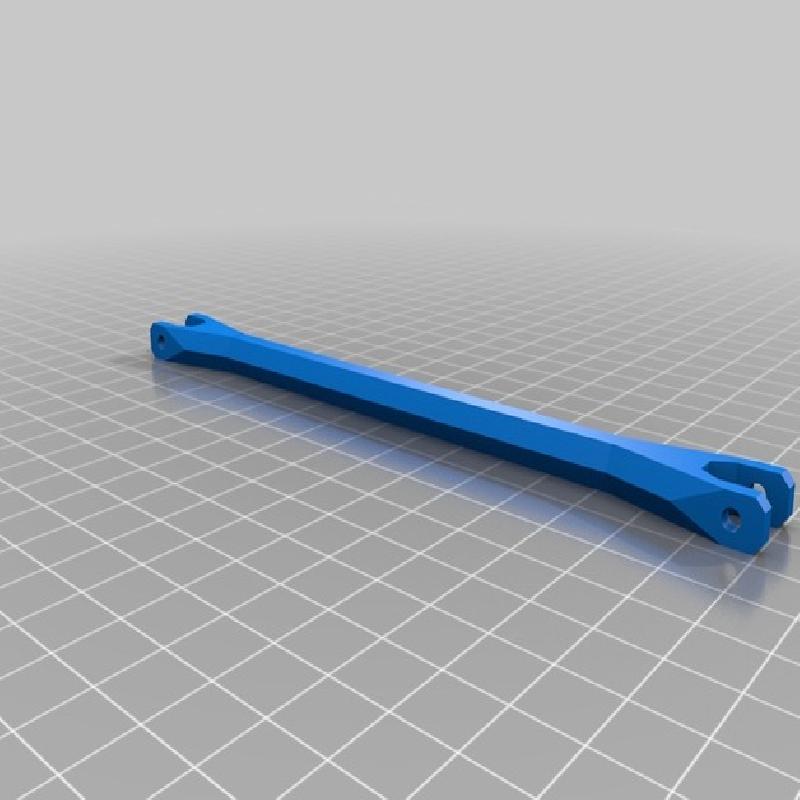

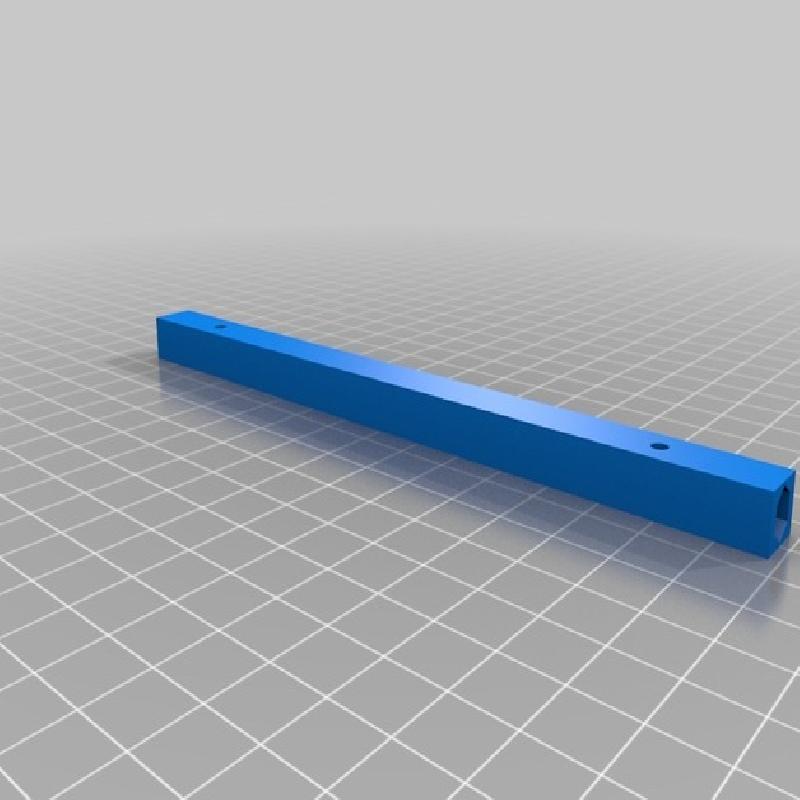

6x 150mm rod

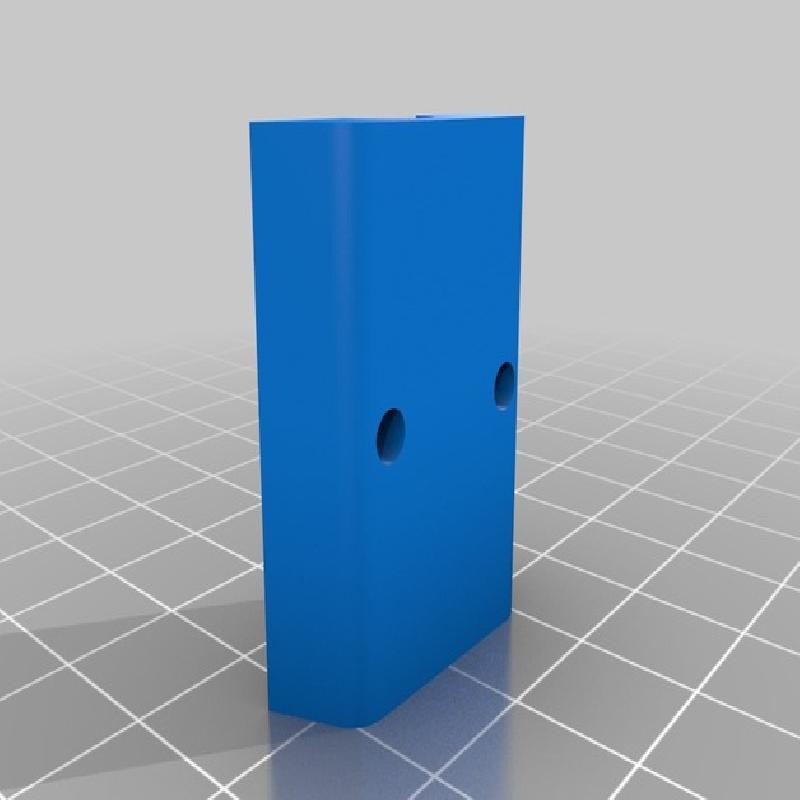

1x arduino support
6x bed support part 1 & 2
2x bottom frame

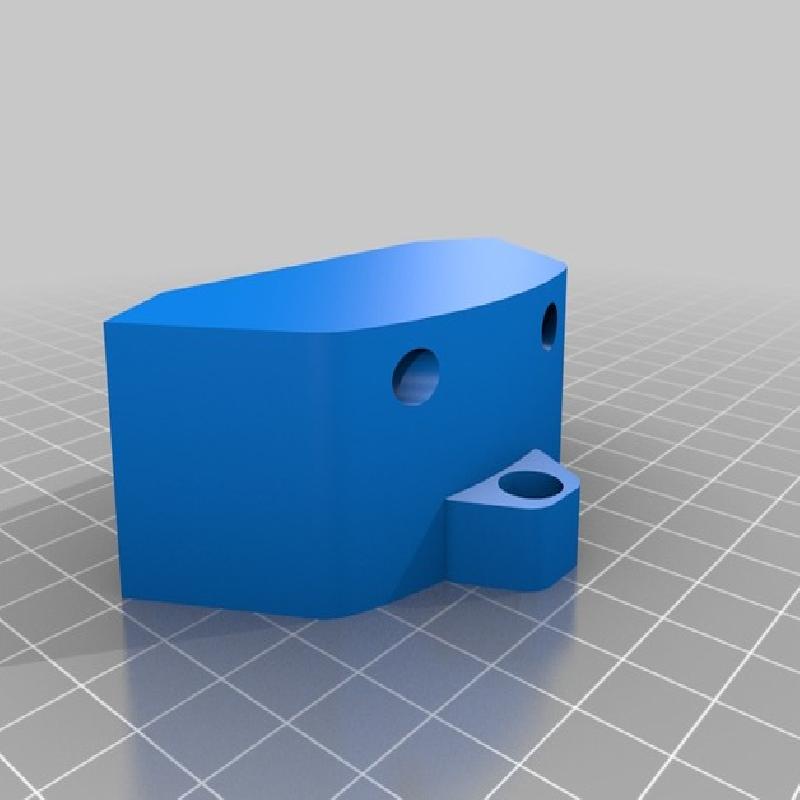

1x bottom frame Z axis

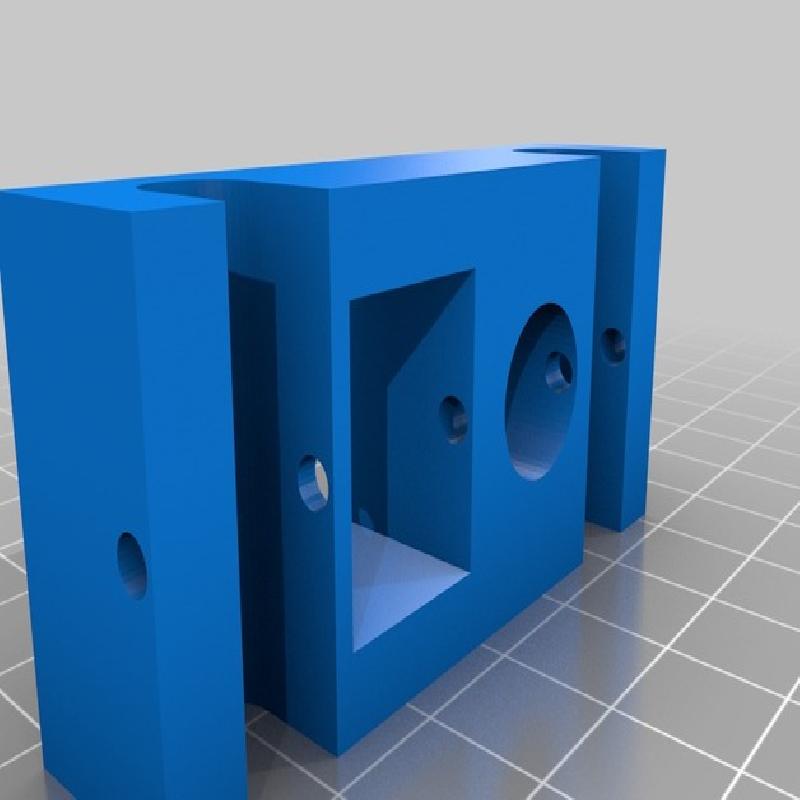

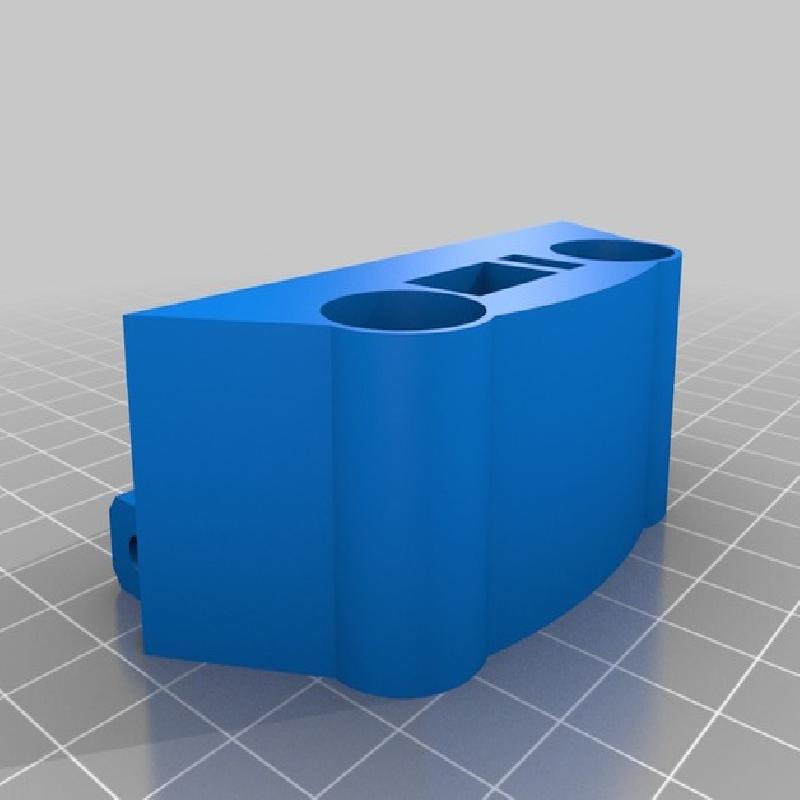

3x carriage

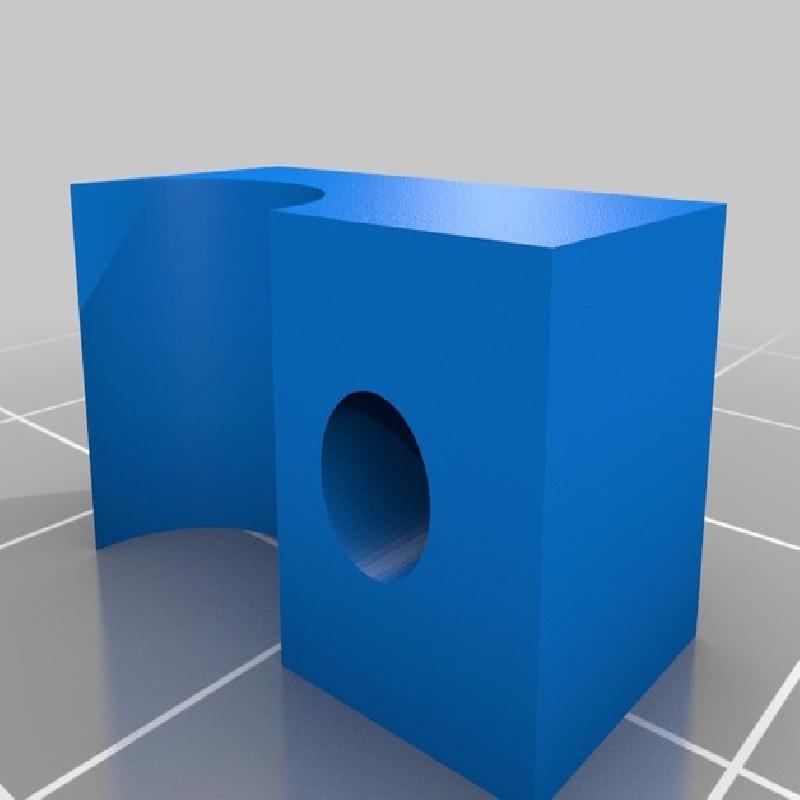

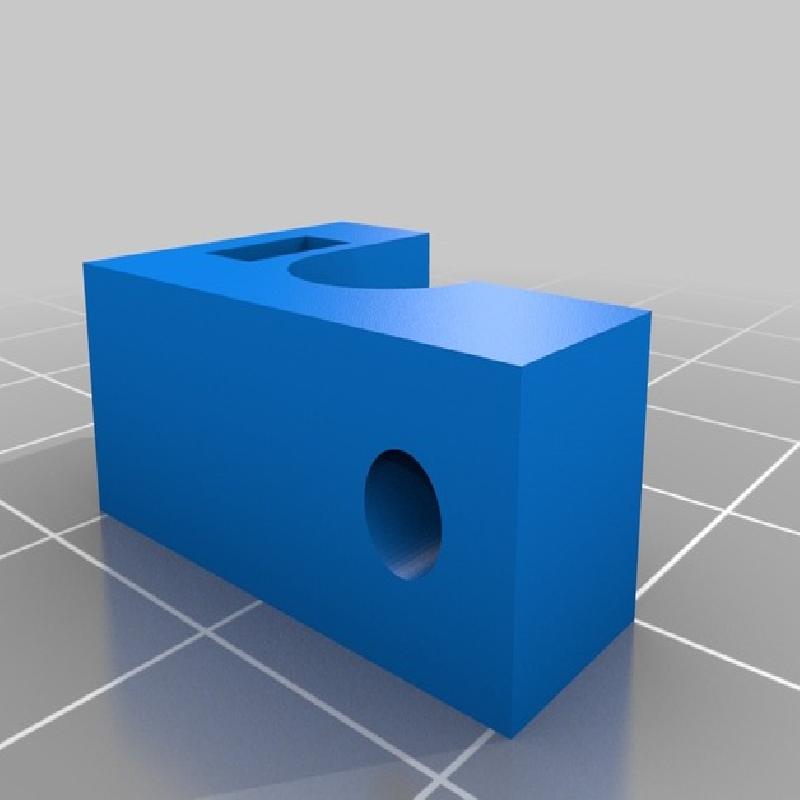

1x e3d blocker

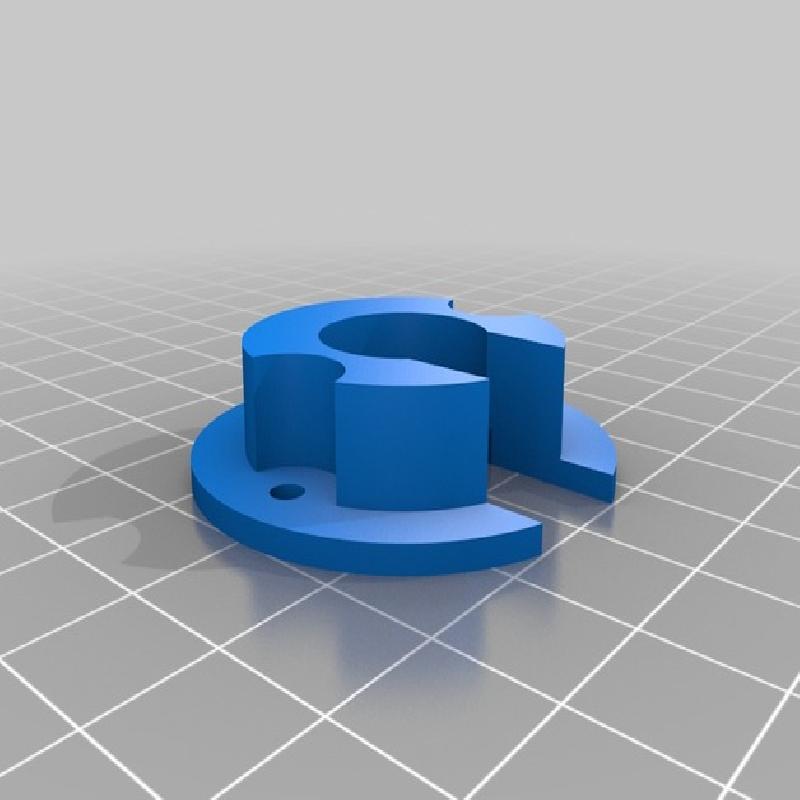

1x e3d top

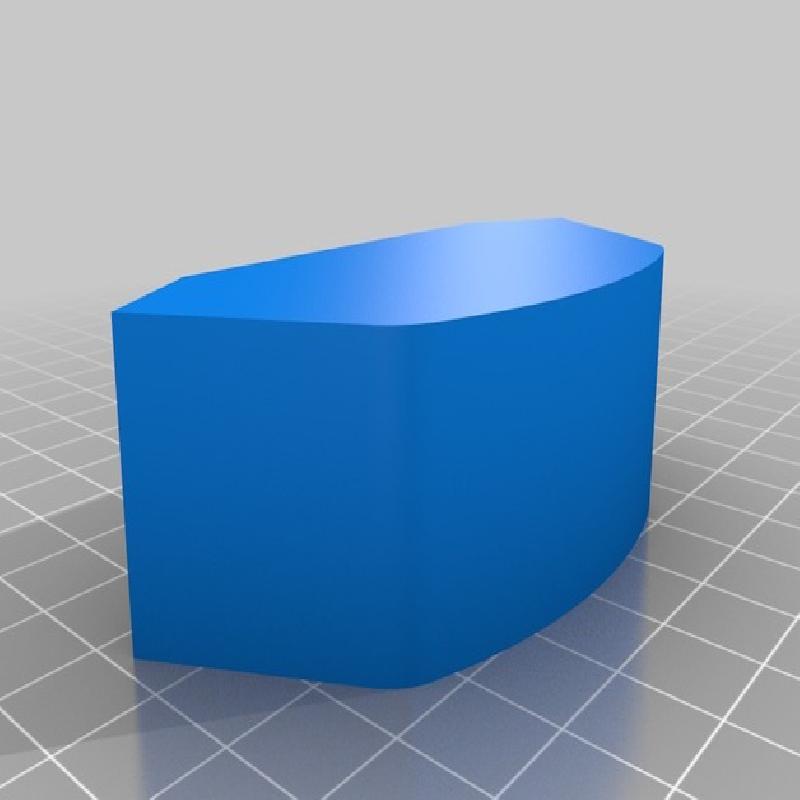

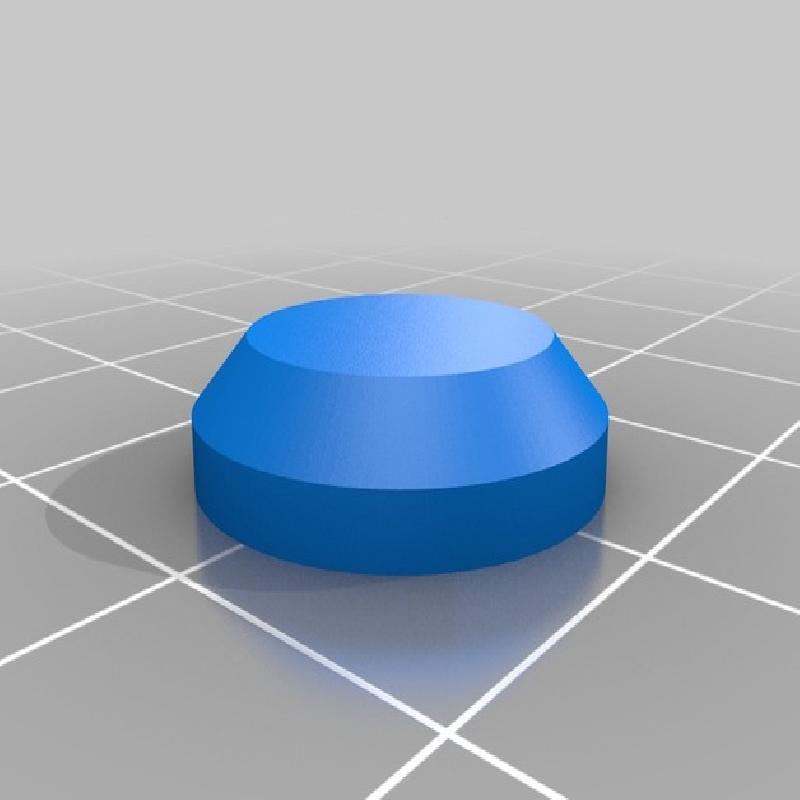

3x foot

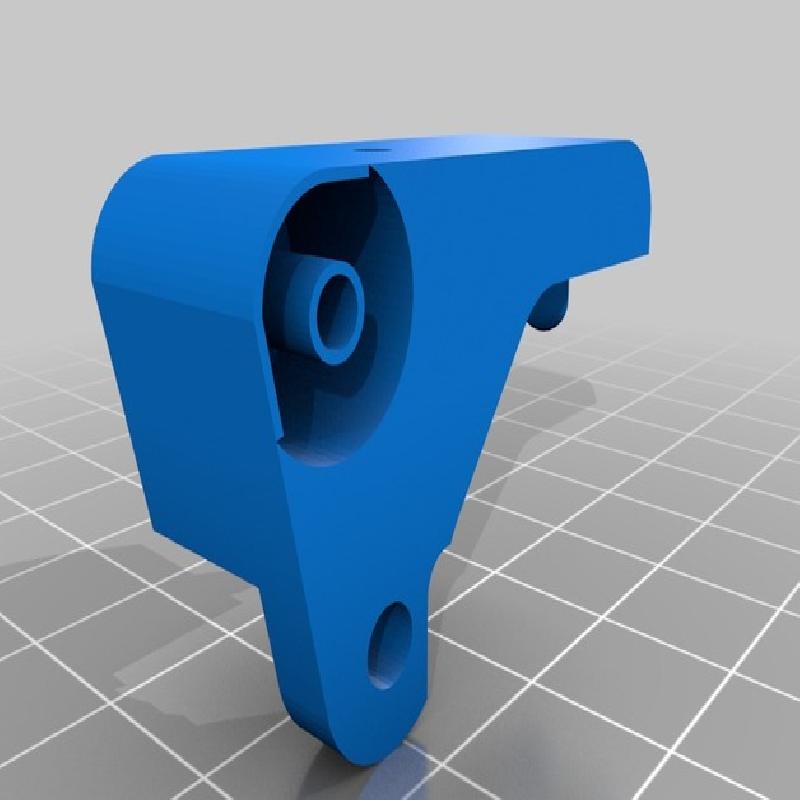

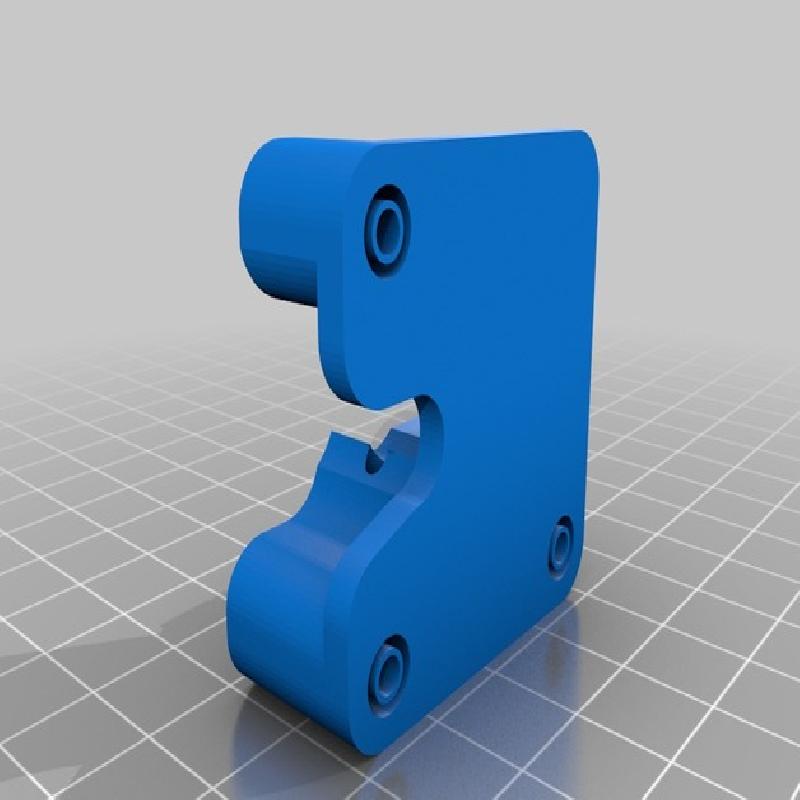

1x extruder arm

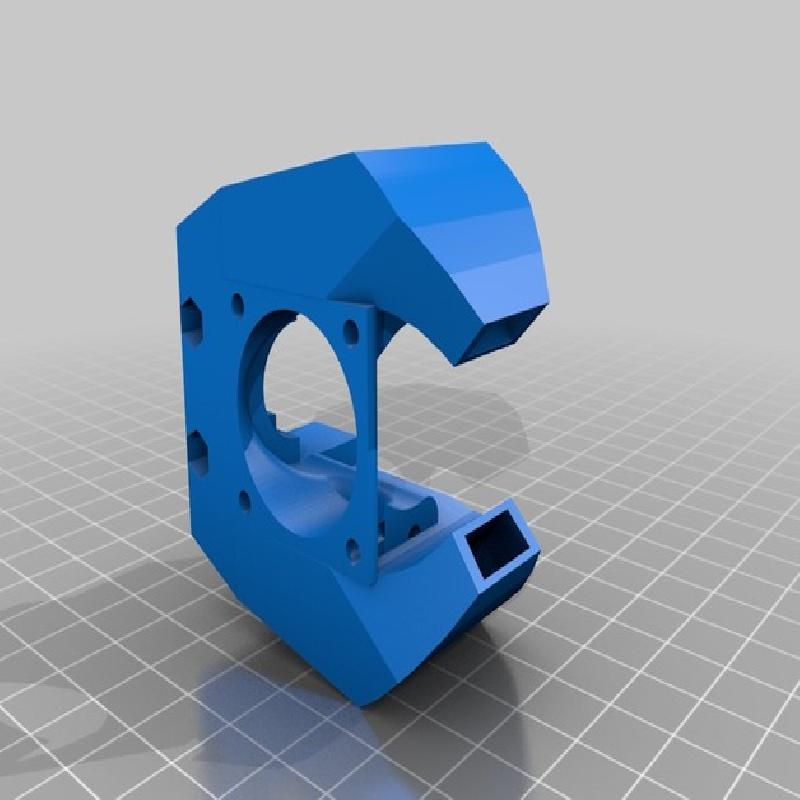

1x extruder body

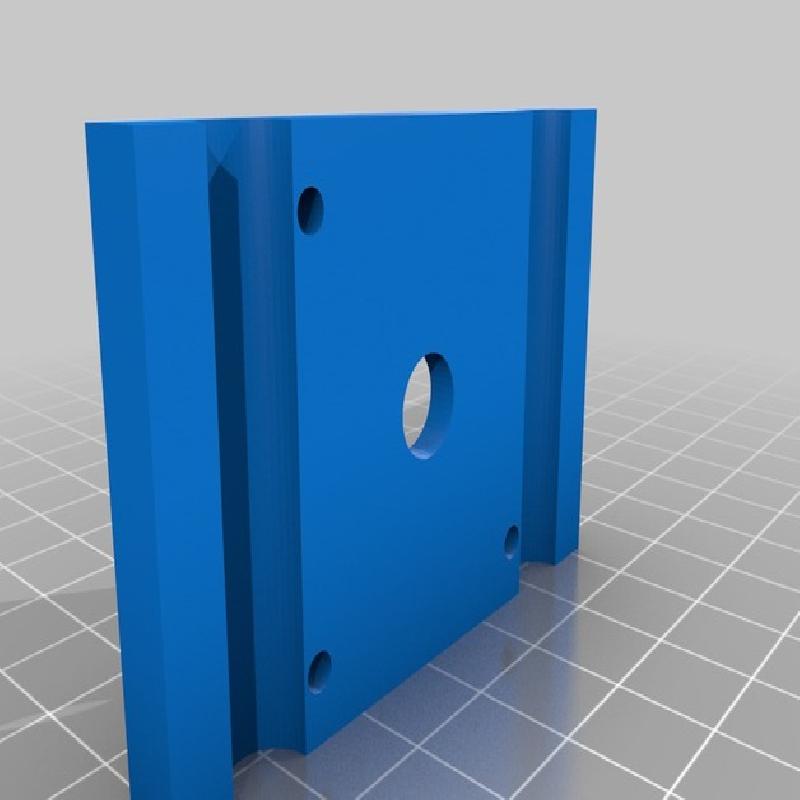

1x extruder support 1 & 2

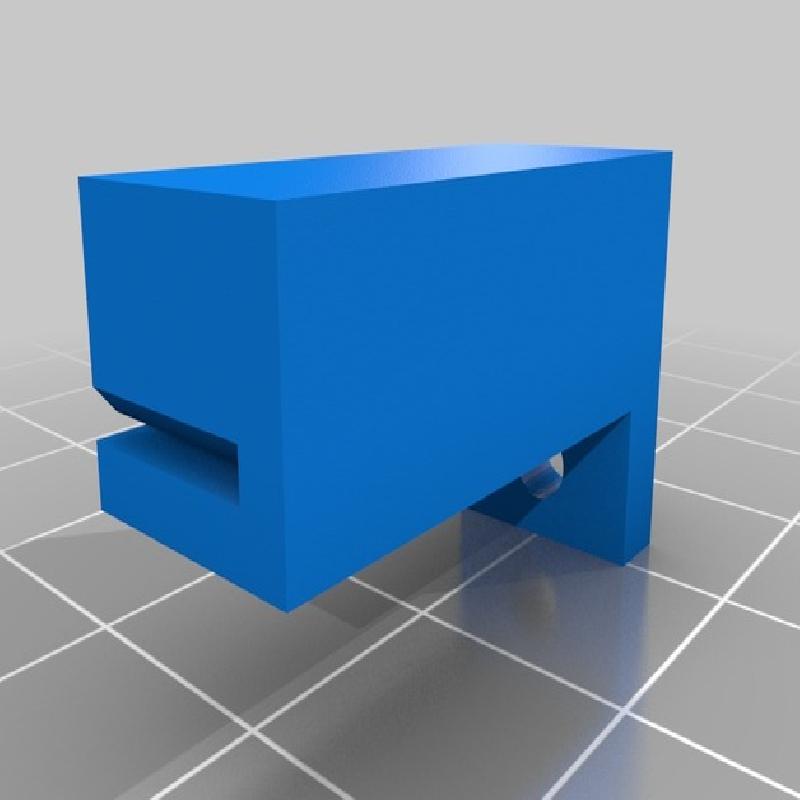

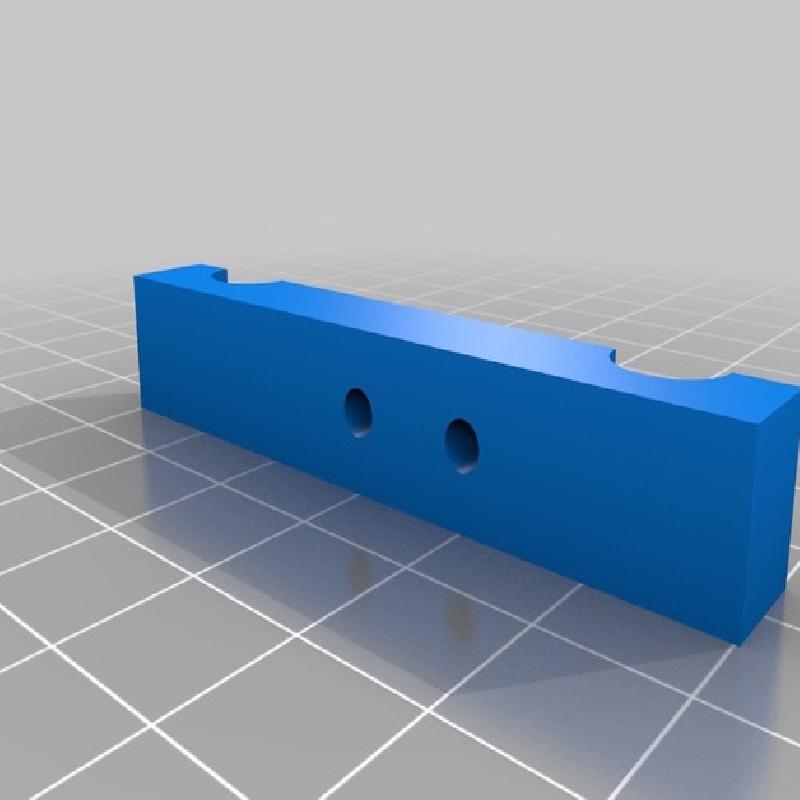

3x GT2 belt carriage

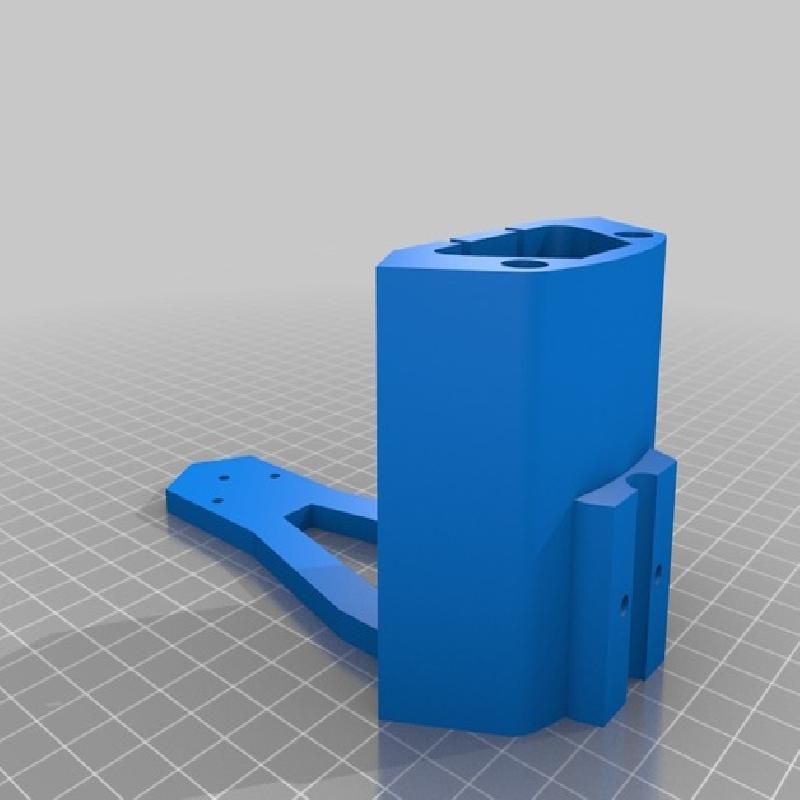

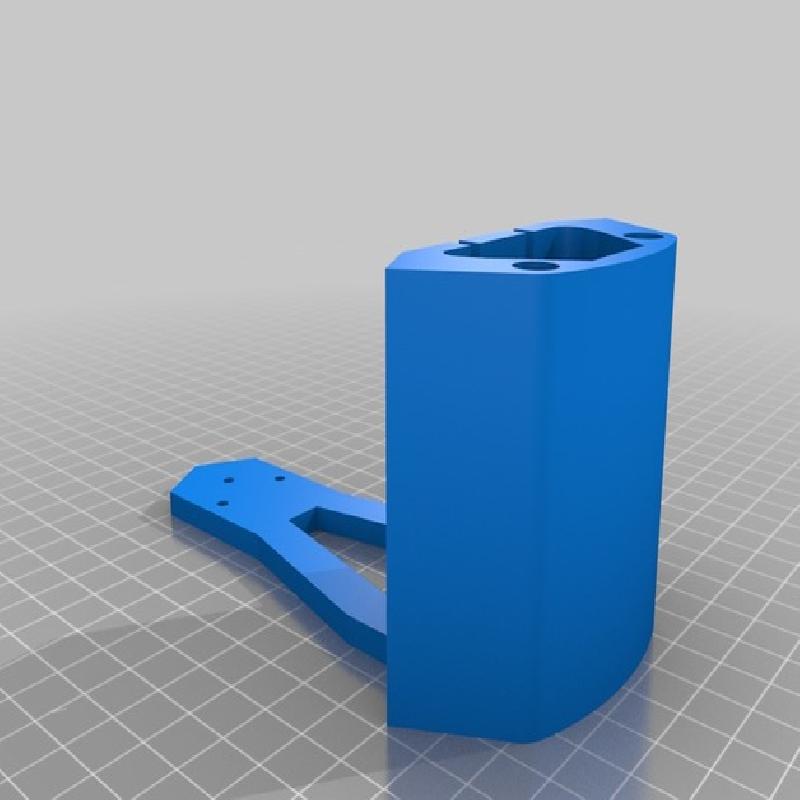

1x hotend fans

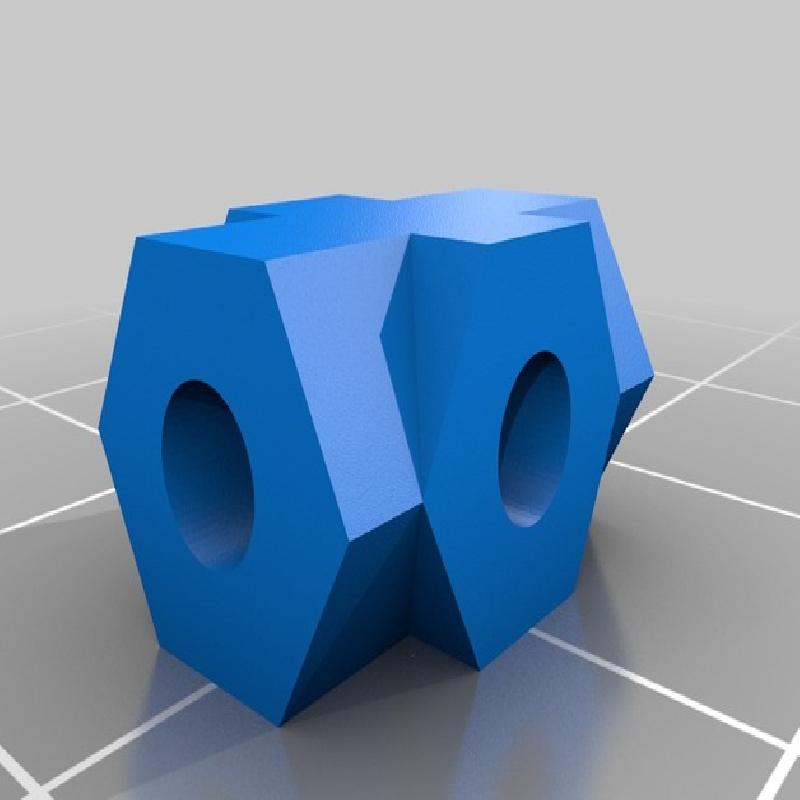

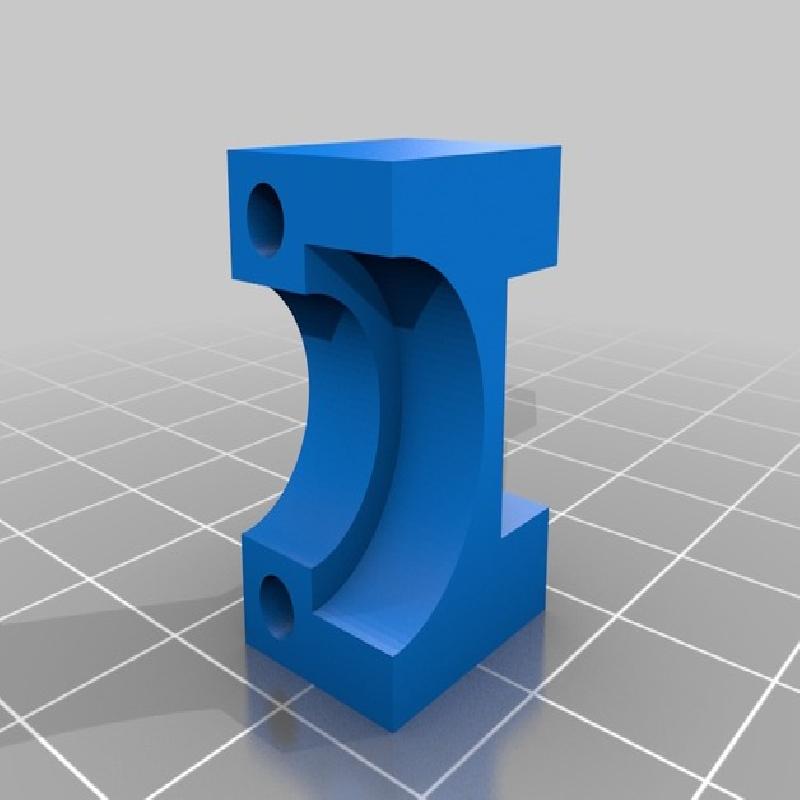

12x joint

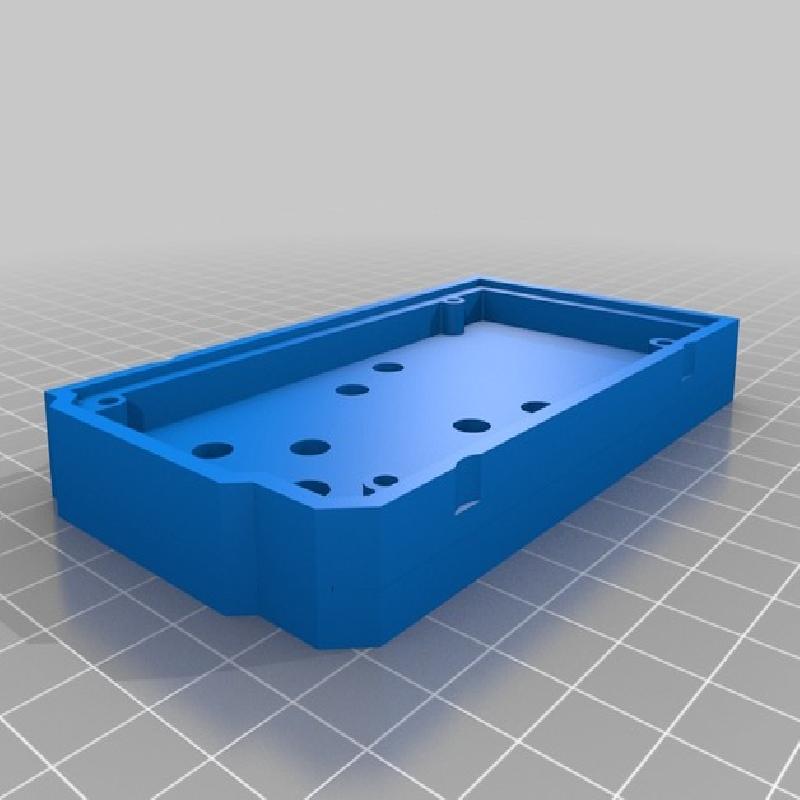

1x LCD front panel

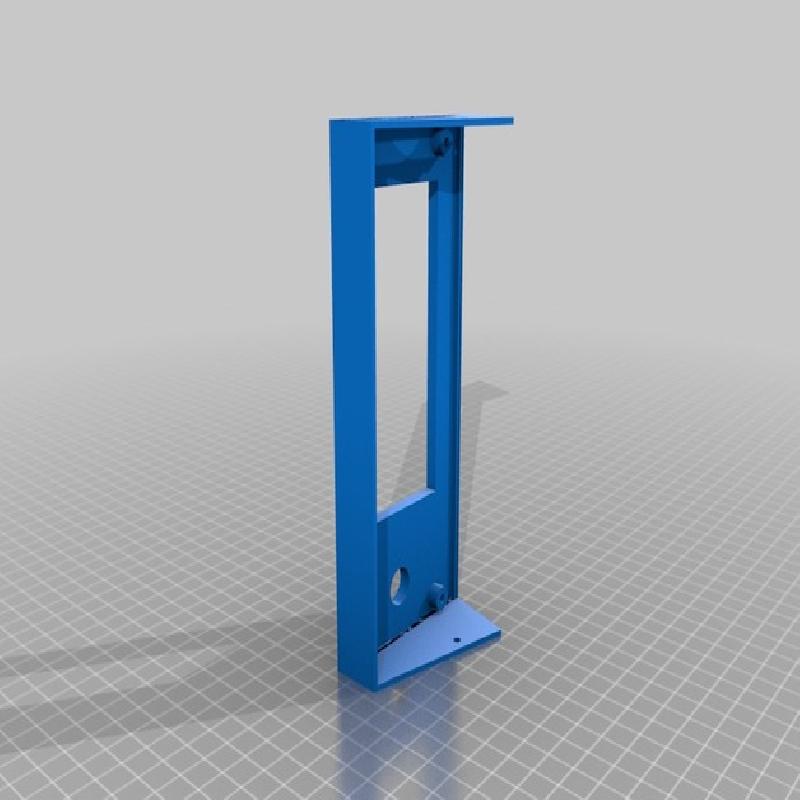

1x LCD front panel support
4x LCD front rods support

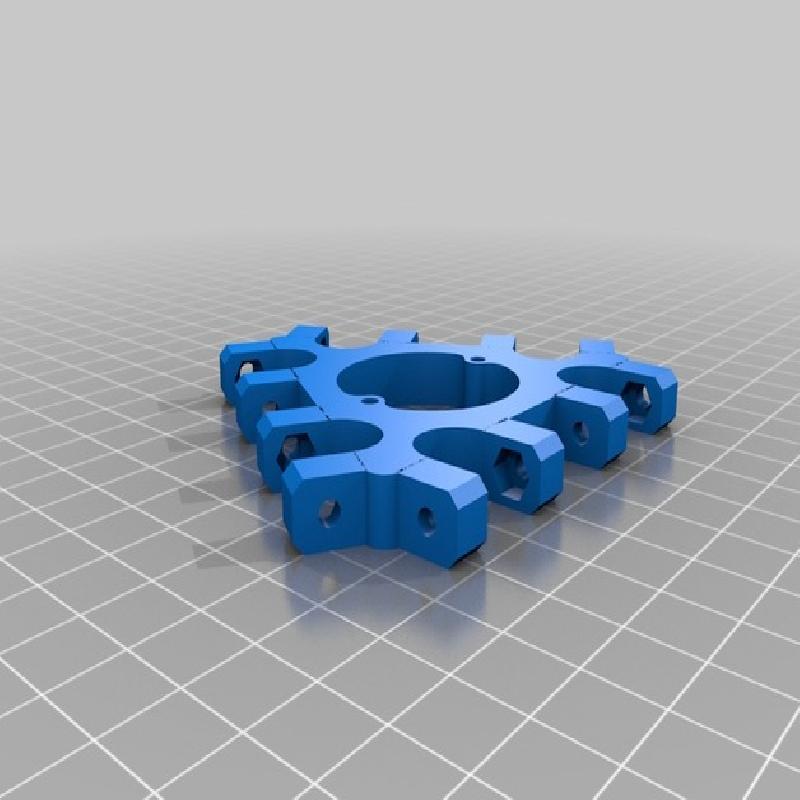

1x platform

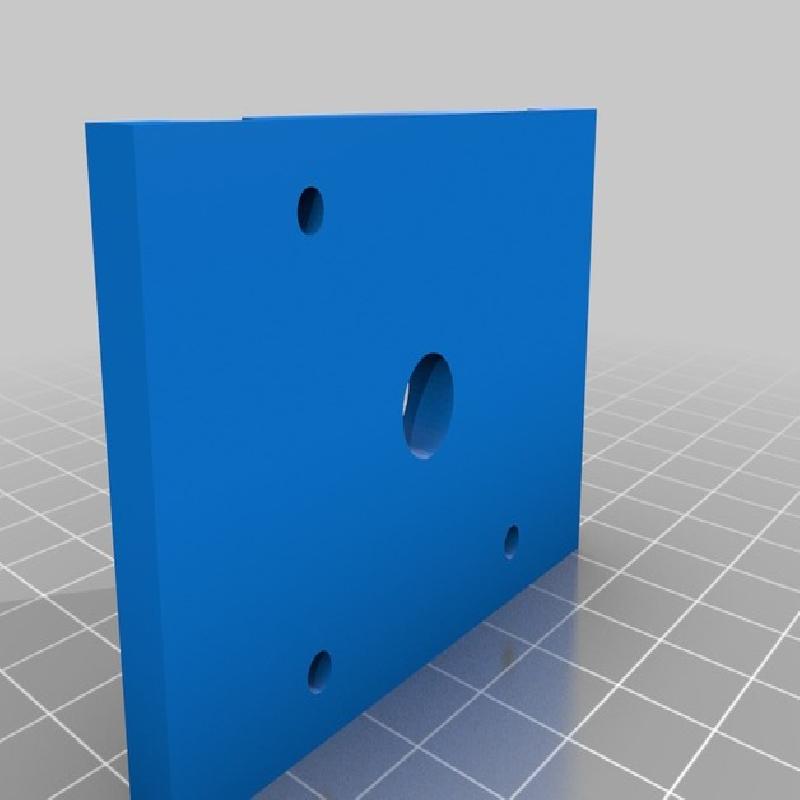

1x switch panel
1x top frame

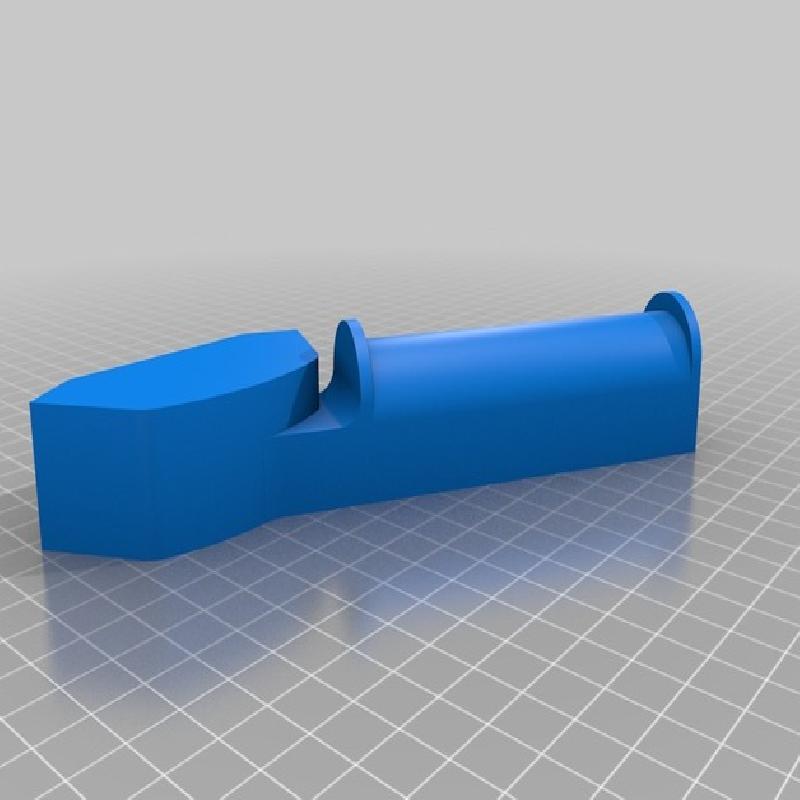

1x top frame with spool holder
1x top frame Z axis
Cutted parts :

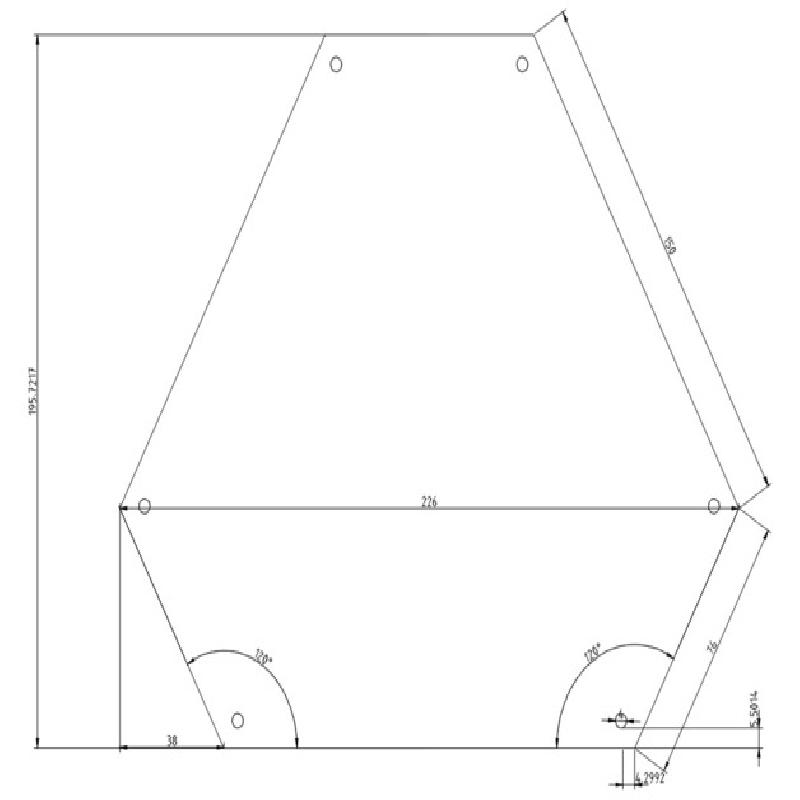

1x bed.dxf in 5mm thick aluminium
For any question or suggestion : contact[at]sculptr.fr
Rafts: No
Supports: No
Resolution: 0.2 - 0.1mm
Infill: 20%
5 July 2016 : GT2 belt fixing updated
2 July 2016 : Cura configuration file added (SculptrDelta.ini)
27 June 2016 : new spring loaded extruder
24 June 2016 : extruder updated
19 June 2016 : new fixation of the endstops tube on the bottom frame
18 June 2016 : new top frame pieces
8 June 2016 : NEMA17 stepper motors easier to mount on the bottom frame pieces
24 May 2016 : extruder easier to print
19 May 2016 : corrected issue on the bottom frame
10 May 2016 : spool holder directly fixed on the top frame
9 May 2016 : stronger hotend fixation (hotend_fans.stl reuploaded, e3d_blocker.stl uploaded)
26 April 2016 : new pieces added + important changes on hotend_fans.stl
22 April 2016 : upload
