by RezaAulia
MORE FREE STL: https://www.toymakr3d.com/online-store

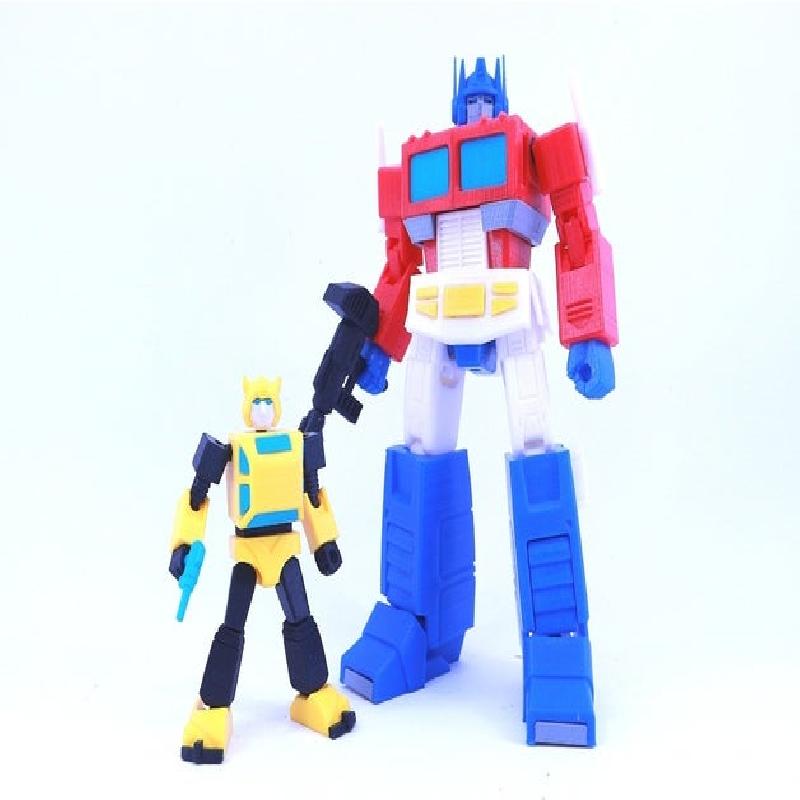

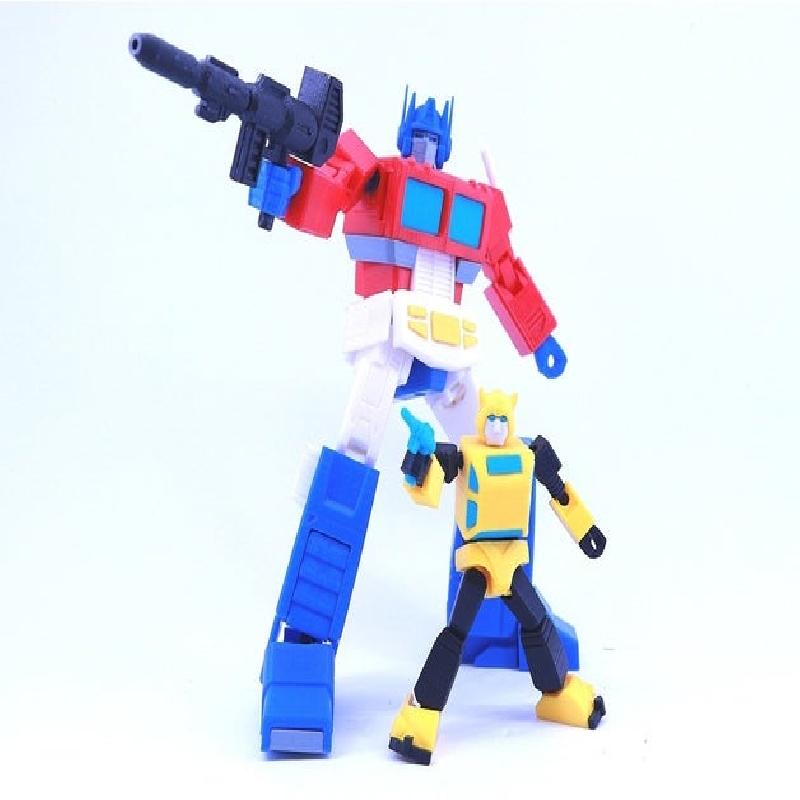

G1 BUMBLEBEE: https://www.toymakr3d.com/online-store/FREE-G1-Bumble-Bee-p171985309
More updates: https://www.instagram.com/reza_aulia/

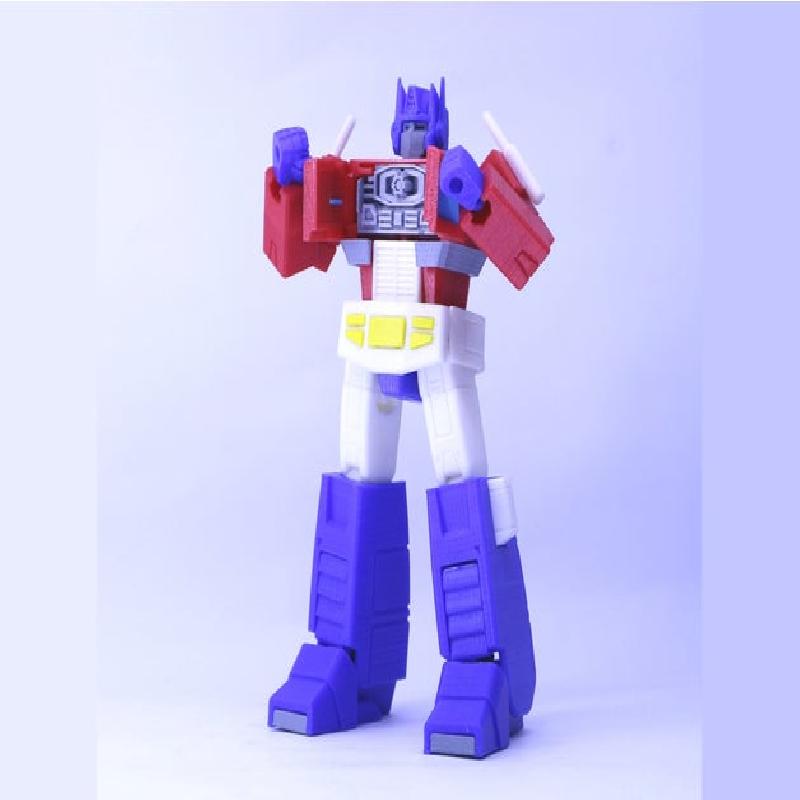

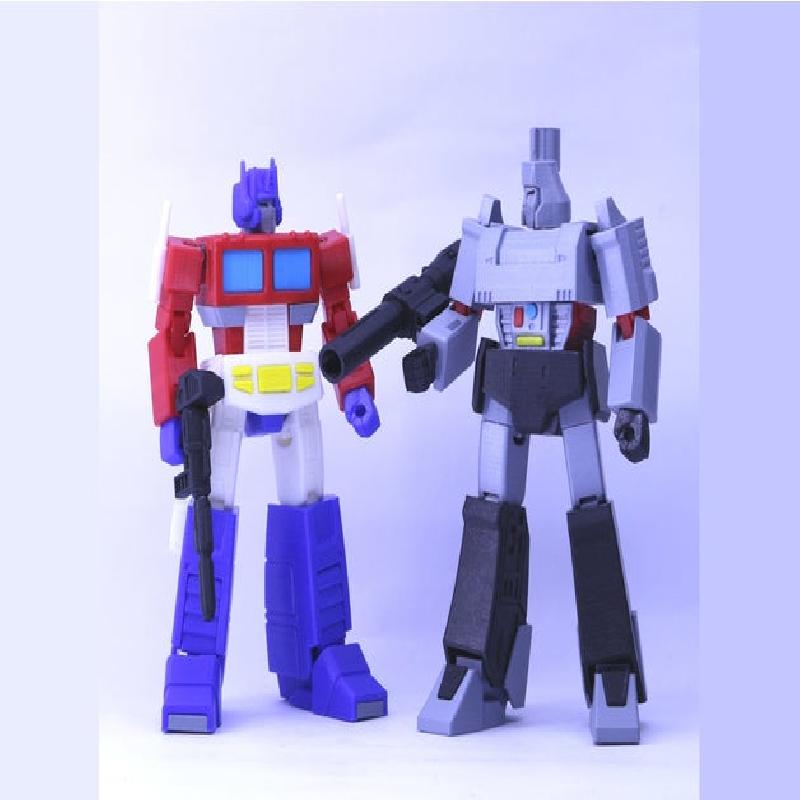

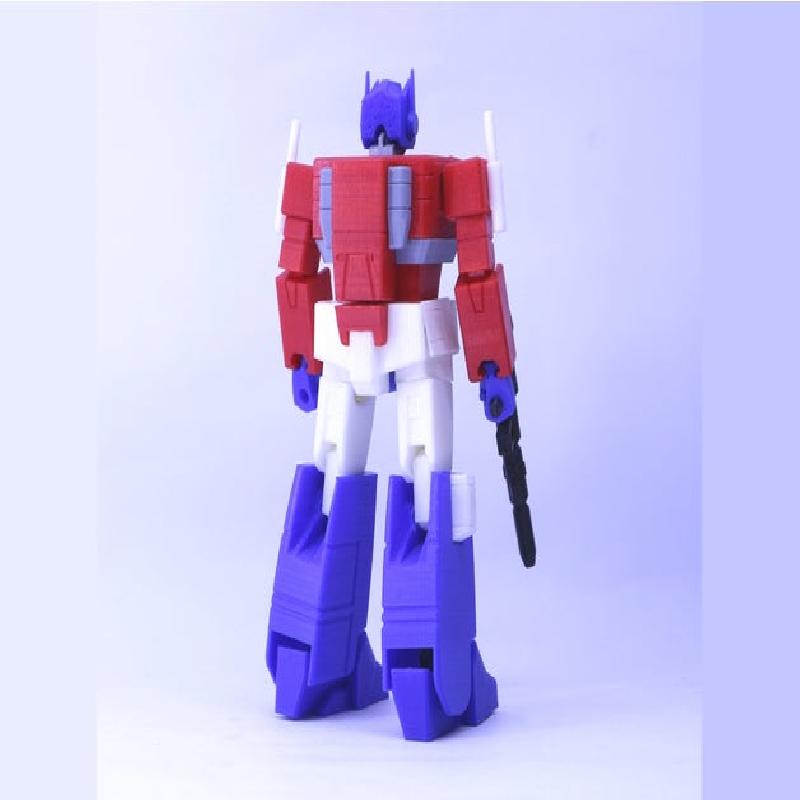

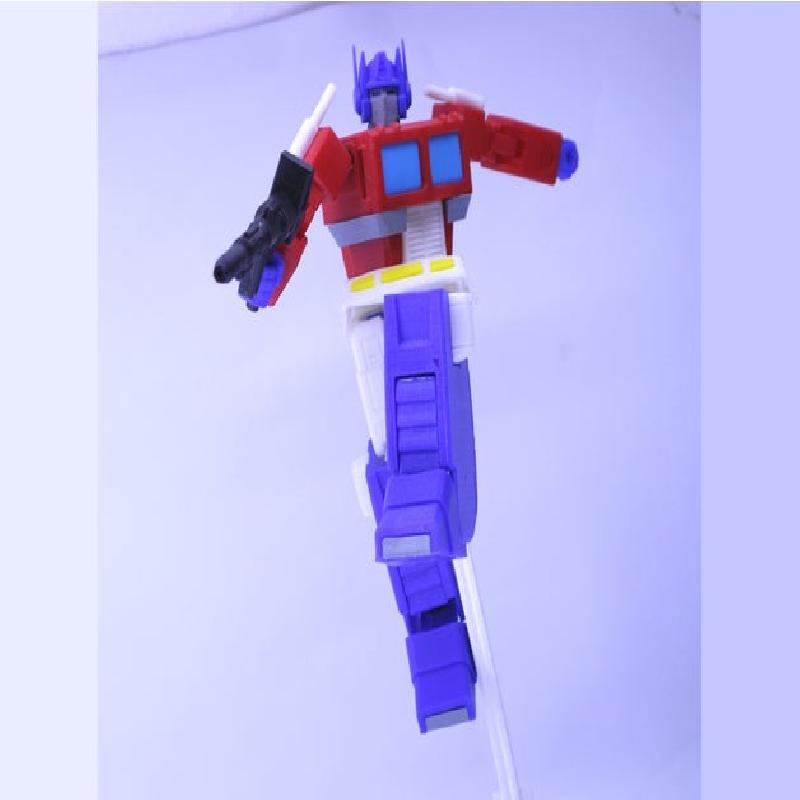

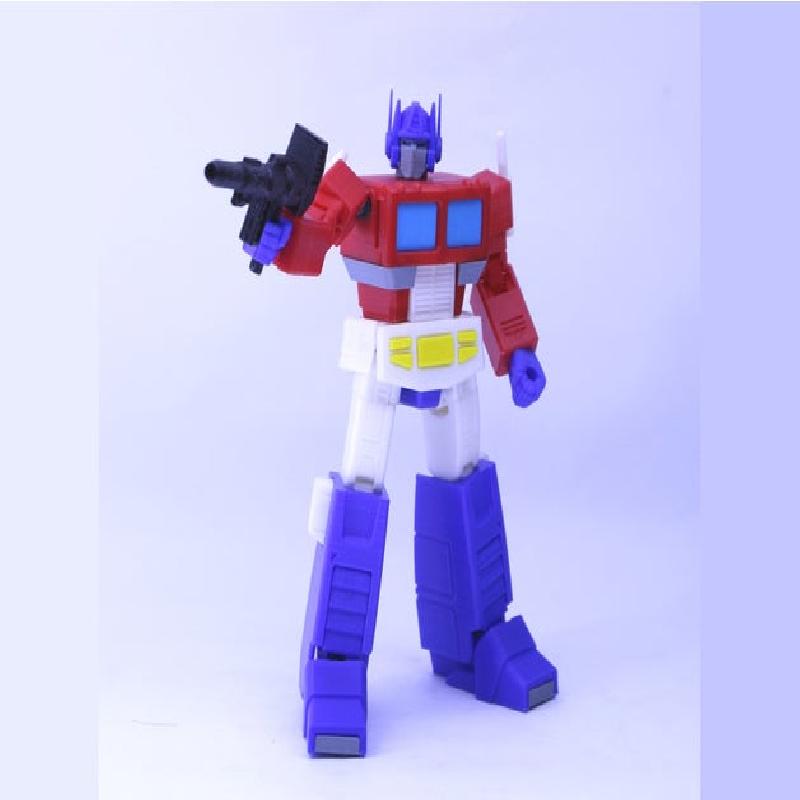

G1 Optimus Prime base on 1984 Transformers TV Series. This is fully articulated model but not transformable.
Skale: 1:30 (20cm)
Coloring can be done by using different color of filamen (detail on files name)
No Supports
Gap tolerance: 0mm balljoint, 0.05mm swivel, 0.05 peg joint
Best print orientation for maximum strength result
Easy to print
Easy to assemble
Easy to rescale

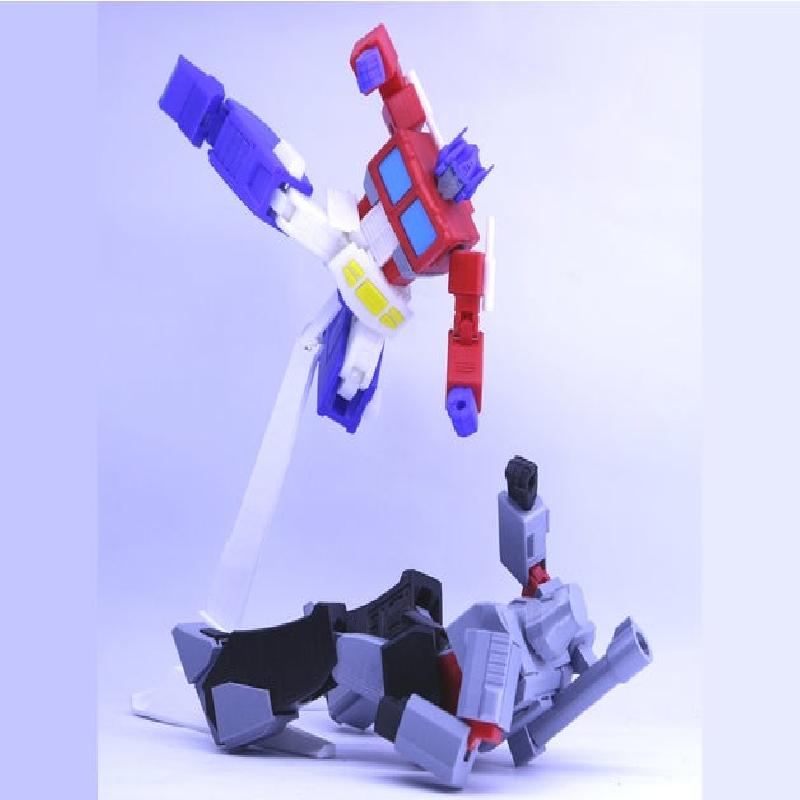

Point of articulation:
Neck balljoint
Abdomen balljoint
Shoulders balljoint
Upper arm swivel joint
Elbow double balljoint
Wrist swivel
Waist swivel
Hip balljoint
Thigh swivel joint
Knee doble balljoint
Ankle balljoint
Toe swivel

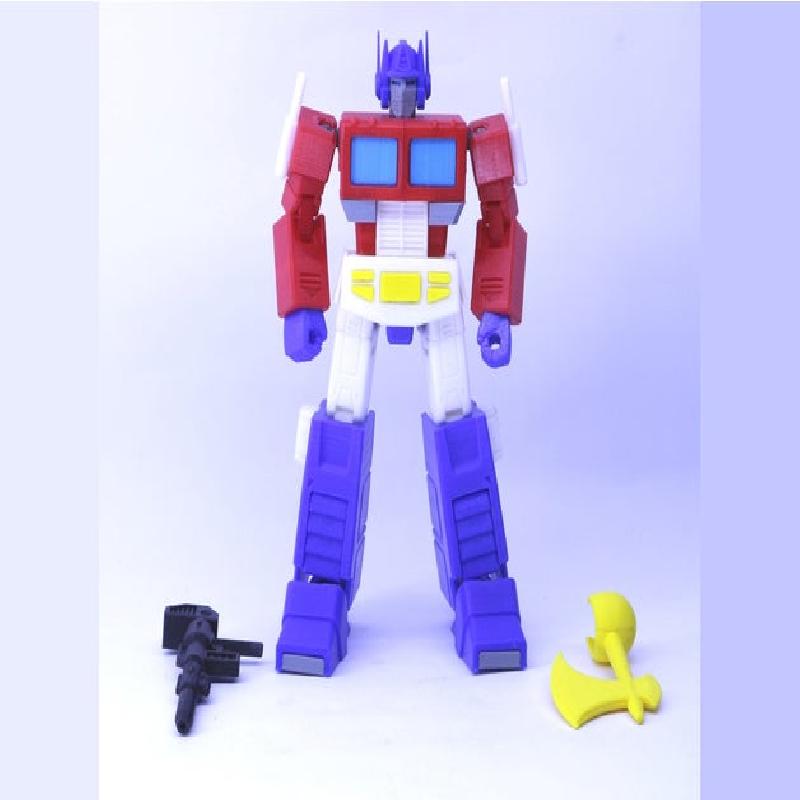

Accesories:

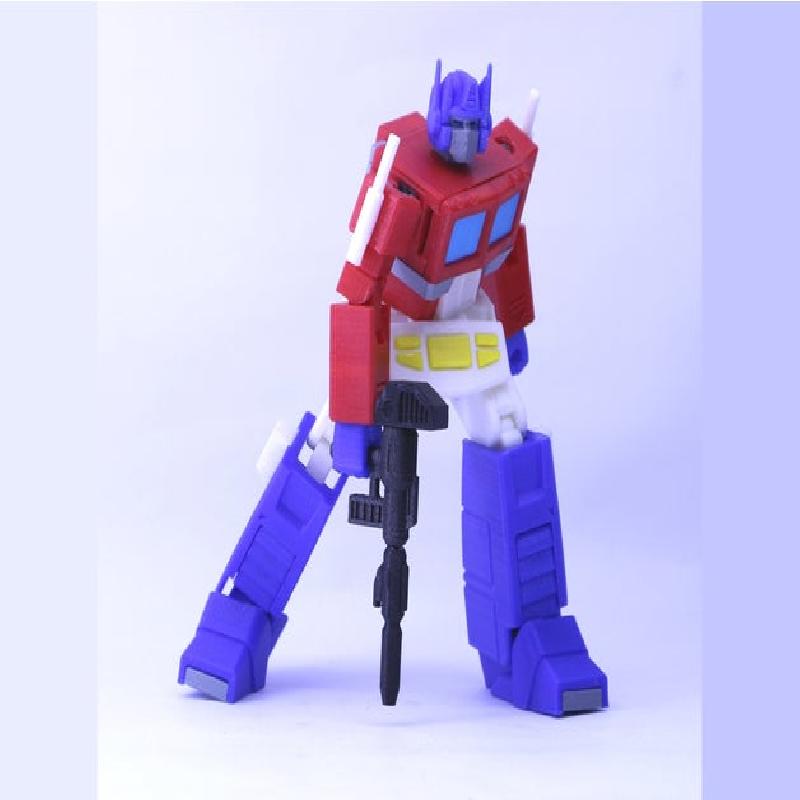

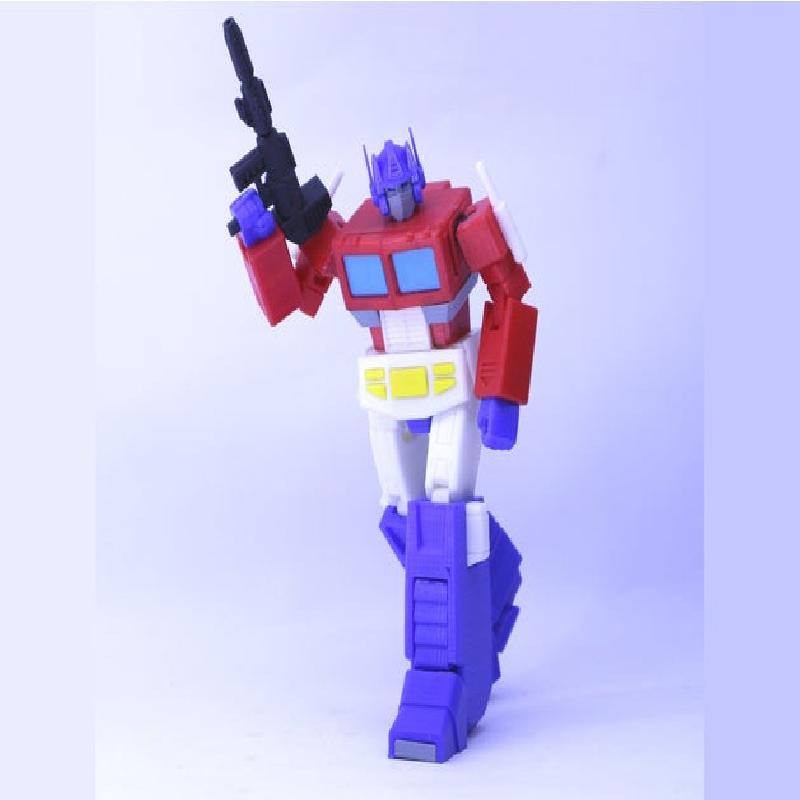

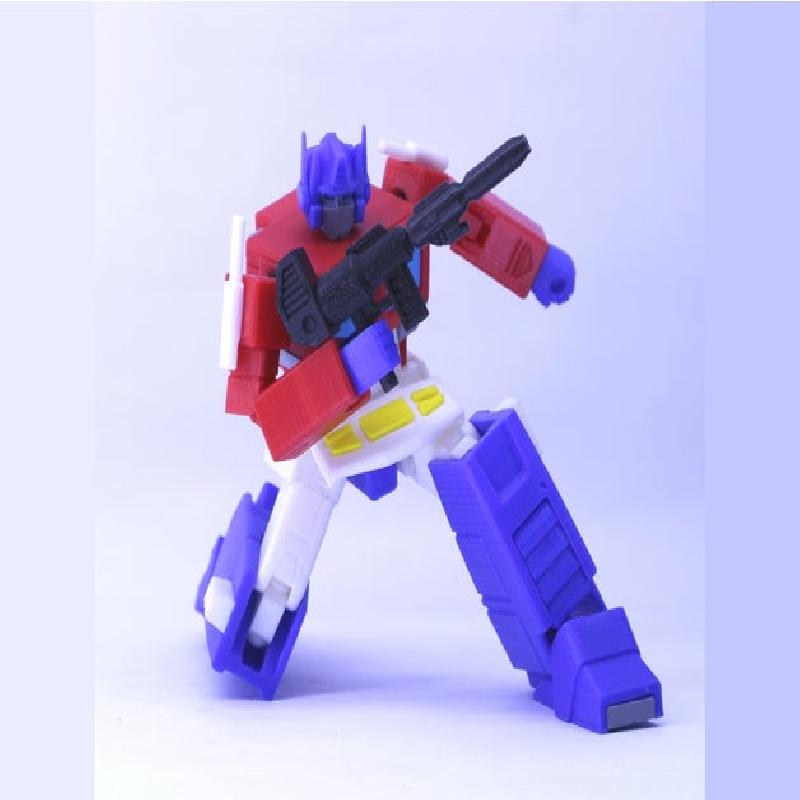

Gun

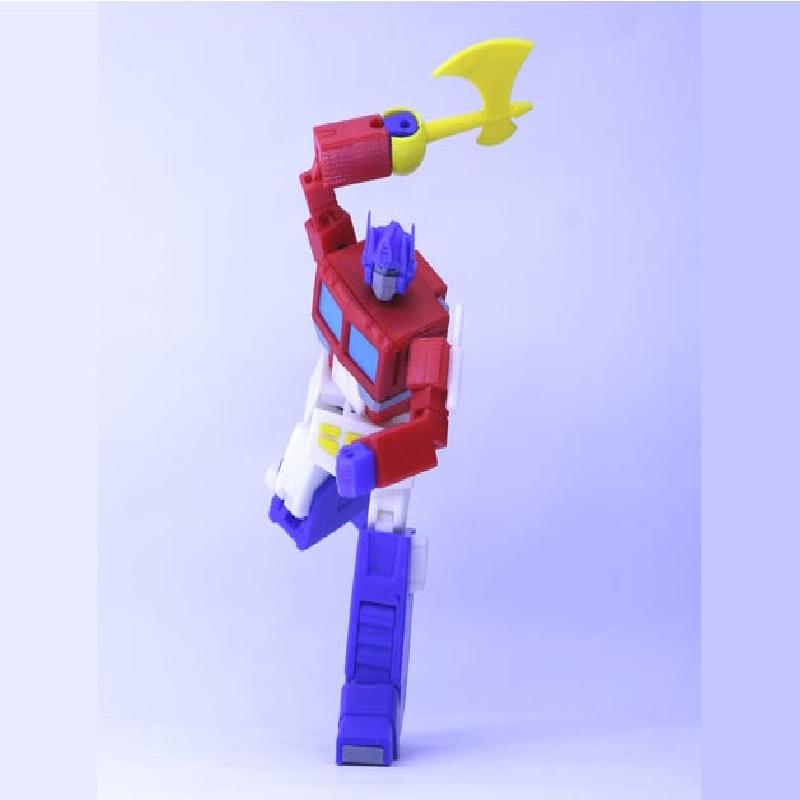

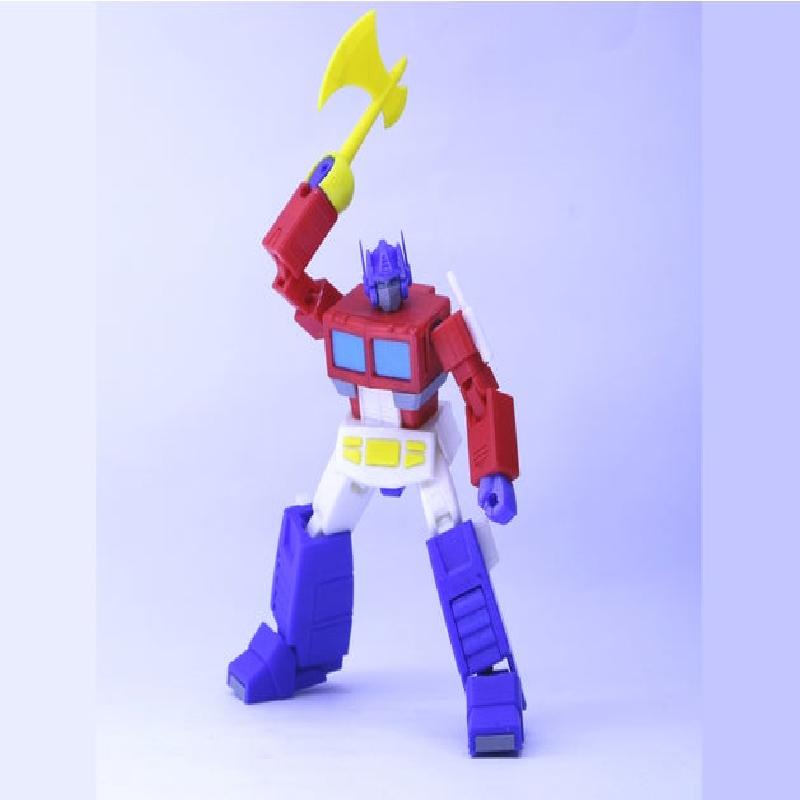

Enegon axe
Matrix Of Leadership
Important Tips:
Cutter or sand paper for tolerance adjustment
Super glue for split parts
Use nail polish to fix loose ball joint
Sample Print Setting:
Nozzle: 0.4mm
Layer: 0.1mm
Filamen: Esun PLA+
Temperature: 205°C
Speed: 40/s
Skin/top/bottom: 0.8mm
Infill: 40%
