by BlackMulch

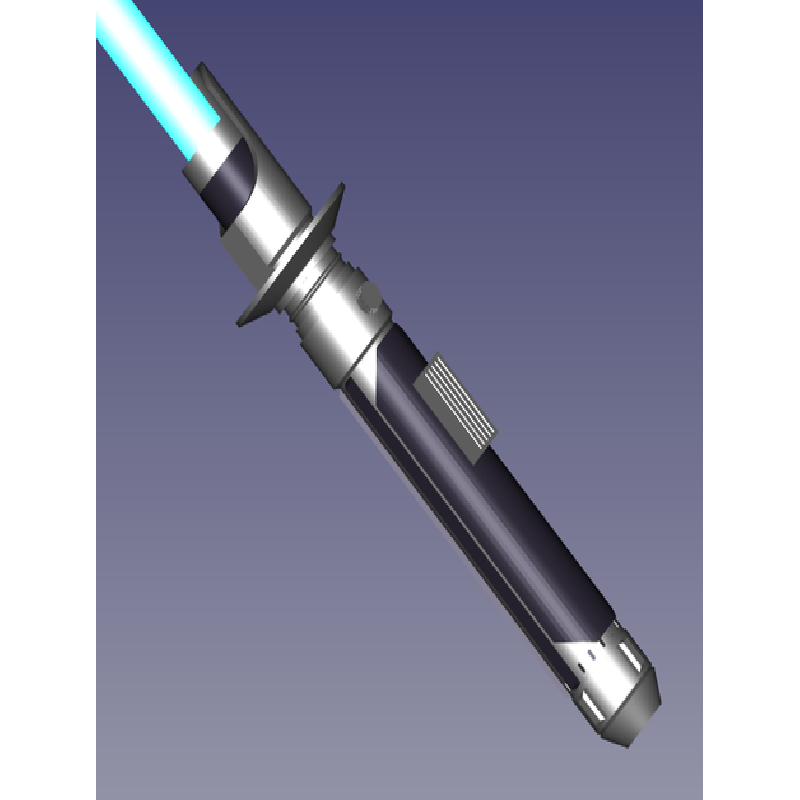

This is a close representation of Kanan Jarrus' lightsaber from Star Wars Rebels that will be compatible with a lightsaber hilt from Savi's Workshop at the Black Spire Outpost on Batuu.
A remix of CaseStudyno8's awesome Kanan Jarrus' Lightsaber: Scaled, tweaked, and mixed withBrightSuns' Savi's Workshop Base Pieces.
Printer Brand:
Anycubic
Printer:
All-metal Mega
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
20%
Filament: Hatchbox PLA various
Notes:
I have not yet printed a draft of this model... Please let me know if anyone runs into issues...
Most parts will need supports 'everywhere'. There are close tolerances (threads, clearances) and overhangs throughout, so a well-tuned printer/slicer will keep your geometry tight. I recommend you have your slicer 'fill gaps' and 'print thin walls' to ensure the thinner features are present and sturdy.
The following will need to be glued before final assembly:
-Five "Grip x5" glued to "Switch back"
-"Grip main" glued to "Switch Front"
-"Emitter knob" glued in the left-most hole near the base of "Emitter"
-"Emitter insert" glued into top of "Emitter"
-"Emitter insert top" glued into top of "Emitter" on top of "Emitter insert"
See BrightSuns' post-printing instructions for assembly of the switch (using the part "Button" in place of BrightSuns' "switch_front_button") and tips for configuring the magnetic actuator correctly.
These models are provided without warranty that they will work correctly or not cause damage when used. Any damage caused by or during the use of these models or any derivative works is the sole responsibility of the individual who printed the model. Use at your own risk.
Savi's Workshop, Black Spire Outpost, Batuu, and Star Wars Rebels are the property of the Walt Disney Corporation. This model and user account are not affiliated in any way with the Walt Disney Corporation. The models are provided as reverse engineering for educational and compatibility purposes, to allow others to create new, original, compatible works. These must not be used or modified to duplicate the original copyright protected works of the Walt Disney Corporation or any other individual or organization for any purpose other than Fair Use. Violating any copyright protections using these models shall be considered a violation of the license for these models and shall be the sole responsibility of the individual violating said copyright.
