by reddadsteve

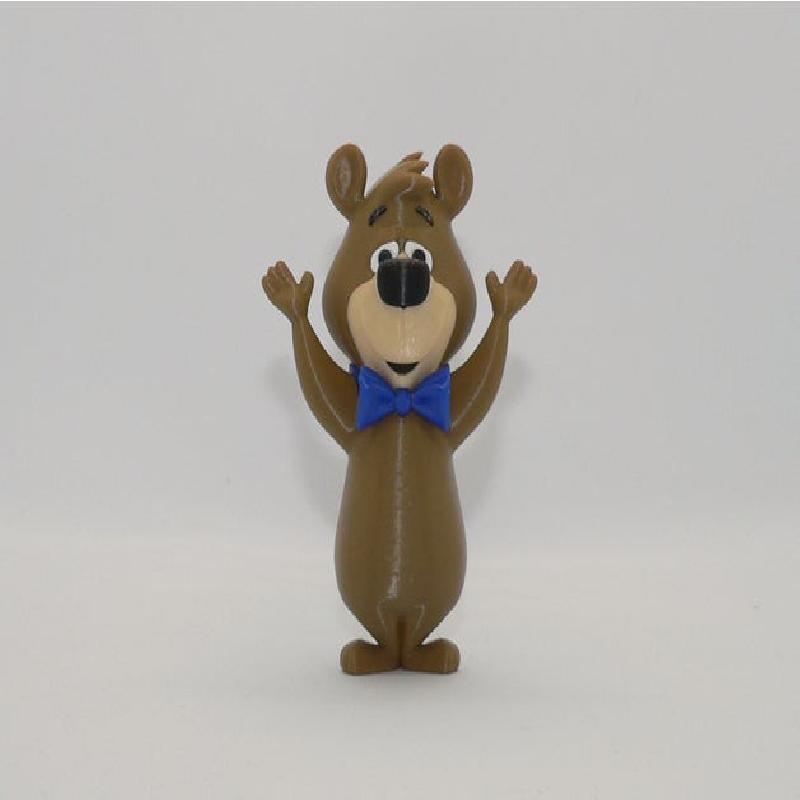

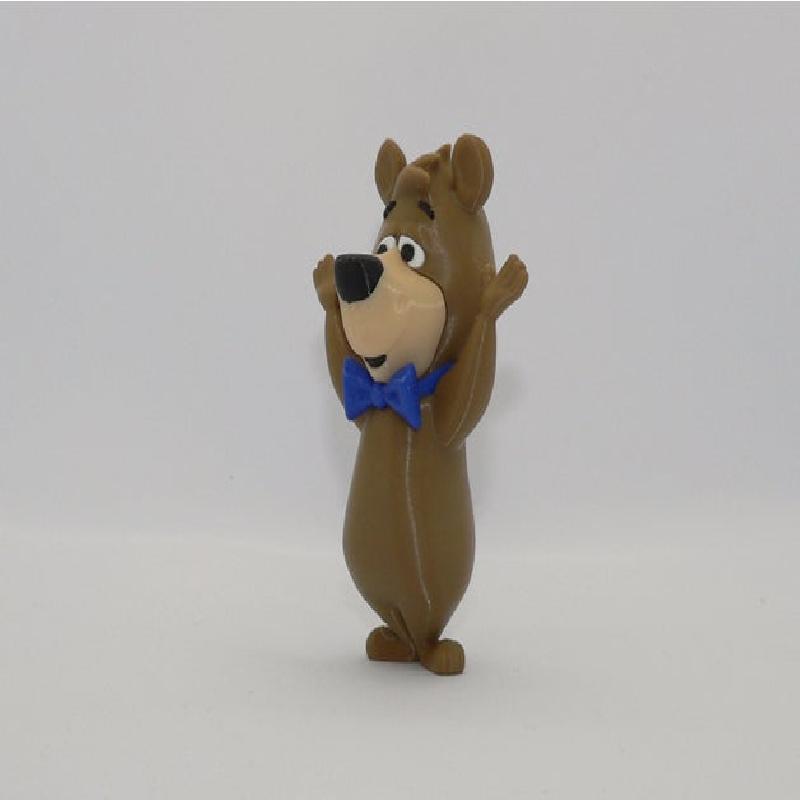

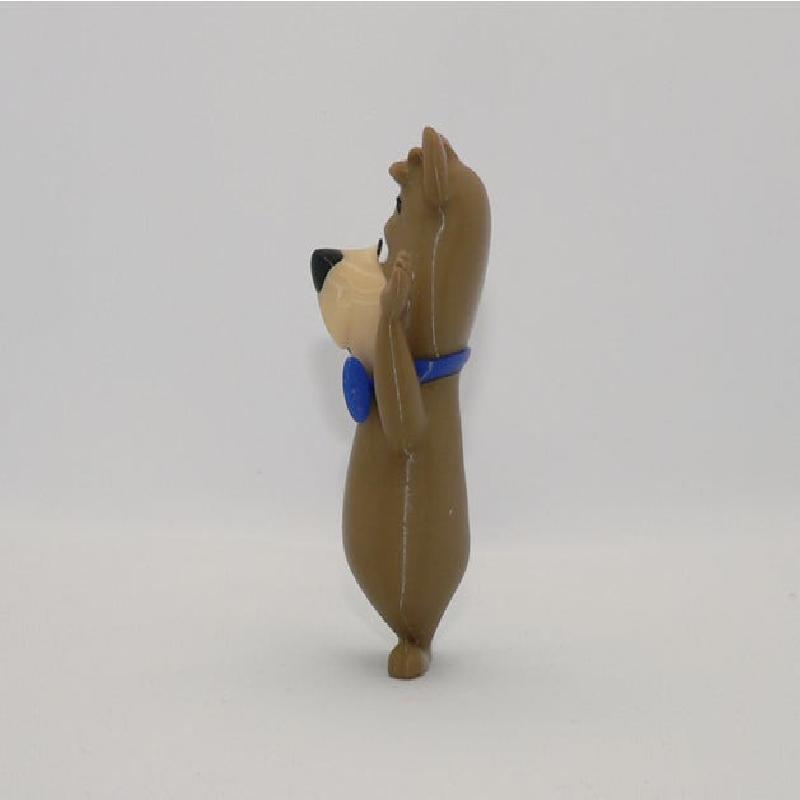

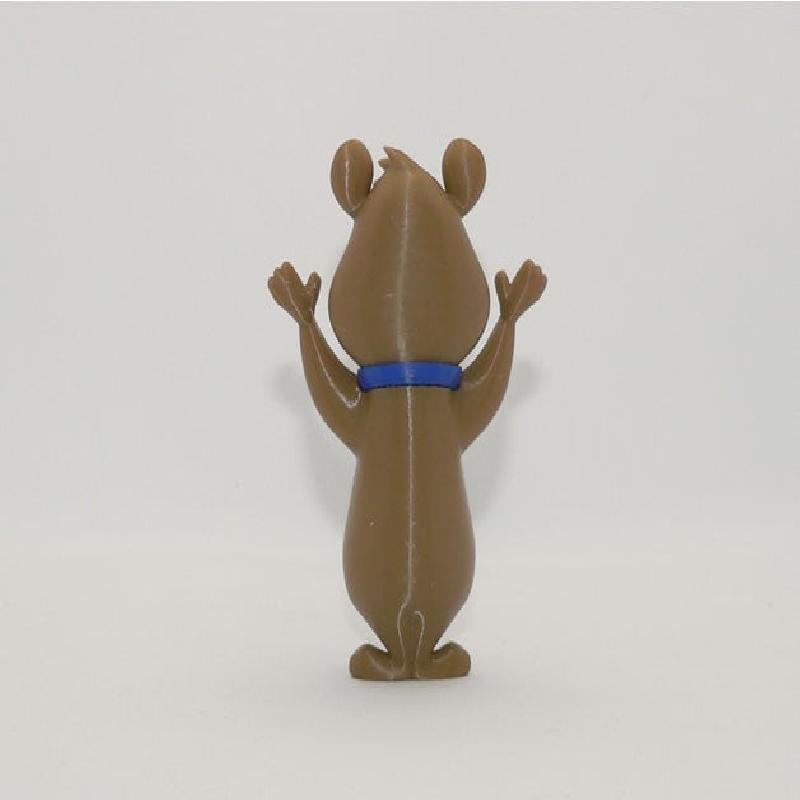

Boo-Boo Bear, from the cartoon series by Hanna-Barbera.

Boo-Boo is from Jellystone Park and is Yogi Bear's constant companion, and often acts as his conscience. He tries (usually unsuccessfully) to keep Yogi from doing things he should not do, and also to keep Yogi from getting into trouble with Ranger Smith, often saying, "Mr. Ranger isn't gonna like this, Yogi."

No supports are required. If you have the proper filament colors, no painting is needed.

Enjoy, and don't forget to bring along your own "pic-a-nic basket".

Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

Doesn't Matter

Supports:

No

Resolution:

.2mm

Infill:

10%

Filament: various PLA various

Notes:

See below for helpful print and assembly notes

Building the Model

Colors

Skin: (Paramount3D PLA - Universal Beige)
face
..
White: (Hatchbox PLA- True White)
eye_white_left
eye_white_right
..
Blue: Paramount3D PLA- Autobot Blue)
tie_left
tie_right
collar
..
Black: (Paramount3D PLA - Black)
mouth
nose
eye_black_left
eye_black_right
eyebrow_left
eyebrow_right
..
Brown: (Paramount3D PLA - Military MBT Brown)
head
body

Printing and assembly tips

Printing tips
1-I used a raft/brim for the body part due to the small 'foot print' and larger upper portion.

2-I printed all my small pieces (eyes/eyebrows/mouth) on a raft. This also keeps the small left/right parts easier to maintain.

..
Assembly tips:

1-I used both E6000 and B7000 sticky craft glue. B7000 comes out of the tube a bit smoother which is helpful if you just need a small amount for a small area (small parts). It is also less stringy which makes it even easier to use. Each glue has it's advantages. Sticky glue, in particular over superglue, helps significantly with handling and placing small parts.

2-The eye_blacks_left/right are different enough that you should take extra care to put them in correctly. they should be aligned with the white part and protruding a bit.

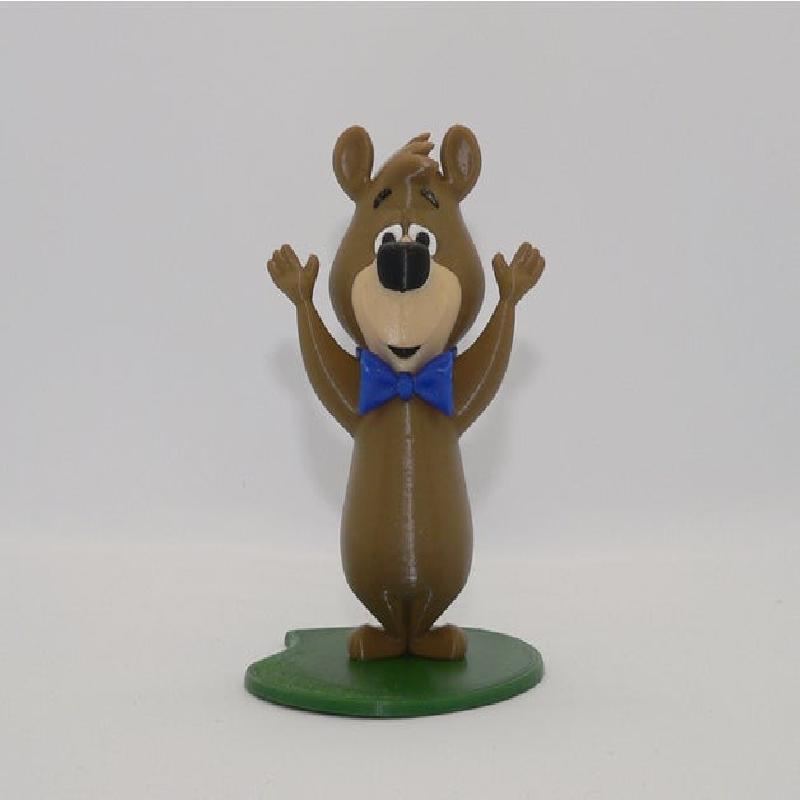

4-The model does stand by itself but is a bit top heavy, so I included an optional base. If you have already printed Yogi, the "base_booboo_only.stl" is designed to fit against the base for Yogi. If you plan on printing both models then the "base_yogi_and_booboo.stl" will hold both models. The base does not have dents in it so simply position the models on the base as per the pictures.

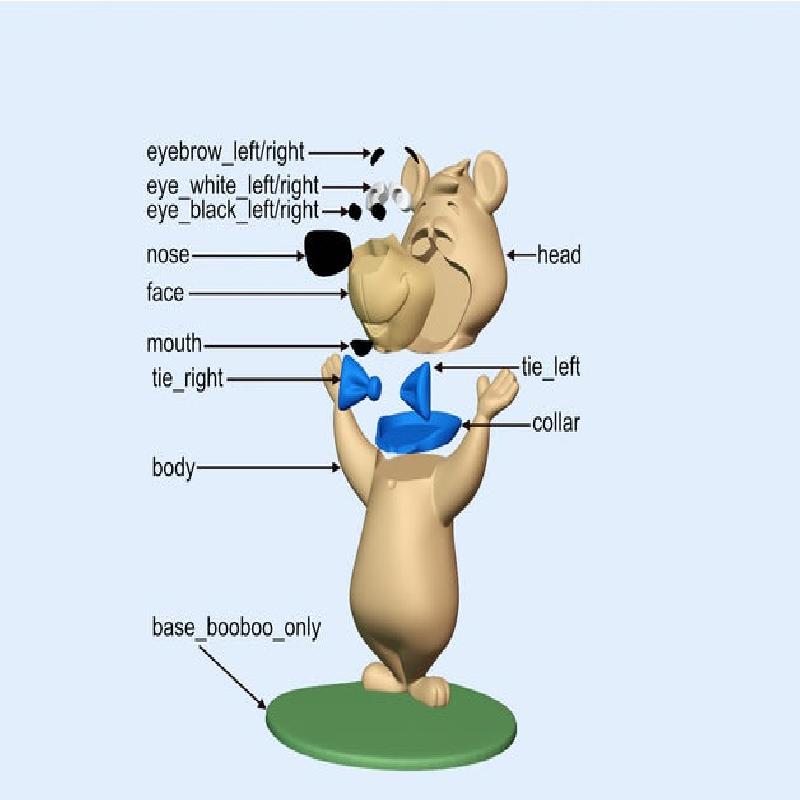

5-Refer to the assembly diagram as well as the uploaded pictures for putting the model together. The model is meant to be glued.

Do not hesitate to ask questions, feedback is essential to making better models.
