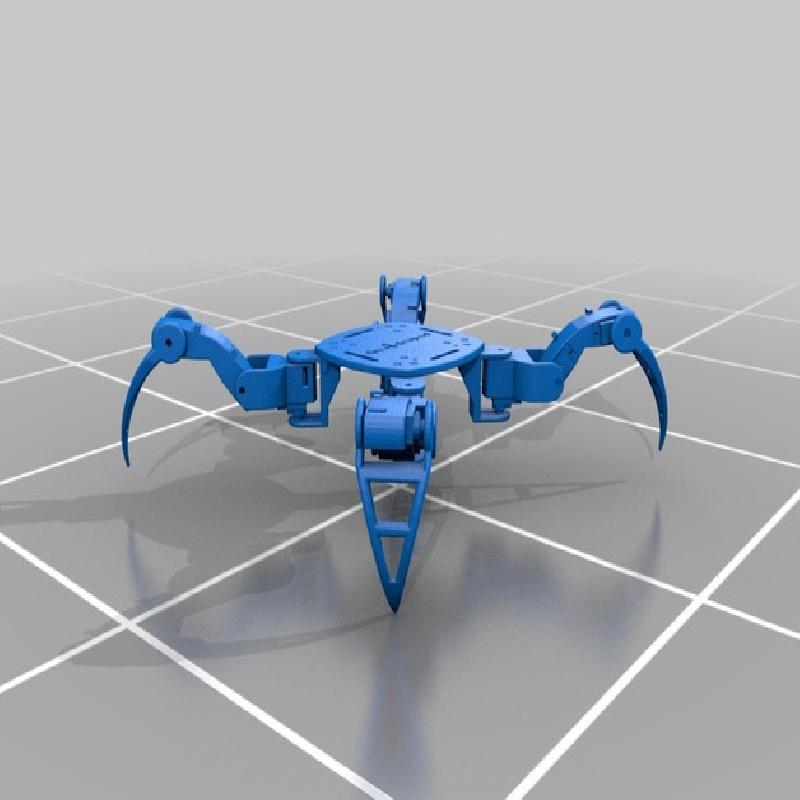

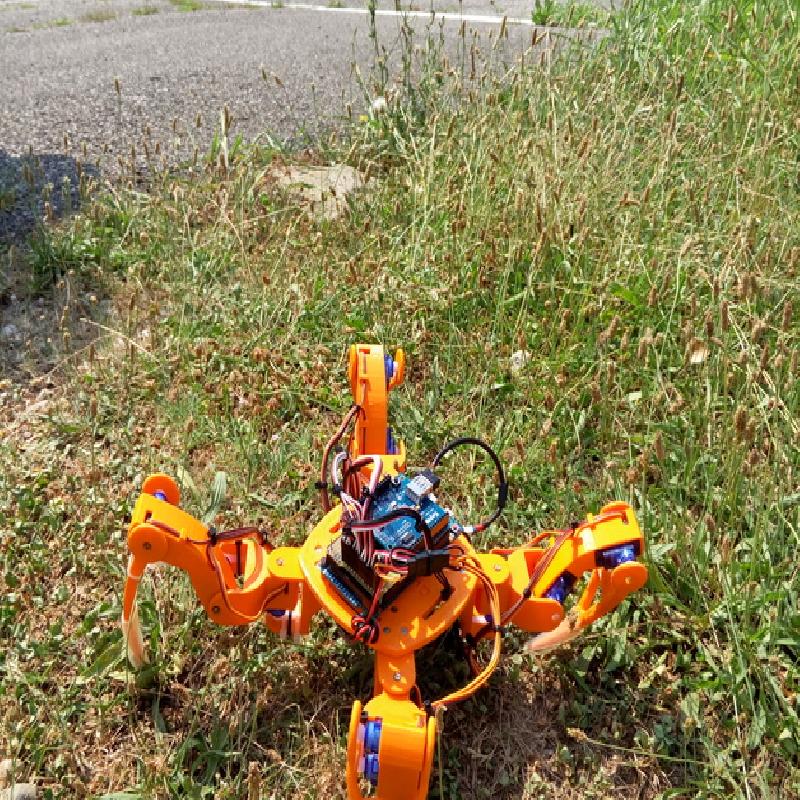

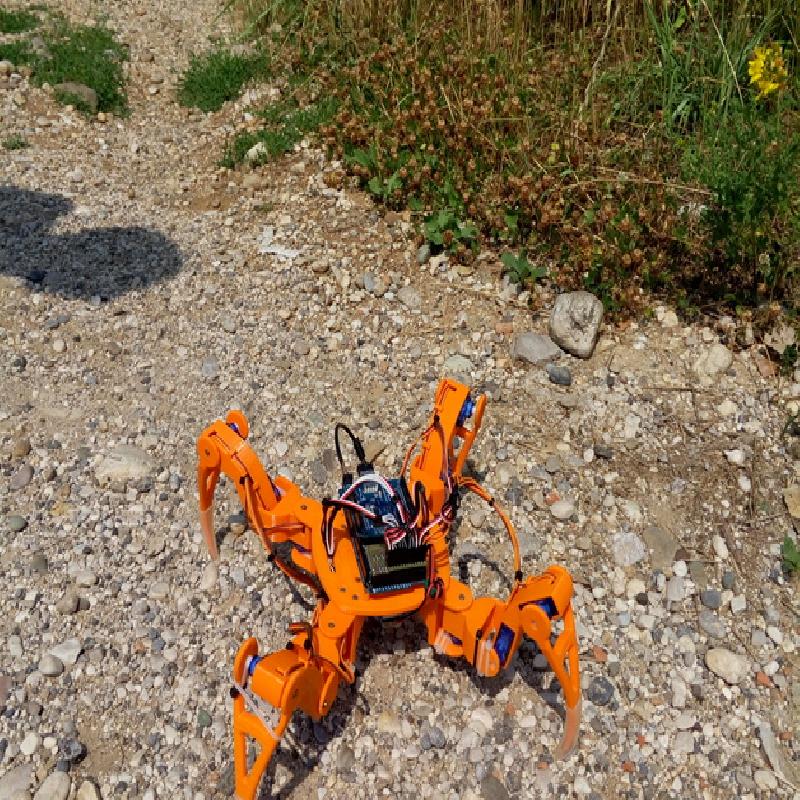

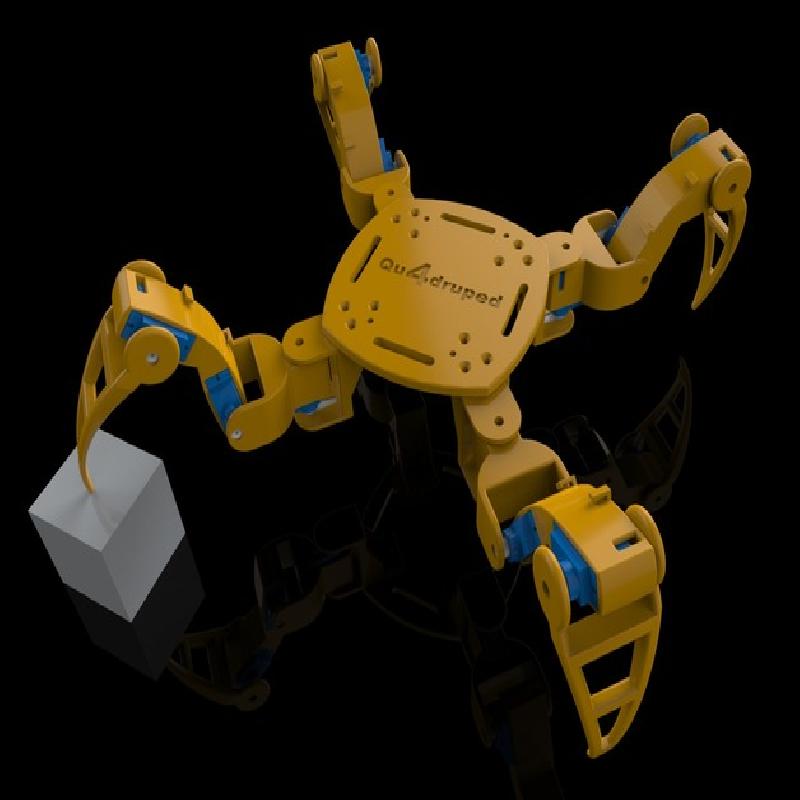

This is a full printable quadpod/quadruped robot wich uses super cheap sg90 9g servos.
The base already has 4 fixing hole for Arduino mega/due.
There is a plastic coupler for every servo to guarantee a better stability for rotation.
You need to print:
-2 normal leg
-2 mirrored leg
-1 base
-12 coupler (with or without support)
Support are needed only for the legs tips.
In my case I used Arduino due with usbhost shield to use 3D mouse space navigator wireless as a controller (I know Arduino due has an embedded usbhost, but the library I found does not work with usb dongle for space navigator wireless).
The power came from a 1000mAh 2 cell lithium battery, with a 5V 5A regulator for the servos.
Printer: Santelprint
Rafts: Doesn't Matter
Supports: Yes
Resolution: 0.25
Infill: 20
Notes:
Support are needed only for the legs tips. I've uploaded two versions of coupler, one without support and one with a support that prints pretty well and it's very easy to detach.
