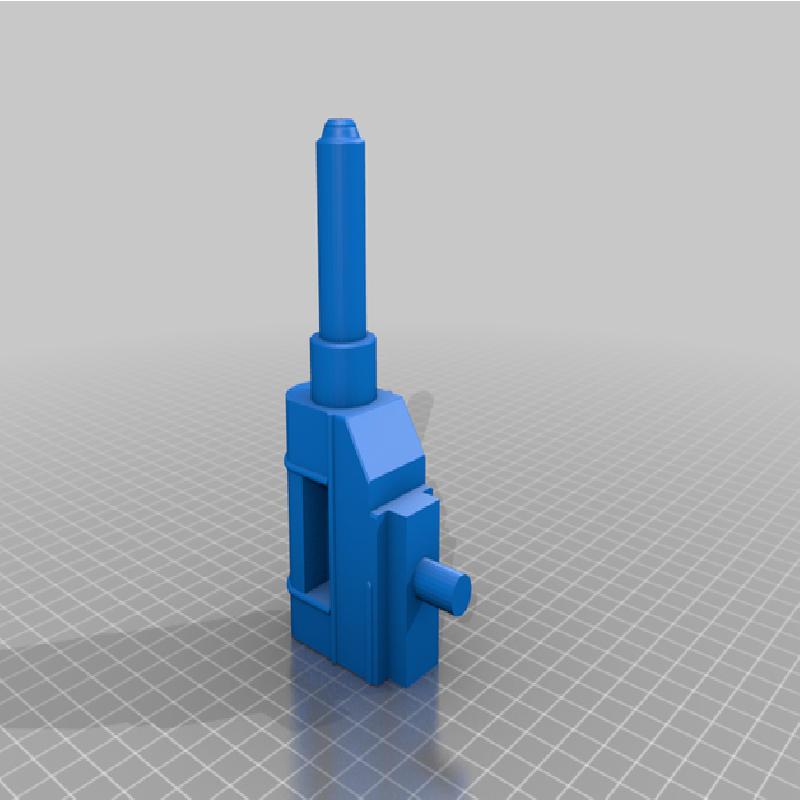

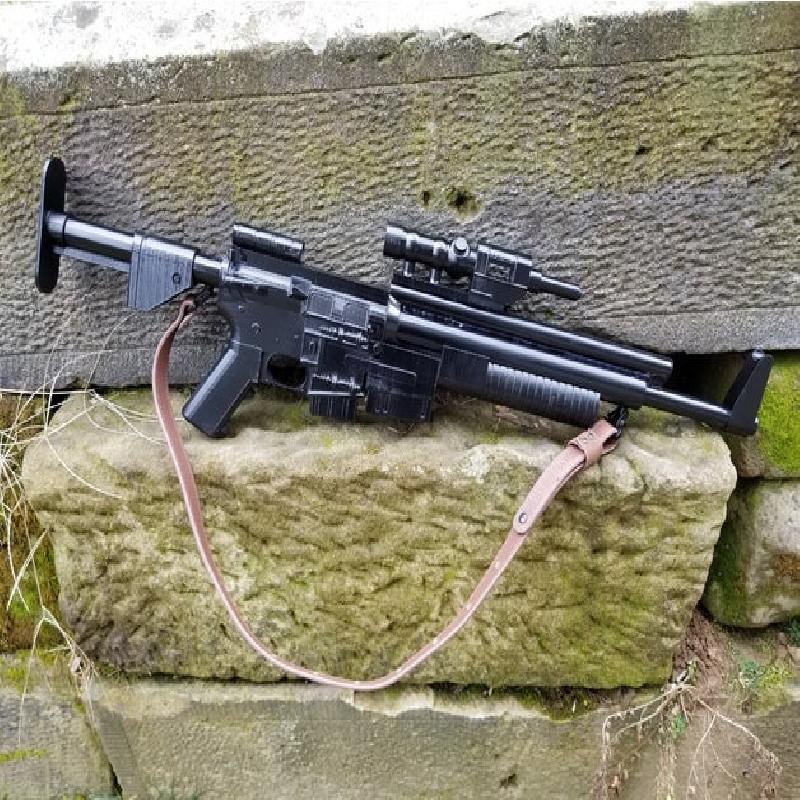

This is a remix of Ronan75's A300/280 blaster rifle to be similar to the A280 Endor Commando Rifle used in Star Wars: Return of the Jedi. Of the original models, the base/receivers and scope models are the same. The forward magazine block has been modified to be more like that used on the ROTJ rifles. All other files were modeled by me for this build.
PVC Needed:
3/4" ID 18" Length
1" ID 12" Length
1/2" ID 13.5" Length
1/2" ID 7" Length

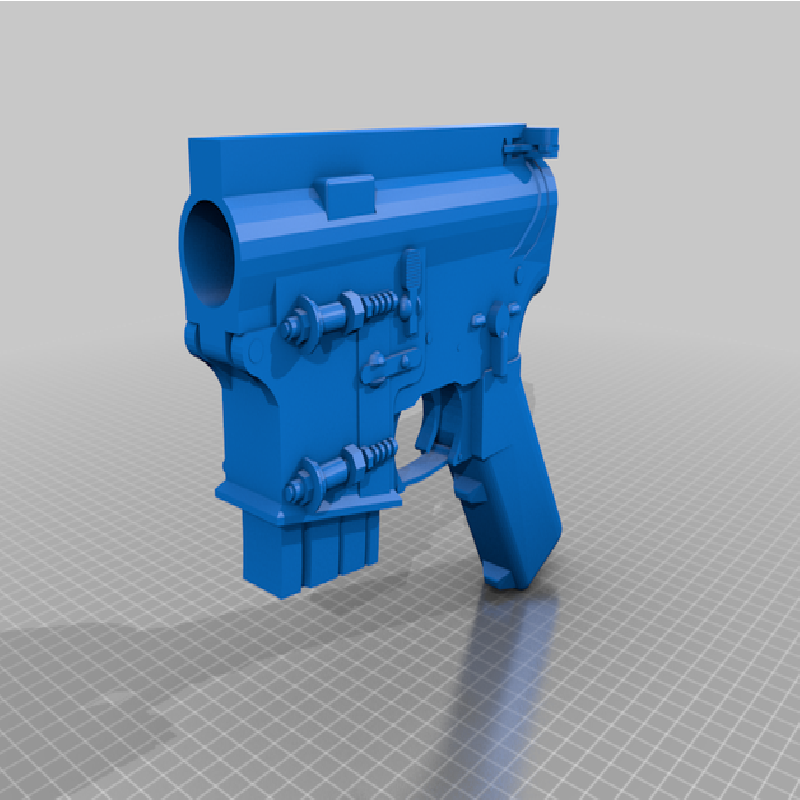

The main piece of PVC that runs through the base/receiver is 3/4" ID, which the stock and stock spacer are fitted to. I suggest running it a few inches out the front and sanding it down for 1" ID PVC to slide over for the larger barrel. The top and thinner front barrels are 1/2" ID PVC. I've included an adapter for the 1/2" barrel to fit into the 1" portion without any slack. The tube cap is for the top barrel so that you don't have to waste filler or other material closing the hole.
Once all of the components are printed you should be able to assemble this in less than an hour and be ready to paint.
Enjoy and happy trooping!
Printer Brand:
Creality
Printer:
CR-10S
Rafts:
No
Supports:
Yes
Resolution:
.20
Infill:
15%
