by flamesilver5

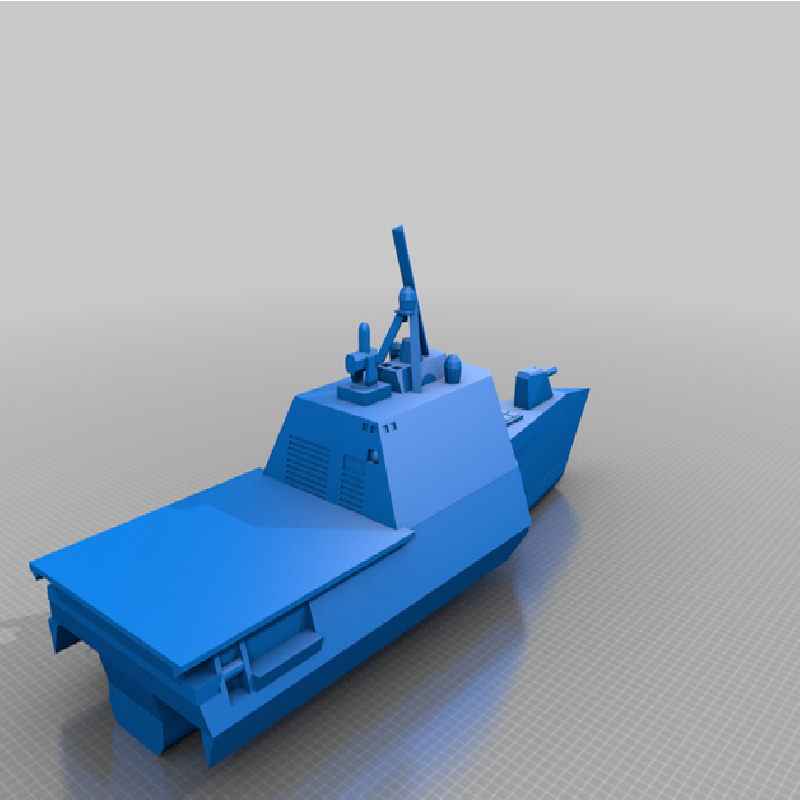

I made a remix of the LCS Independence class model by crinard to make it a bit easier to print in small models as well as some other changes. I made most of the changes in Fusion 360 and then cleaned it up in Blender (first time using both).

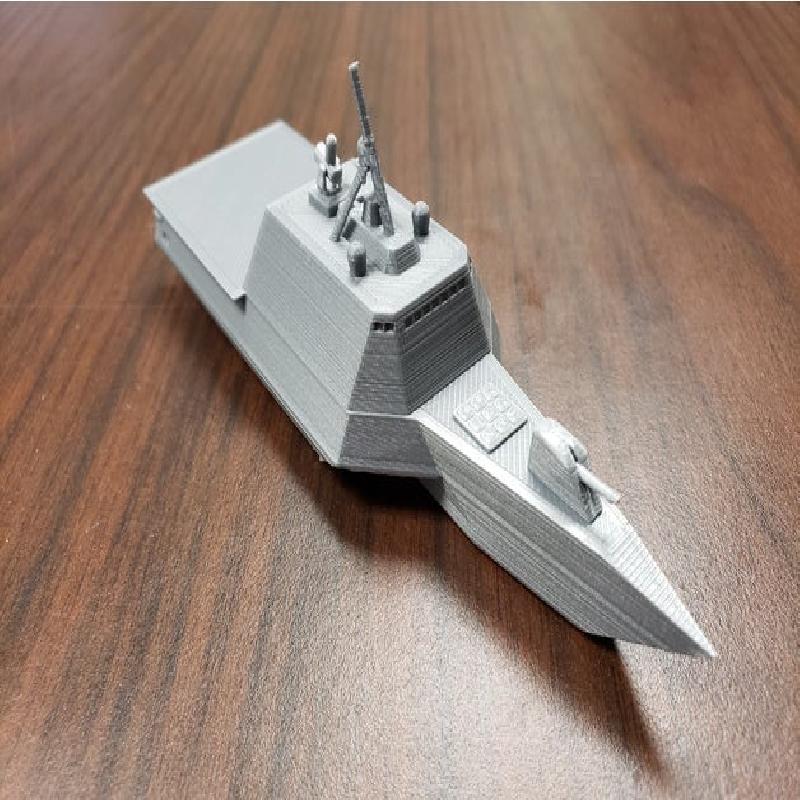

Pictured is printed at 16% scale and came out great except for the SeaRAM breaking off when trying to remove the support from underneath.
Changes:
Added underwater section of keel, but without the nose jutting forward
Replaced flight deck netting with thicker solid deck and angled bottom so no need for support (Cura shows it still using some on the starboard side while slicing at 15% scale but it shouldn't actually need it)
Replaced X beam in stern corners below deck with solid block for easier printing
Thickened forward gun barrel
Flipped horizontally as mission bay door is on starboard side
Removed upper-most antenna (other changes needed but it would have been a lot)
Smoothed out some overhangs along bow
Printer Brand:
Creality
Printer:
Ender 3
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
.12 (smaller is better for the details)
Infill:
10%
Filament: Hatchbox PLA Silver
