by Belstone

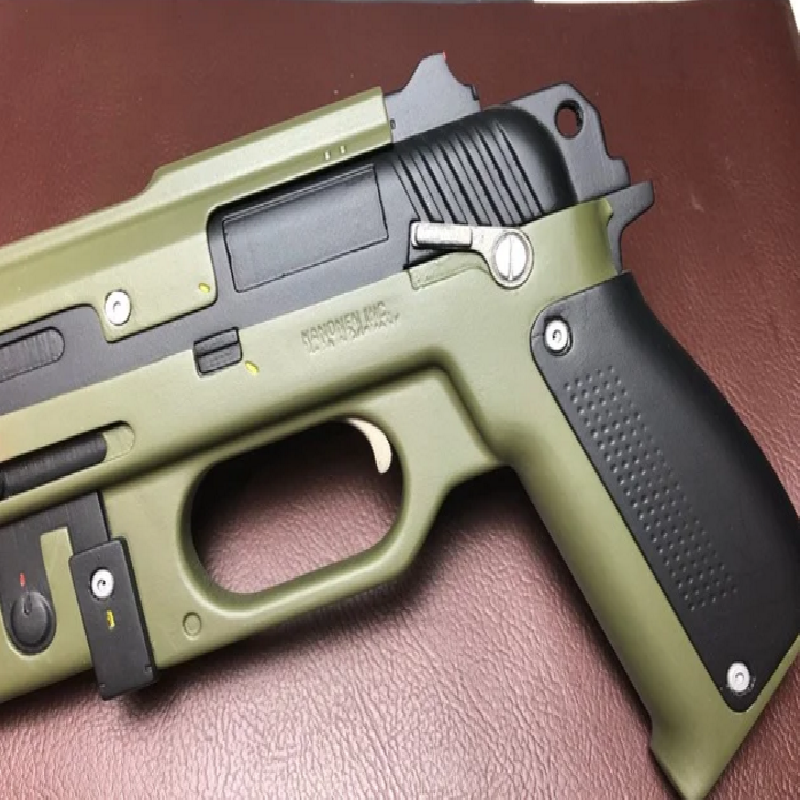

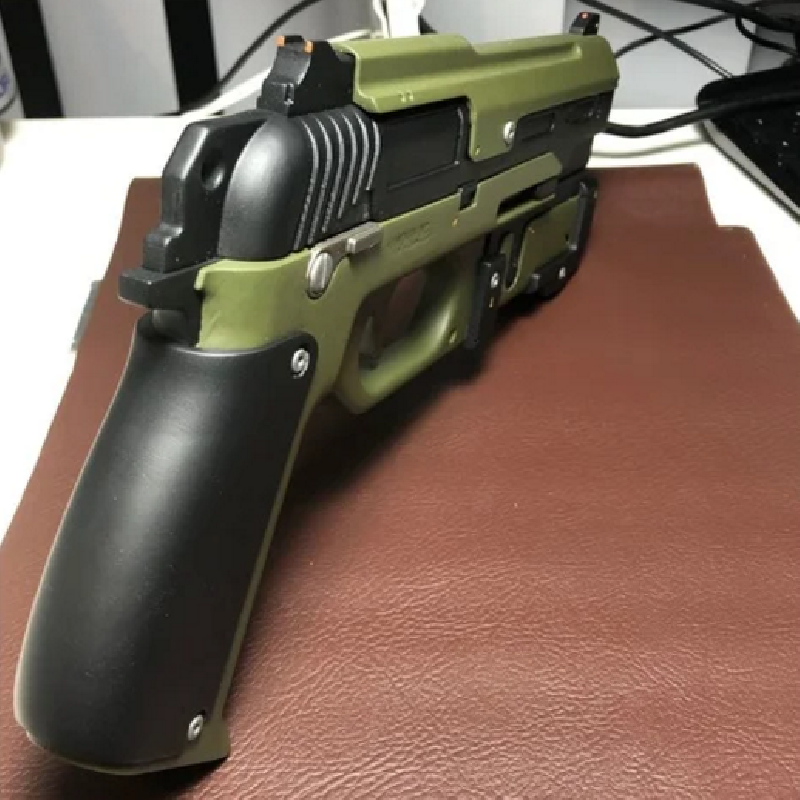

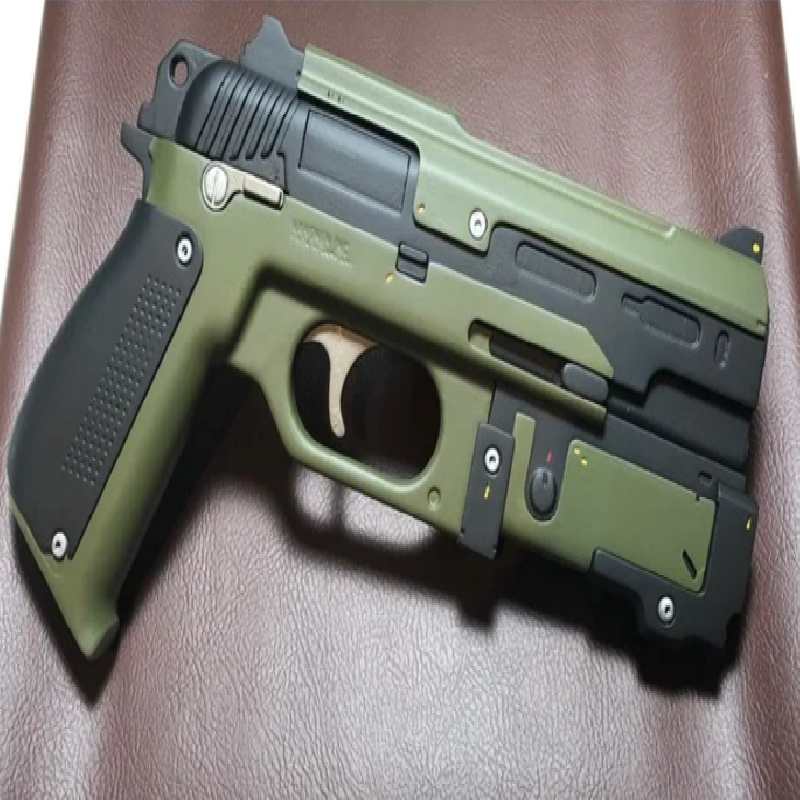

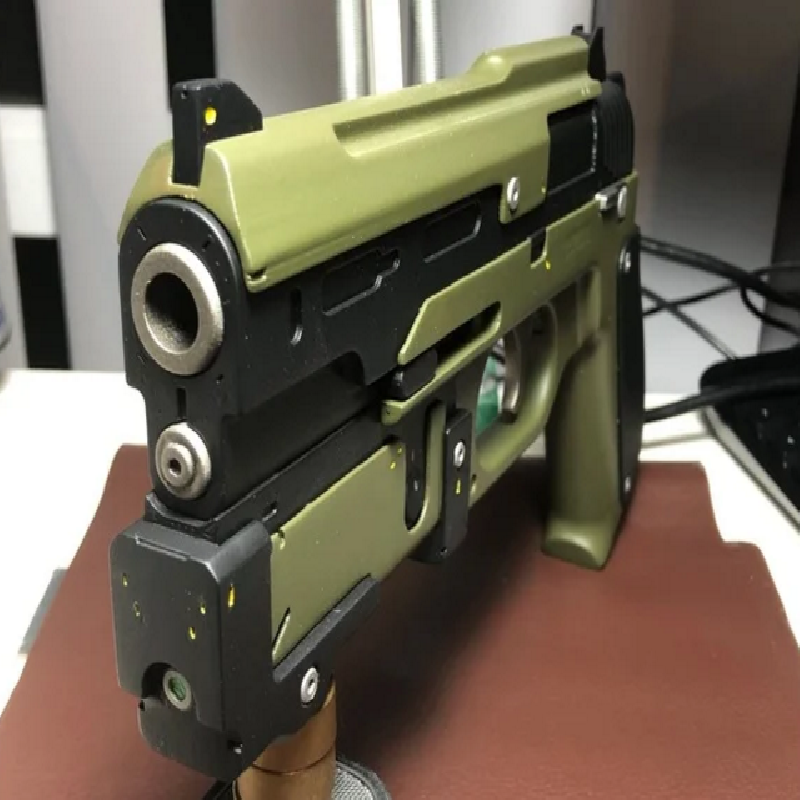

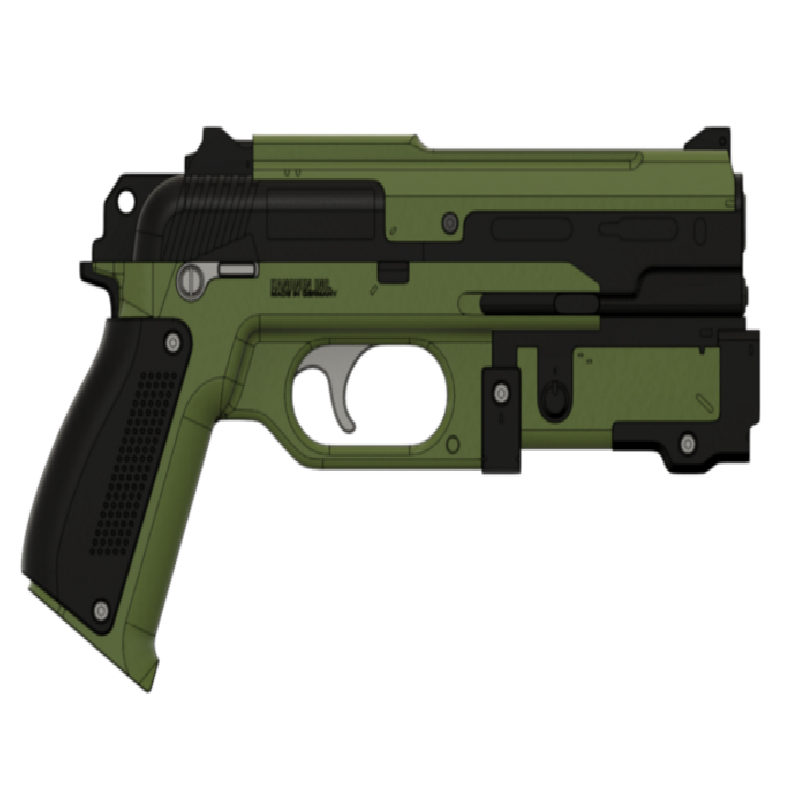

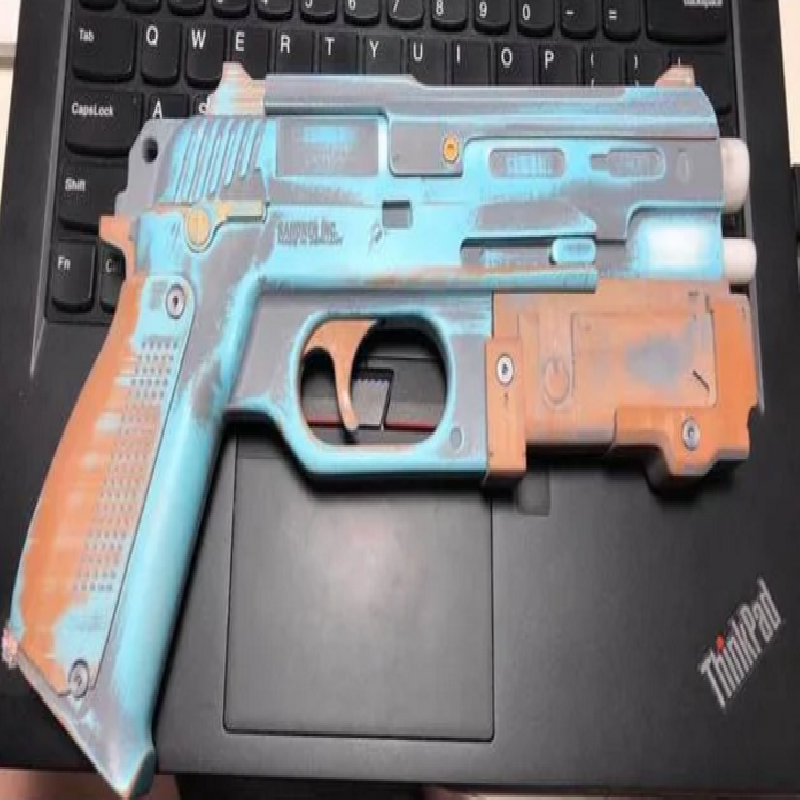

Andre-Lang Huynh's Holzfäller is a beautifully designed pistol straight out of armories of military and security forces of the near future. The only drawback of the model is that its tolerances are too tight, making assembly difficult and causing parts to strain against each other.

This remixed Holzfäller has been revised piece by piece to ensure that all tolerances are a comfortable 0.15mm, allowing all parts to fit together easily with minor, if any, sanding/smoothing.

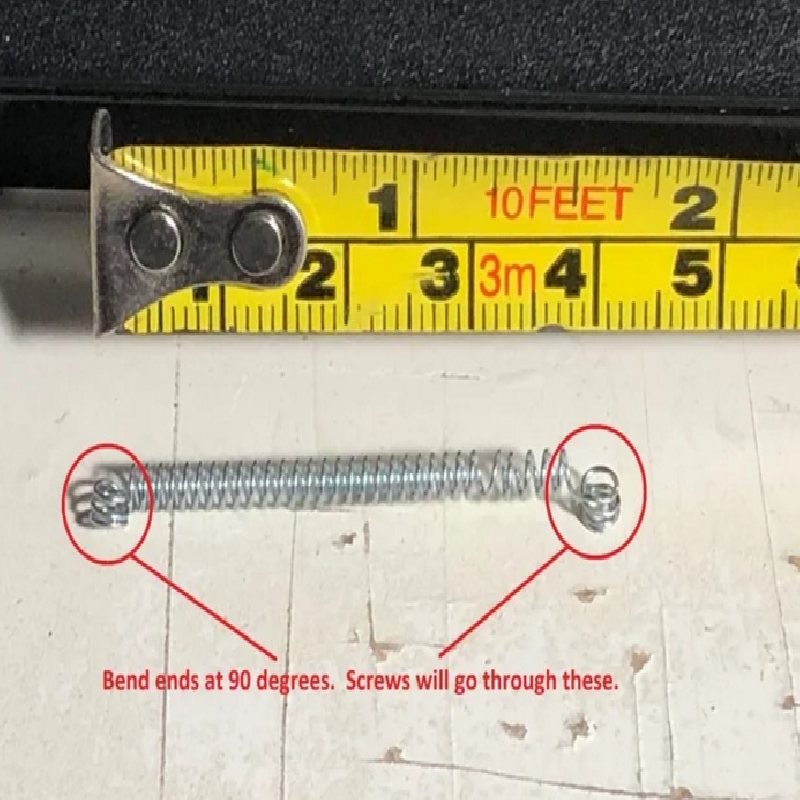

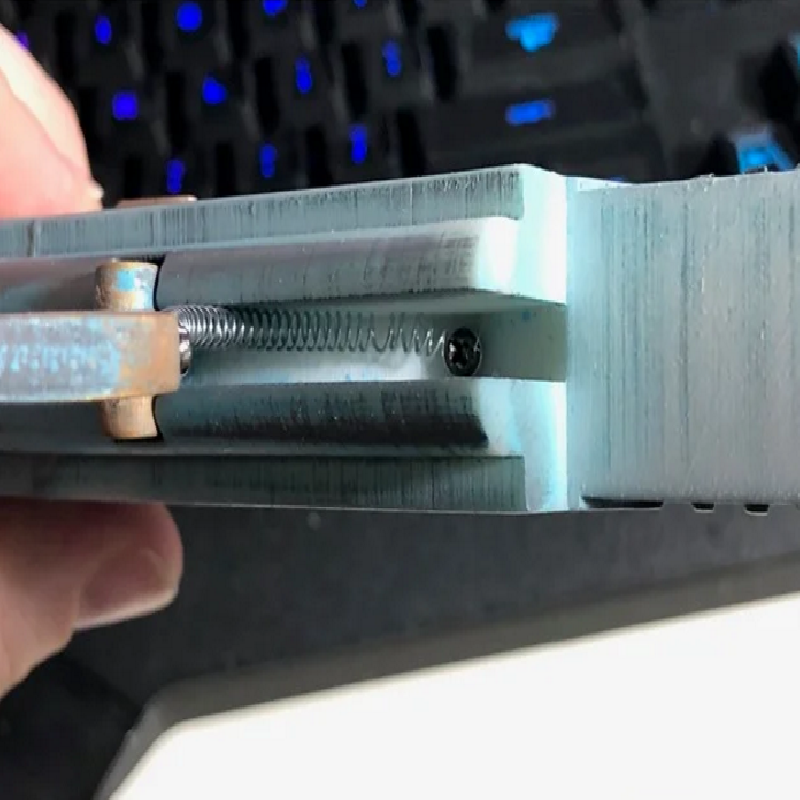

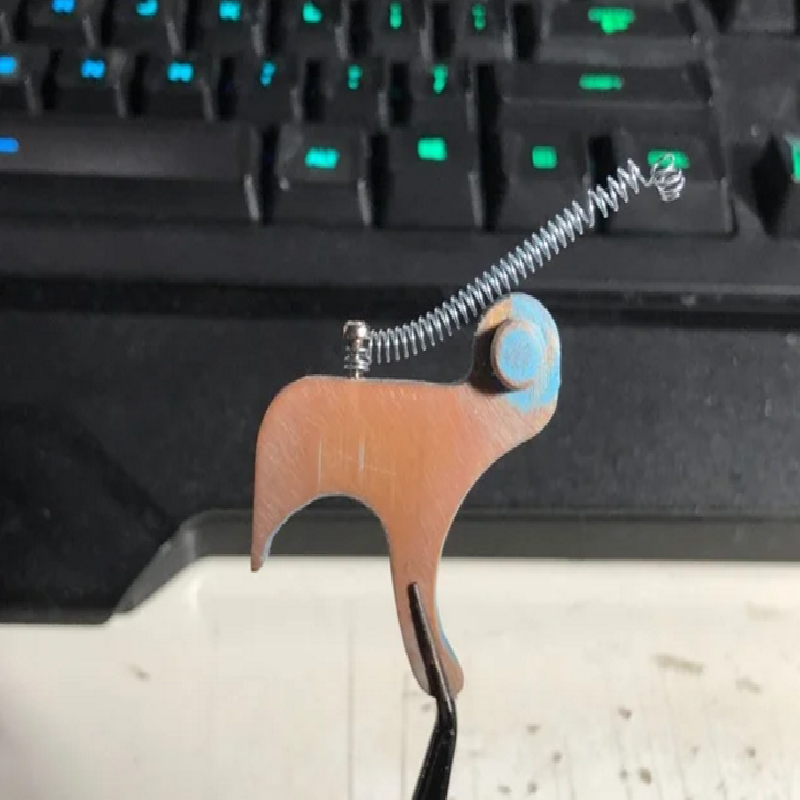

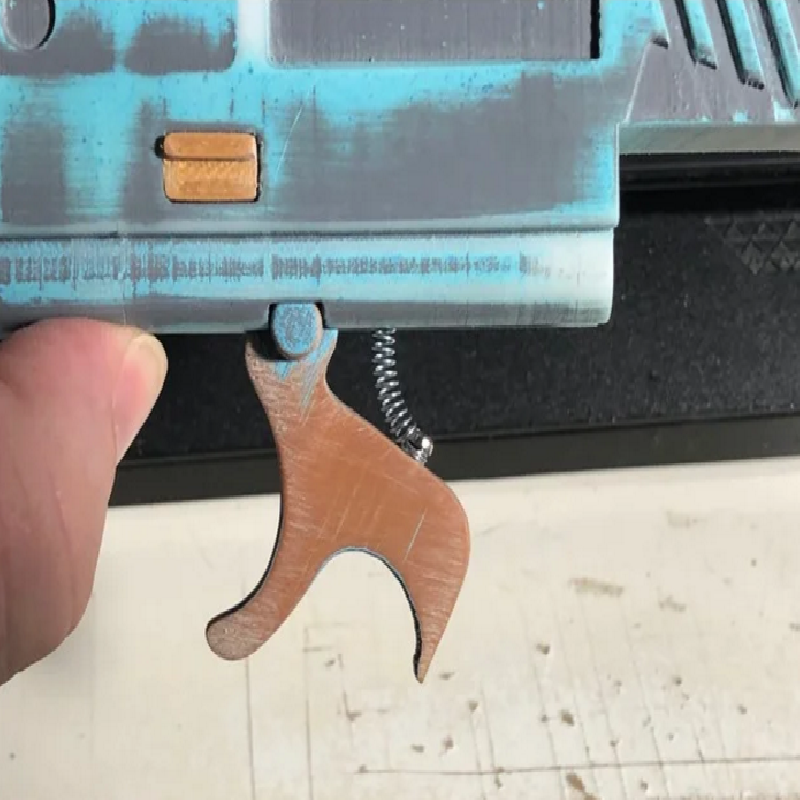

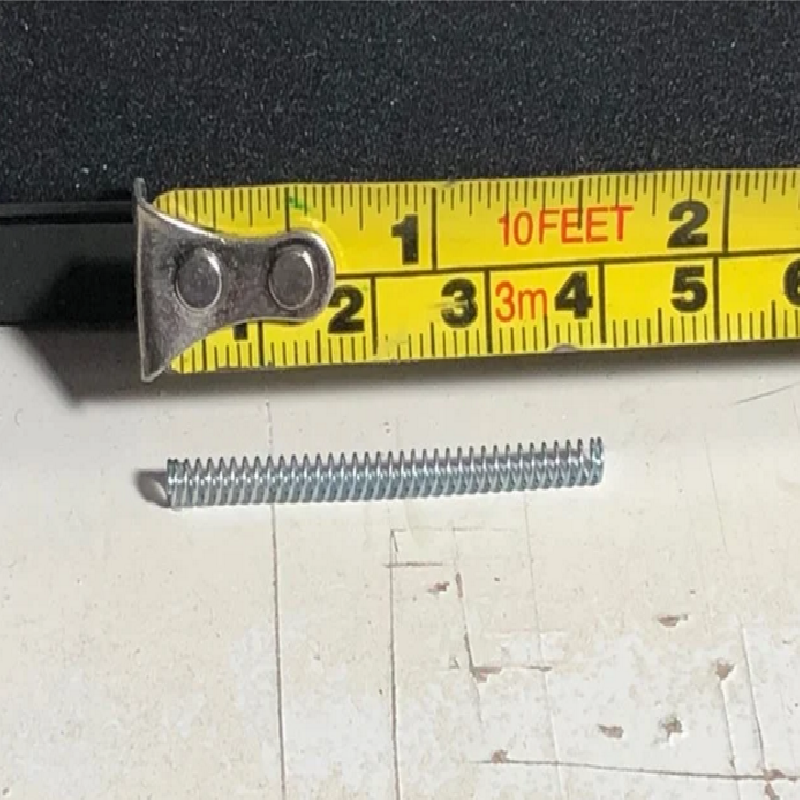

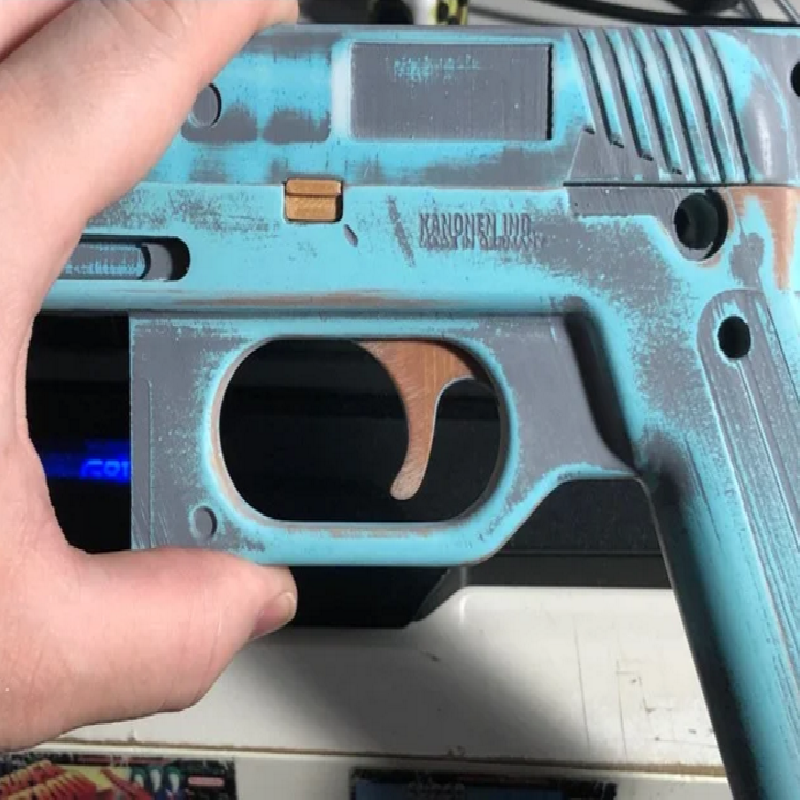

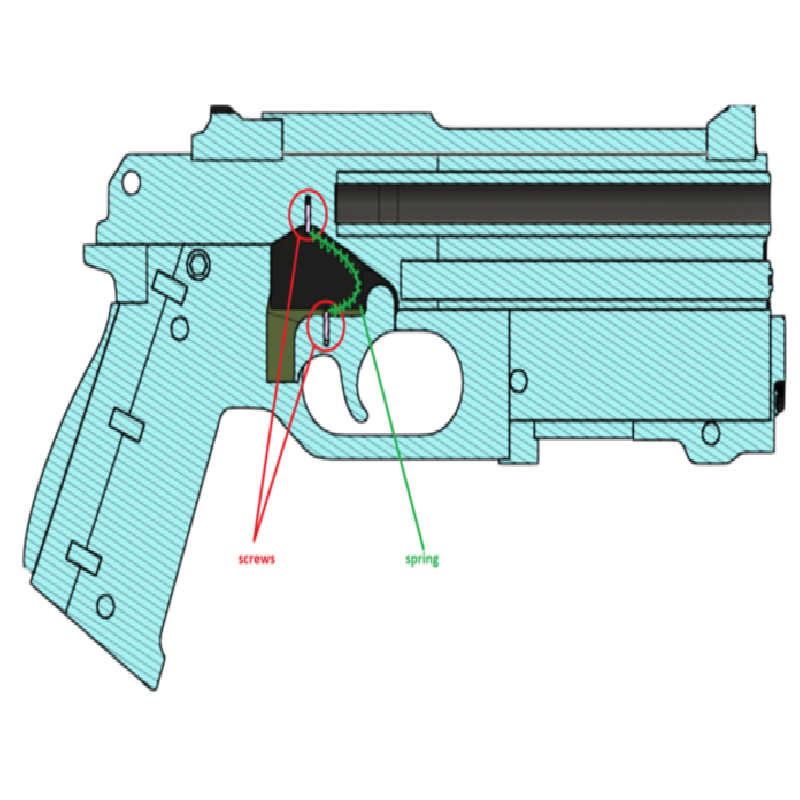

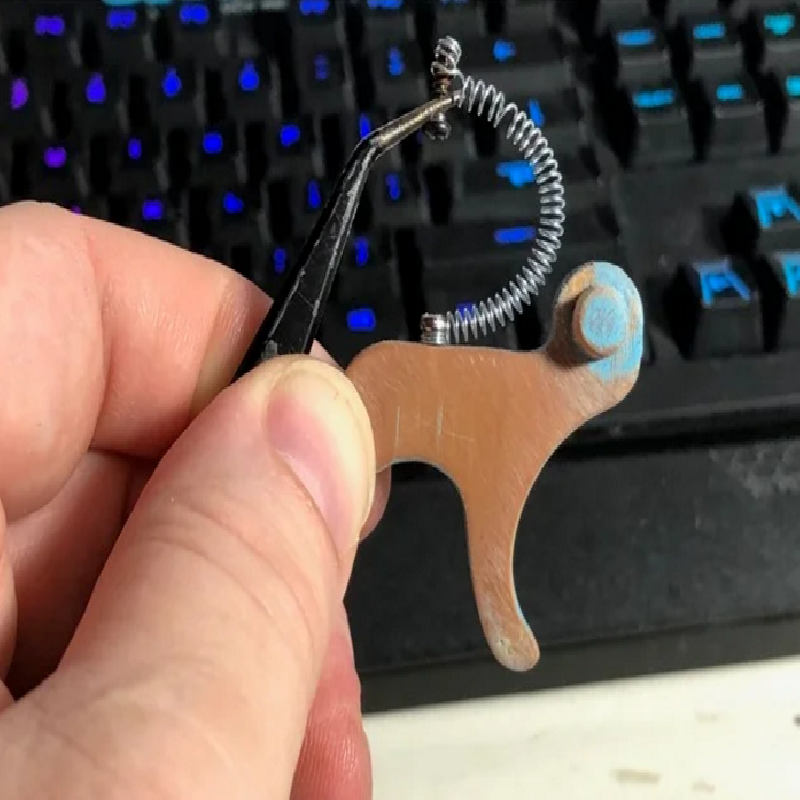

Additionally, the internal design has been slightly altered to allow the safely switches above the grip to flip up and down together, and the trigger to be spring-loaded, which will require two tiny machine screws and a 4cm-or-so spring. See photos for installation.

Alternative versions of the Receiver and Slide, which may be too long for some printers, have been included. These have each been divided into two sub-parts.

Hex Connectors are used to join the two safety switches inside the Receiver and the two part of the Receiver itself. 4 will be needed in total.

Print Settings

Printer brand:

Wanhao

Printer:

Wanhao Duplicator i3 Plus

Rafts:

No

Supports:

Yes

Resolution:

0.1mm

Infill:

20%

Filament_brand:

Xtron Mamorubot

Filament_color:

Metallic Gold

Filament_material:

PLA+
