[Save the Sea Turtles]

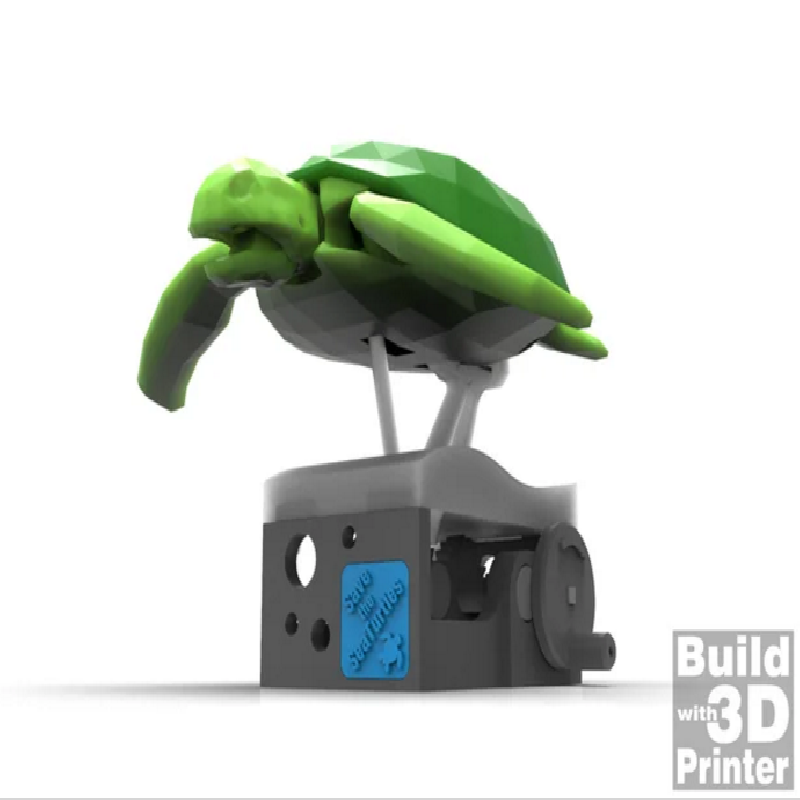

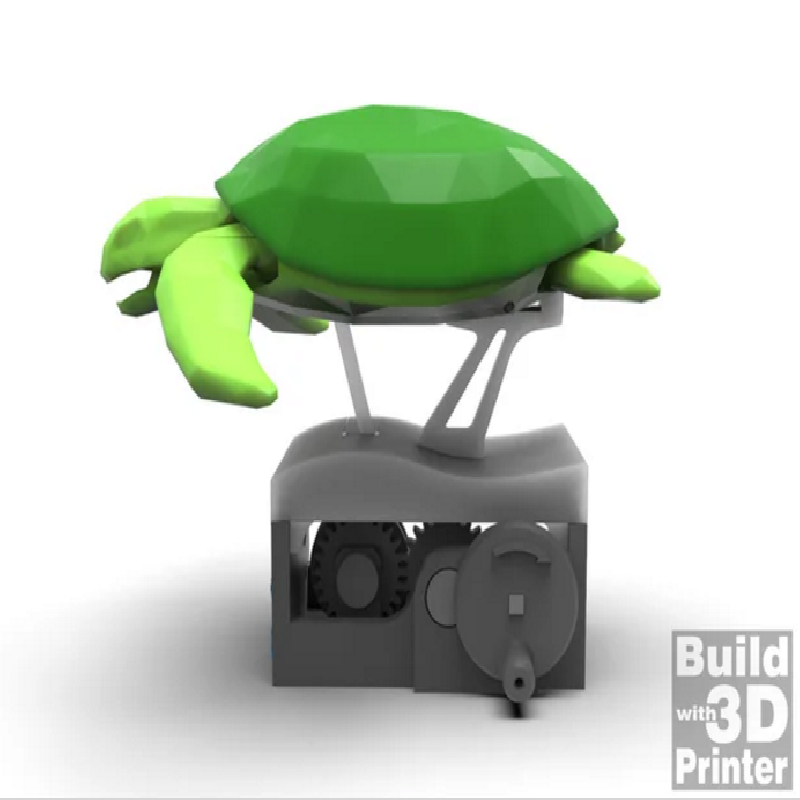

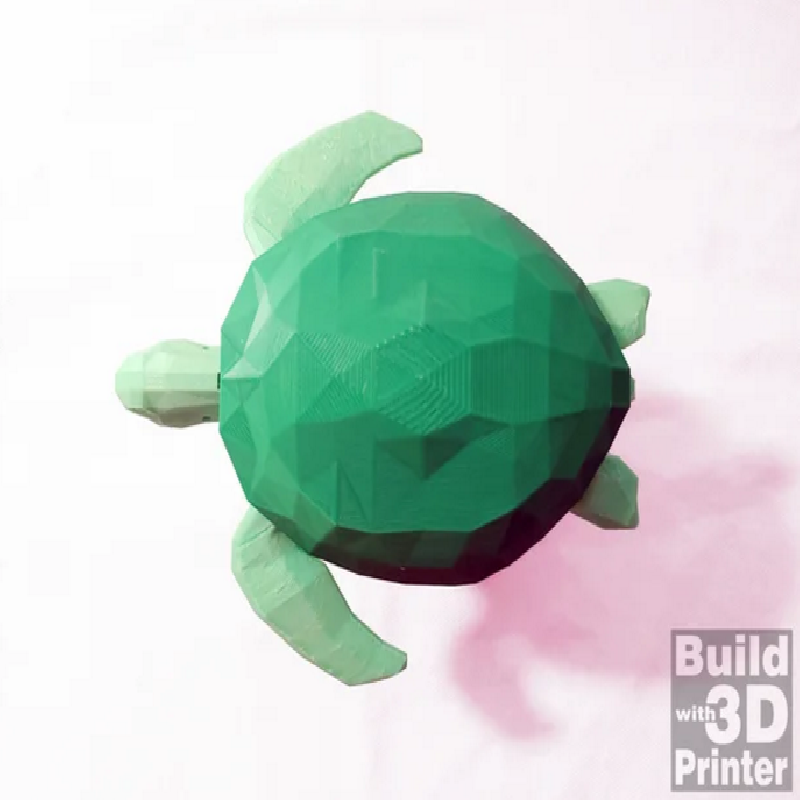

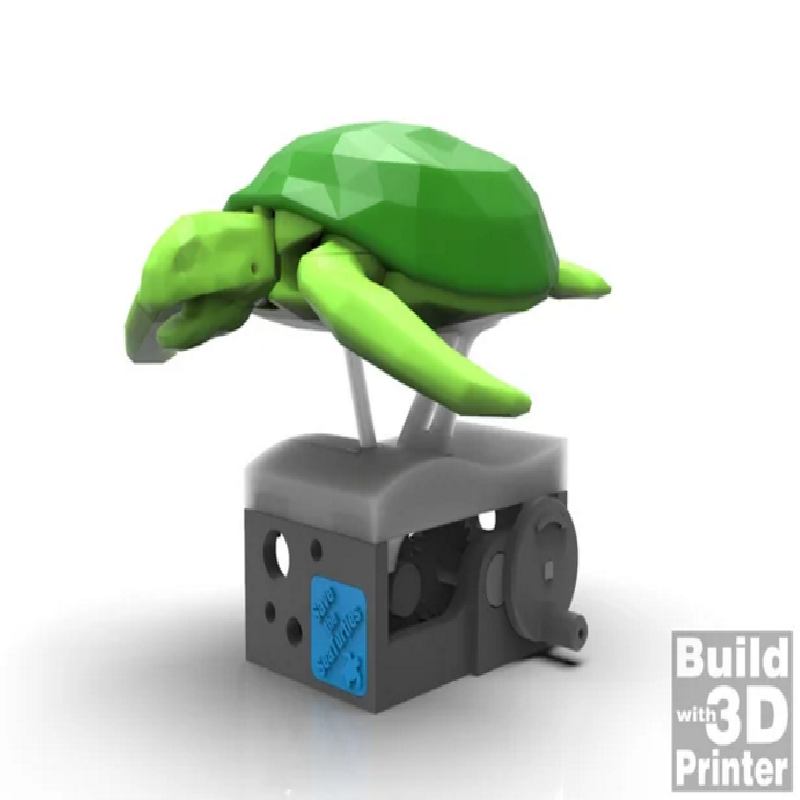

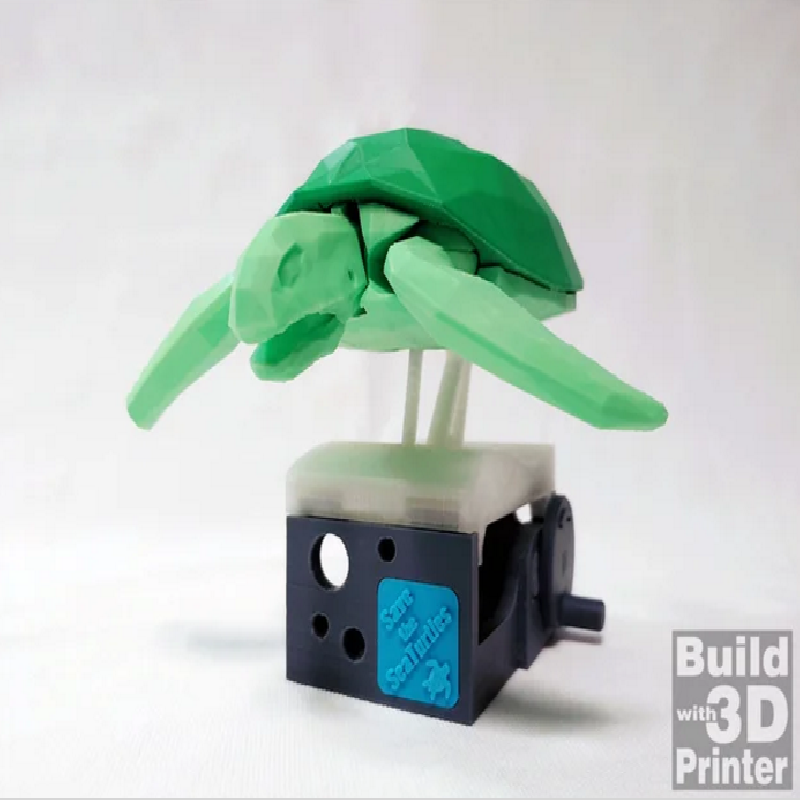

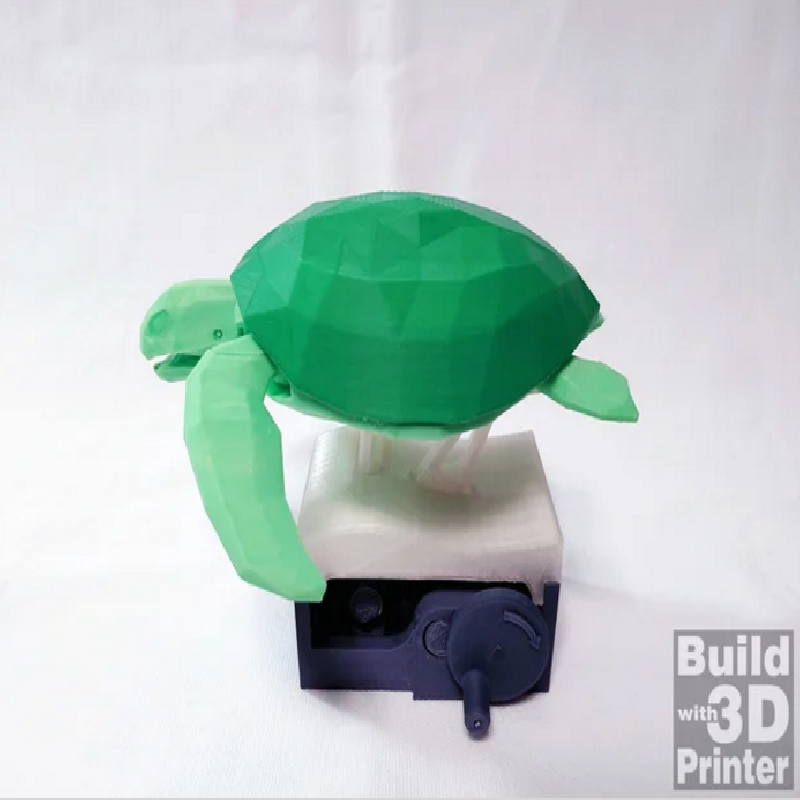

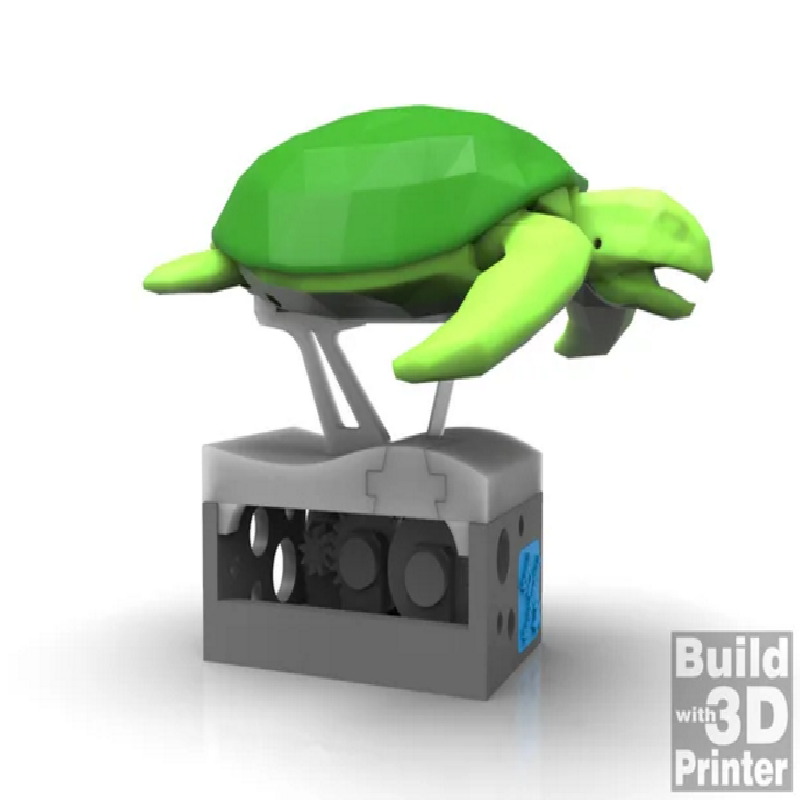

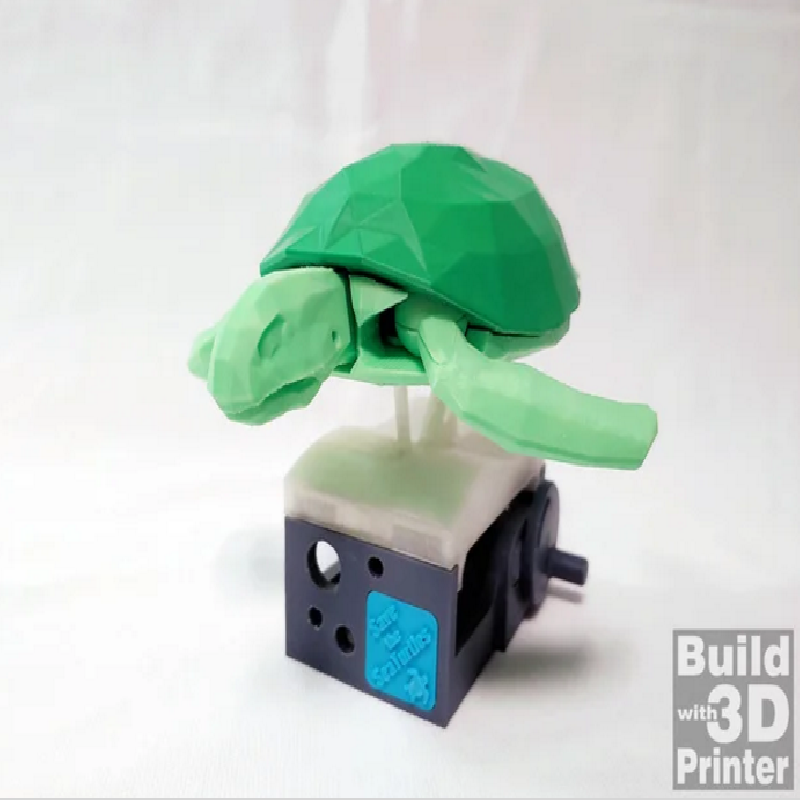

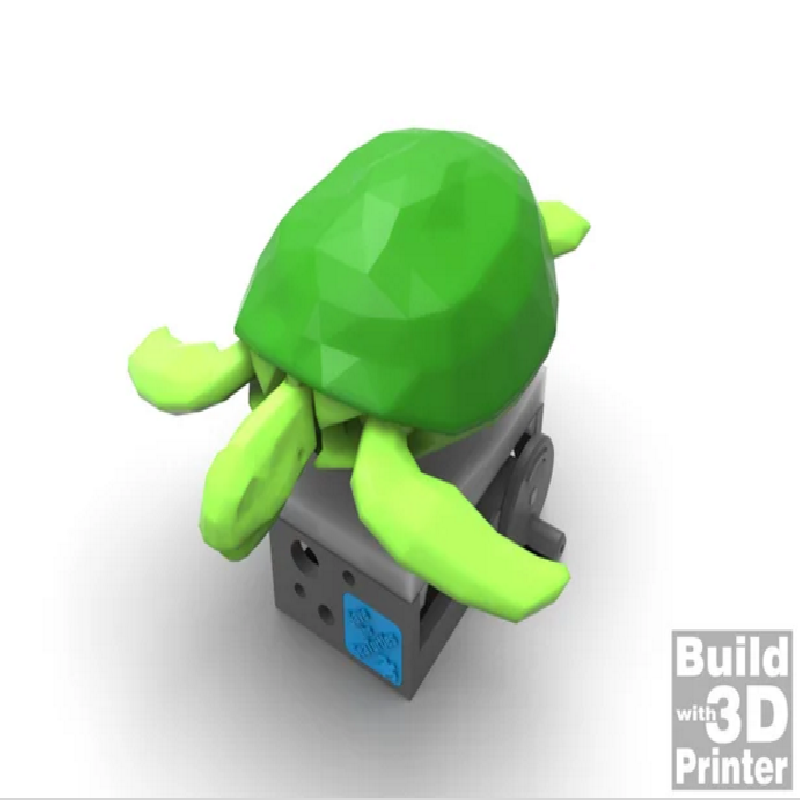

Printable Kinetic Sea Turtle
Simple assembly is required.
Assemble instruction is in my youtube channel
https://youtu.be/RR_RZxcYk88
Use a raw 1.75mm filament and super glue while assemble the parts.
May need a sandpaper while assemble the parts. It depends on a 3d-printer's condition.
The object tested by FDM 3d printer with PLA and ABS filament.
Layer height:
0.10mm

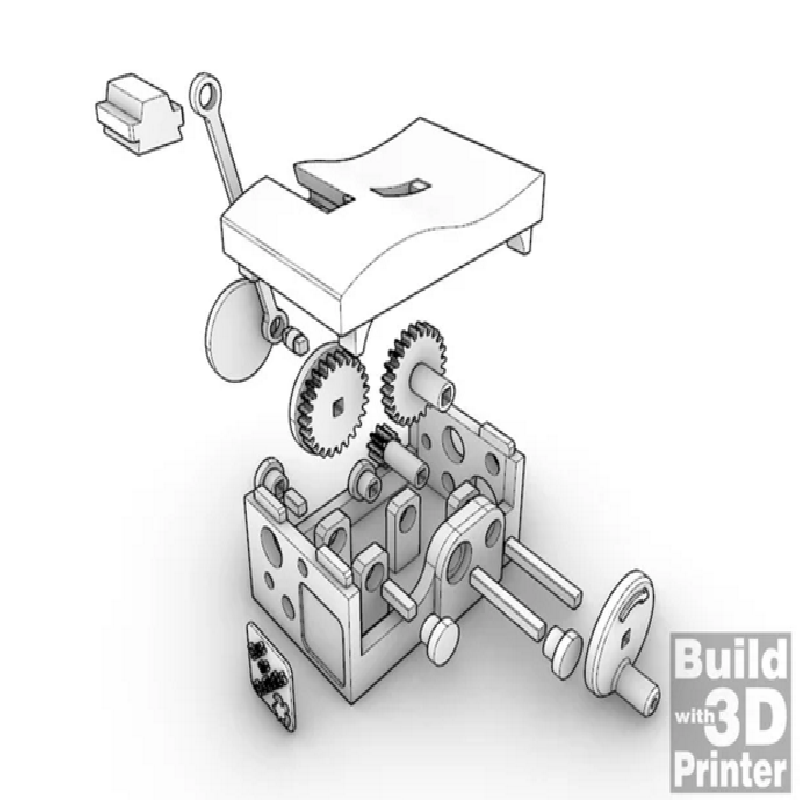

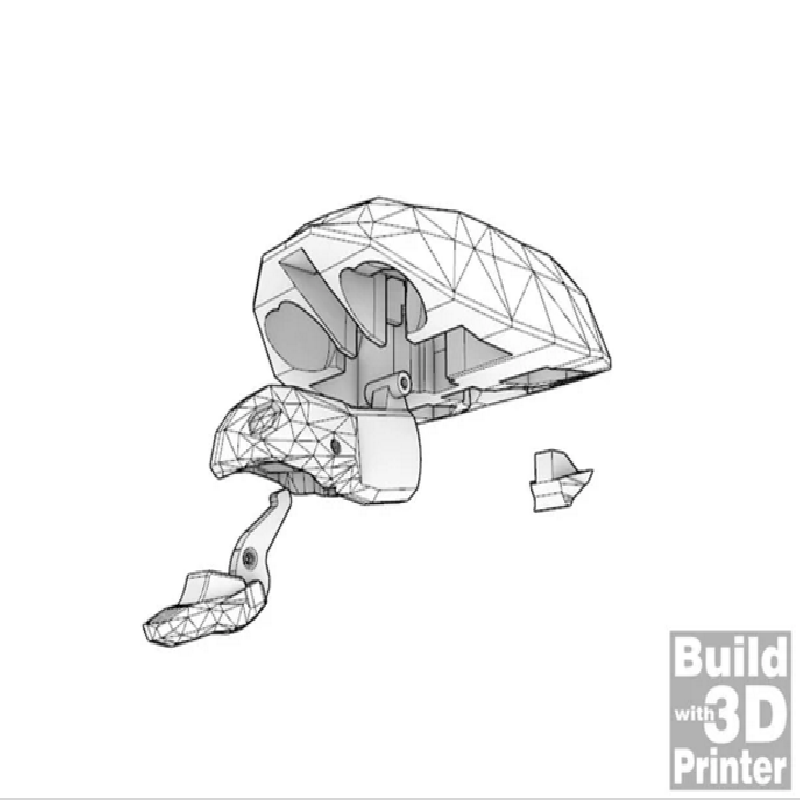

0.15mm (Gear_Box, Support_Arm, Carapace.stl)
Shell count: 3
Fill density: 15~20%
Time to do: about 1800 - 2000 minutes
Technology: FDM
Material: PLA or ABS
Dimensions: about 160mm x 120mm x 150mm
Material Quantity: about 280g
Print Settings
Printer brand:
FlashForge
Printer:
Adventurer 3
Rafts:
Yes
Supports:
Yes
Infill:
15~20%
Filament_brand:
Polysmart
Filament_material:
PLA, ABS
Notes:
Use a raw 1.75mm filament and super glue while assemble the parts. May need a sandpaper while assemble the parts. It depends on a 3d-printer's condition. The object tested by FDM 3d printer with PLA and ABS filament.
