by Azeotrope777

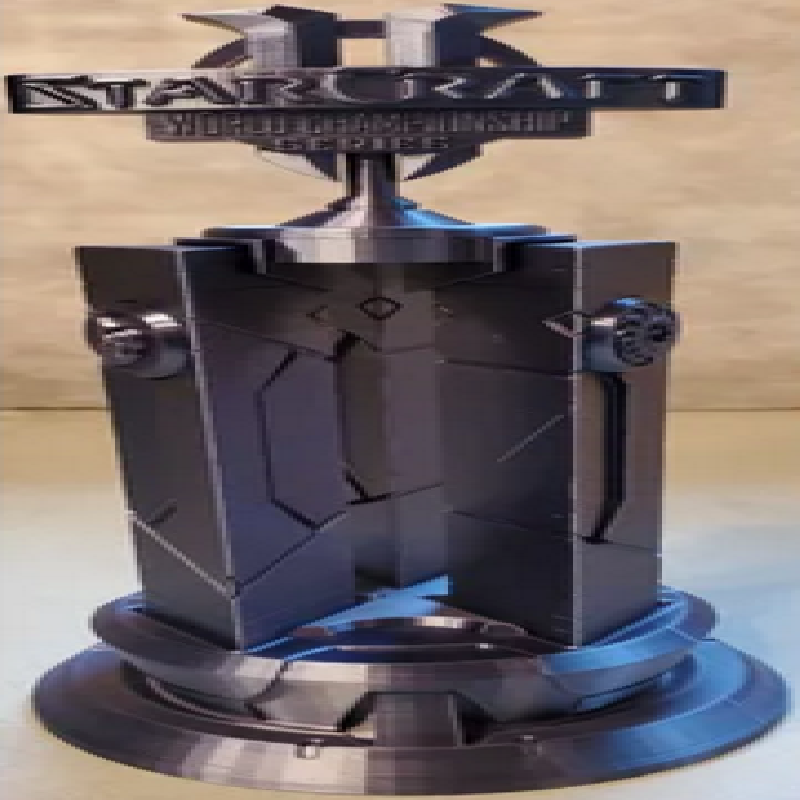

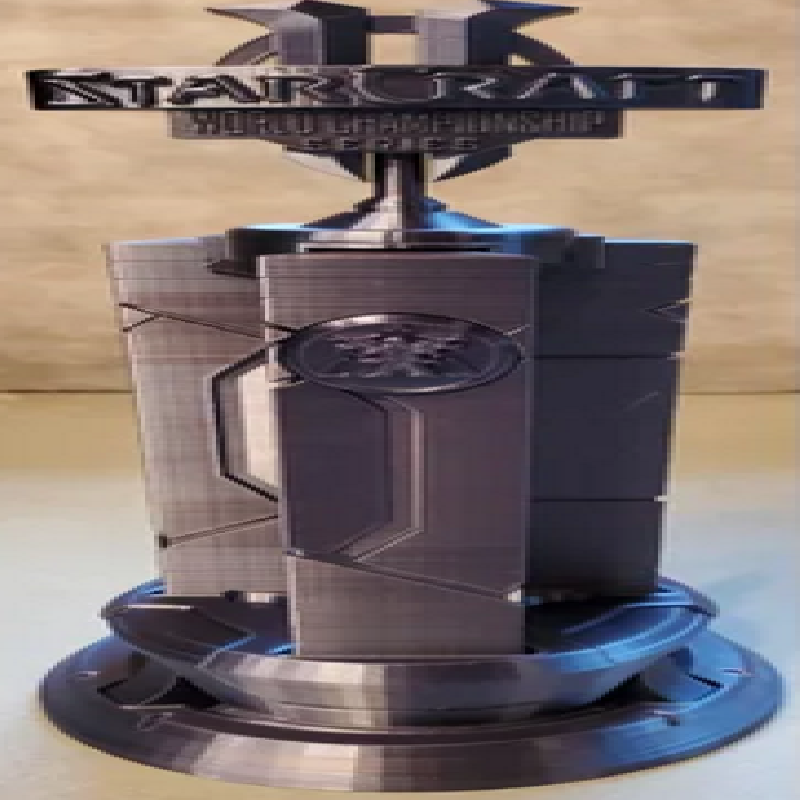

I modeled this from a few pictures and videos of the StarCraft II World Championship trophy. This took me weeks to model and I think it came out well.

The model is split up into several parts and I used 3D printed pins to help align each part. I used superglue around the pins when assembling the model. I included two options for printing the pins. I used the "Pin" file but if this pin is too tight of fit for your model then you can use the "PinSmall" file for a loose fitting pin.

I also included the .stl file for the whole trophy as one piece. So if you want to try and print it as one piece with support then you can try but I had a hard time removing support material.

I printed everything with 0.12" layer thickness so it took probably about a week to print all the parts. But you could print it in less detail to save time.

I used tree supports on some of the parts when printing the larger version. The gcode has the actual prints that I printed but I am sure you can slice the .stl files and use different supports. For the middle (hand size) trophy, I didn't use any supports.

The .stl and gcode files are for the largest trophy parts. I had to shrink the model parts to make the middle size one and had to use tweezers to insert the pins.

For the zerg emblem, I modified the model from keyan3d which is linked as a remix.

This is fan art, I am not associated with Blizzard or StarCraft.

Print Settings

Printer brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

No

Resolution:

0.12

Infill:

15%

Filament_brand:

TTYT3D

Filament_color:

Shiny Silk Metal Sparkle Black

Filament_material:

PLA
