by Garuda1

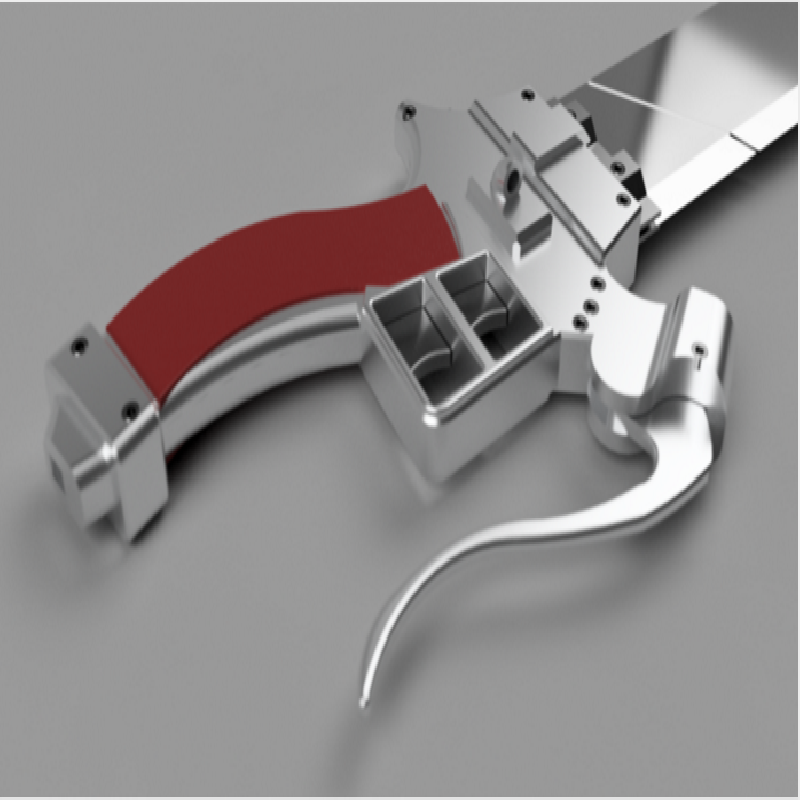

Here are my working 3DMG swords. The entirety of this project is my own work. However, it is important to note that the 3DMG is not my intellectual property, this is merely a replica.
What works:
Blade ejection
Both triggers, independently
The lever
Additionally, there is room for an Arduino Nano and OMRON microswitches for the lever and triggers. You can this way control stuff with the sword.
Printed parts:
1x Body.stl
1x BodyCover.stl
2x Trigger.stl
1x Lever.stl
1x LeverCover.stl
1x BladeCatch.stl
1x GripUpper.stl
1x GripLower.stl
1x Plug.stl
Fasteners:
6x M3x12 DIN912
2x M3x18 DIN912
3x M3x22 DIN912
11x M3 nut
Misc.:
7x 5mm OD compression springs, to cut to length
1x 1m of 2.75mm² cable (Run it from the lever to the tube above the triggers to the bottom of the handle)
1x 2.5mm+ cow leather (Optional, for the grips, looks way nicer than plastic)
Being 70cm long and 2mm thick, I elected not to include the blade's STL file. You are however free to make your own blade and bolt it to its plug, which I included.
Print Settings
Printer:
Custom CoreXY
Rafts:
No
Supports:
Yes
Resolution:
0.2mm layer height
Infill:
40%, 1.2mm walls
Filament_brand:
Generic
Filament_material:
ABS
