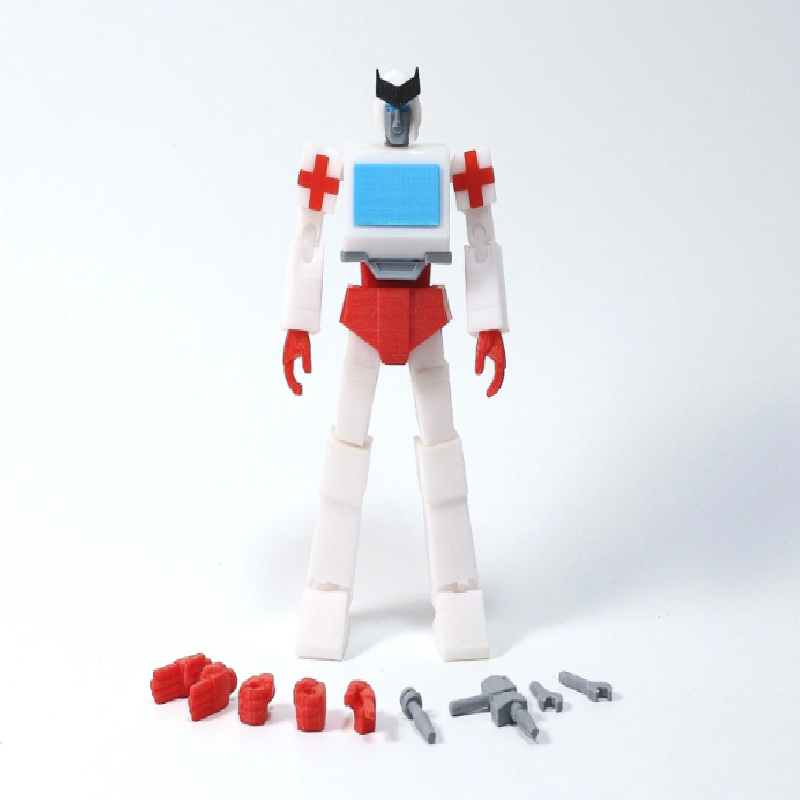

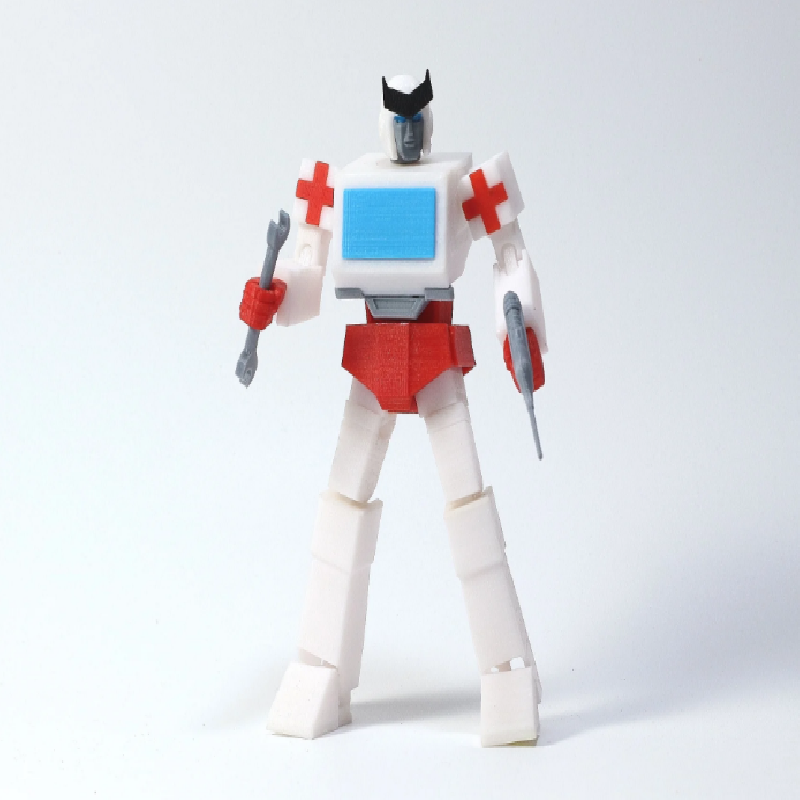

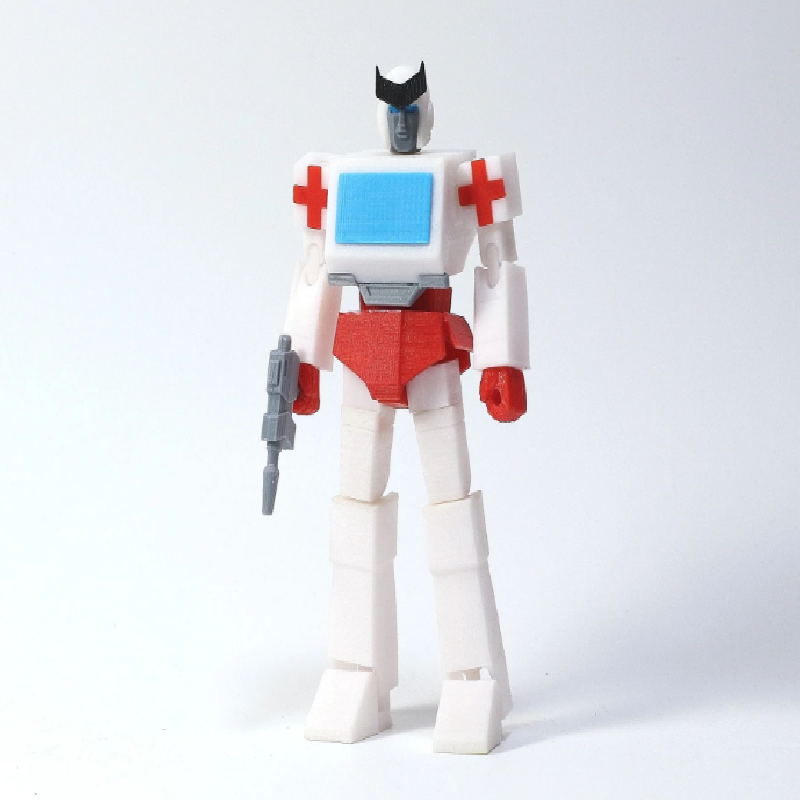

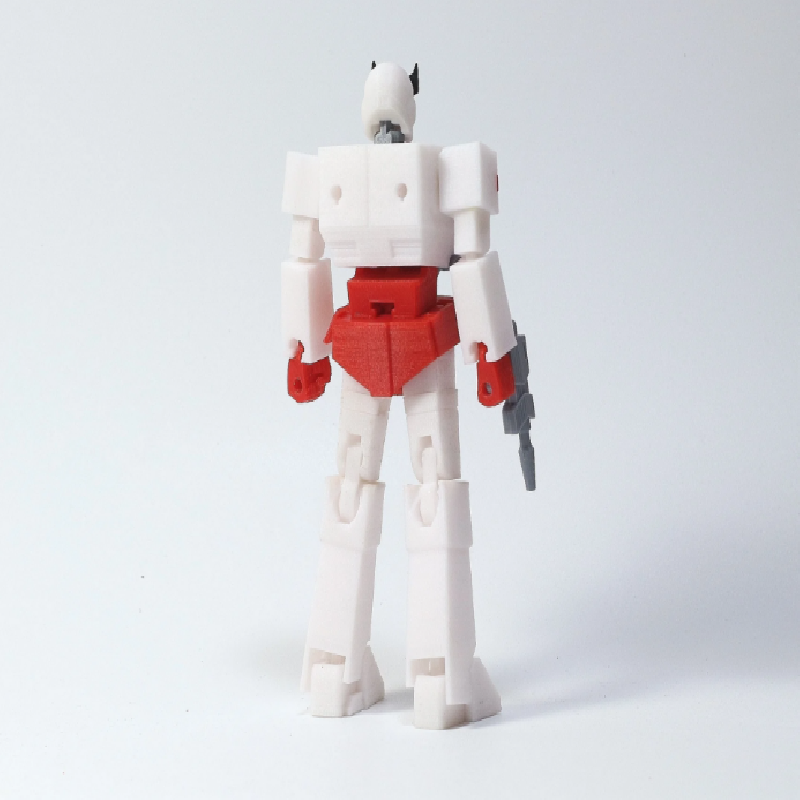

G1 Ratchet base on 1984 Transformers TV Series. This is fully articulated model but not transformable.
Skale: 1:30 (16.5cm)
Coloring can be done by using different color of filament (detail on files name)
No Supports
Gap tolerance: 0mm balljoint, 0.05mm swivel, 0.05 peg joint
Best print orientation for maximum strength result
Easy to print

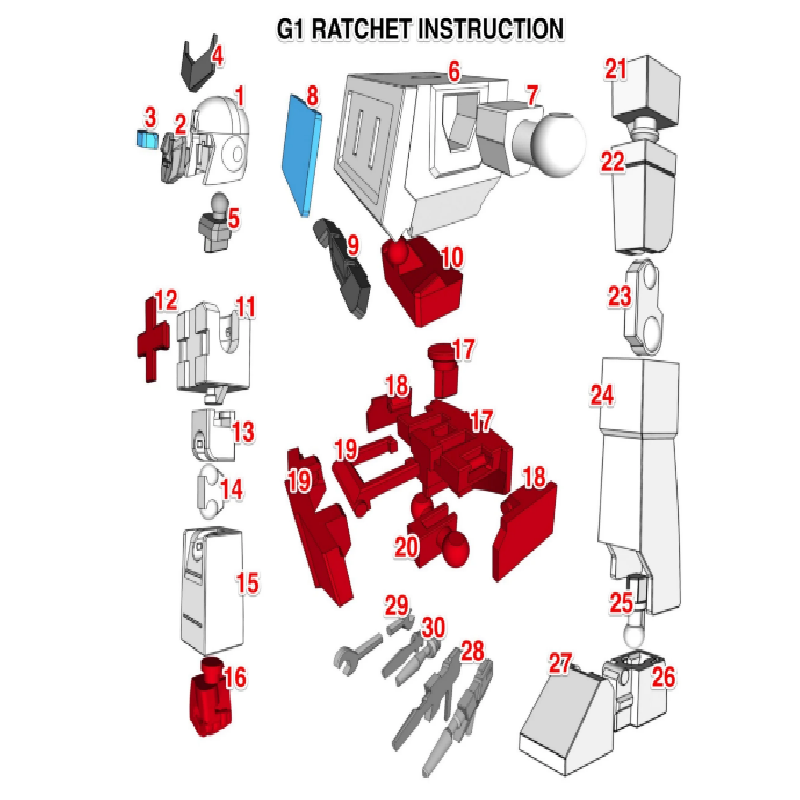

Easy to assemble
Easy to rescale

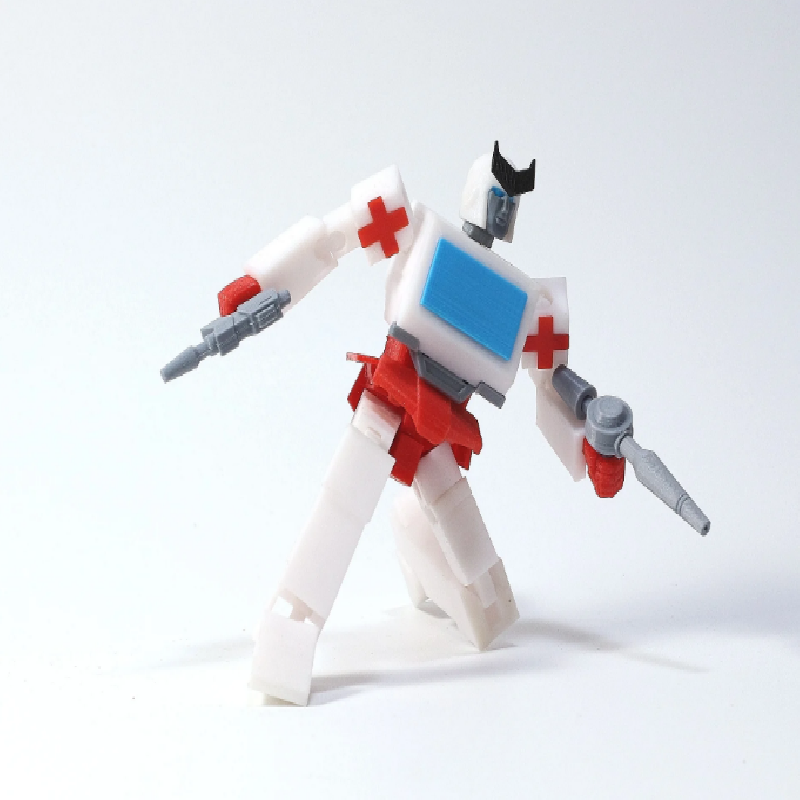

Point of articulation:
Neck balljoint
Abdomen balljoint
Shoulders balljoint
Upper arm swivel joint
Elbow double balljoint
Wrist swivel
Waist swivel
Hip balljoint
Thigh swivel joint
Knee doble balljoint
Ankle balljoint
Toe swivel
Accesories:
Gun
Wrench
Important Tips:
Cutter or sand paper for tolerance adjustment
Super glue for split parts
Use nail polish to fix loose ball joint
Print Settings
Printer:
Toymakr
Rafts:
No
Supports:
No
Resolution:
0.15mm
Infill:
30%
Filament_brand:
Rajawali 3D
Filament_color:
Mix
Filament_material:
PLA
Notes:
- Nozzle: 0.4mm - Layer: 0.15mm - Filamen: PLA - Temperature: 195°C - Speed: 40/s - Skin/top/bottom: 0.8mm - Infill: 30%
