by Nevaar

I got kind of fed up at the various models available, and felt that a simple cut-up of a nice model doesn't do the source material (or the modeller) justice. So here is MY take on someone else's work. The only originality here is in the actual ring segments, and how I modified the various other bits to fit with my desired assembly methods. I also changed the dimensions of the rear control surfaces a smidge, cuz reasons. This kit should be pretty easy to modify as needed, to keep up with design changes as they happen.

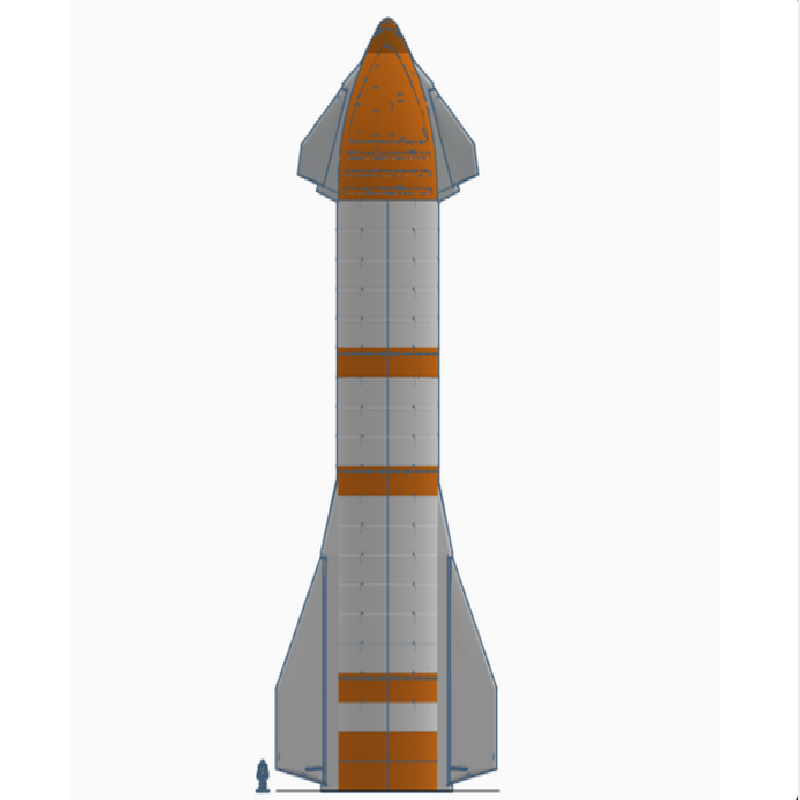

The model will is composed of
A generic ring segment (printed 15 times or so)
Top, Mid, and Bottom tank bulkhead rings
Crewed & cargo nose options
Engine Mount Ring
Landing Gear (someday?)
and the various movable control surfaces (at 1:100 scale, arduino and servos are real considerations!!).

NOTE: I HAVE NOT PRINTED THIS (but it should work) This is not a snap together kit. You will need all the usual kit & gear for building a nice model. If you actually build it, please be sure to post a make!

When you print, I strongly suggest you print at the default scale (100% = 1:100) unless you have a tiny nozzle installed. My MP Mini has a 0.2mm nozzle and I can theoretically downscale to 50% but leaves a way-too-thin single wall / vase-print.

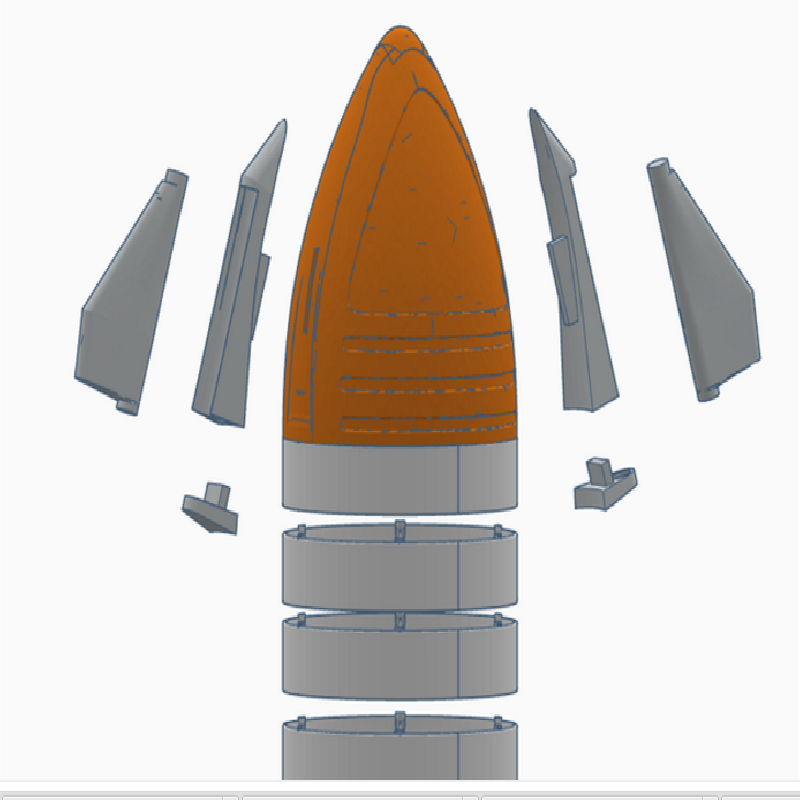

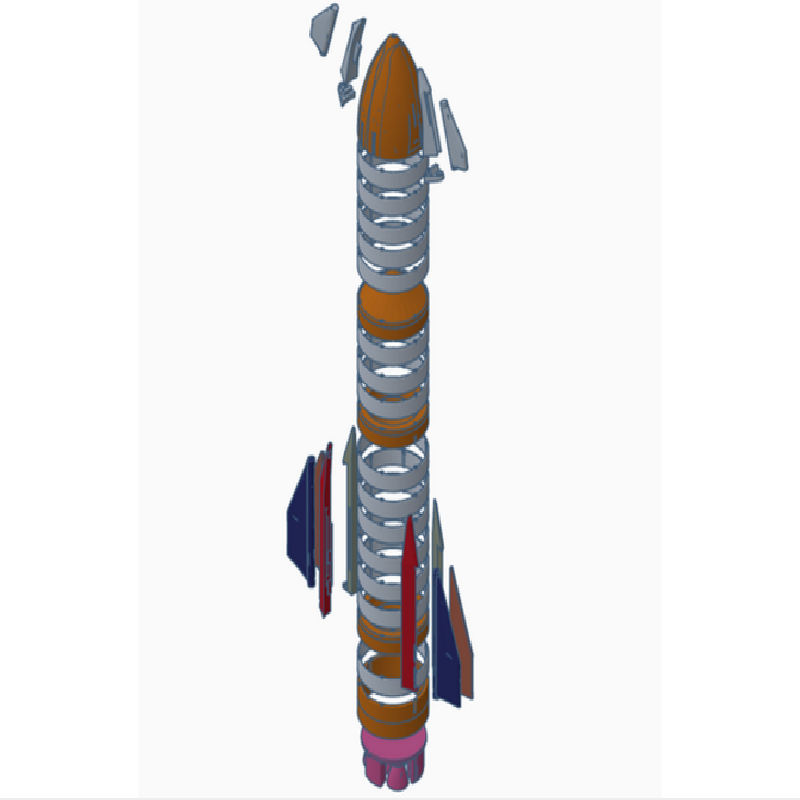

So you have the parts... time to build the body. Start stacking as shown (designed to be stacked from the bottom up, or in sections as you see fit). Pay attention to the vertical weld line on the rings. The weld is on the cool-side during re-entry.

1x Starship-Nose-Crewed (or cargo)
5x Starship-Rings
1x Starship-Ring-TankSegment-Top
3x Starship-Rings
1x Starship-Ring-TankSegment-Mid
6x Starship-Rings
1x Starship-Ring-TankSegment-Bot
1x Starship-Rings
1x Starship-Rings-EngineMount

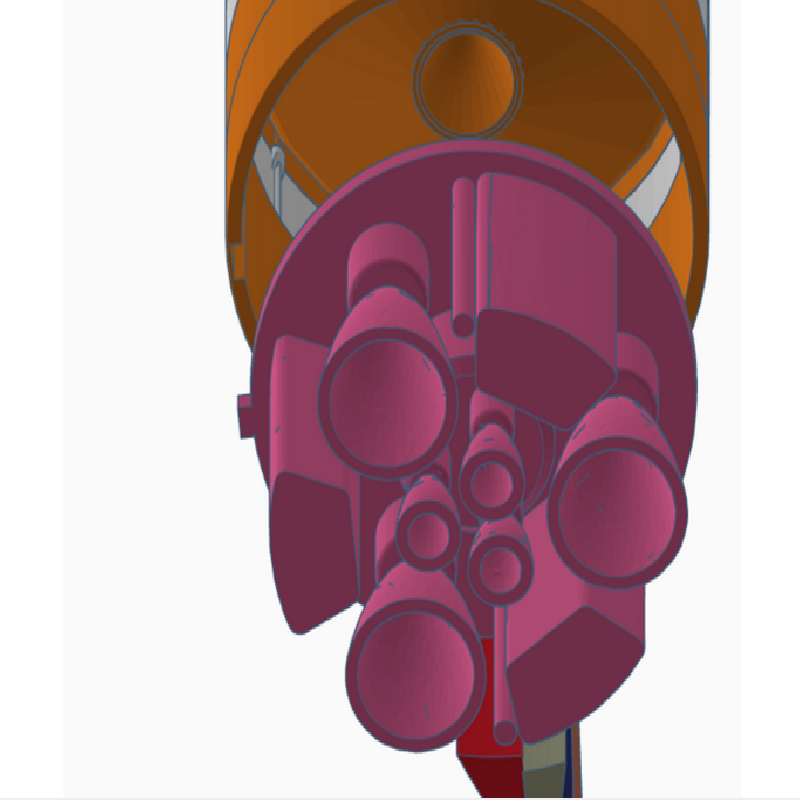

Insert 1x Starship-Engines into the engine mount from underneath.

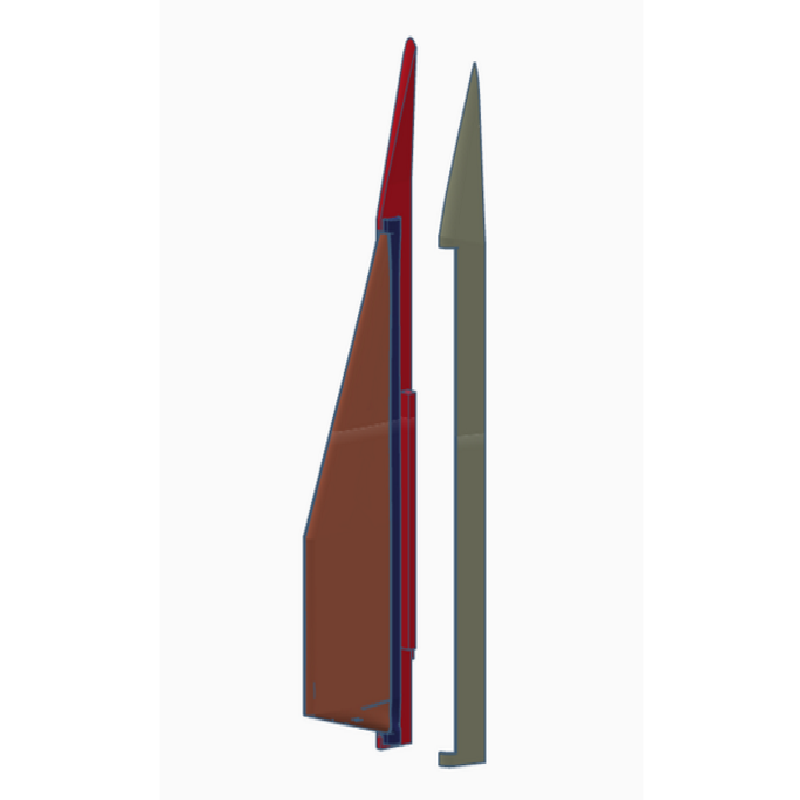

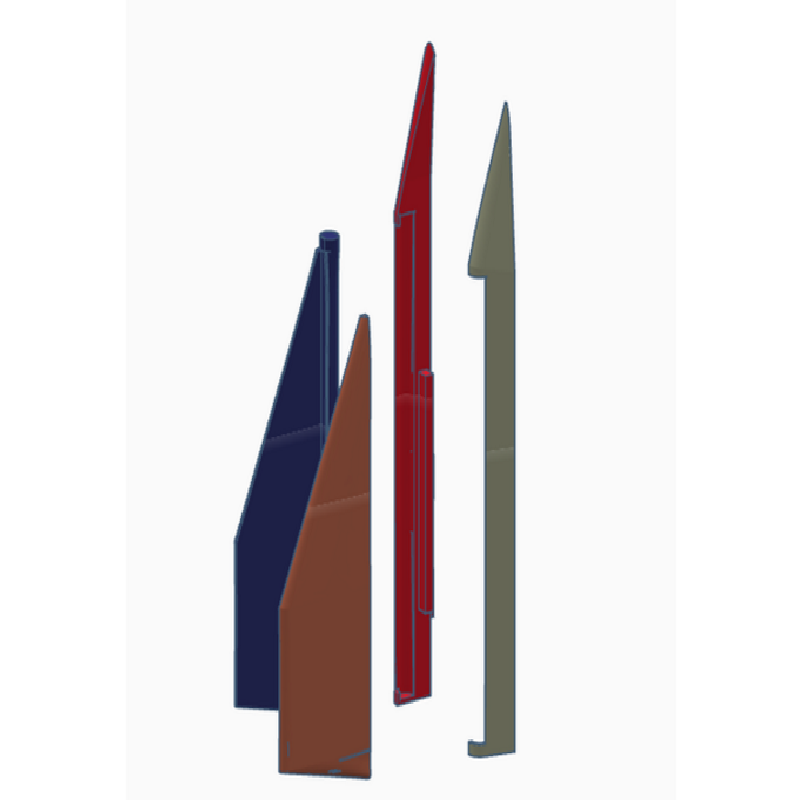

Now build the front and rear control surfaces, paying attention to left & right sides!!!


and here
https://www.myminifactory.com/object/3d-print-starship-model-kit-115971

but Thingiverse is having a brain-dead moment and not letting me link to his model as a remix.

He also has the Super Heavy booster, which should be compatible.

My wishlist of remixed parts:
clear windows
Detailed crew areas
Landing gear
Split the engines and cargo into distinct components.
Rework how the control surface mounts integrate with the ring segments. I do not like the tab-in-slot thing happening. Maybe put part of the mounts on the associated ring when printed... ?
More!

A reminder: There are certainly going to be issues, and I'm fixing them as I find them. case in point, I was testing a piece with the integrated tank... yeah, no. Those parts are being changed to be simple (though slightly modified) ring segments. With the tank bits available as an option, but not required. Should make faster prints, too.
