by Jetstorm_477

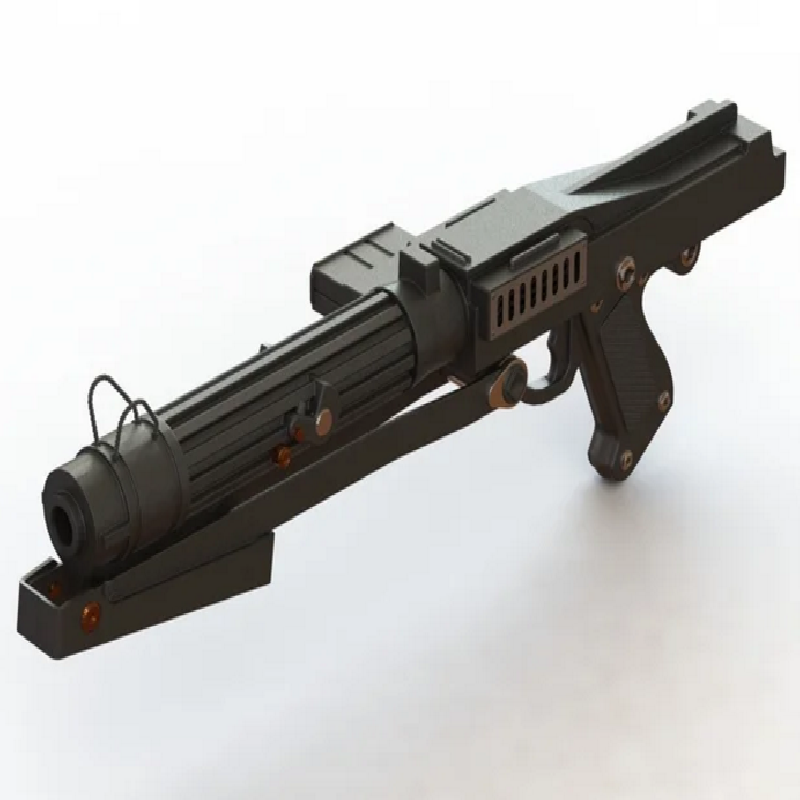

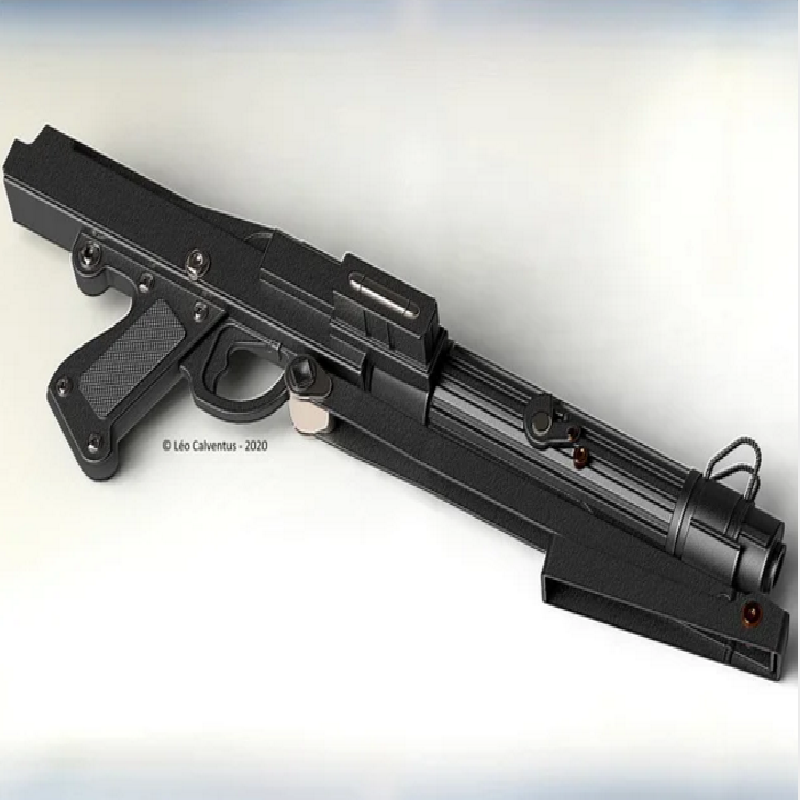

3D printable edition of the famous Star Wars DC-15s clone's blaster !
At the request of many makers, and thanks to your generous tips, I published for you a completely new version :
The design has been totally revisited and improved on SolidWorks 2018, and is now much more accurate !
The shapes have been adjusted, the grip is thinner than the previous version

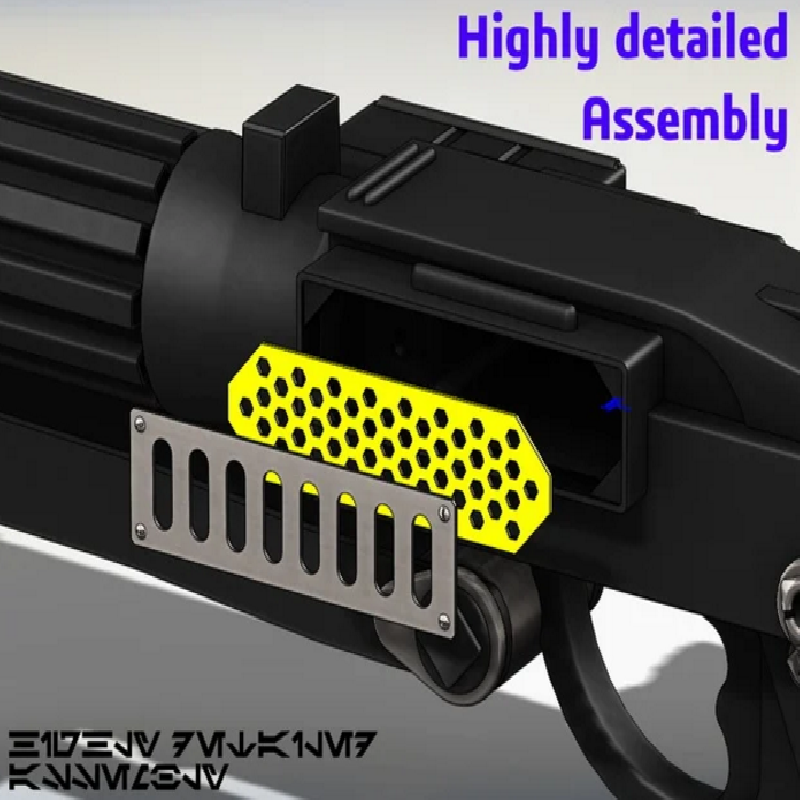

This new assembly is easier, smart and rigid !
Main new features :

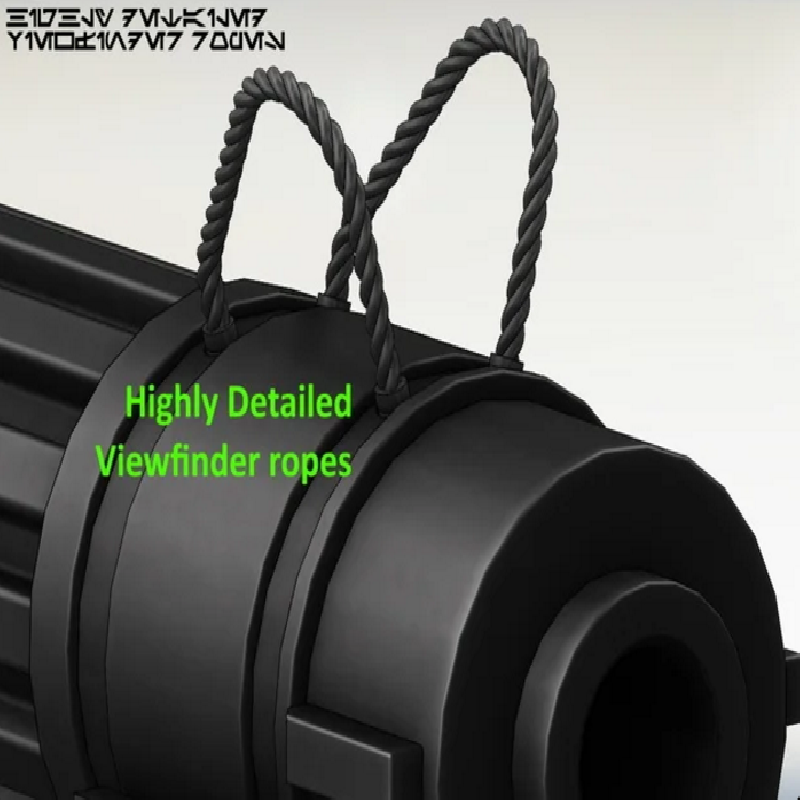

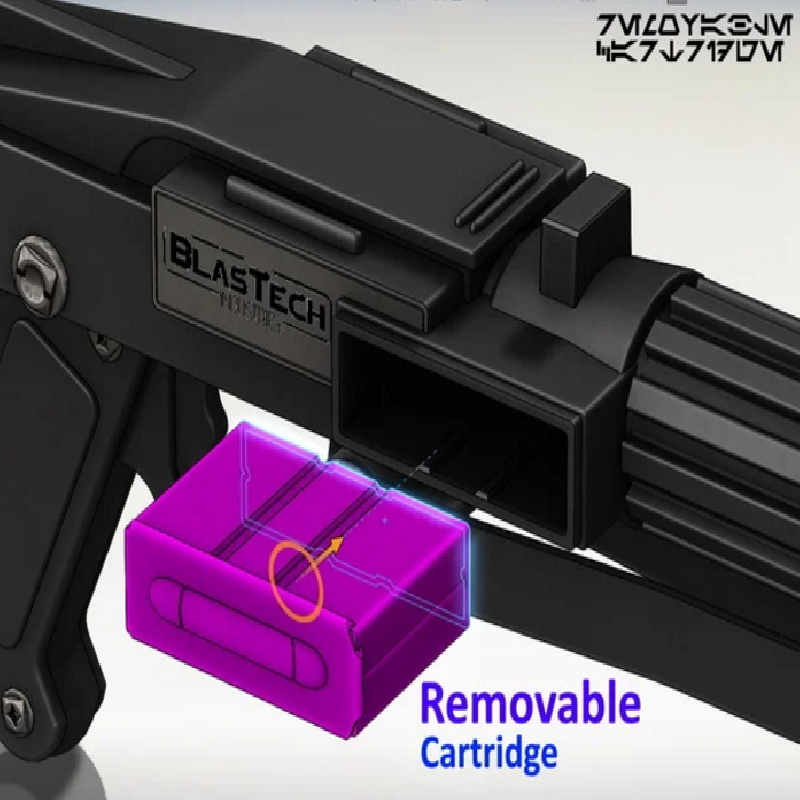

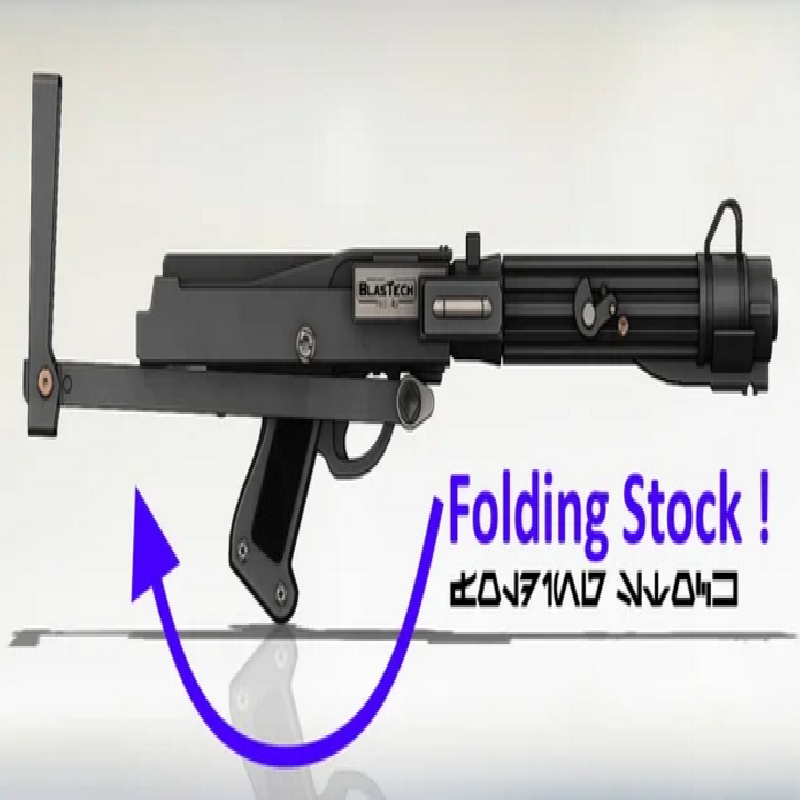

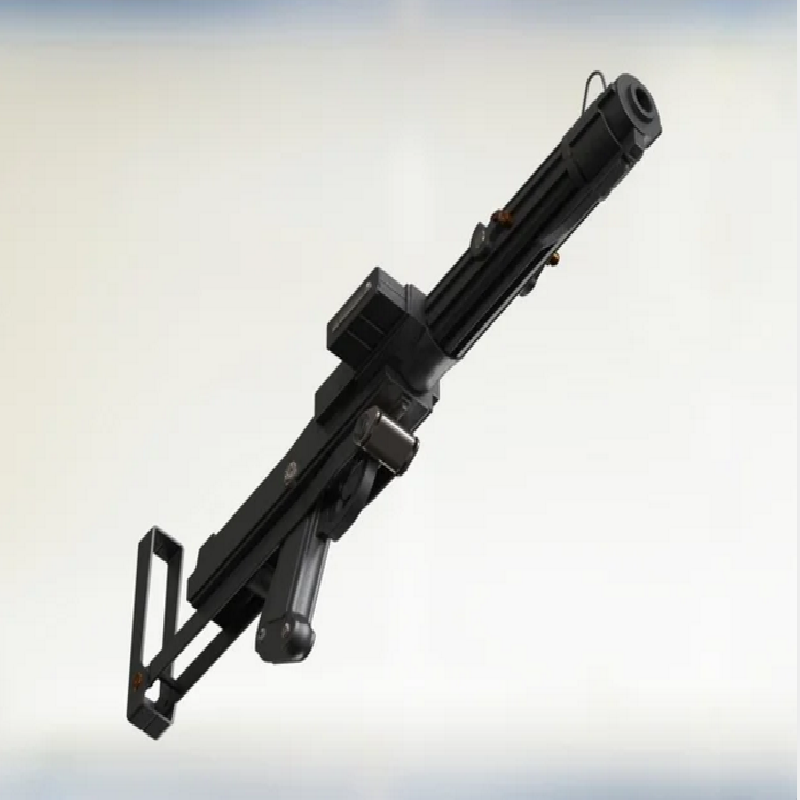

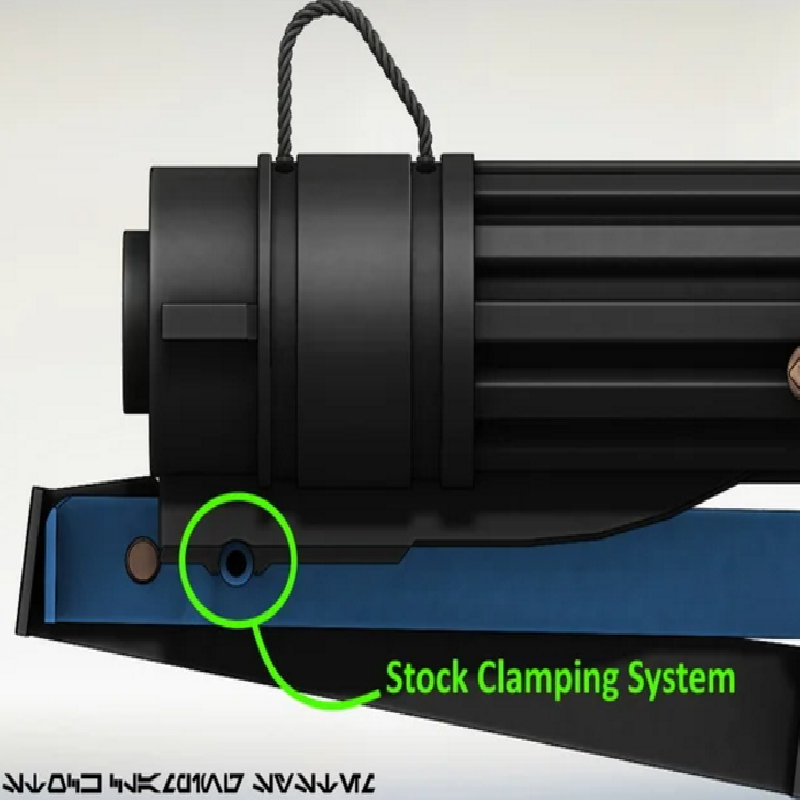

Folding stock + lock system

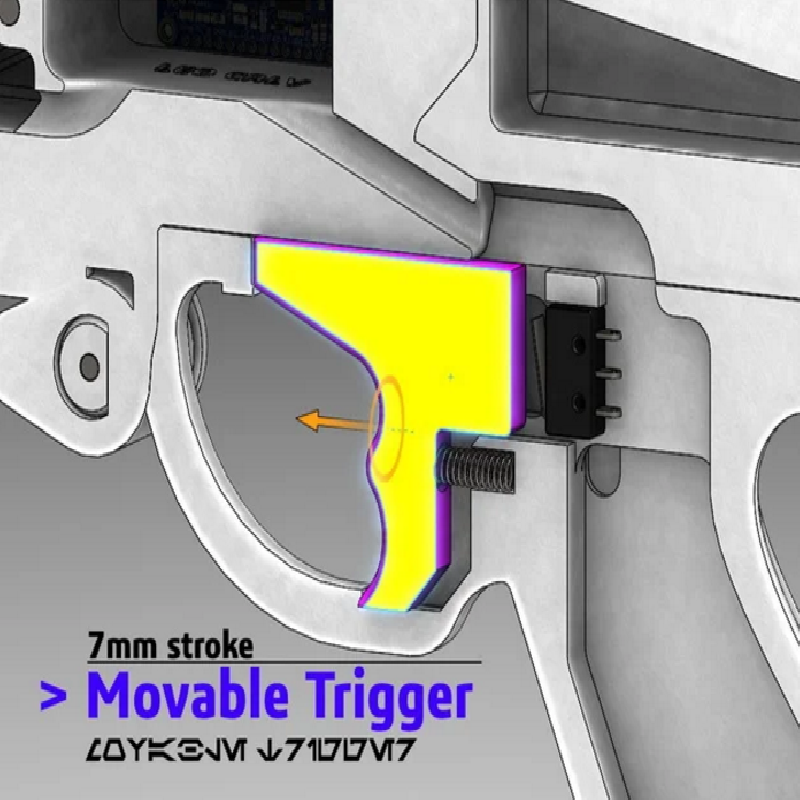

Movable trigger
Electronic pattern

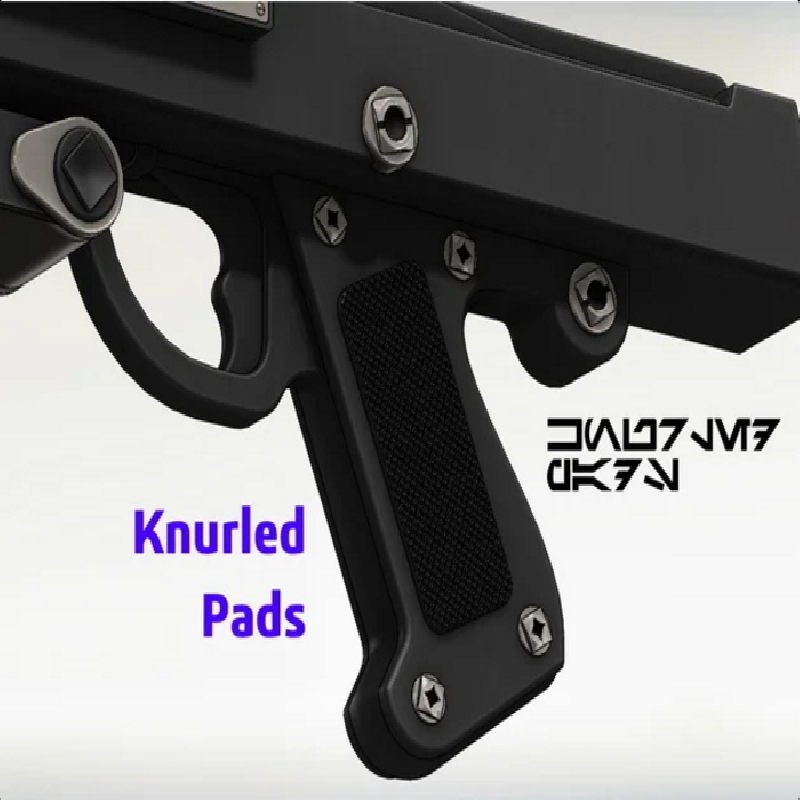

Knurled grip pads

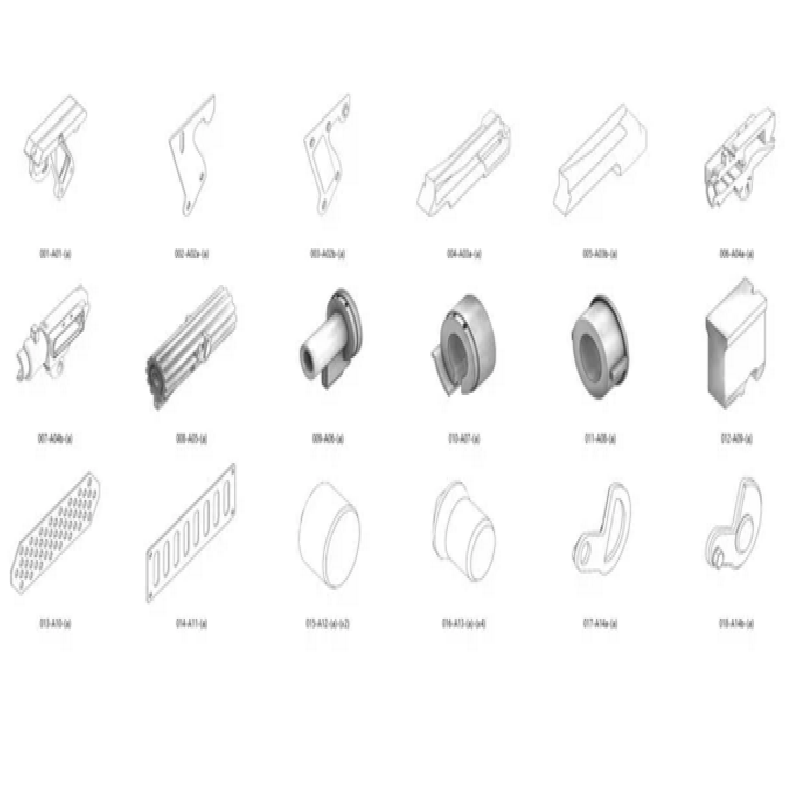

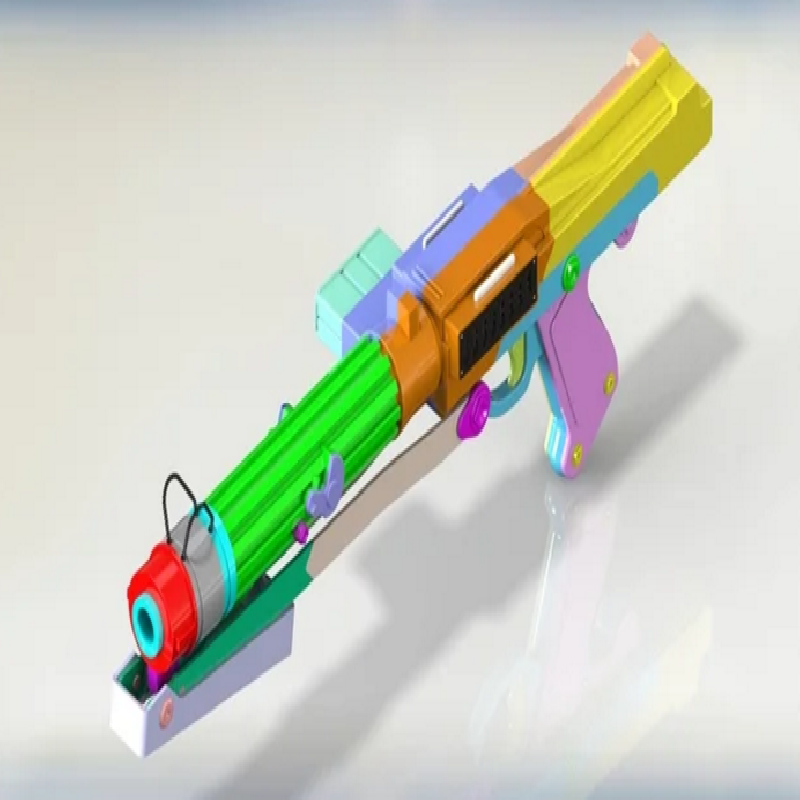

There's now 35 different parts, smartly cuted in order to print and assembly the blaster very easily !
// SPECS \

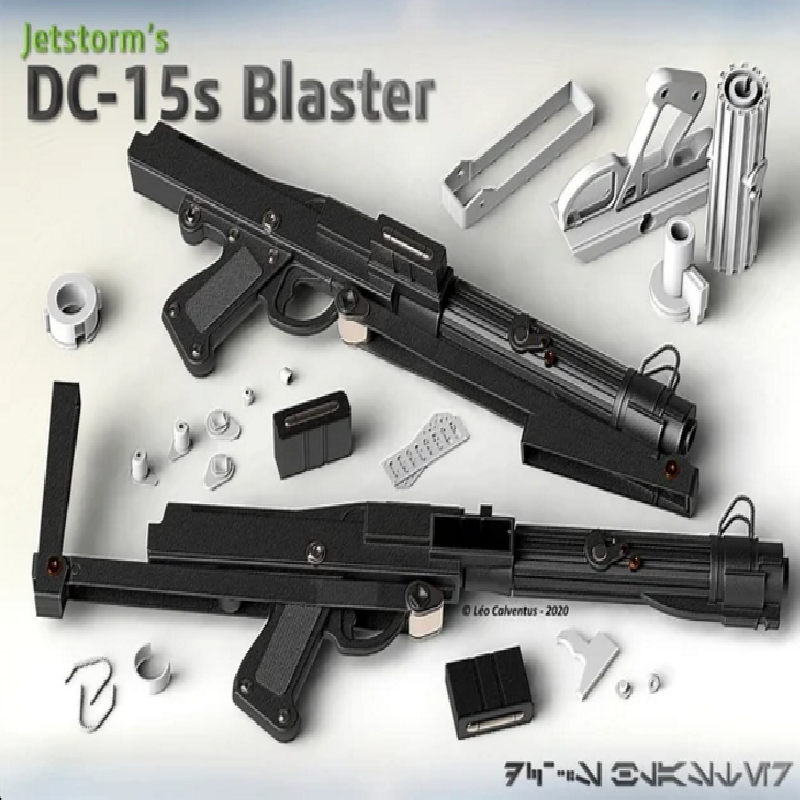

35 different printed parts, 47 parts in total (including 32 small parts).
/!\ Largest part dimensions : 214.86 x 36 x 22.3 mm
Minimum printer building volume needed (x, y, z vertical) : 195 x 150 x 199mm
Smallest part dimensions : 9 x 5 x 5 mm
Complete rifle dimensions (when all parts assembled) : 682 x 219 x 125 mm (= 26.83" x 8.62" x 4.9")
Total lenght : 68 cm = ~27 inches
Removable folding stock

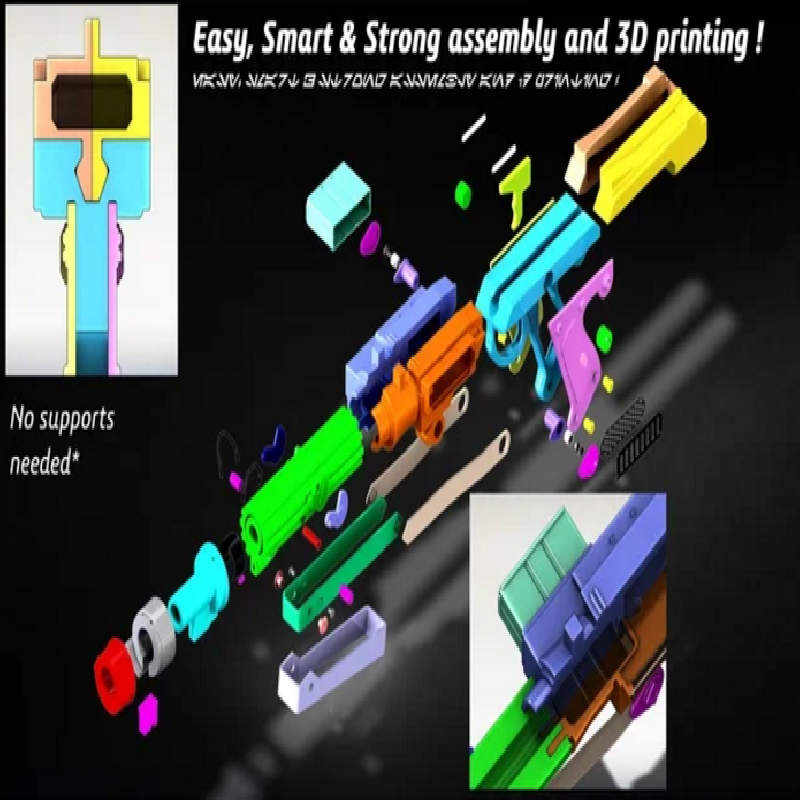

All parts can be printed without any support ! (Except 2 parts : A01 & A17)
STL files have been properly oriented and positioned to be ready to print

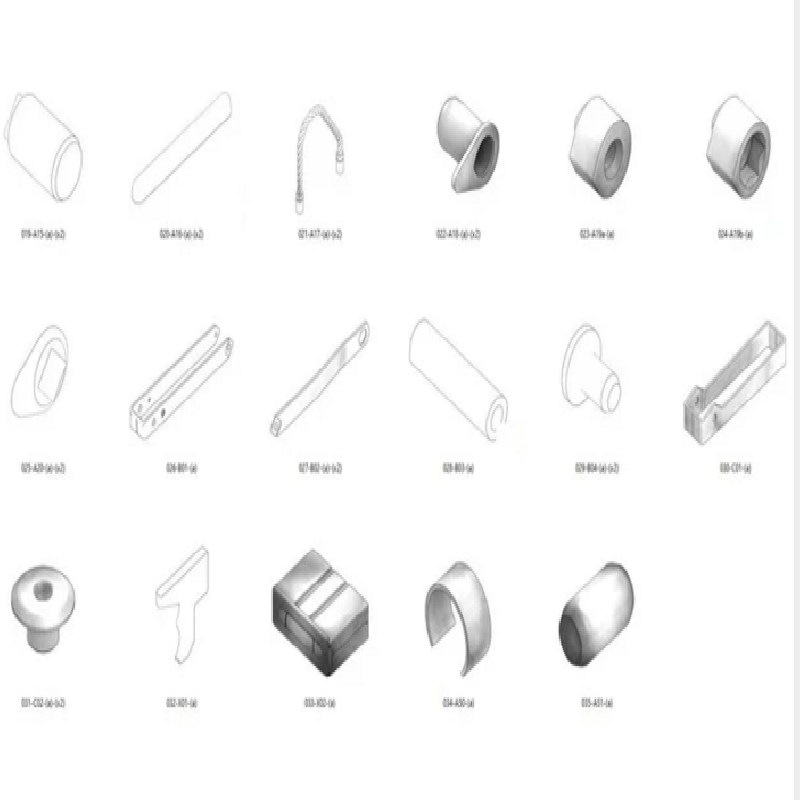

Find parts detailed specs in downloadable file "Nomenclature.xls "
// ADDITIONAL PARTS NEEDED \
(Ideally) Ø6mm x 30mm long spring (or Ø0.236") (x1) for the trigger

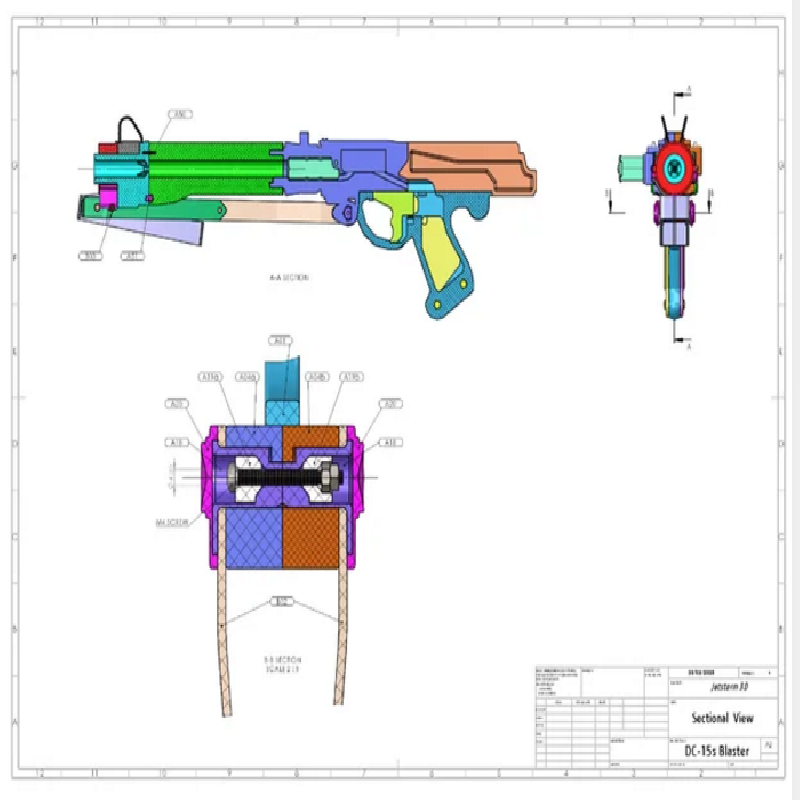

M4x40 (or little longer) screw + Nut / lock Nut (x2) for the stock

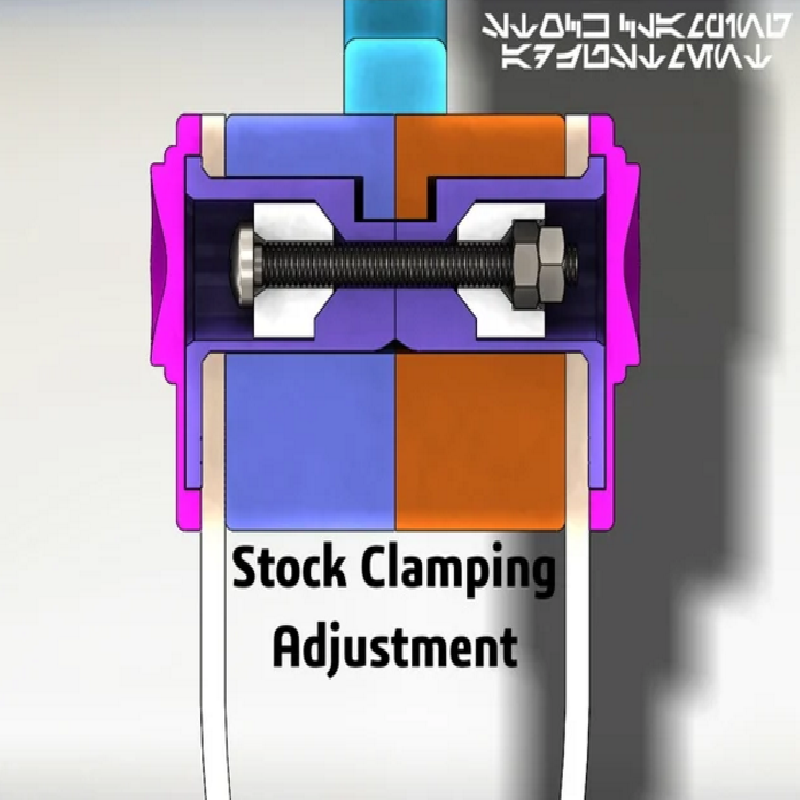

M5x30 screw (x1) to clamp parts A04a & A04b together

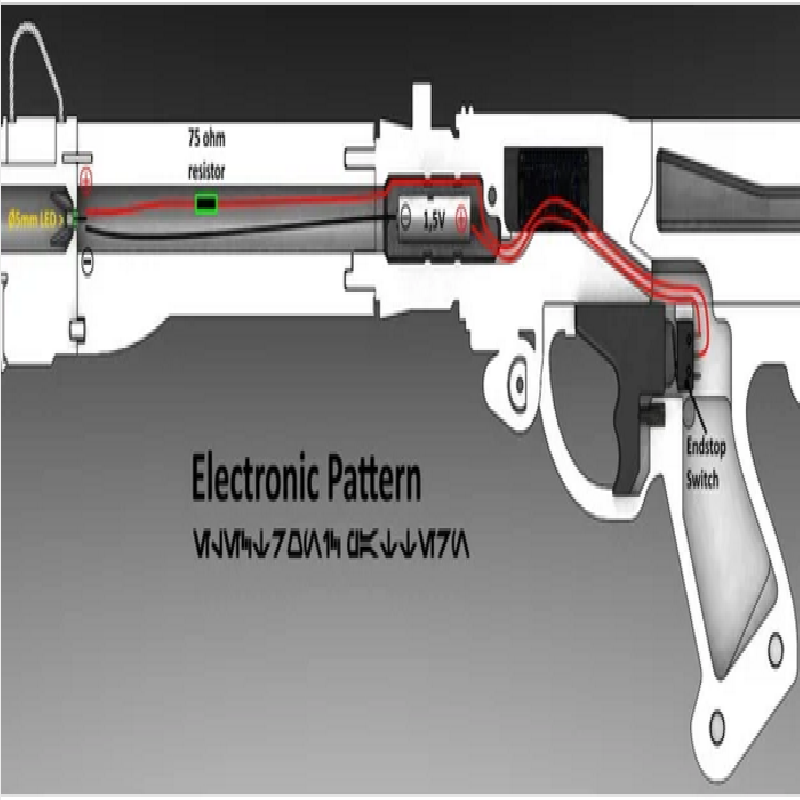

Trigger LED circuit Electronics :

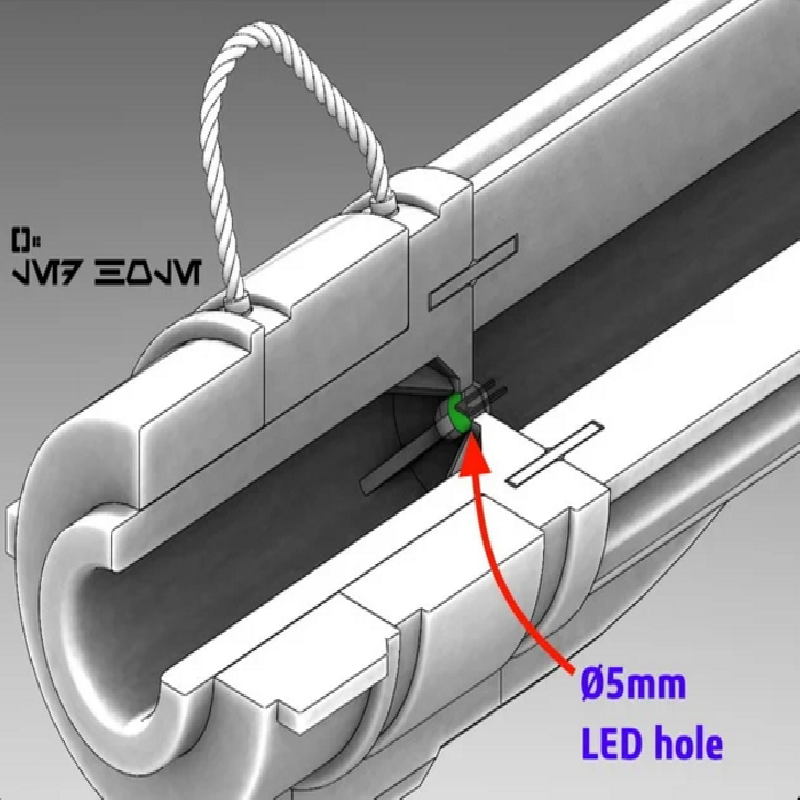

Ø5mm blue color LED (x1)
Mini EndStop Switch (approx. standard 20x10.6mm) (x1)
1.5V AAA battery
75 Ohm resistor
75cm long wires (2 colors)
I'm currently printing this blaster, I'll publish and a lot of 3D printing informations soon
Blaster Presentation :https://youtu.be/hYB9usLtLzY
Thanks to like & share this model to support me !
Feel free to comment to share your opinion, or if you have questions / suggestions
Don't forget to post your make ! ;)
Commercial version available : please see "commercial version" section below
/!\ To sell this blaster 3D printed, you MUST get the commercial version /!\
Thanks a lot for your support !
Enjoy ;)
Design Version : V_5.0 (Last Build - 2020/05) Printable Version : V_5.1
Old versions available here :
https://www.thingiverse.com/thing:1931391
http://www.thingiverse.com/thing:2052378
How I Designed This

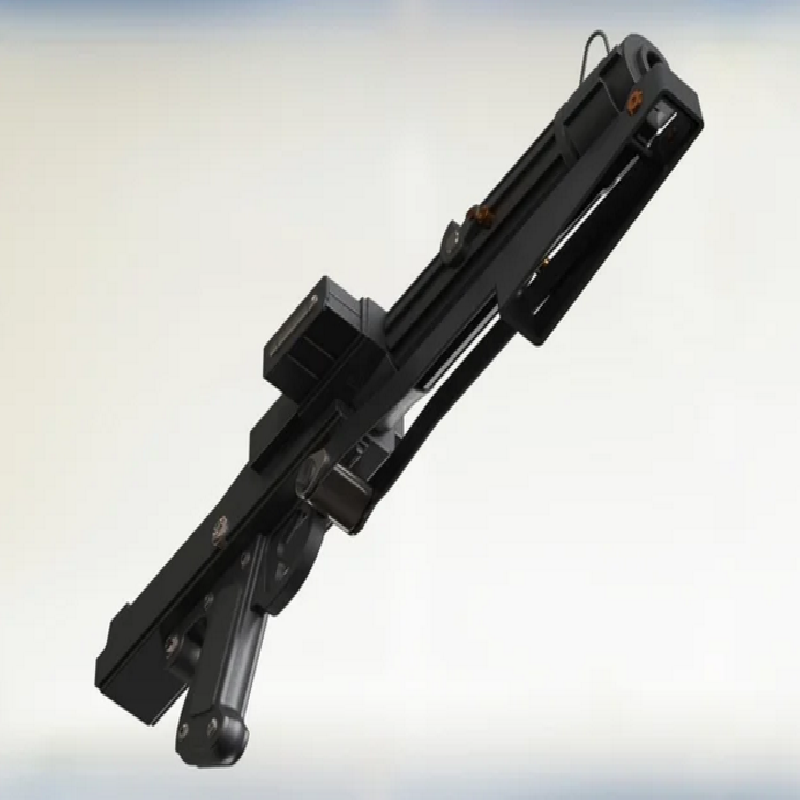

Designed from **many references** : Star Wars movies (I, II, III episodes), games (Battlefront etc...), fan arts... Designed on SolidWorks 2018 Realistic renders made with PhotoView 360 (V_11)

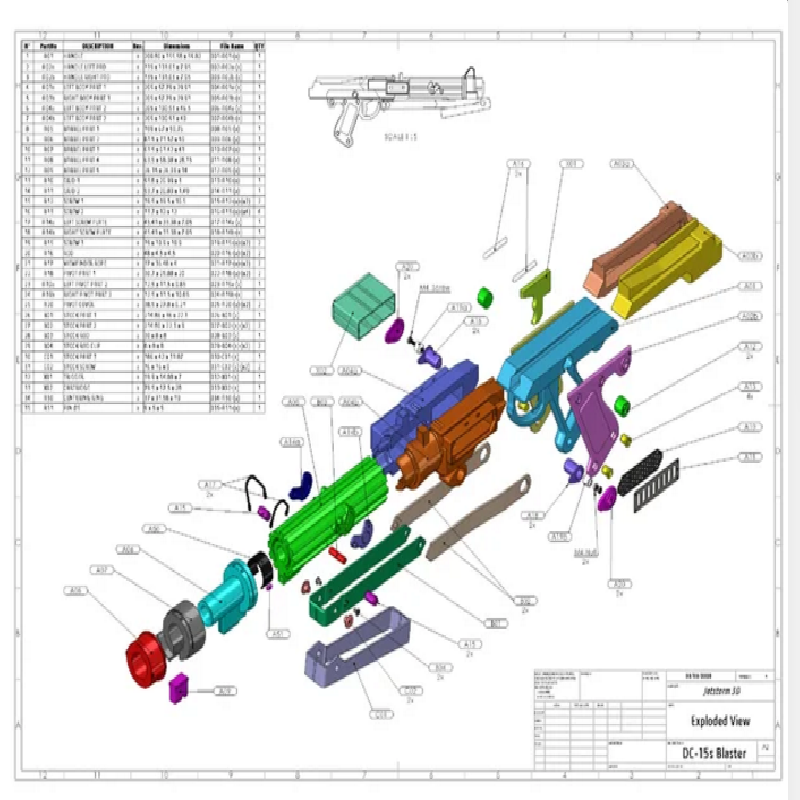

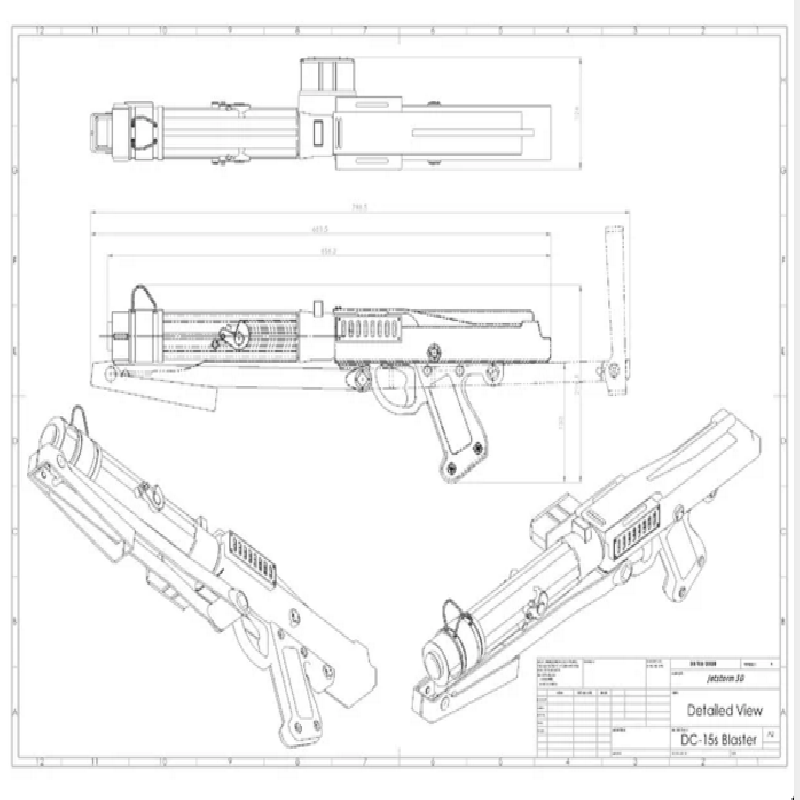

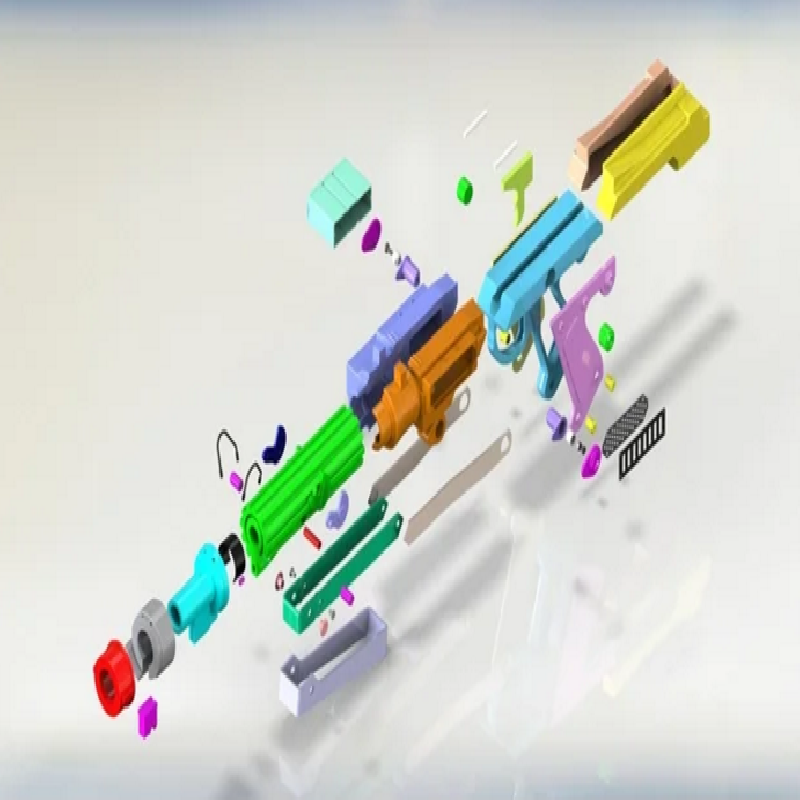

Assembly
Commercial Version
Commercial version available !
If you like my work, you can support me by getting this commercial version ! Commercial version features : - All 35 part files without any **watermarks** - High quality meshes (60% polygons more) - Multi-format version (STL, OBJ, 3MF & STEP) - Complete assembly drawing in high quality PDF - Recommended print settings - Possibility to sell the blaster printed **/!\ To be allowed to sell the blaster 3D printed, you **MUST** get this commercial version**. 3 simple solutions to get it : - Make a paypal donation ($9 USD) : https://www.paypal.me/Jetstorm477 (Please let me know it by message on thingIverse to send you the files by email) - Buy it on Turbosquid (available soon) - Buy it on Cults3D (available soon)
Credits
3D modeling by : Jetstorm 3D @ Léo Calv. https://www.paypal.me/Jetstorm477 http://www.turbosquid.com/Search/Artists/Jetstorm_3D Thanks a lot for supporting my work ! May the force be with you
