H.G. Well's Classic Story War of the Worlds. The Handling Machine Designs are based on Henrique Alvim Corrêa's Drawings in 1906. This Is a Fun Model For any Classic War of the Worlds Fan. Due To the Lack of Drawings, and descriptions for the book of the Handles Machine this is what I could get.

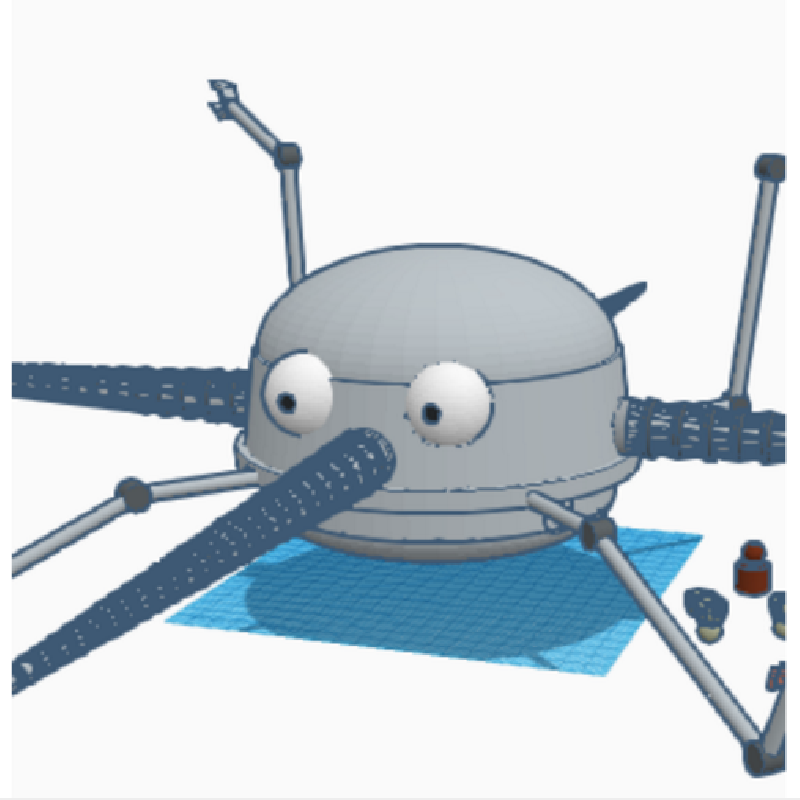

This is a improvement of my last Handling Machine I made, this one can be articulated for stopmotion or anything.
I gave it a hamburger shape.
USE 1.6mm Armature wire for bendy tentacle arms.
Print Settings
Printer brand:
Creality
Printer:
Ender 3 Pro
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
0.12
Infill:
30
Filament_brand:
any
Filament_color:
Gray, dark gray, white
Filament_material:
TPU, PLA, Carbon
Notes:

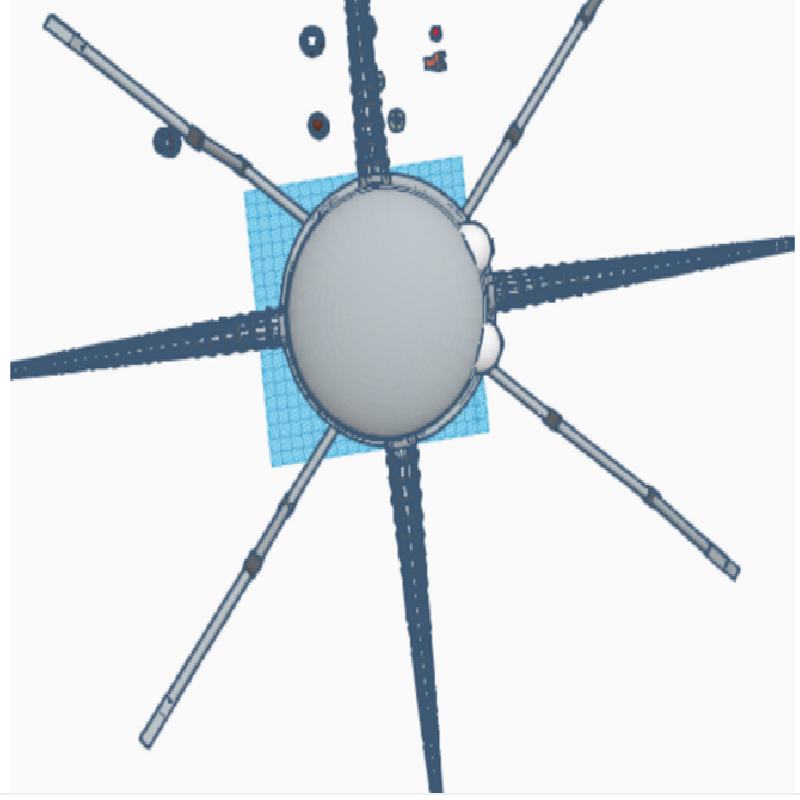

SIZE: The Whole Thing, besides the Arms and legs is 133mm height and 180mm by 160mm wide. ARMS: Armature wire are to be used for Arm. The Arm Rings should be printed in TPU filament and Arm Collars in PLA TORSO: So 5, 18mm pre cut holes with Hip Coller joint indents for correct tripod legs spaced out. COLLERJOINT: Both knee and hip joint use a ball and socket for possibility. You can use bendy rod for both Knee and Hip Joints. The Hip Ball Socket is different to the Knee as the Hip has a screw for the outer collar and to tighten the ball joint. Knee Coller should be printed in TPU and Hip Coller printed in Carbon or PLA. KNEEJOINTCOLLORCONECTORS: Use Carbon Filament as its stiffer and will not break from the thinner Knee Bellow. LEGS: use a 14mm Dowel or The 3d Printed ones that are included. The Leg Closest to the torso/first legs are 60mm long. The Second Legs/ legs closest to the feet is 120mm long. Use Carbon Filament for 3d printed legs.
