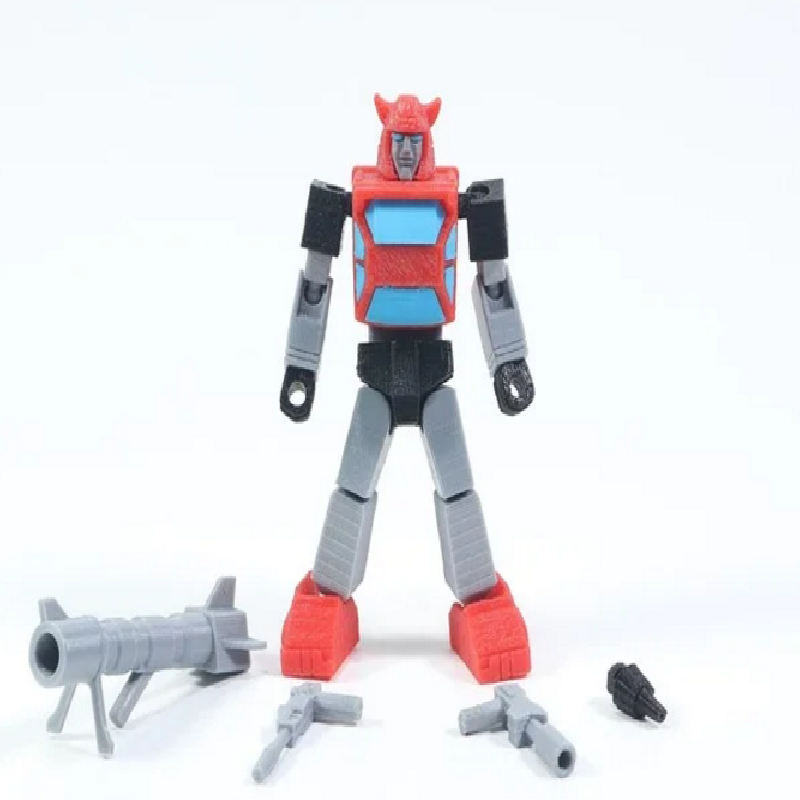

G1 Cliffjumper, fully articulated model but not transformable.
Skale: 1:30 (10cm)
Coloring can be done by using different color of filament (detail on files name)
No Supports
Gap tolerance: 0mm balljoint, 0.05mm swivel, 0.05 peg joint
Best print orientation for maximum strength result
Easy to print

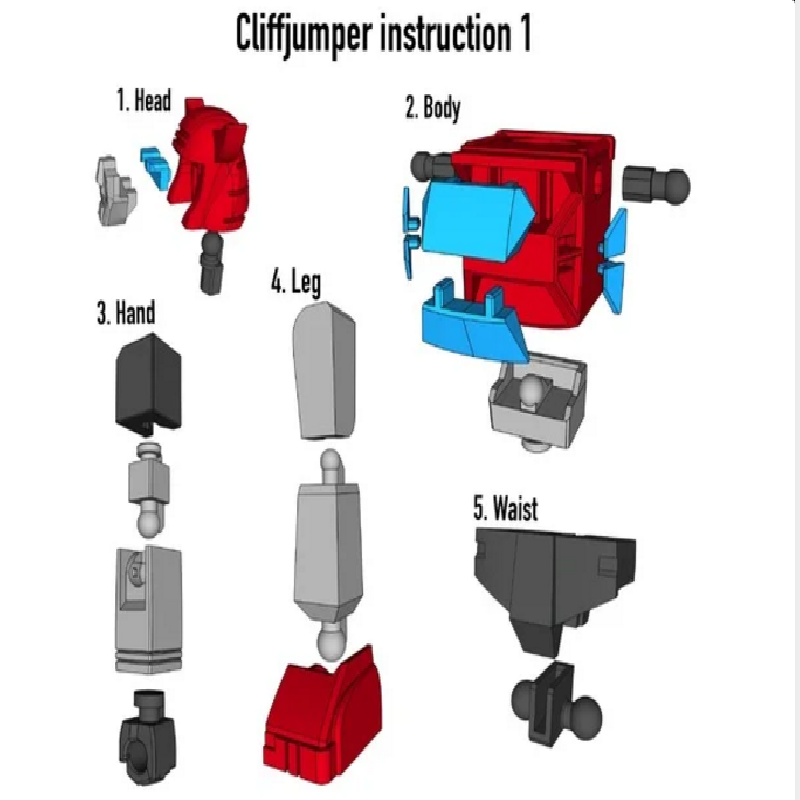

Easy to assemble
Easy to rescale
Point of articulation:
Neck ball joint
Abdomen ball joint
Shoulders ball joint
Upper arm swivel joint
Elbow ball joint
Wrist swivel
Waist swivel
Hip ball joint
Thigh swivel joint
Knee ball joint
Ankle ball joint

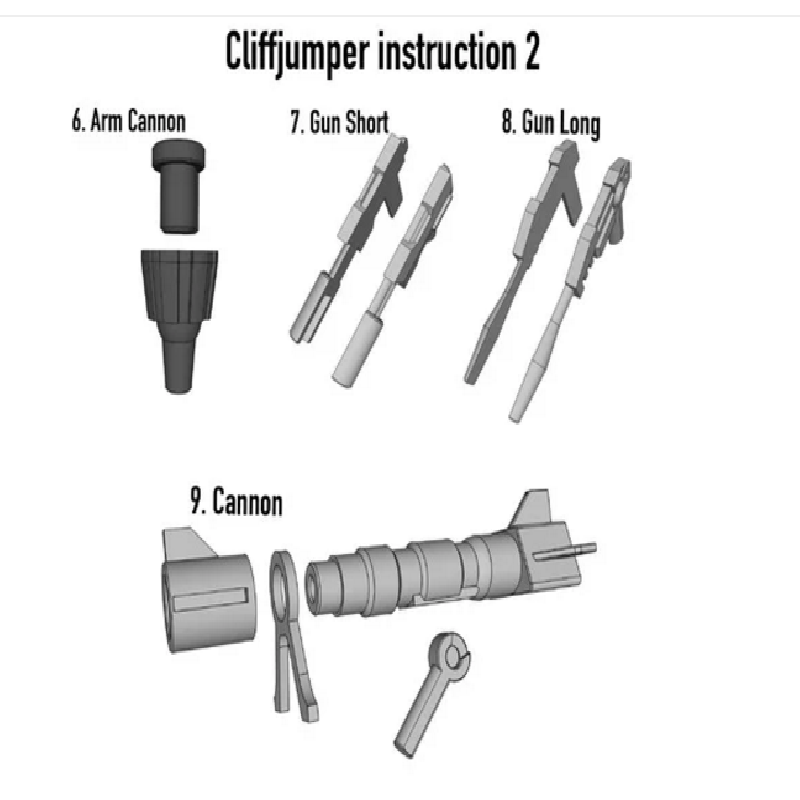

Accesories :
Small Gun
Long Gun
Arm Cannon
Cannon
IMPORTANT TIPS:
Use Nail Polish to fix loose ball joint
Cutter or sand paper for tolerance adjustment
Use super glue for split parts
Print Settings
Rafts:
No
Supports:
No
Resolution:
0.15
Infill:
30%
Filament_brand:
Rajawali3D
Filament_material:
PLA
Notes:
- Nozzle: 0.4mm - Layer: 0.15mm (0.1mm forthe face) - Filamen: PLA - Temperature: 195°C - Speed: 40/s - Skin/top/bottom: 0.8mm - Infill: 30%
