by sclarke27

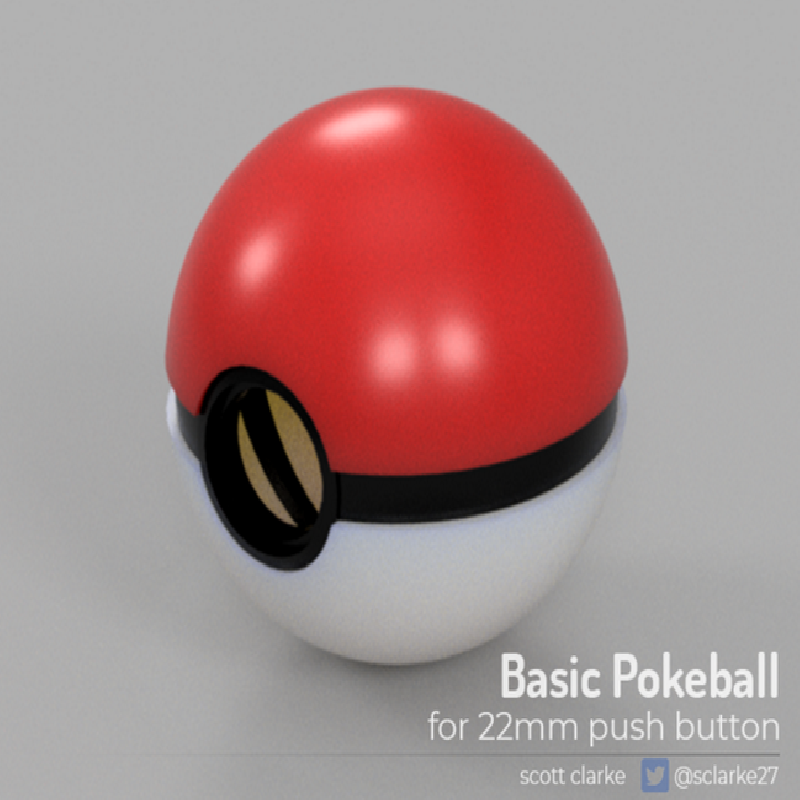

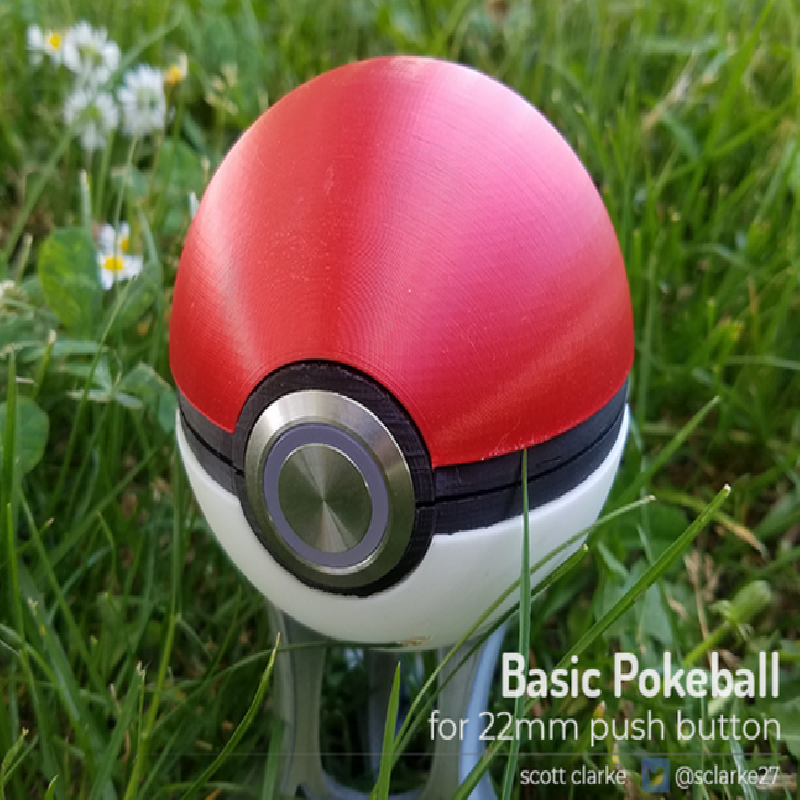

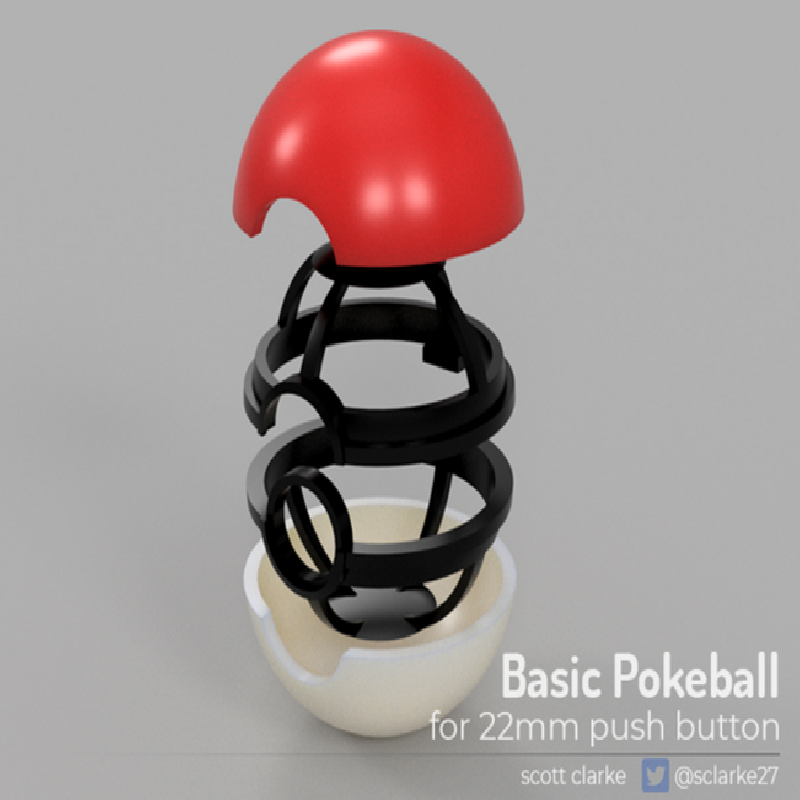

This is a basic style Pokeball designed to be used with the 22mm momentary push button from Adafriut. Prints in 4 parts which assemble easily. Button then screws in with a tight fit. From there the electronics are up to you.
Button can be purchased from Adafriut at:https://www.adafruit.com/product/3424
Print Settings
Printer brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
Yes
Resolution:
0.12
Infill:
0%
Notes:
Print Speed: 40mm/s Retraction enabled and z-hop when retracted Build Plate Adhesion is up to you, I don't use it unless i have changed the filament color between prints.
Post-Printing

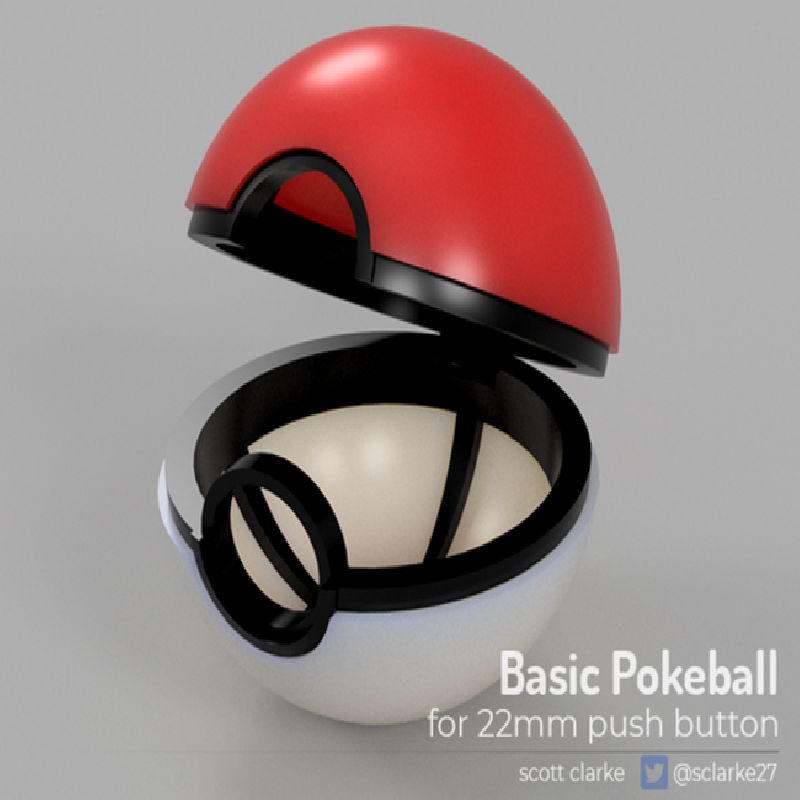

Super glue the frames to the shells. I used a small nail with the head cut off for the hinge pins. The push button is a snug fit so be gentle when screwing it in to avoid breaking the frame.
