here it is!!! the halo magnum!! after an extreme test print the model is finally done!! :D

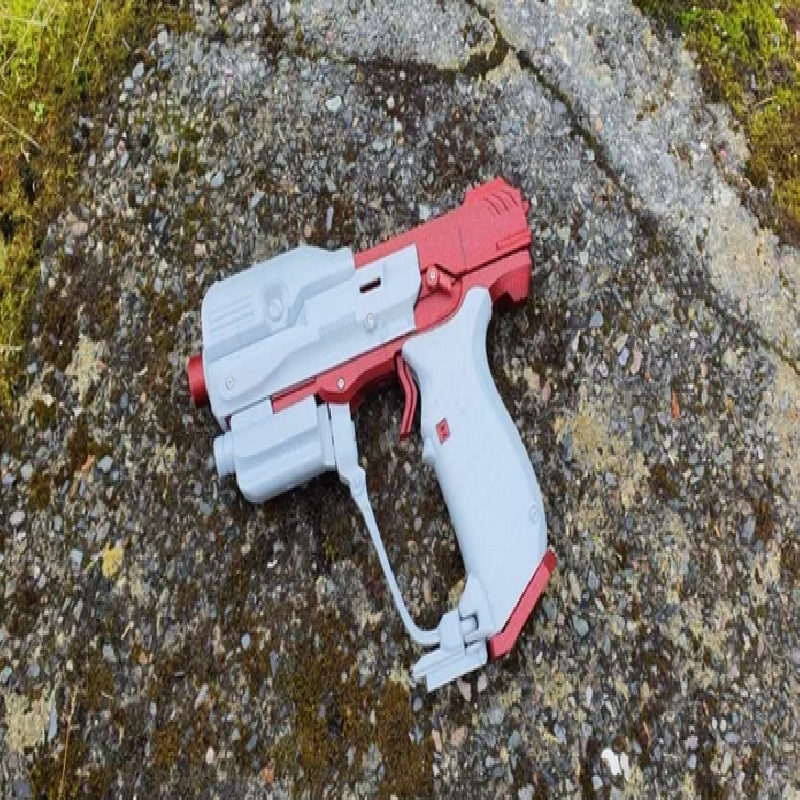

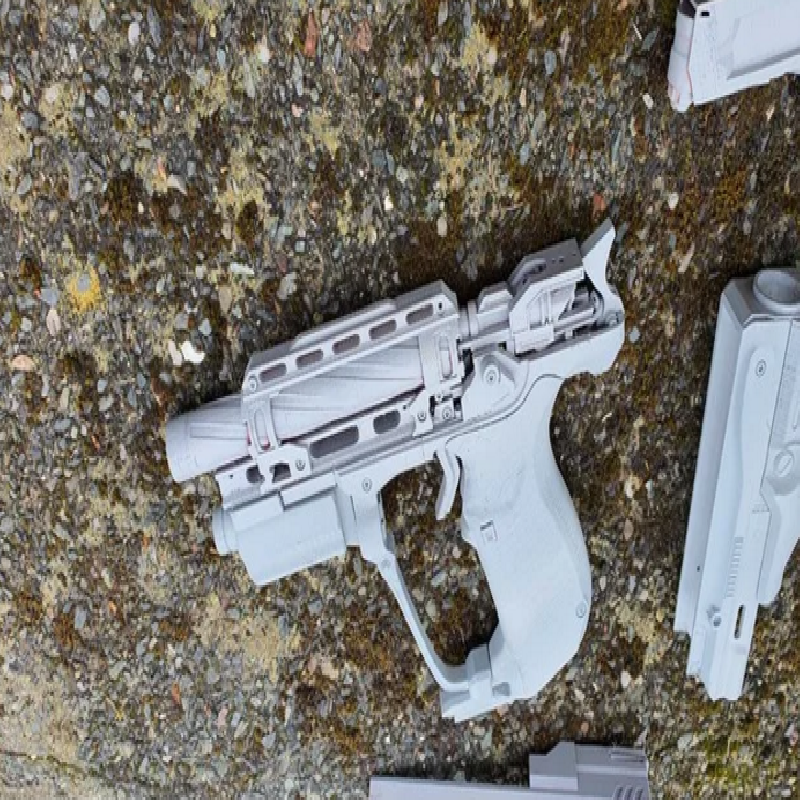

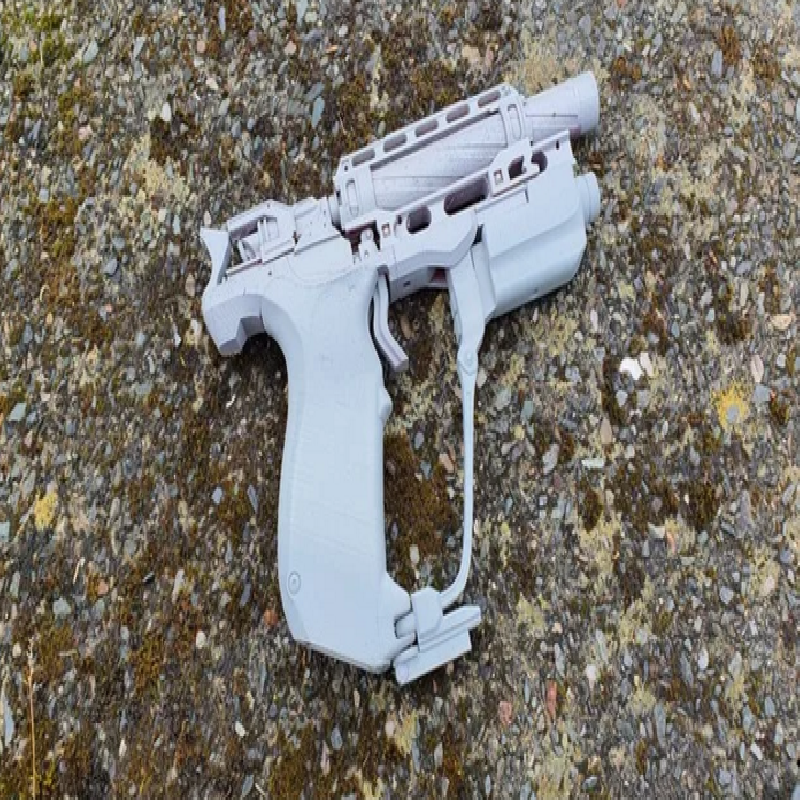

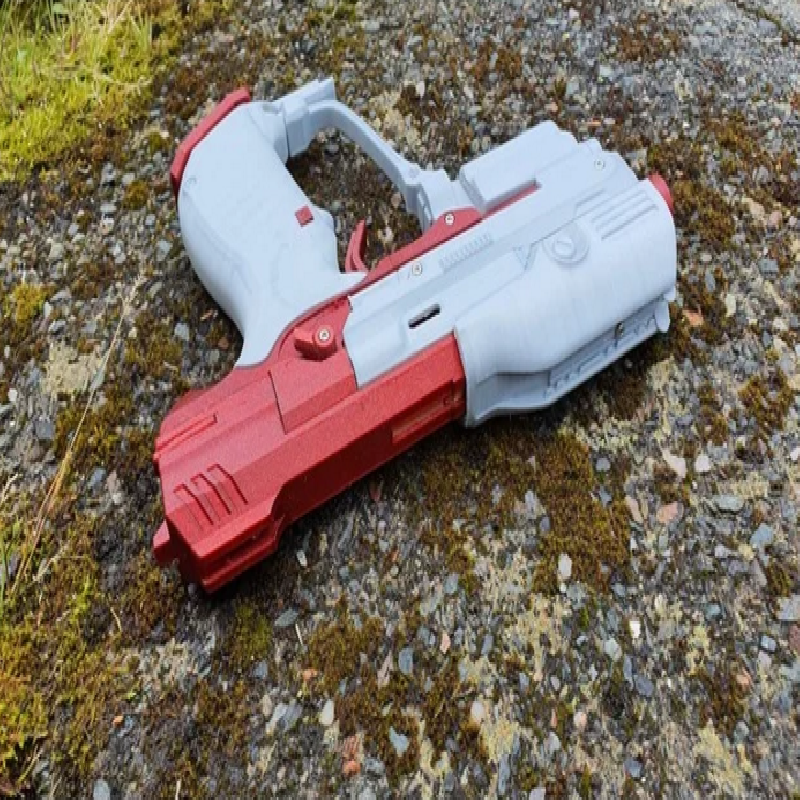

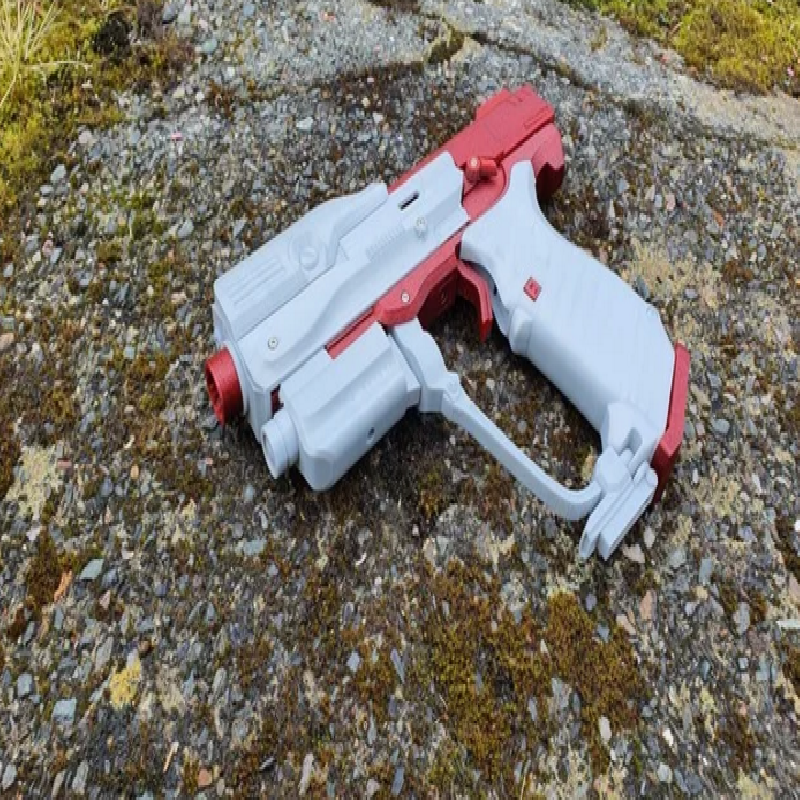

this is a 1:1 scale prop of the halo 5 magnum.

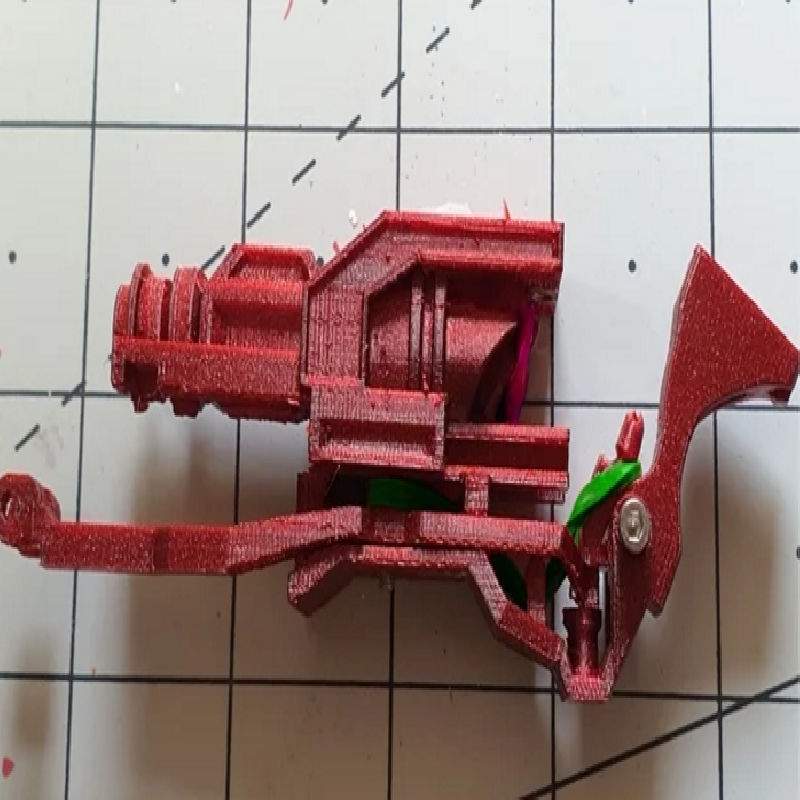

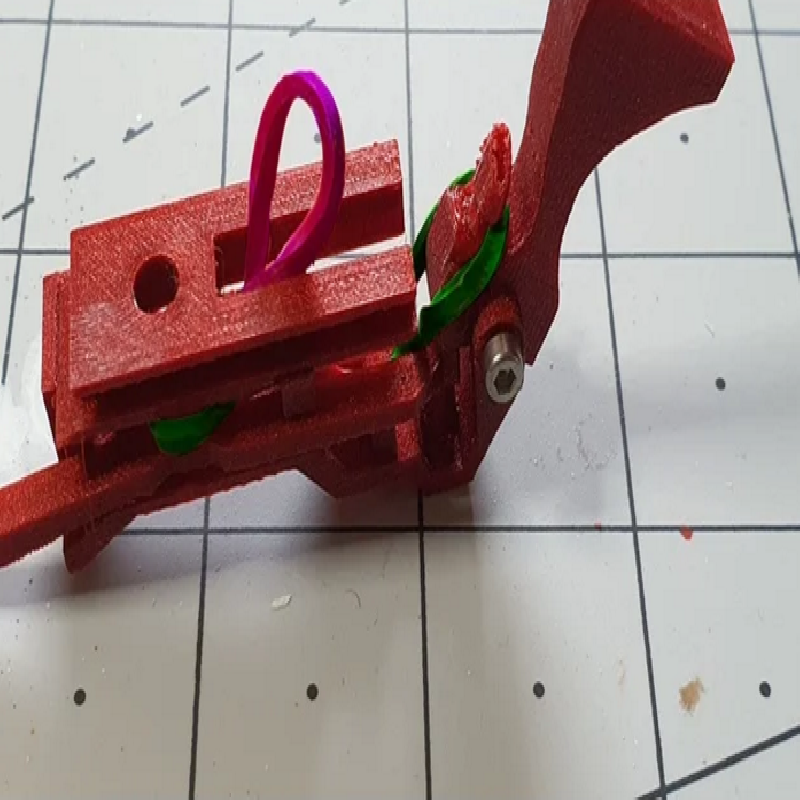

features of the model include hammer that can be activated by the trigger, moving slider with a lock to lock it open and mag with mag release.
happy printing XD
video time laps incoming!!!
wanna see what is I'm working on next? or if you guys wanna vote on what I'm gonna make next? keep an eye out on my social media :D
https://www.facebook.com/OddworksDesign/
https://www.instagram.com/oddworks3d/
wanna help me continue to make models have a look at my Patreon.
Patrons also get exclusive models.
https://www.patreon.com/OddWorks

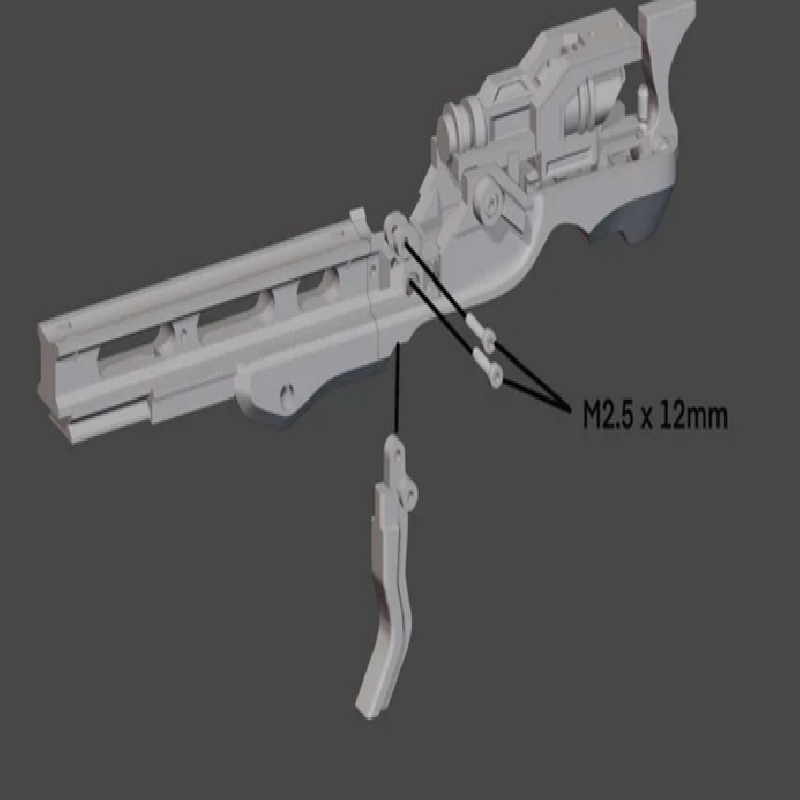

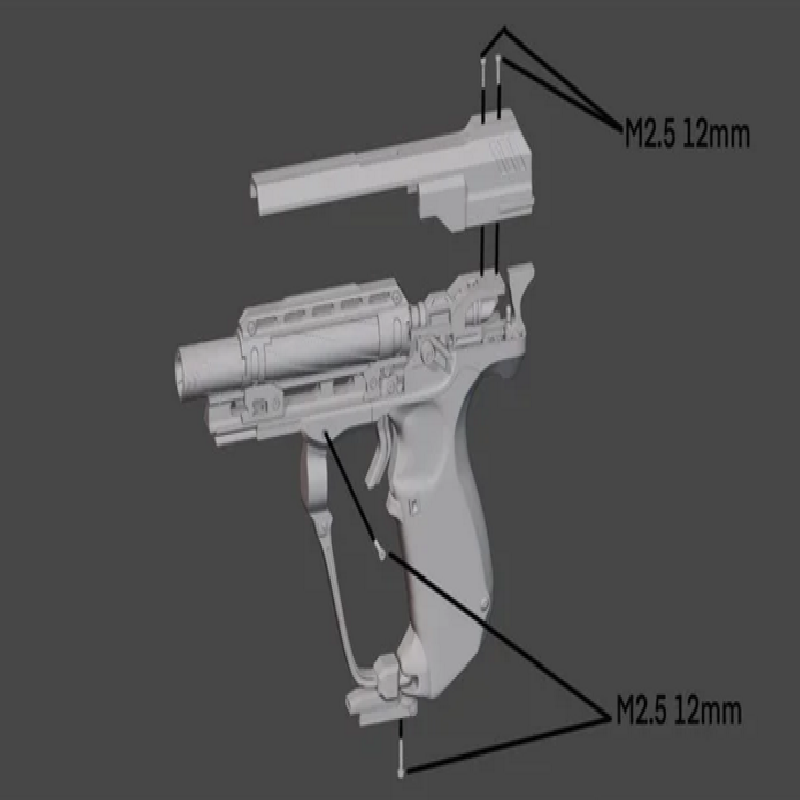

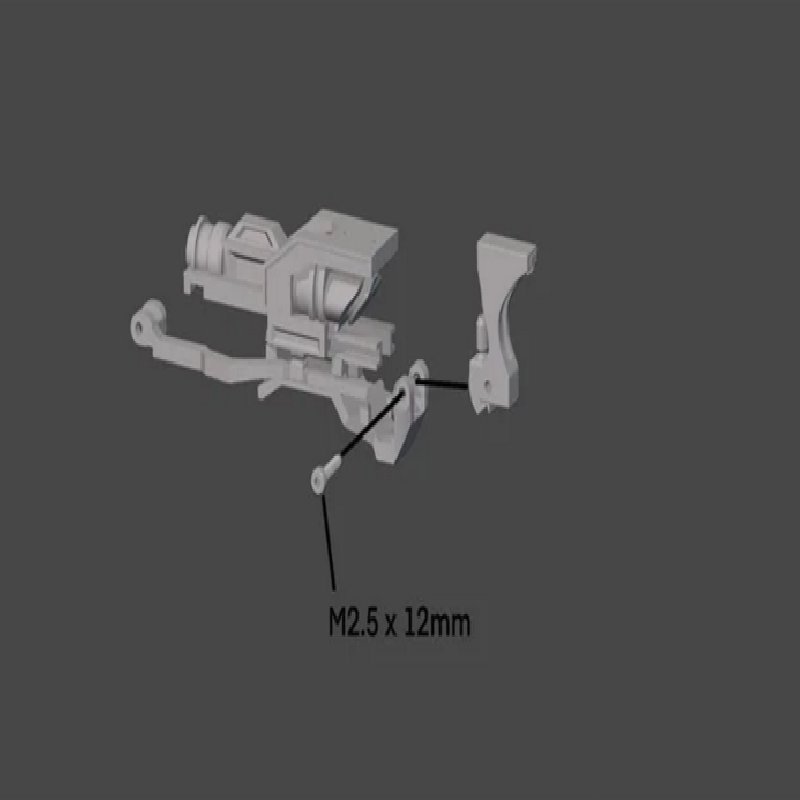

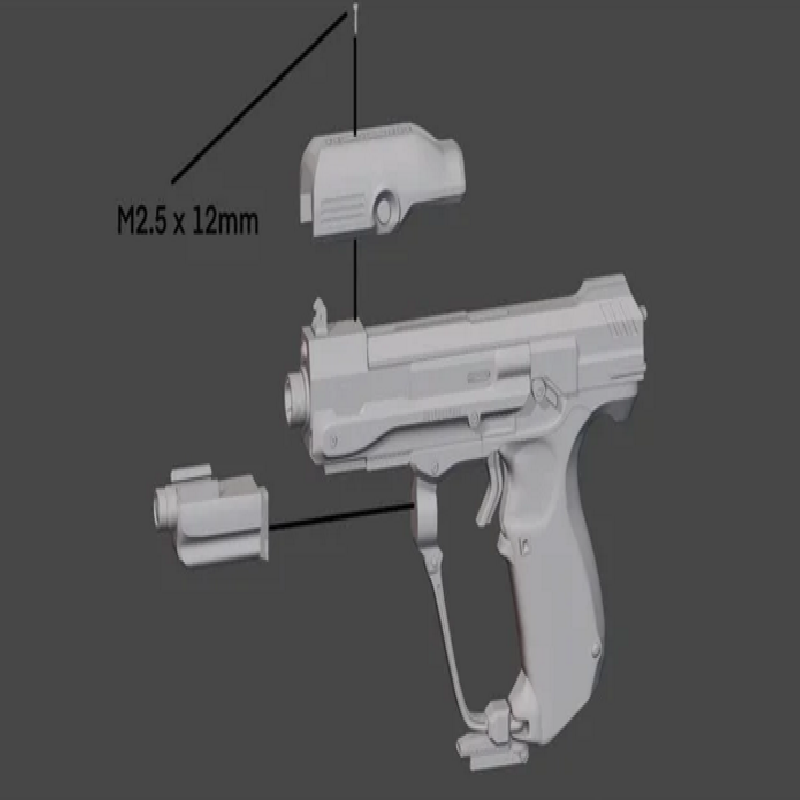

INSTRUCTIONS.
this model is a bit more complex than my there model and has a few tricky bits in its assembly.
you will need

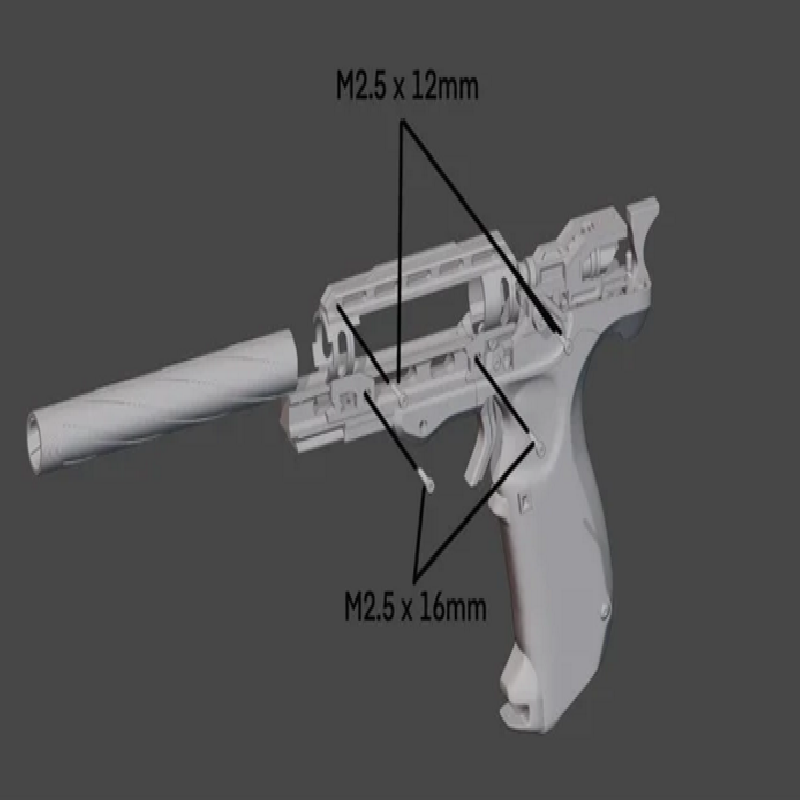

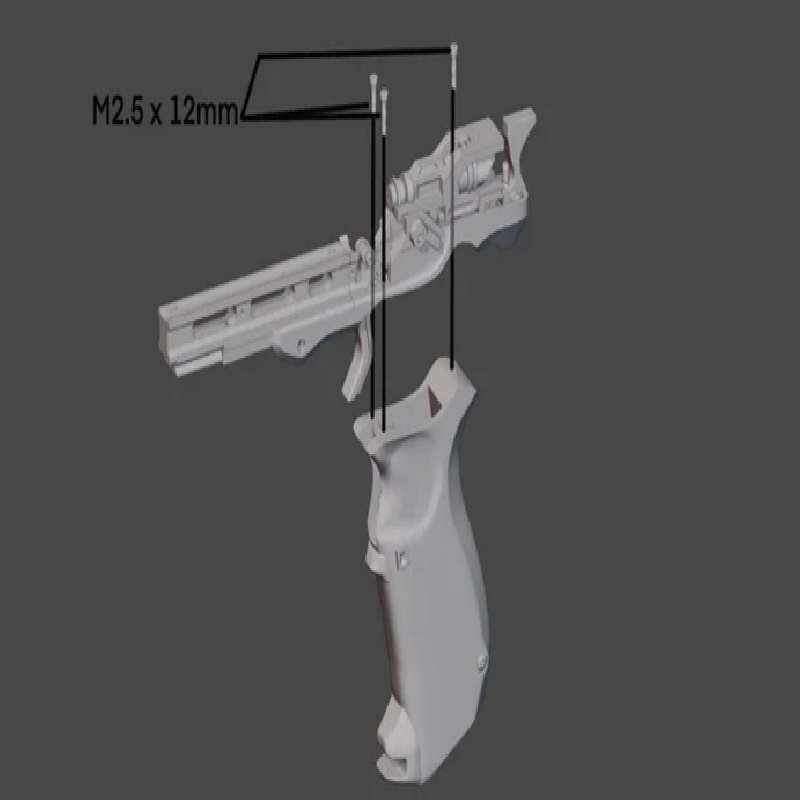

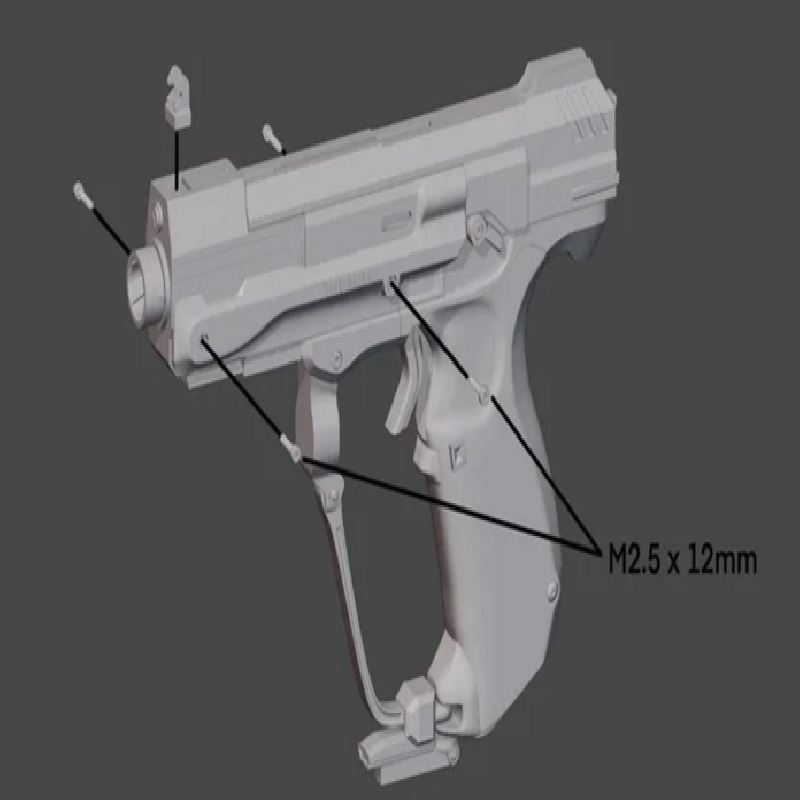

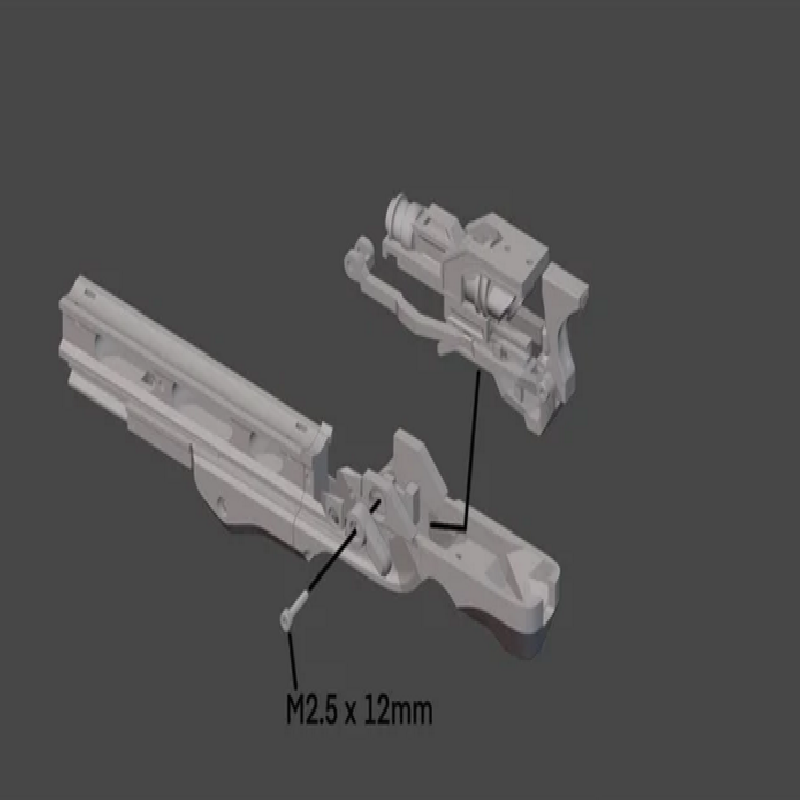

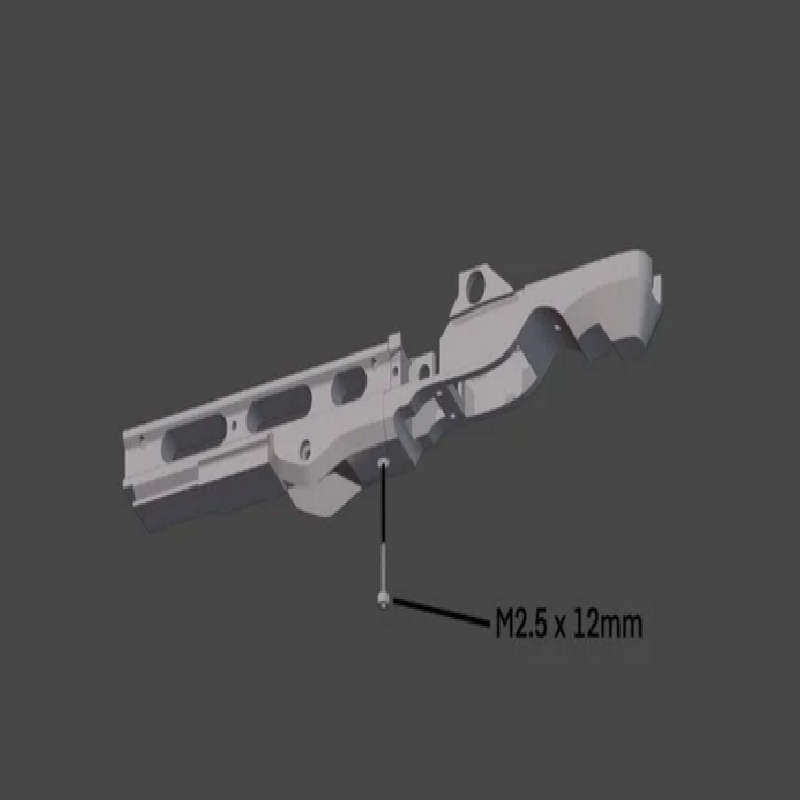

x19 m2.5 x 12mm bolts
x2 m2.5 x 16mm bolts
x22 m2.5 square nuts

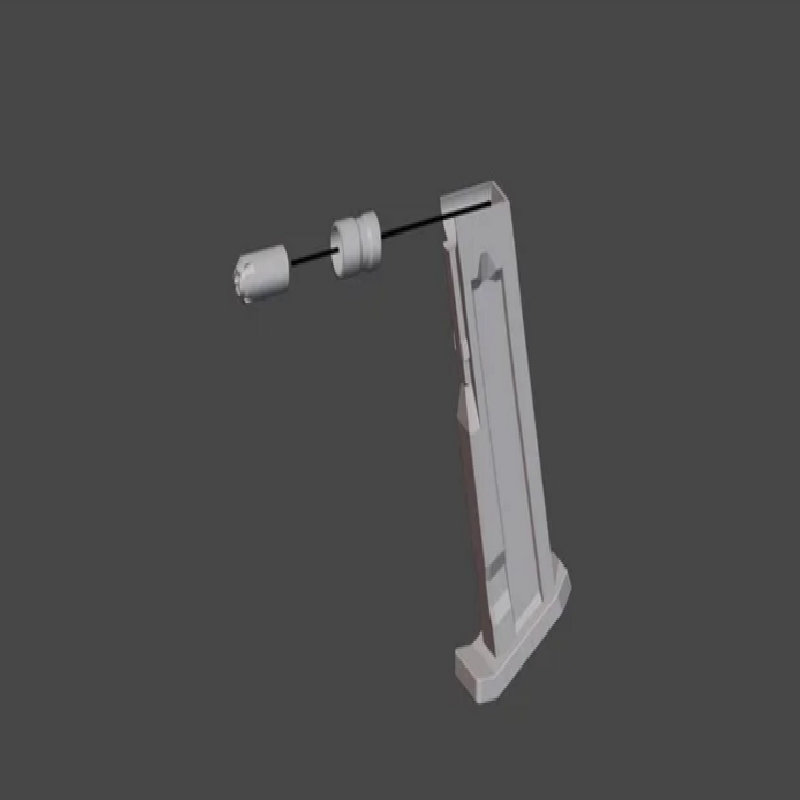

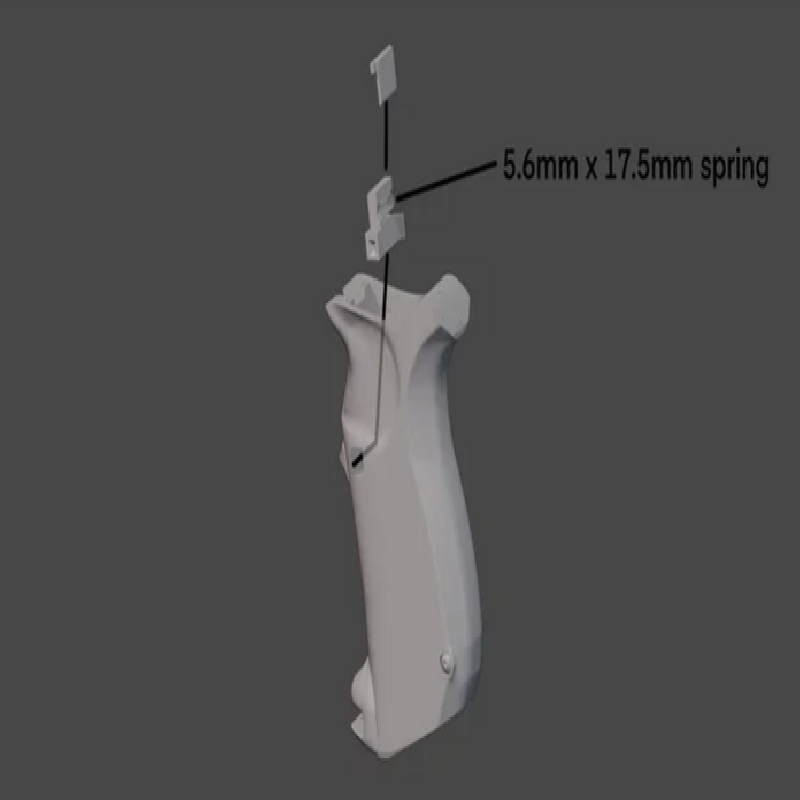

x2 spring 5.6mm x 17.5 (one for the mag to hold the bullet)

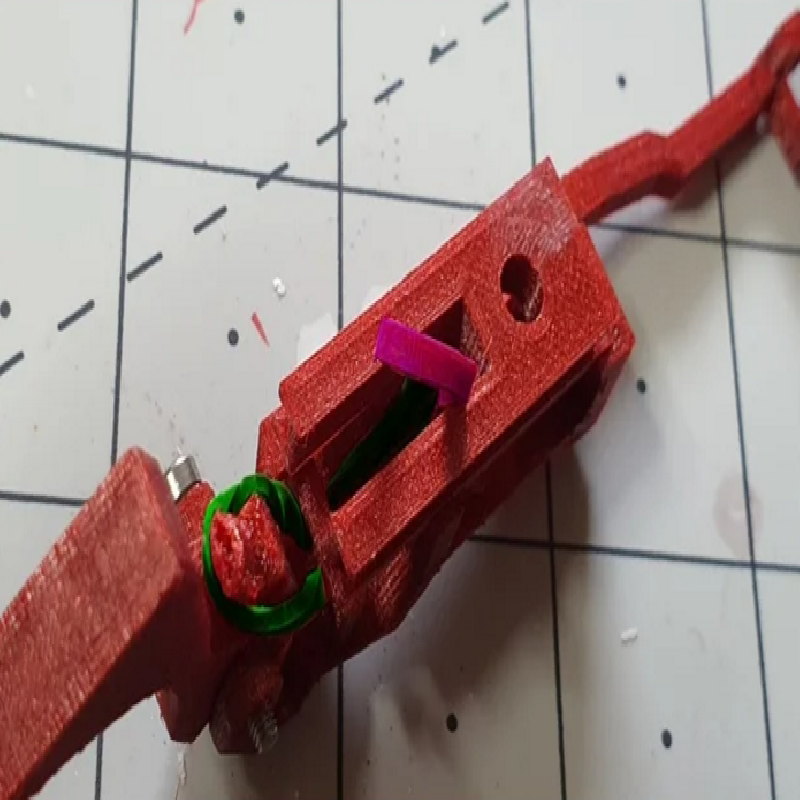

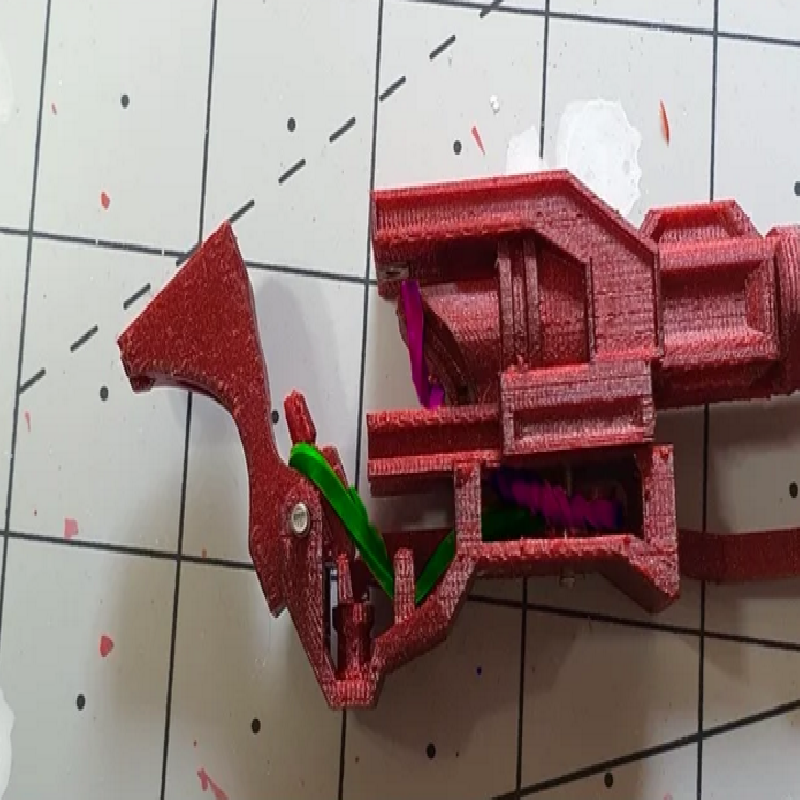

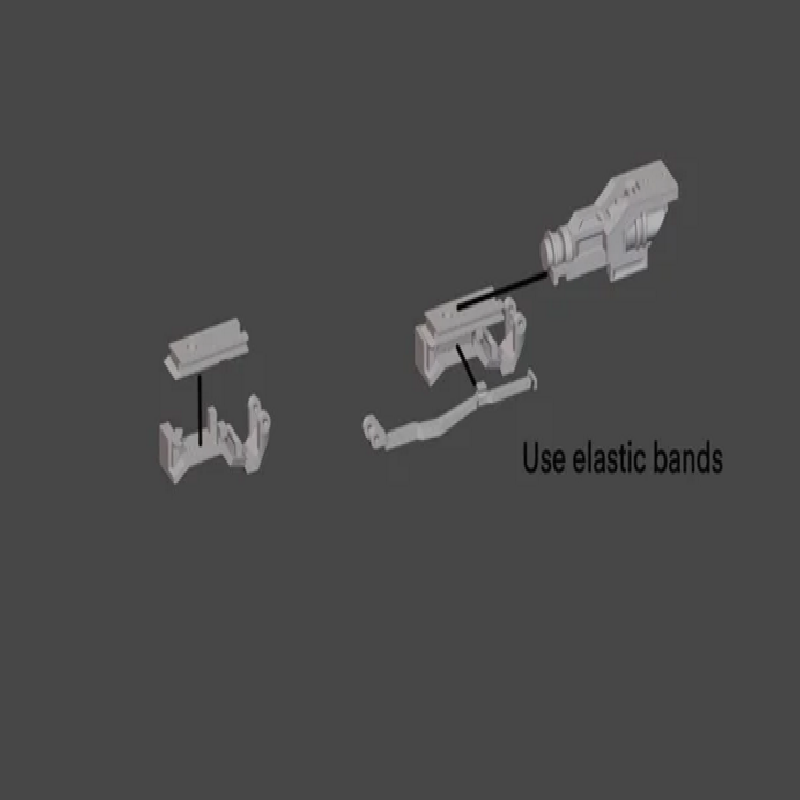

x2 elastic bands (between 2.5cm and 4cm) for the hammer and slider
tips for making the model.
make sure to add support blocker in all the bolt holes.
if you find the rubber bands are loose twist them a few times this increase there tension.
be very careful when removing the Barrle frame from your build plates there very fragile.
