by Jetstorm_3D
3D printable edition of the famous Star Wars DC-17 clone's blaster gun !
Designed from many references : Star Wars movies (I, II, III episodes), games, fan arts...

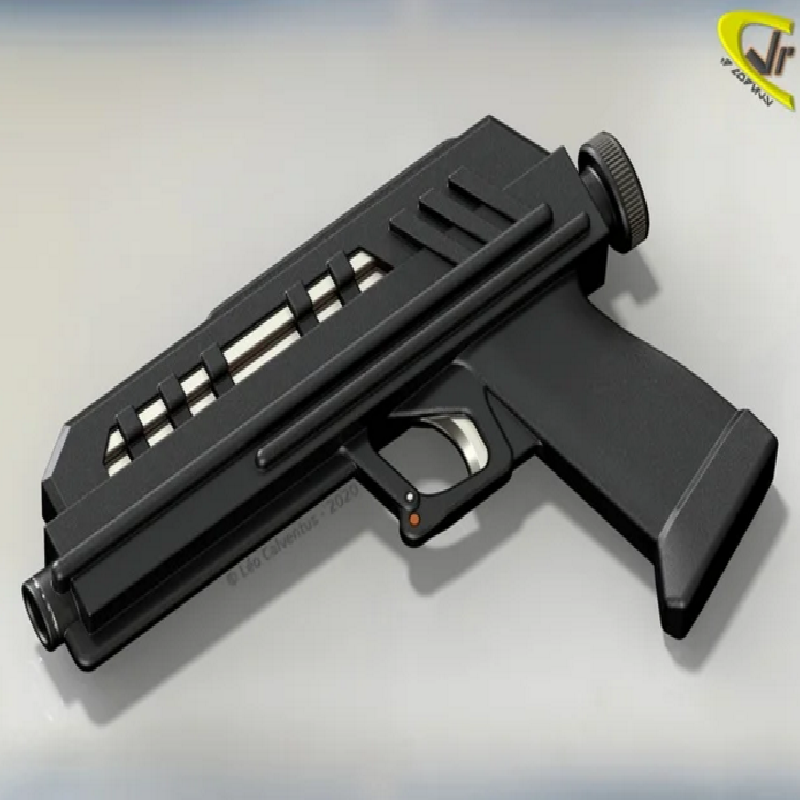

Designed with accuracy (movie realistic version)

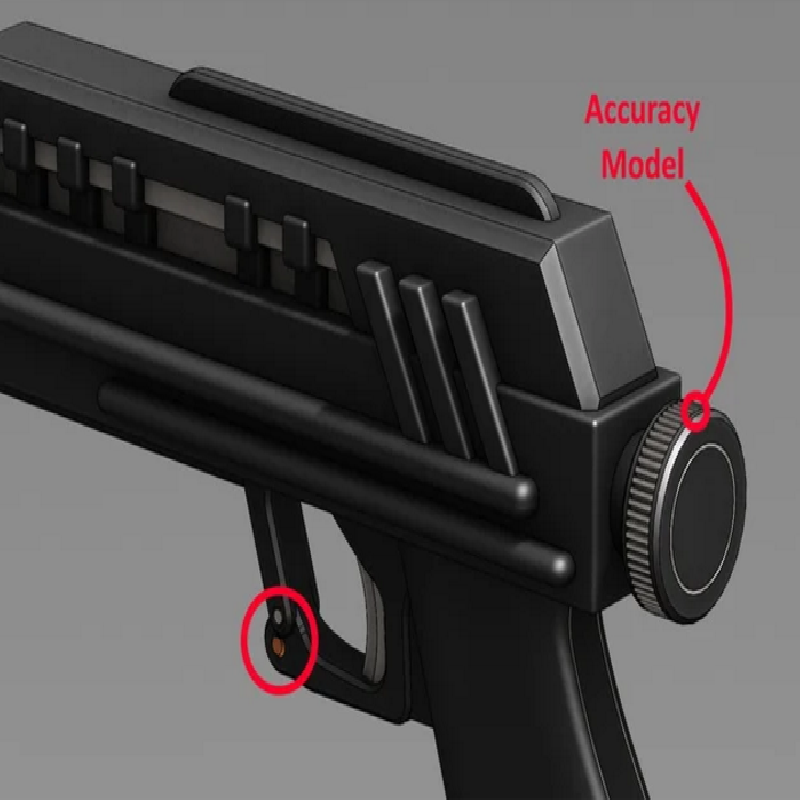

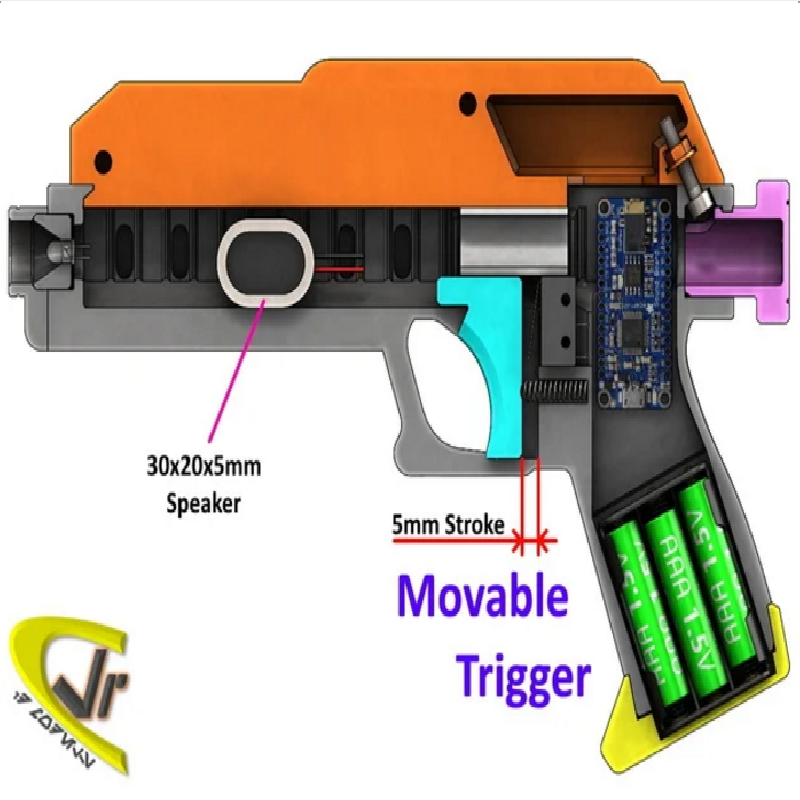

Movable trigger

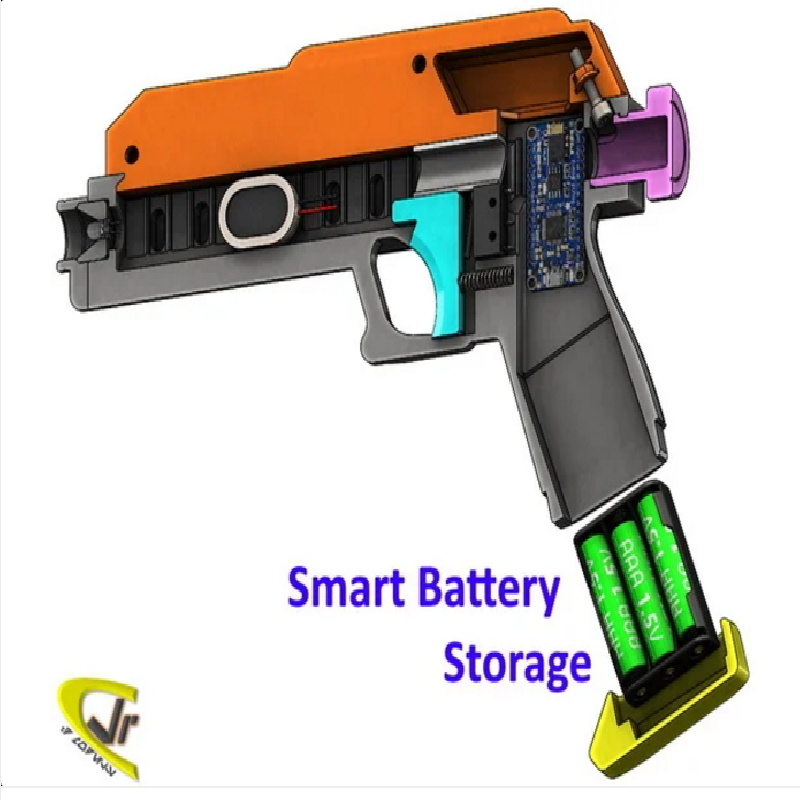

Free space and patterns to install electronics (LED, SoundBoards...)

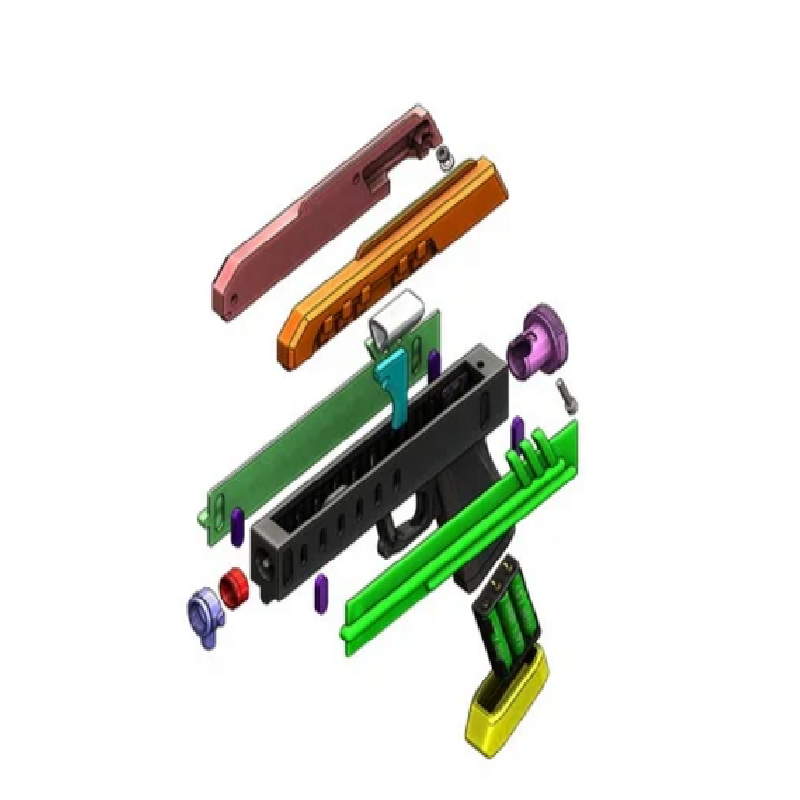

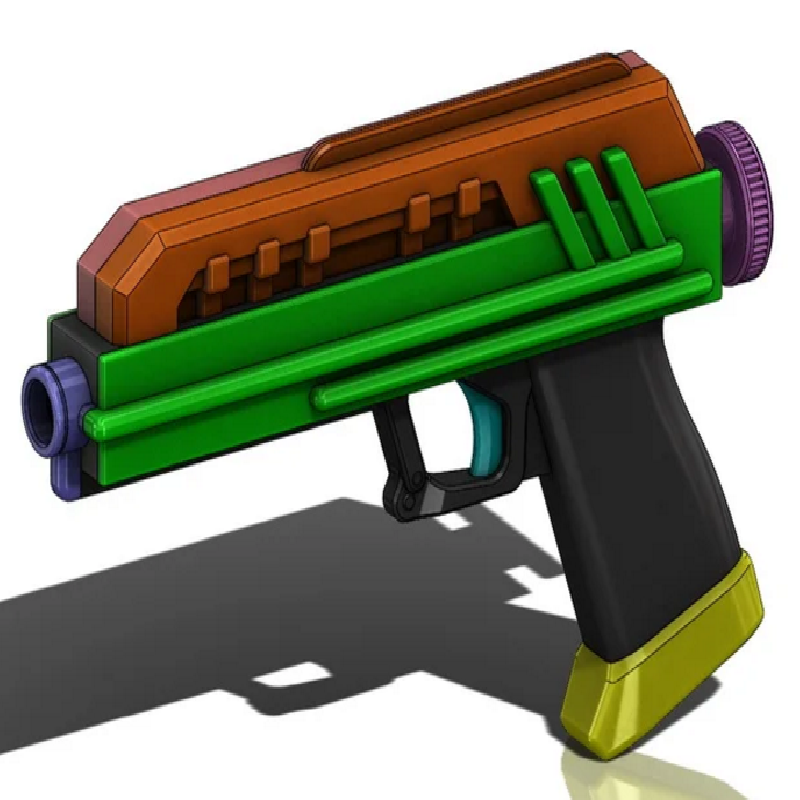

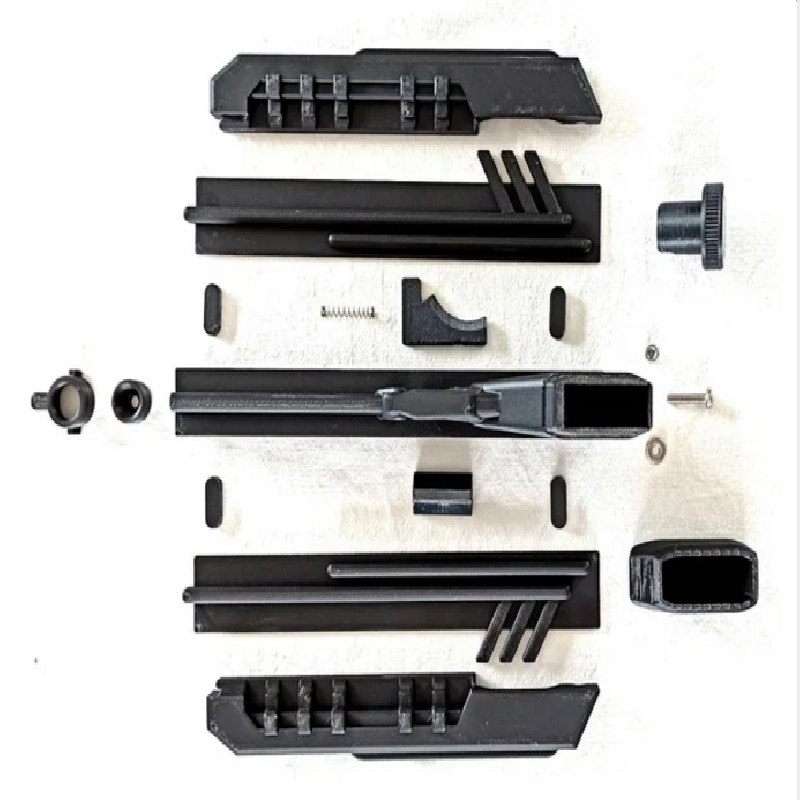

Smartly cutted in 12 parts, to print and assembly it really easily

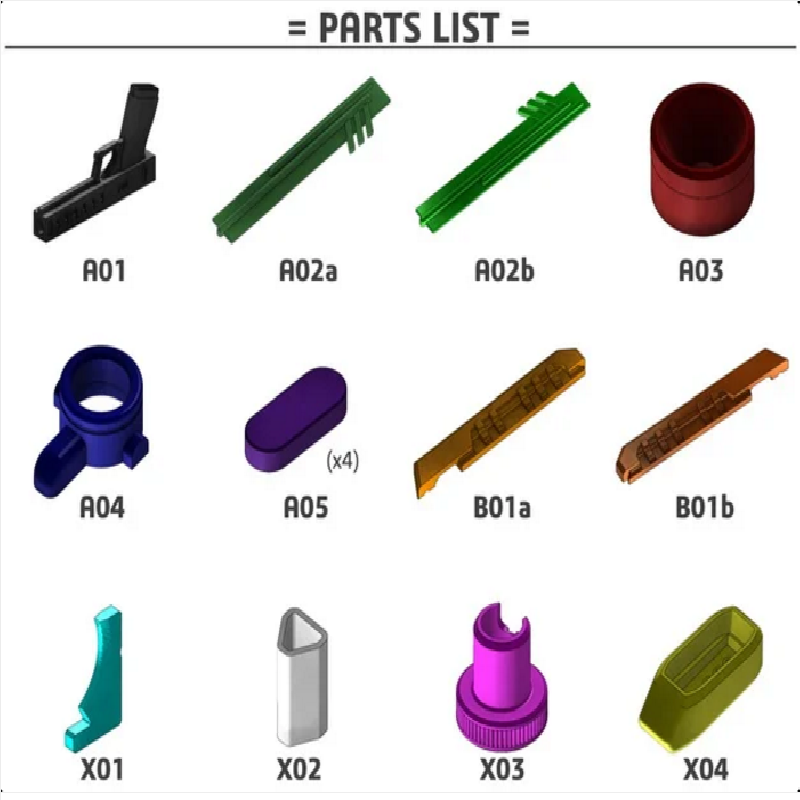

12 different printed parts, 15 parts in total
/!\ Largest part dimensions : 222.25 x 118.78 x 25 mm
Minimum printer building volume needed (x, y, z vertical) : 195 x 140 x 120mm
Smallest part dimensions : 20.1 x 8 x 3.8 mm
Complete gun dimensions (when all parts assembled) : 239 x 159 x 40 mm
(= 9.41" x 6.26" x 1.58")
Upper parts removable (screwed) for electronics access
All parts can be printed without any support !
(Except the "A01" part, which need a little support near the trigger guard)
STL files have been properly oriented and positioned to be ready to print
Find parts detailed specs in downloadable file "Nomenclature.pdf"
(Ideally) Ø5mm x 30mm long spring (x1) => for the trigger
M4x16 (or M4x20) screw + Washer + Nut => To clamp the upper parts

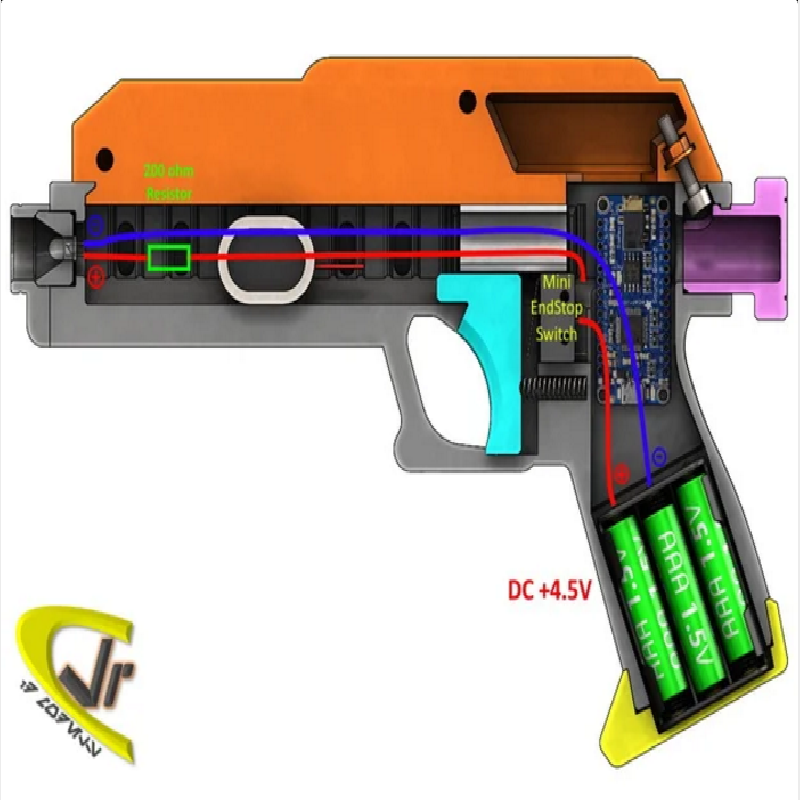

Trigger LED circuit Electronics :

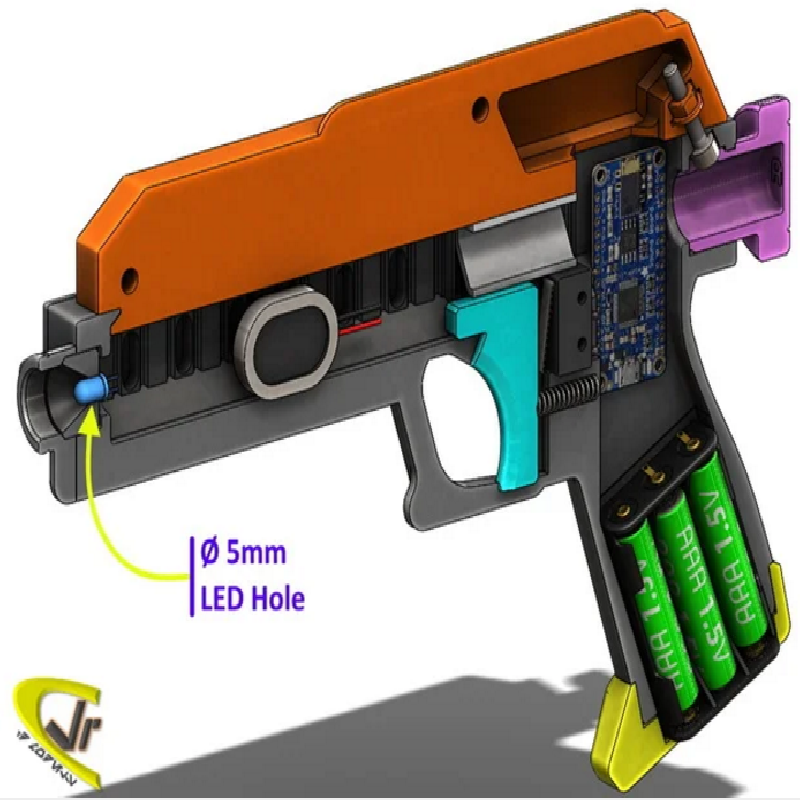

Ø5mm blue color LED
Mini EndStop Switch (approx. standard 20x10.5x6.5 mm)
1,5V "AAA" battery (x3) (total voltage 4,5V)
3xAAA battery holder
200 Ohm resistor
~25cm long wires (2 colors)
heat-shrinkable sleeves (optional)

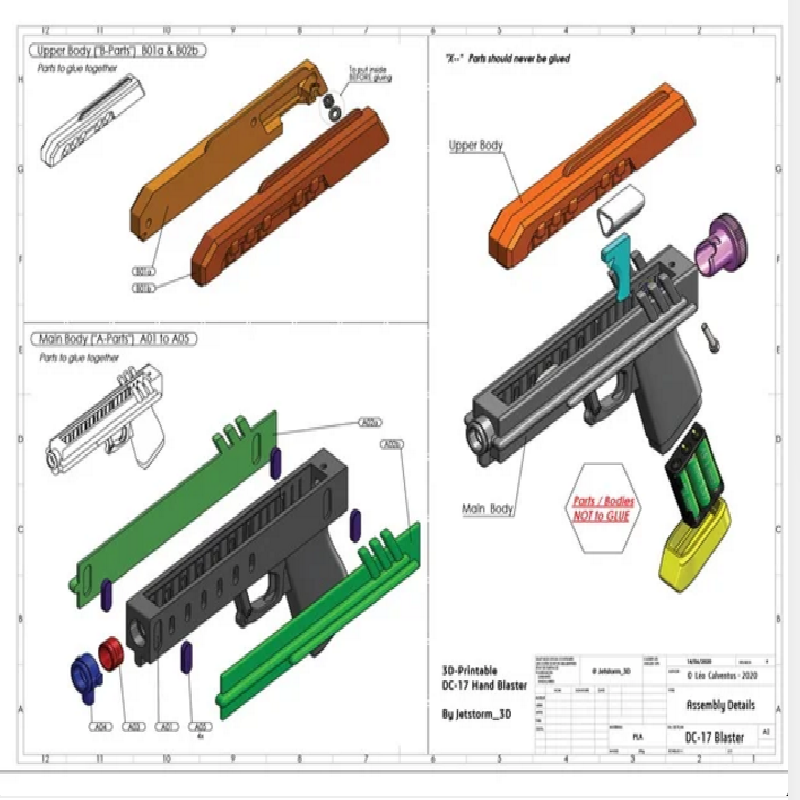

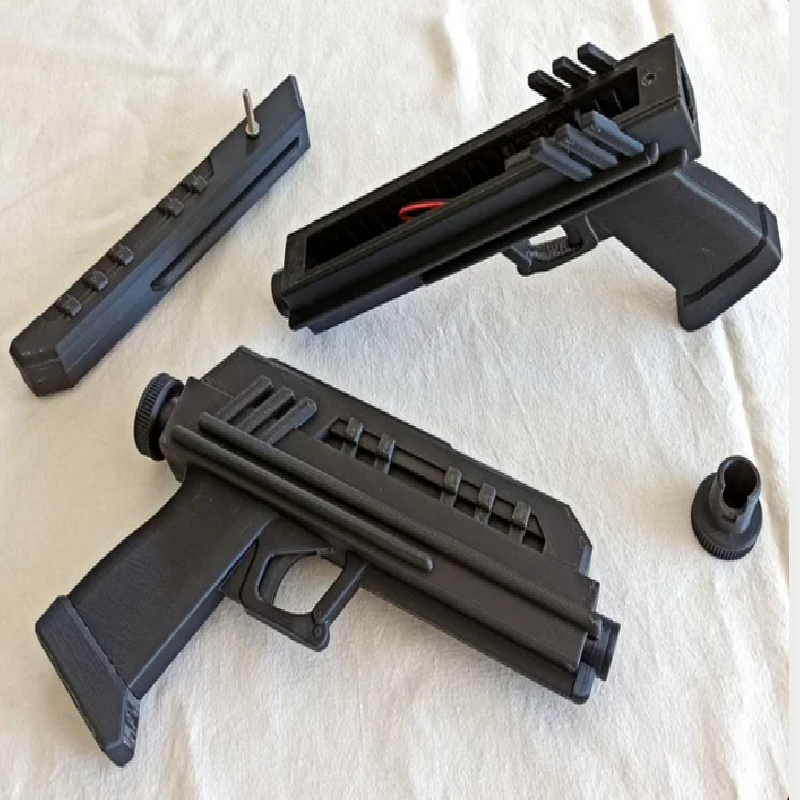

Blaster general presentation & assembly :
3D Preview :
https://sketchfab.com/3d-models/dc-17-hand-blaster-movie-realistic-8f321ea229164923b12e11b614a3444c
If you like my work, you can support me by getting this commercial version !
Commercial version features :
All 12 part files without any watermarks
High quality meshes (60% polygons more)
Multi-format version (STL, OBJ, 3MF & STEP)

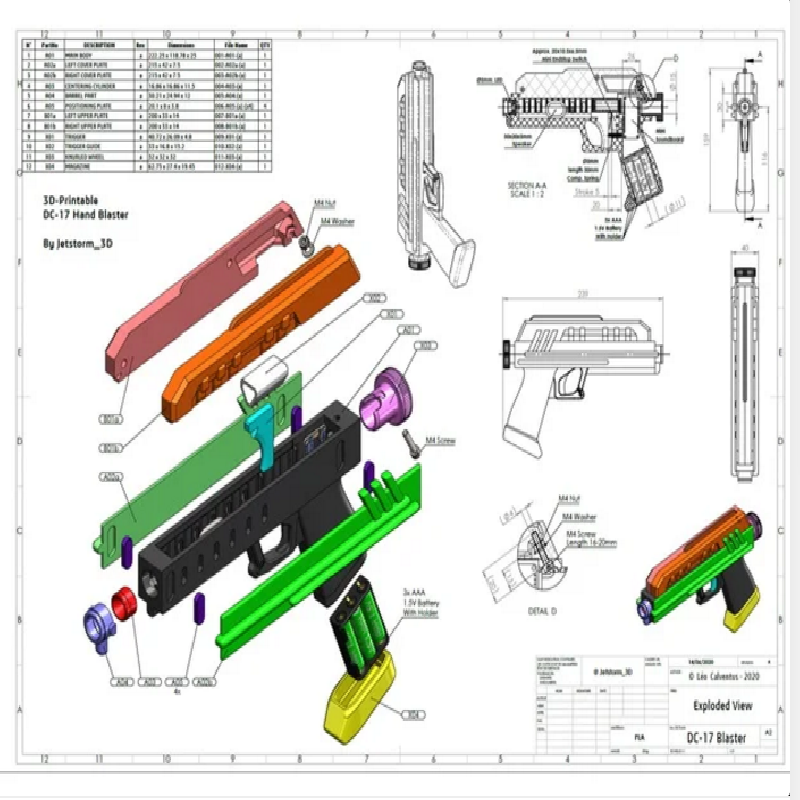

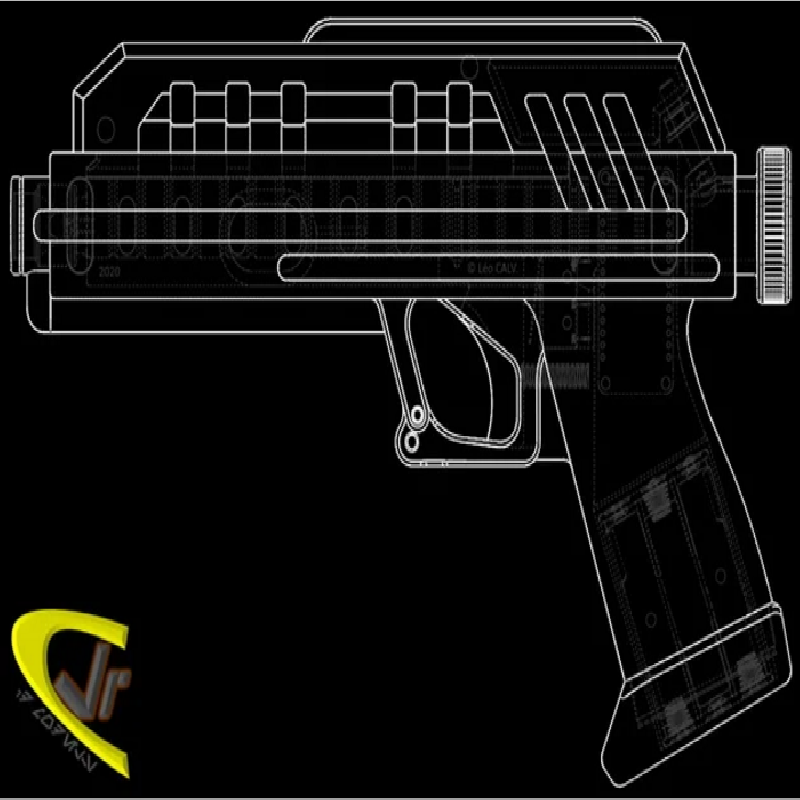

Complete assembly drawing in high quality PDF
Recommended print settings
Possibility to sell the blaster printed
/!\ To be allowed to sell the blaster 3D printed, you MUST get this commercial version.
3 simple solutions to get it :
Make me a paypal donation ($7 USD) : https://www.paypal.me/Jetstorm477
(Please let me know it by message on thingIverse to send you the files by email)
or
Buy it on Cults3D : https://cults3d.com/fr/mod%C3%A8le-3d/jeu/dc-17-hand-blaster-movie-realistic
or
Buy it on Turbosquid : # AVAILABLE SOON #
Already over 50 persons to support and trust me, MANY THANKS !
Thanks a lot for your support !
Enjoy ;)
Design Version : V_1.5 (Last Build - 2020/06) Printable Version : V_2.0
http://www.turbosquid.com/Search/Artists/Jetstorm_3D
https://cults3d.com/fr/utilisateurs/Jetstorm-3D/cr%C3%A9ations
Print Settings
Rafts:
No
Supports:
No
Resolution:
0.3mm layer height
Infill:
Cubic 20% (10% min)
Filament_brand:
Sunlu
Filament_color:
Black (Carbon)
Filament_material:
PLA Carbon Fiber
Notes:

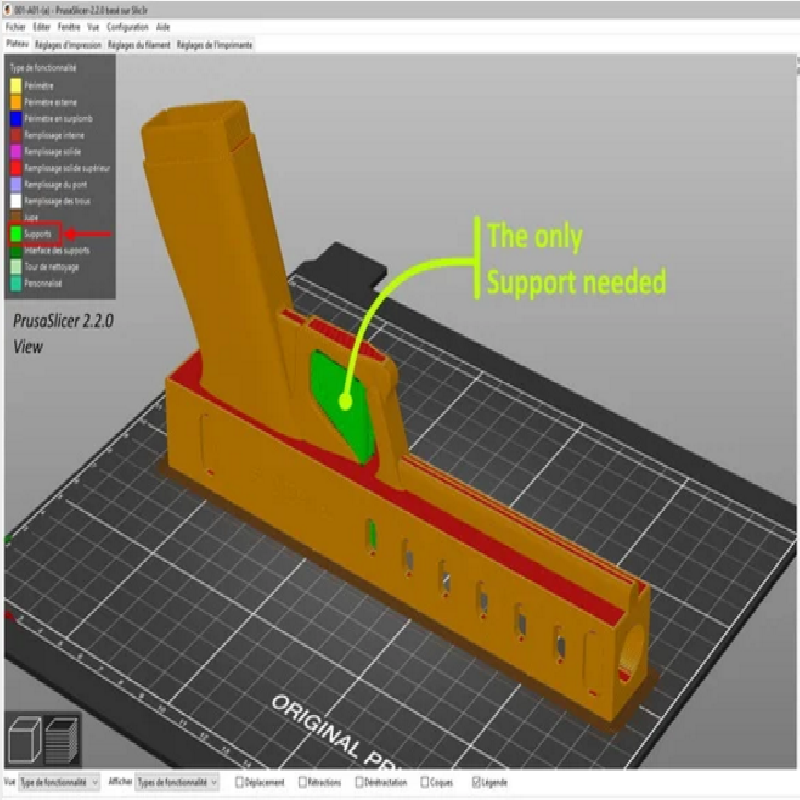

Recommended print setting for 0.4 nozzle using : - 3 or 4 Bottom / Top layers - Cubic Infill 20% (10% min) - 0.2 to 0.3 layer height - 2 Perimeters (0.8mm wall thickness) for all parts EXCEPT : A05, X01, X02 (3 perimeters) - Supports are only needed on part A01 (near the trigger guard) (See 14th picture)
How I Designed This

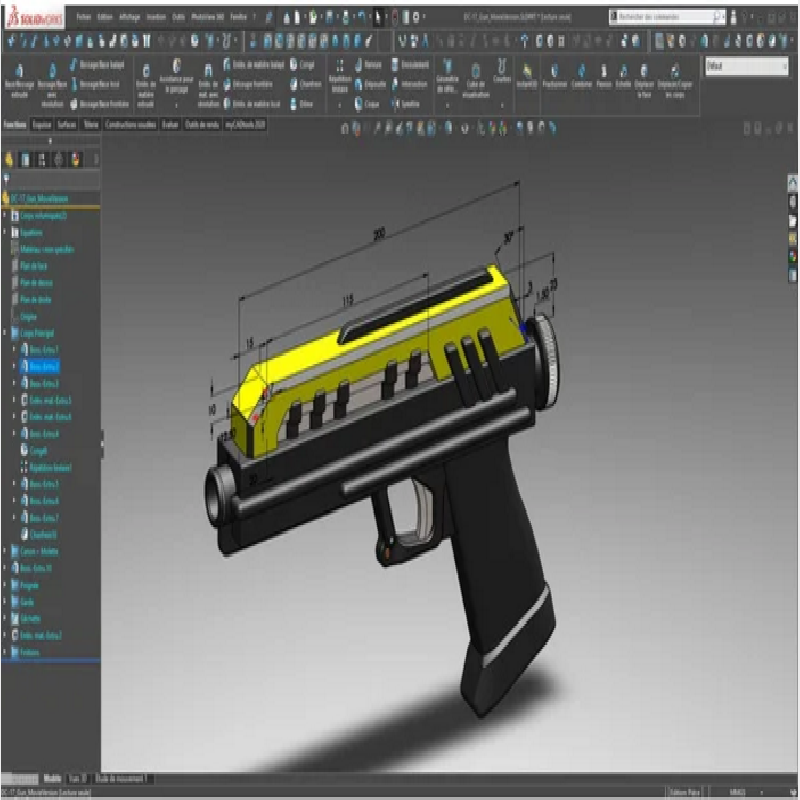

Designed from **many references** : Star Wars movies (I, II, III episodes), games, fan arts... Designed on SolidWorks 2018 Realistic renders made with PhotoView 360 (V_11)
Assembly
