by DannyQ00024

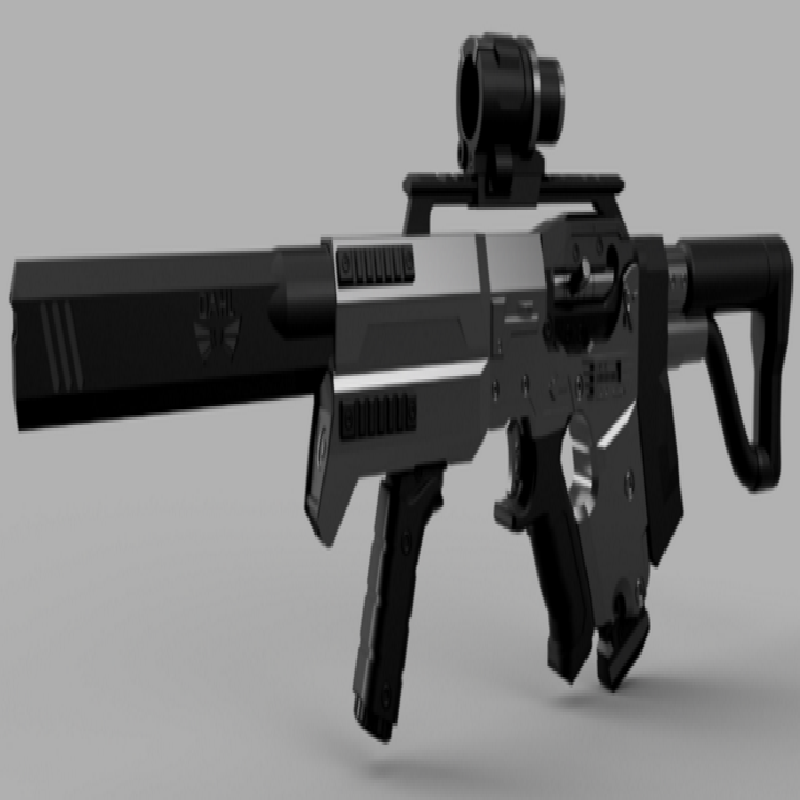

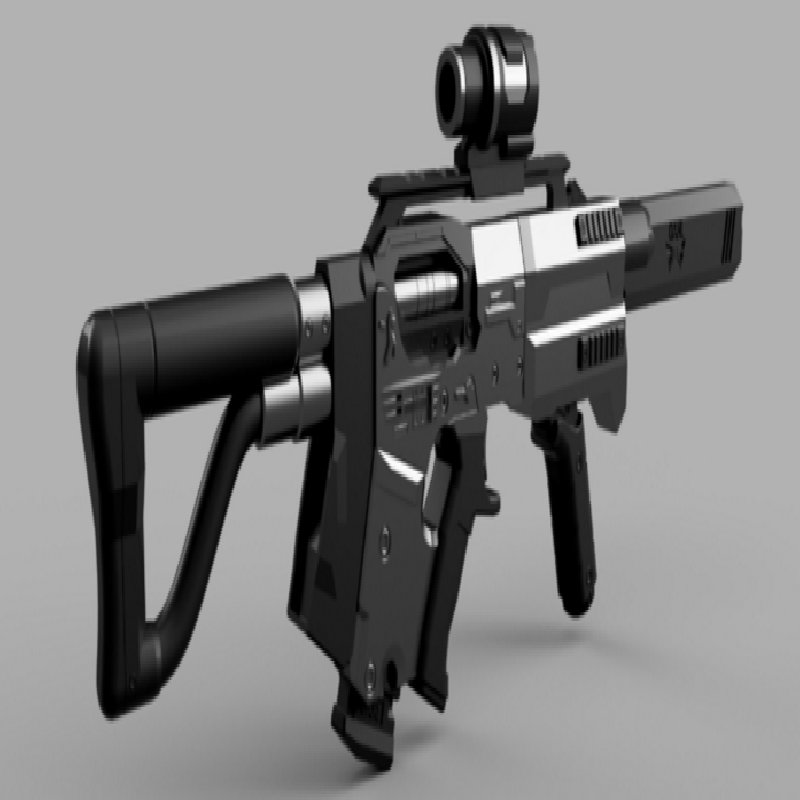

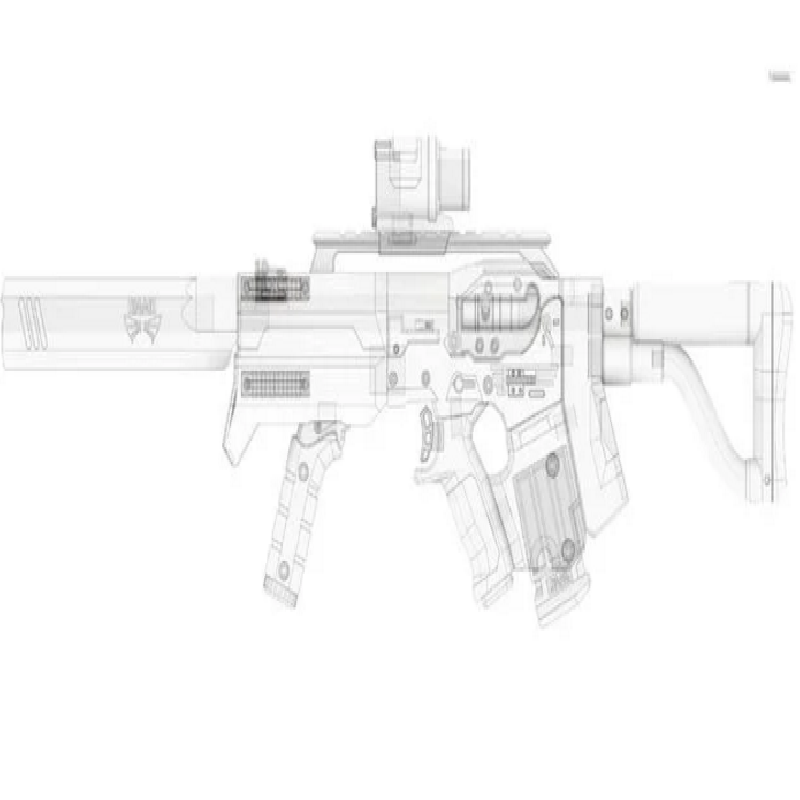

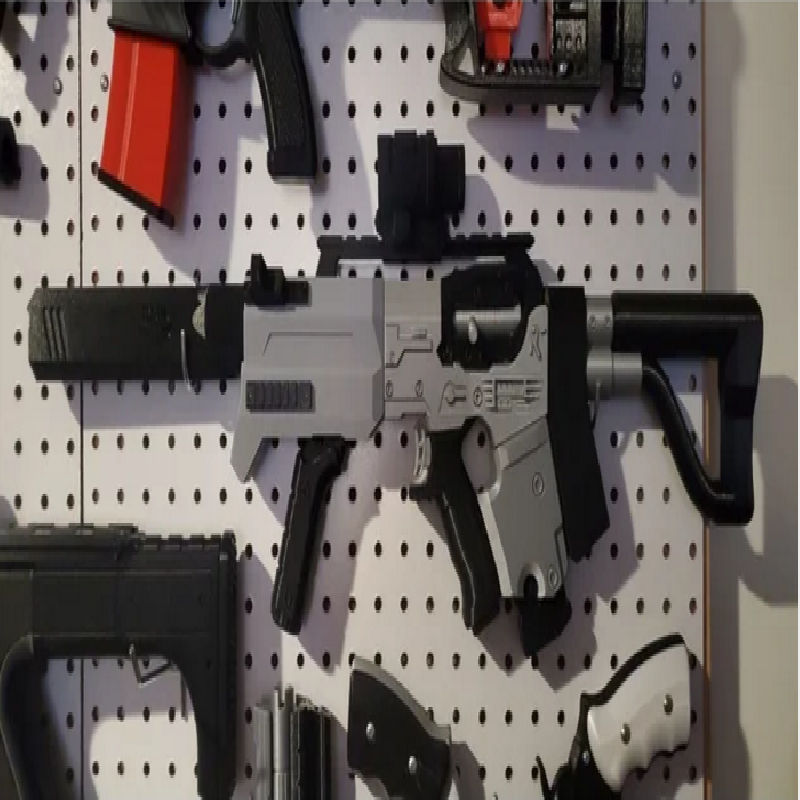

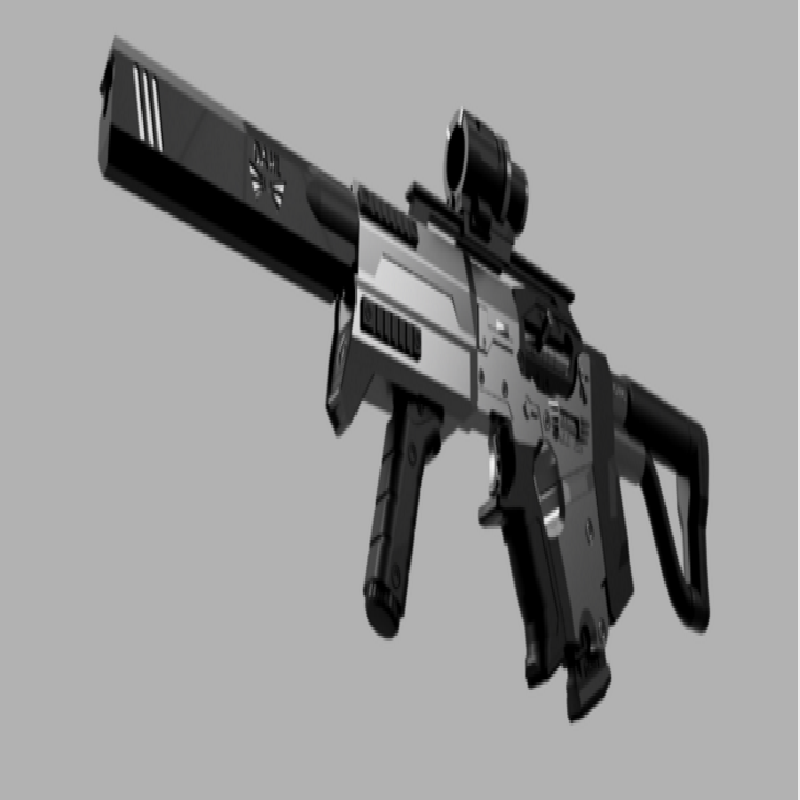

This model is based on a Dahl SMG found in Borderlands 3. This is the first prop weapon I had created using Fusion 360 back a few months ago. It was designed to be printed using my Prusa MK3S printer so the parts are made to fit that print bed. This does not require and screws as all parts are pressure fit and glued using some extra pins that are included in the files. There is room in the bolt to include a spring to give functionality to the bolt when pulling it back and locking it.
Print Settings
Printer brand:
Prusa
Printer:
I3 MK3S
Rafts:
No
Supports:
Doesn't Matter
Resolution:
0.2mm
Infill:
20%
Filament_brand:
Hatchbox
Filament_material:
PLA
Notes:
Modelled ended up scaling weird and later found it was because I set Fusion 360 to imperial instead of metric. I later changed it back to make things work in my slicer.
