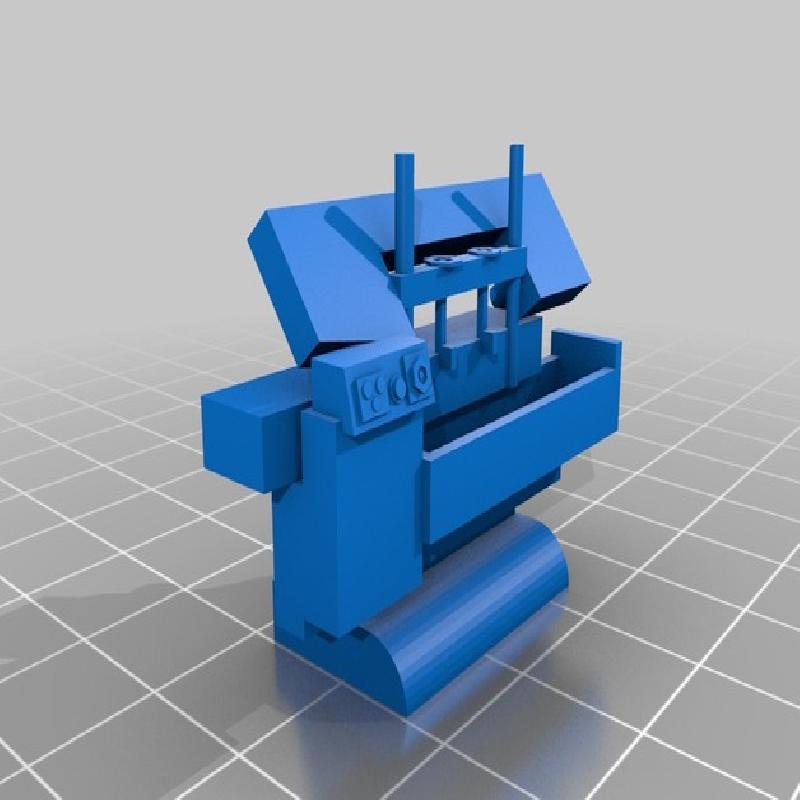

An O scale industrial sawing machine patterned after the W. F. Wells sawing machine, model W-9-1. Essentially a big, horizontal band saw for cutting metal.
This is my very first attempt at modelling something ever. I tried to capture the major details, the guide bars, the chip pan, and control panel.
Printer: M3D Micro
Rafts: Doesn't Matter
Supports: Yes
Resolution: 300 microns
Infill: Medium
Notes:
I tested printed a few of theses and support is definitely needed.
The Result
As can be see, I think I was successful. Mine will require a bit of file work to smooth things out, but overall I like the result.
I'd very much like to see if anyone else prints this, or can see any fixes to the a model to improve it in any way.
Cheers!

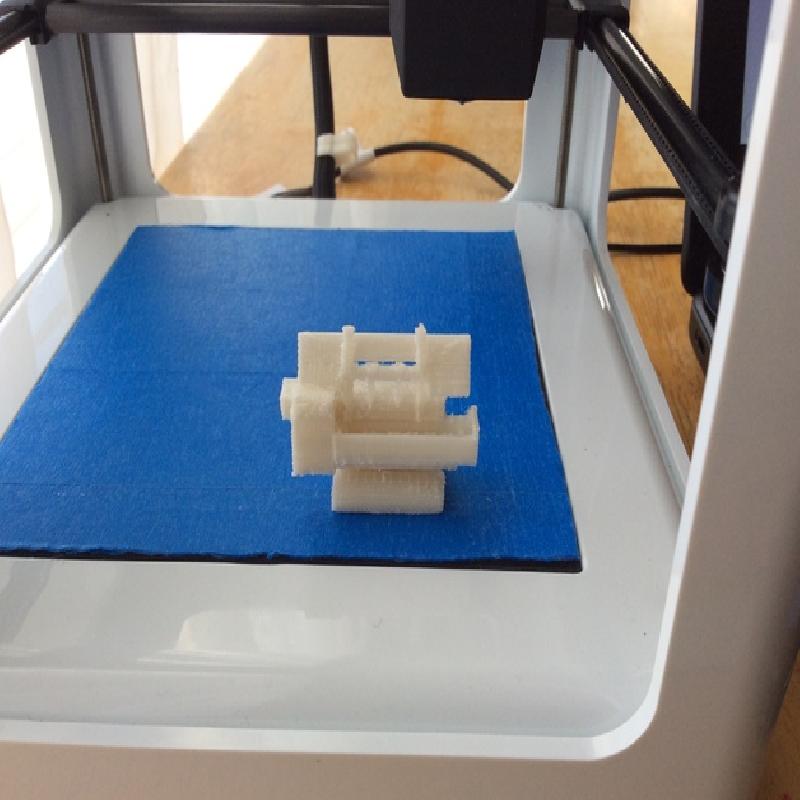

Freshly printed.
Rough cleaning - front.
Back.
I used Google Sketchup to create this model using pictures as reference.
