by cordilon

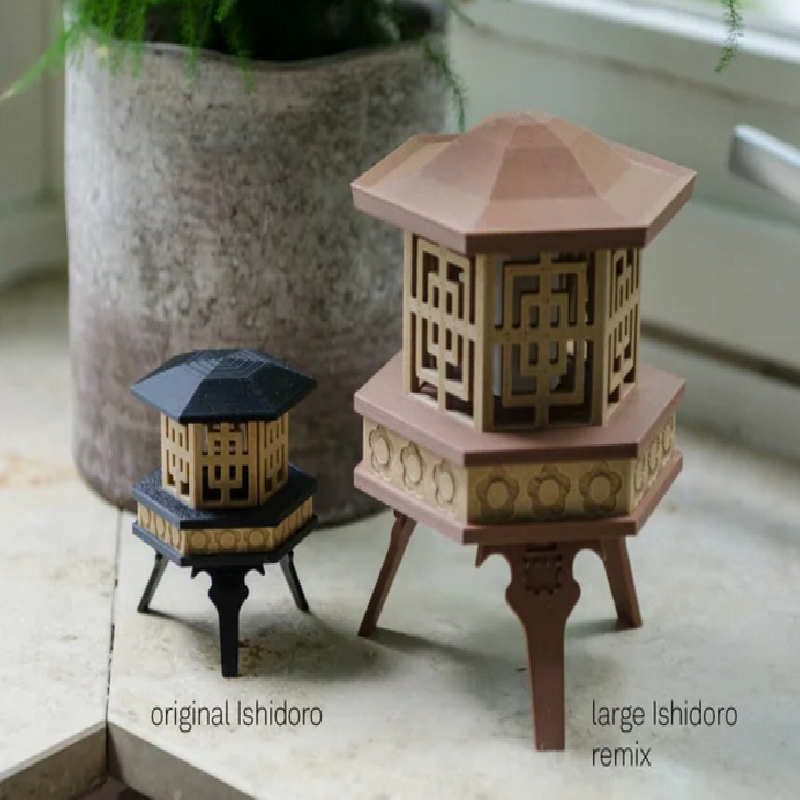

I found the original lamp design by AlCampCW to be a bit too small and some things didn't fit right, so I redesigned it completely. So here is what's different:

  • resized to be ~160mm tall (~175% of original size)

  • all part thicknesses adjusted for good proportions

  • all tolerances readjusted for this size and tight fit

  • feet now snap into place and hold without glue

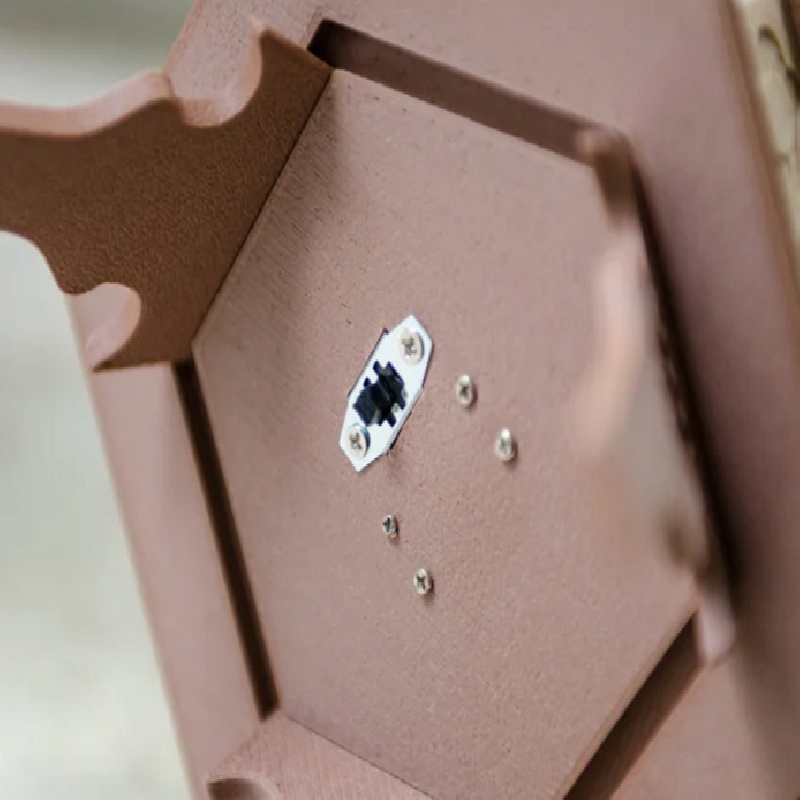

  • the base has now an indent, making it easier to drill holes for switches and LEDs

  • screen is now more detailed (instead of just scaled up)

  • added roof variant, resembling a slight curve

You need to print:
2x BASE_LED-version
3x LEG
1x ROOF or ROOF-variant
2x SCREEN_triple
2x SMALL_SCREEN_triple

All files are optimized for printing with 0.2mm layer height.

Print Settings

Printer brand:

Prusa


Printer:

i3 MK3


Rafts:

No


Supports:

Doesn't Matter


Resolution:

0.2mm


Infill:

15-20%


Filament_brand:

Fillamentum


Filament_color:

cinnamon / light wood tone


Filament_material:

Timberfill


Notes:

printed with 0.6mm nozzle. bases might need supports for the indent in the middle


Post-Printing

Assembly

Bend the screens, so they fit the notches and gently push them in. Insert the legs straight from below and tilt them up until they snap into place slightly.
