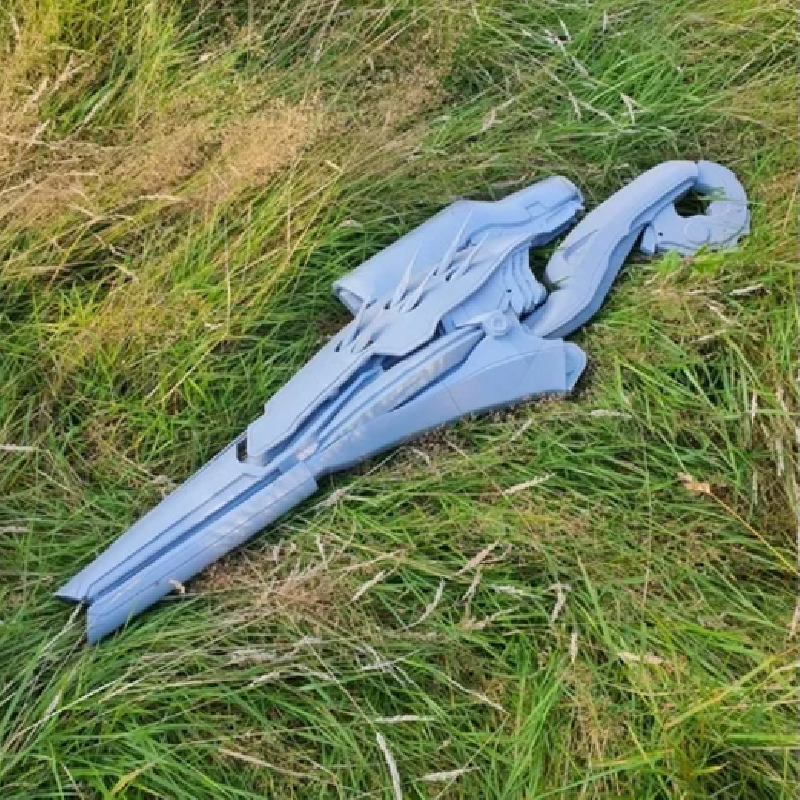

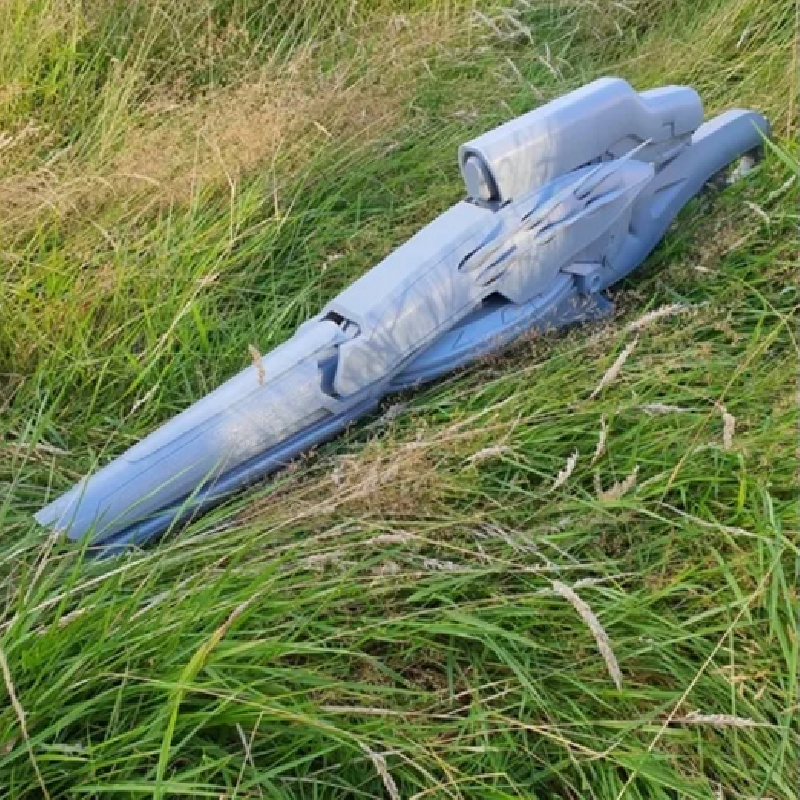

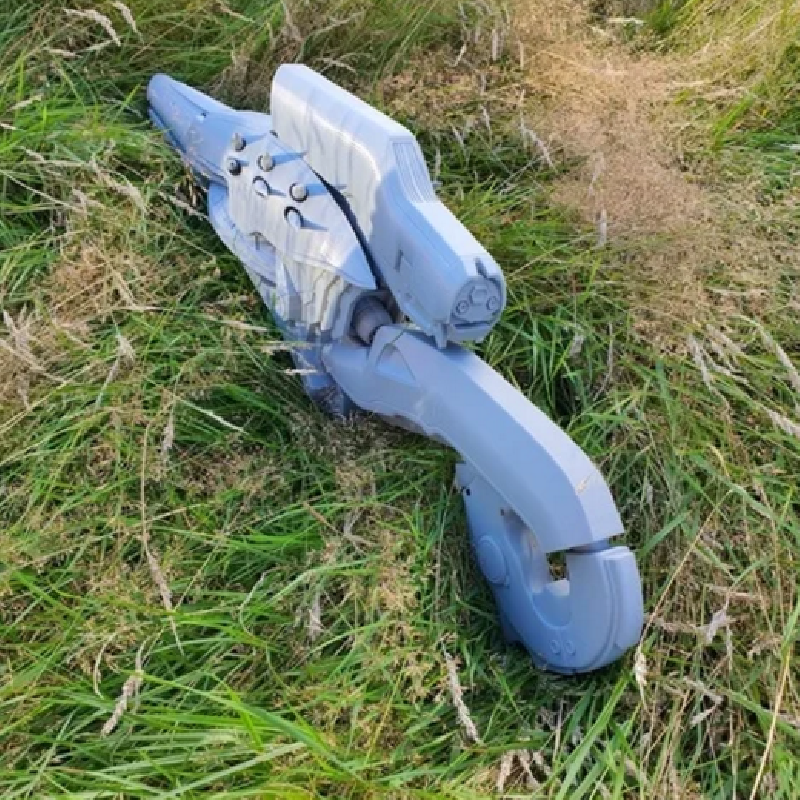

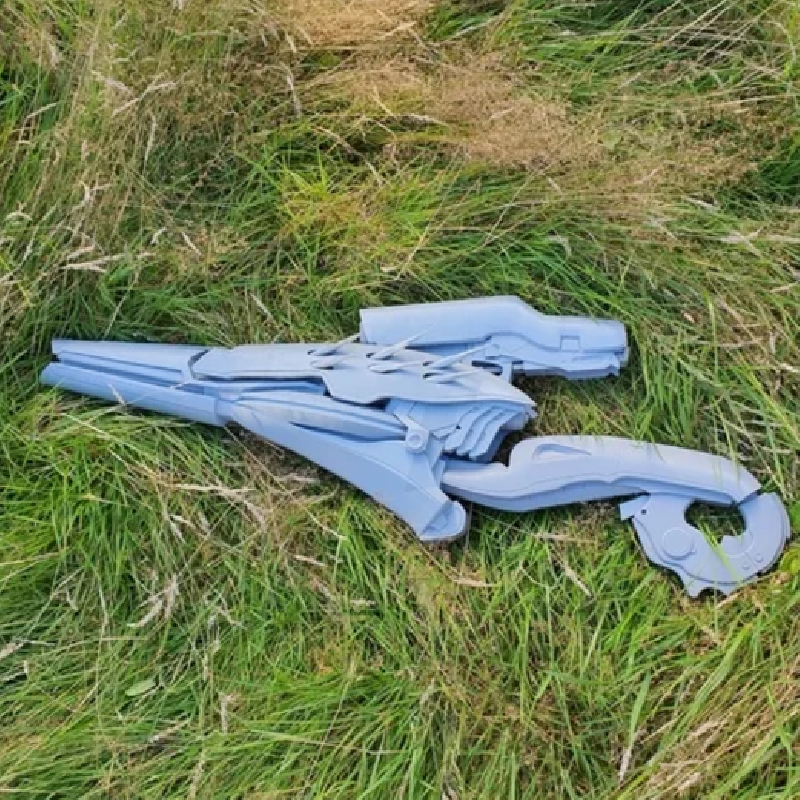

here it is!!! the Halo needle riffle!! it is finally complete!! woohoo the model is a life-sized replica standing just over a meter long!

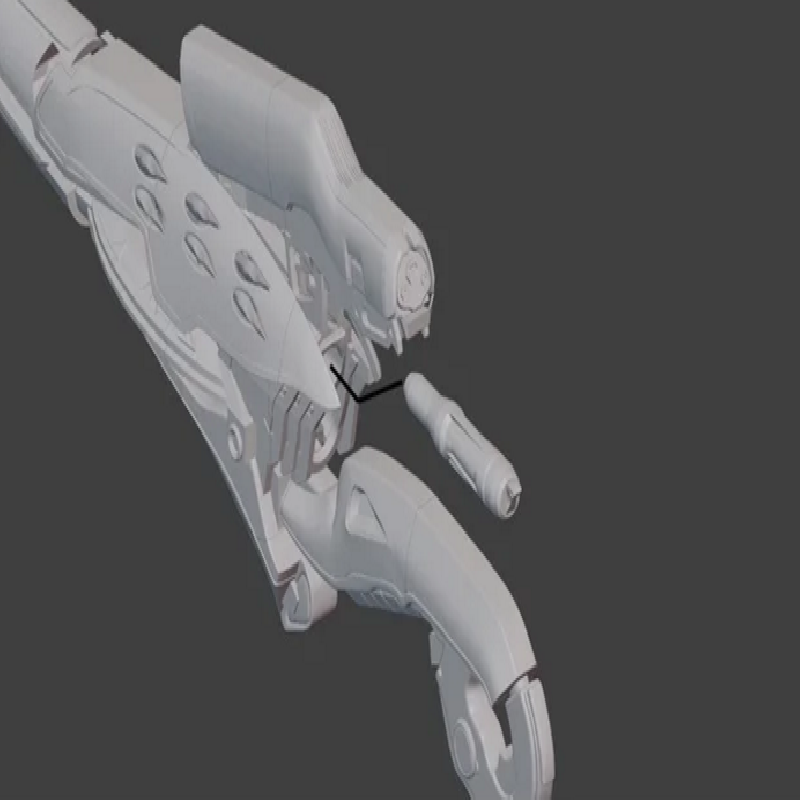

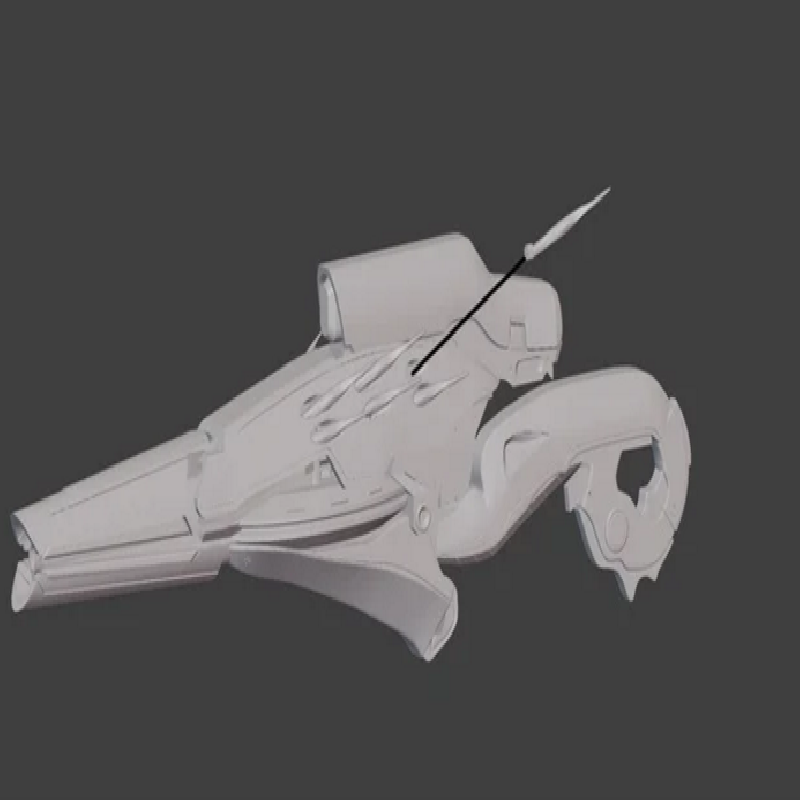

features of the model include, spring-loaded trigger, removable top plate, opening and closing mag/scope with the removable mag.
happy printing :D
time lapse incoming!
wanna see what is I'm working on next? or if you guys wanna vote on what I'm gonna make next? keep an eye out on my social media :D
https://www.facebook.com/OddworksDesign/
https://www.instagram.com/oddworks3d/
wanna help me continue to make models have a look at my Patreon.
Patrons also get exclusive models.
https://www.patreon.com/OddWorks

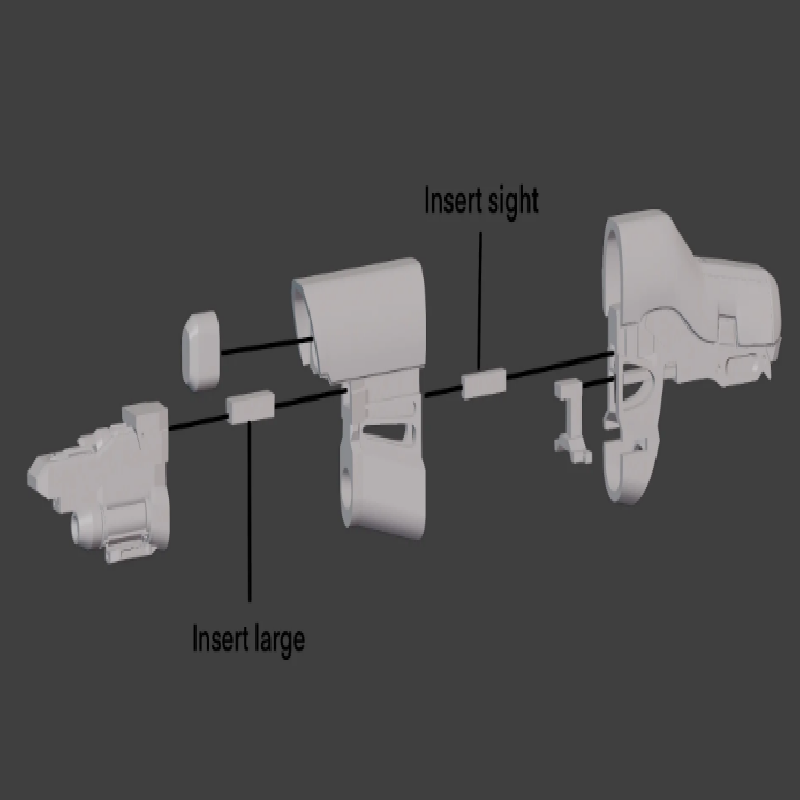

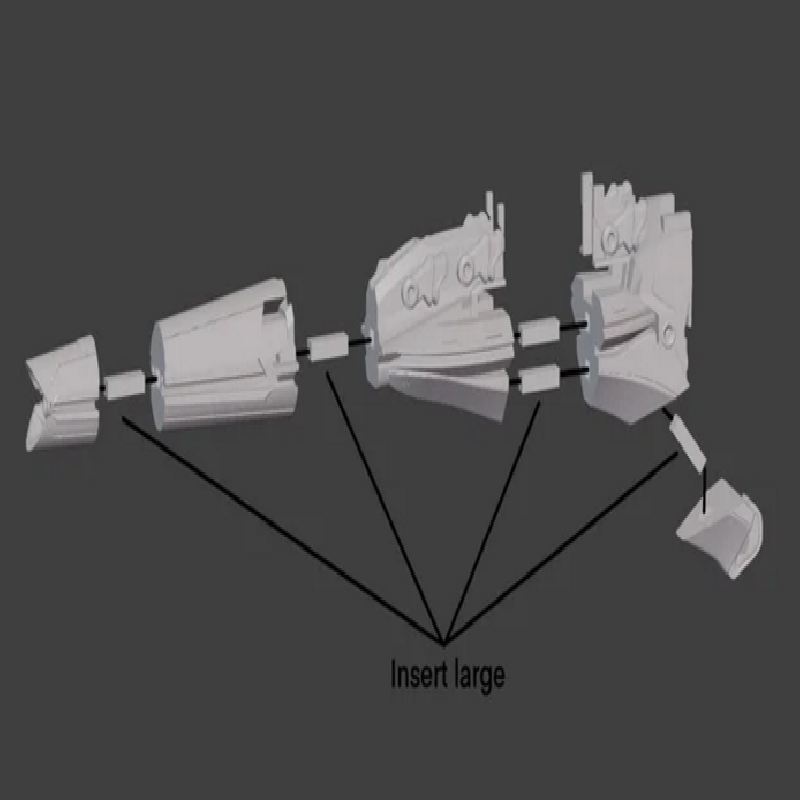

INSTRUCTIONS.

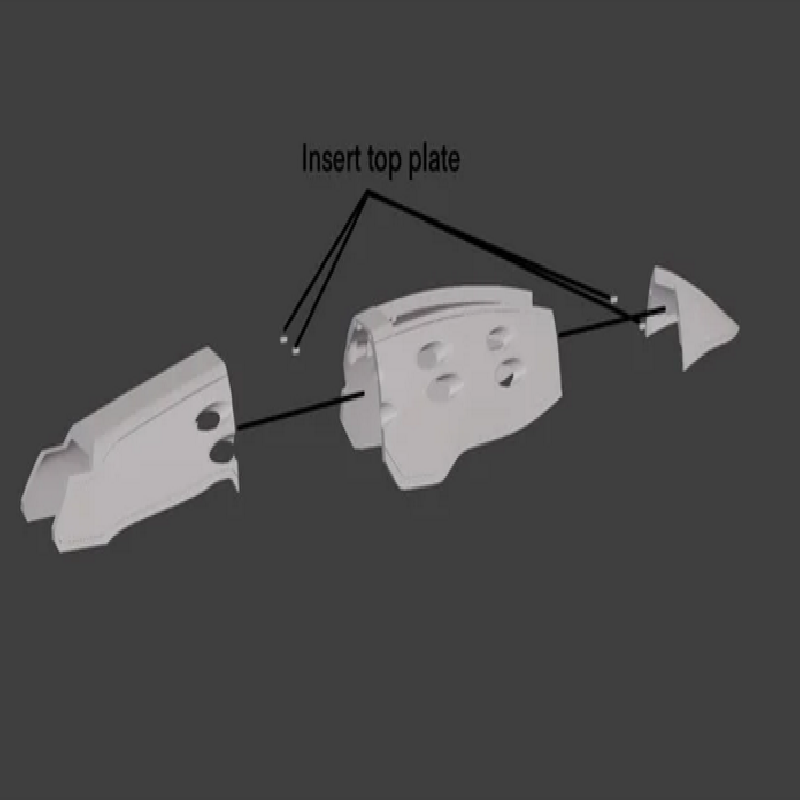

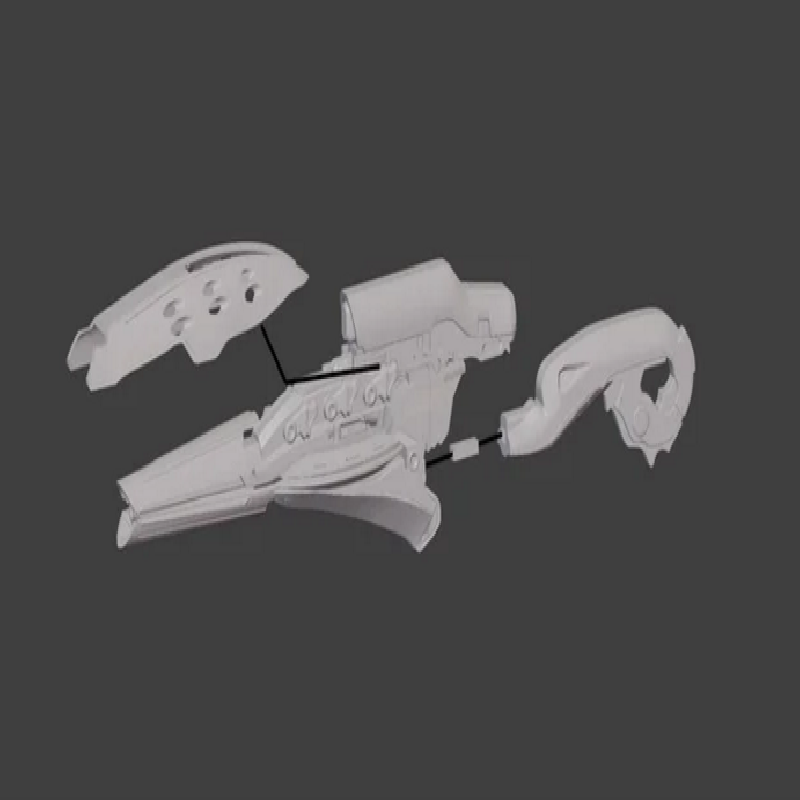

this model is pretty simple to assemble, couple things to watch out for, the top plate may need some force to slide into place.
if needed you can get away with using 60 magnets instead of 120.

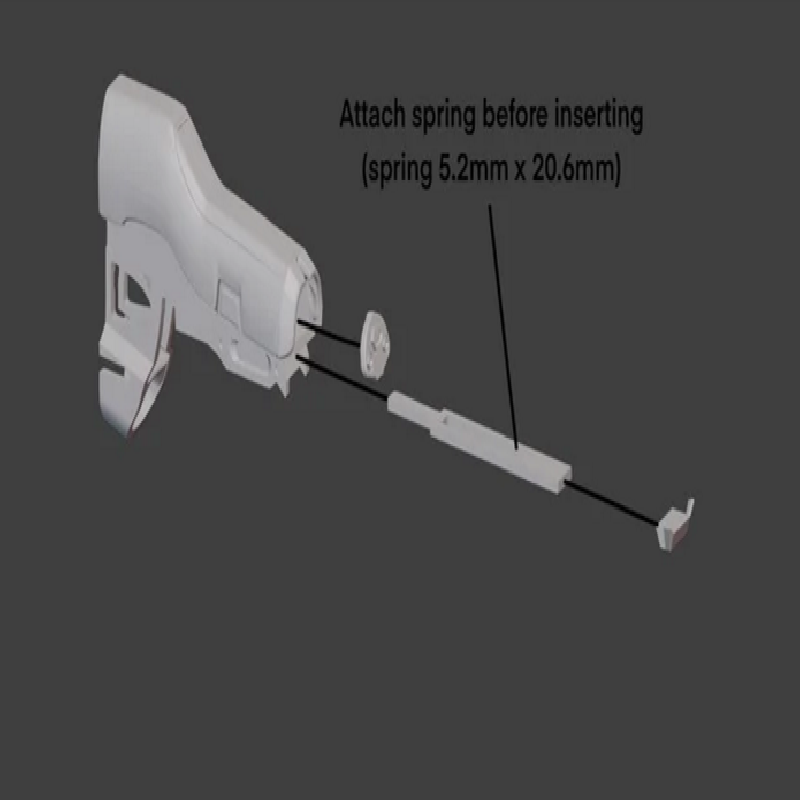

make sure to install the springs before putting the parts together.
As the bolts are used as hinges and not fastened they may be loose on the model, to fix this just add a dab of glue to the bolt to hold it in place.
you will need
x1 M3 x10mm bolt

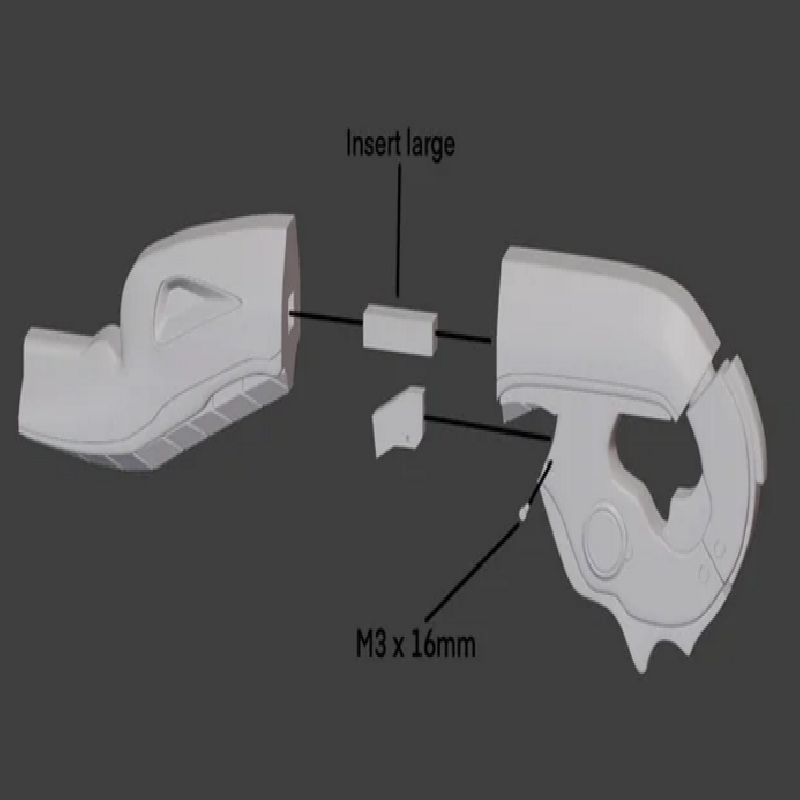

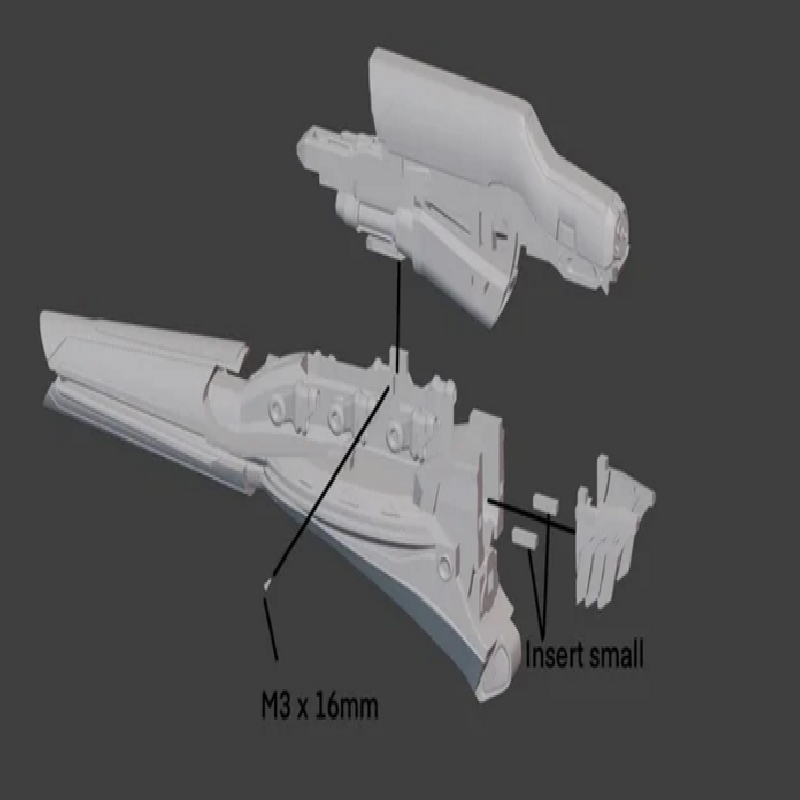

x3 M3 x 16mm bolts
x120 3mm x 3mm magnets

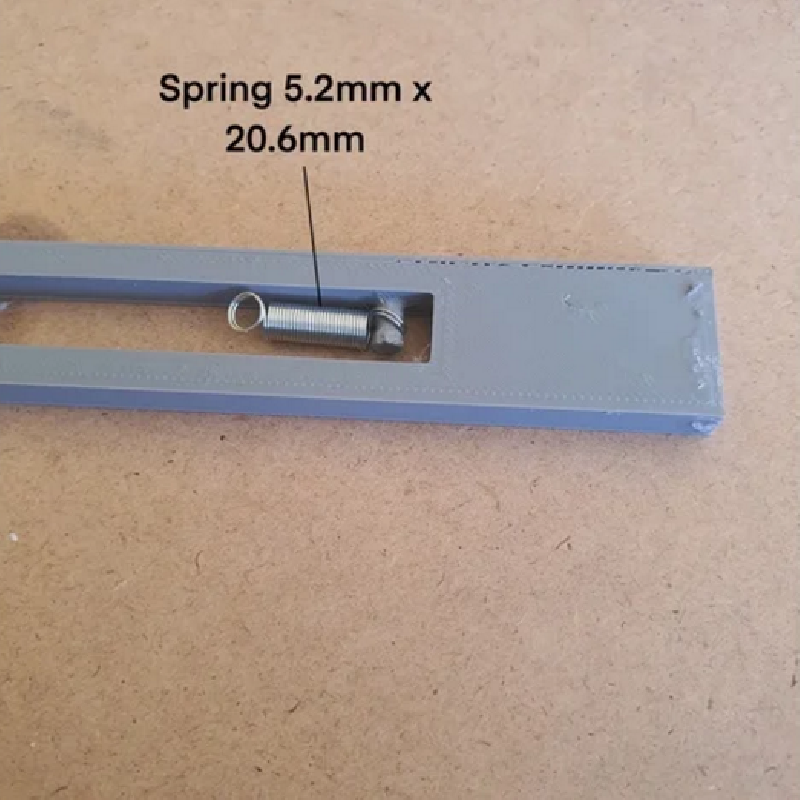

x1 spring 5.2mm x 20.6mm

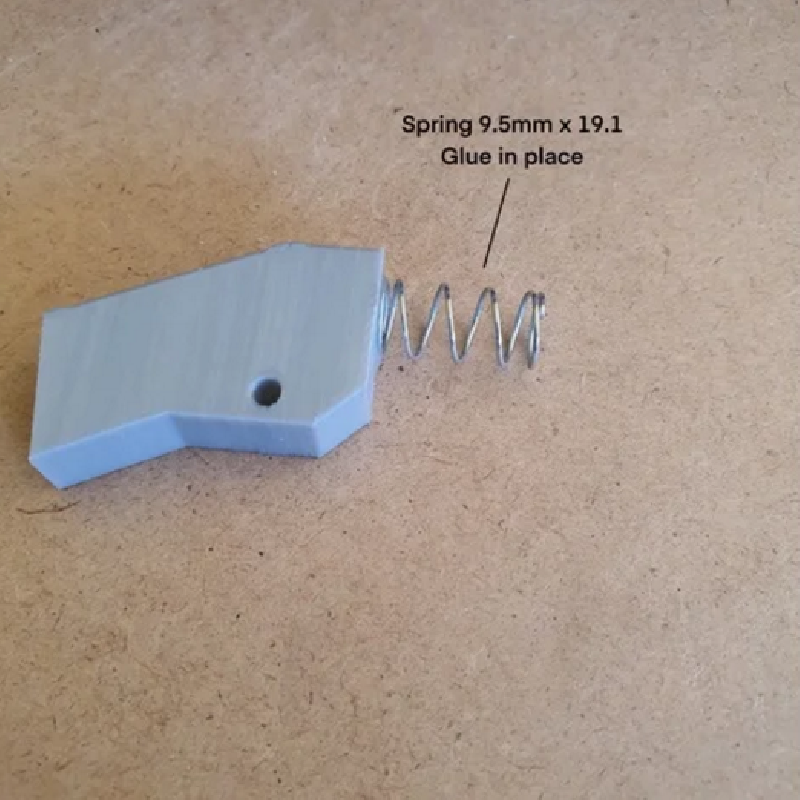

x1 spring 9.5mm x 19.1mm
