[ A SHARK (Mechanical Toy) ]

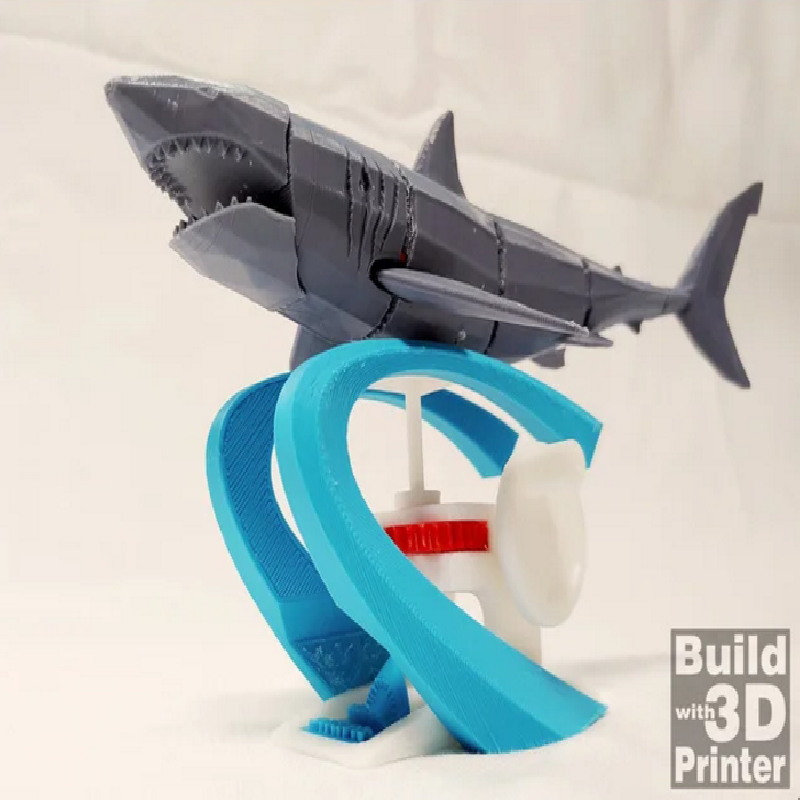

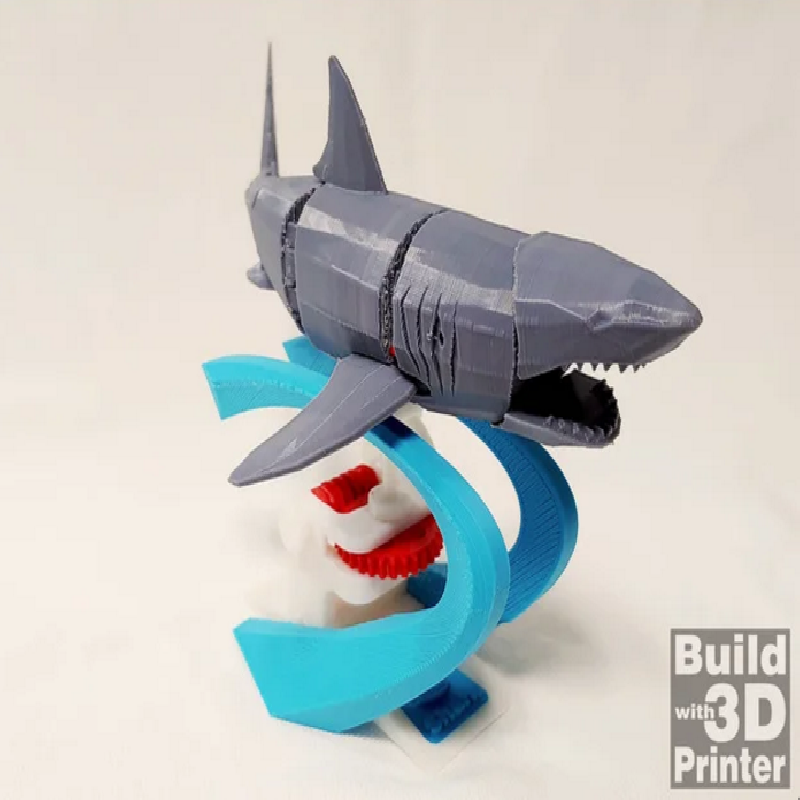

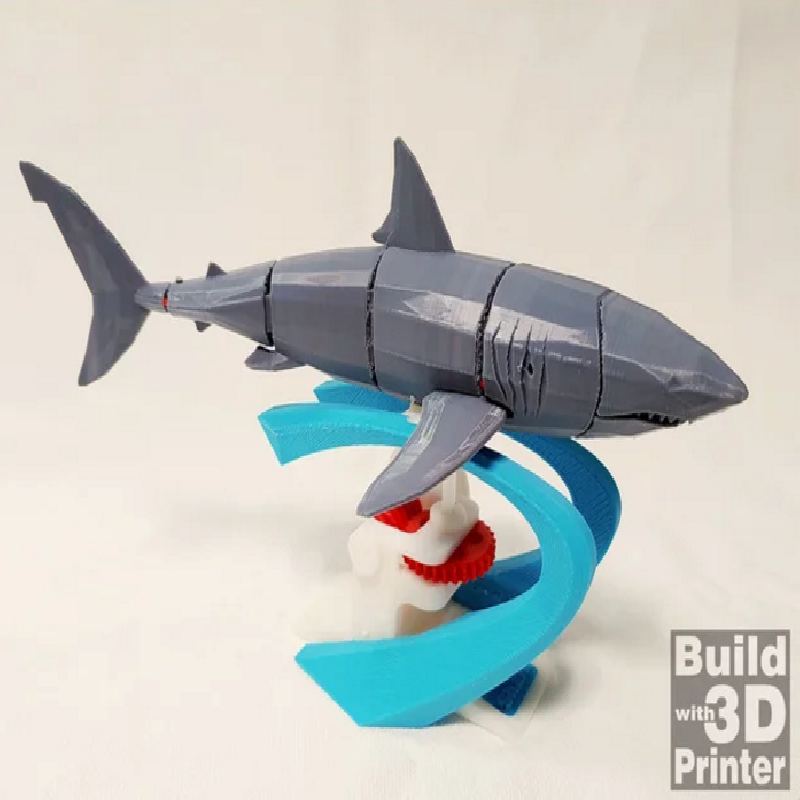

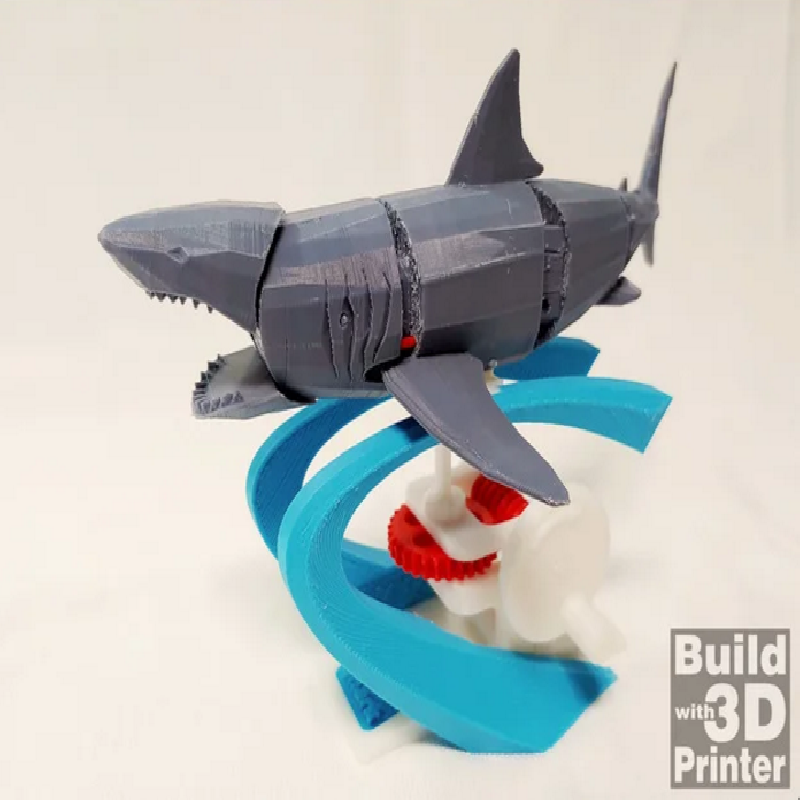

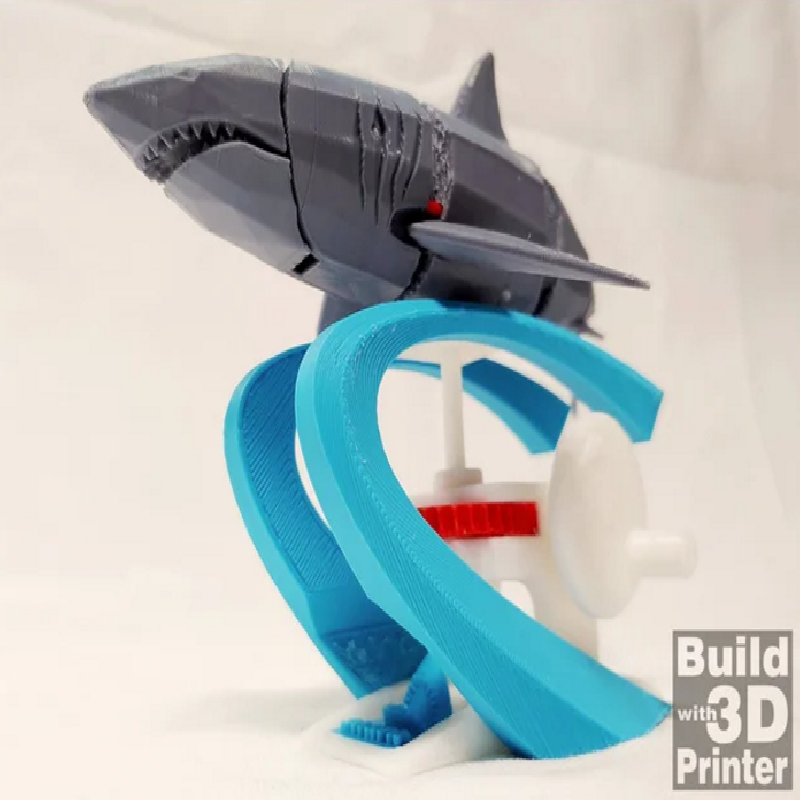

Printable Shark Automaton
Assembly is required.
Assemble instruction is in my youtube channel
https://youtu.be/fEVepdNuris
The parts are designed and tested to fit each other, however the tolerance is depends on a 3d-printer's condition.
Please remove the supports completely. May need a sandpaper or cutter while assemble the parts.
Use a raw 1.75mm filament and super glue while assemble the parts.
*Lubricating moving and rolling parts with silicone grease is recommended.
[Layer height]
0.10mm : Crank_01,02, Crank pin_01, 02, Gear_01,02, Gear_AxleRing_01,02, WarmGear_AxleRing_01,02, Head_03, Head_04.stl
0.18mm : All the Rest
[Shell count]
3
[Fill density]
100% : Head_01.stl
15%~20% : All the Rest
[Time to do]
about 600 - 700 minutes
[Technology]
FDM
[Material]
PLA or ABS
[Dimensions]
about 225mm x 130mm x 100mm
[Material Quantity]
about 110g
Print Settings
Printer brand:
FlashForge
Printer:
Adventurer 3
Rafts:
Yes
Supports:
Yes
Filament_brand:
Polysmart
Filament_material:
PLA
