by A-M-H

My version of a ME-109 G2

Please be gentle on the historical accuracy of this model.

I wanted to test modeling something with complex curves and lofts in Autodesk Inventor, this certainly was a challenge getting the fuselage correct. I wish I had deepened the panel and control surface lines a little more. I might do so in the next version of this model.

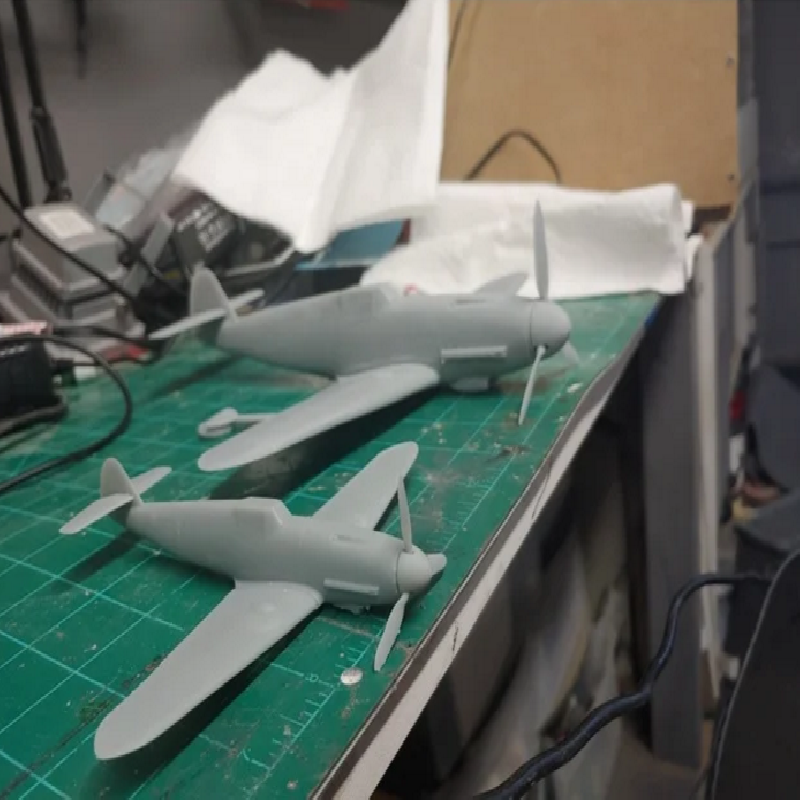

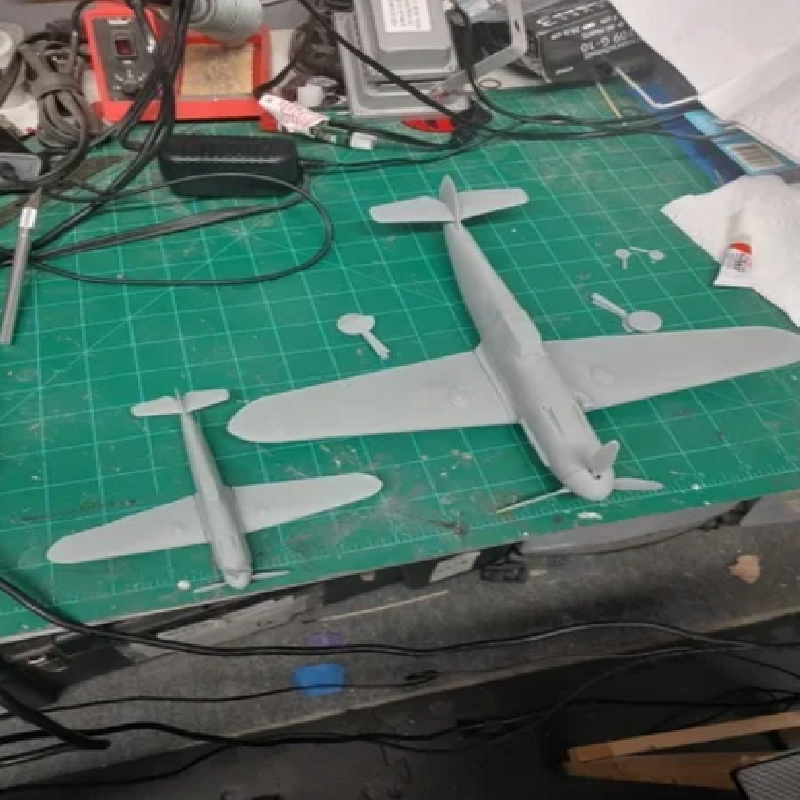

I printed in a couple scales again Chitubox doesn't like just placing models in at the scale I created them in so I had to bump the small one up around 2500% and the large one 5500%.

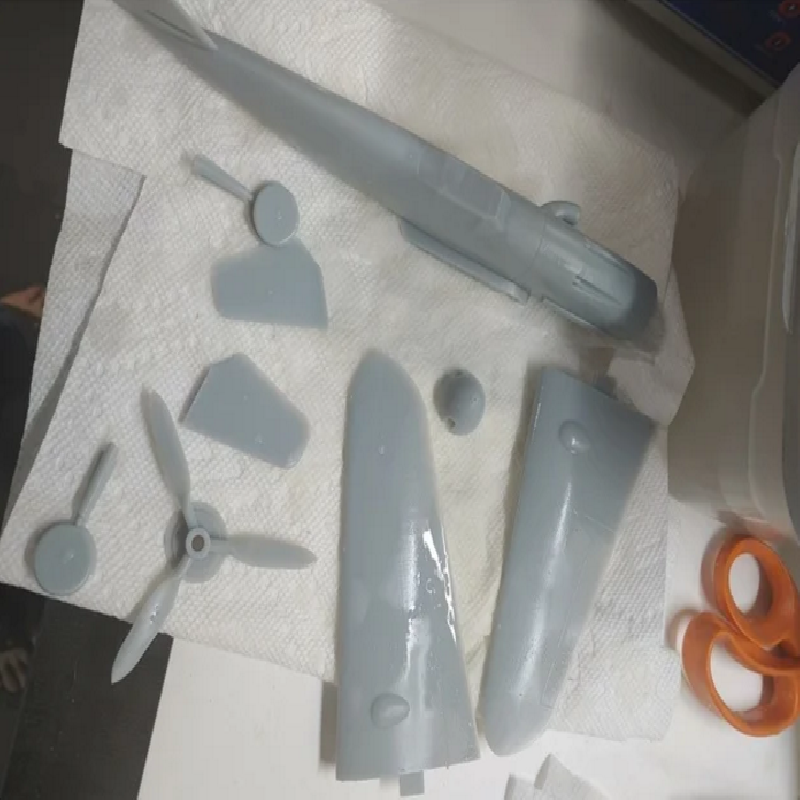

When printing test fit the prop pin, the base should get glued into the fuselage and the spinner cone should glue to the prop hub, when all that is said and done the prop hub and spinner should spin freely around the prop pin.

Landing gear can be glue up or down... speaking of which I regret that I did not model the tail wheel, but I will in a future update.

Print Settings

Printer brand:

Peopoly

Printer:

MOAI

Rafts:

Yes

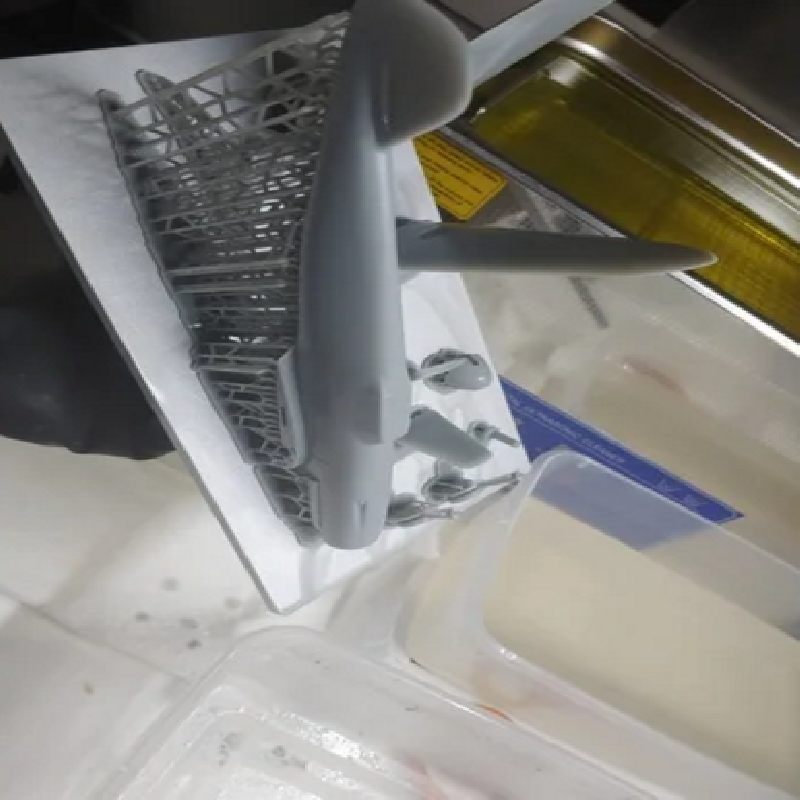

Supports:

Yes

Filament_brand:

siraya tech fast

Filament_color:

grey

Filament_material:

resin

Notes:

I hallowed out the larger version and made the walls 2mm for the fuselage only, the rest was printed solid. Again I am using my regular Phenom but it still isn't an option in the drop down.
