After designing the millennium falcon and tie interceptor kit cards, a coworker suggested I try a landspeeder.
This was made to fit together when printed on my homemade hypercube300 printer which is not the highest precision printer in the world, so you may have to adjust the holes, or use a little glue depending on how dialed in your printer is. Adjusting the z-scale slightly up or down without changing the x & y scale can help as well.

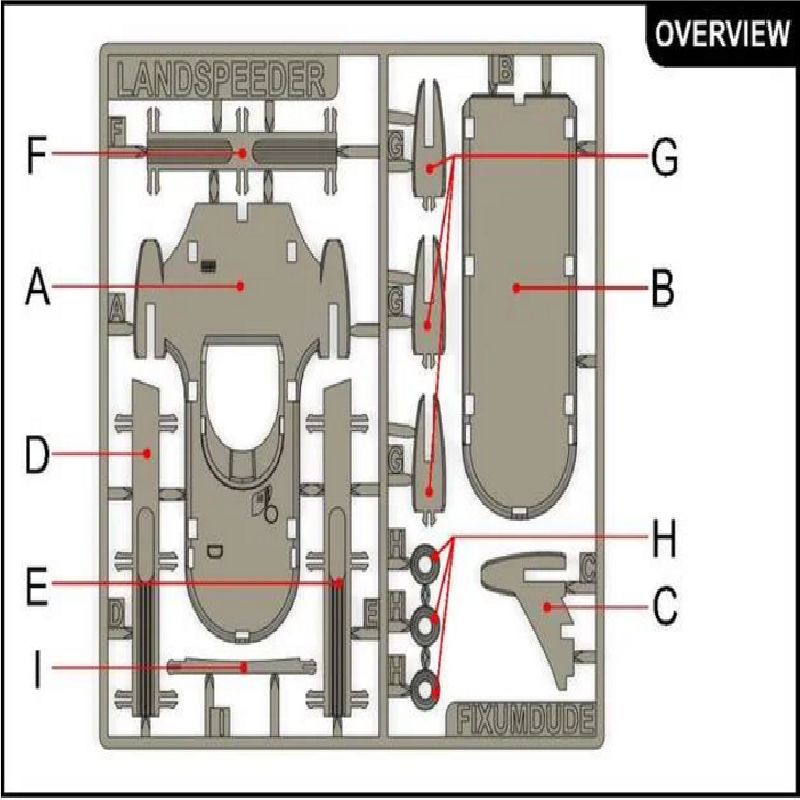

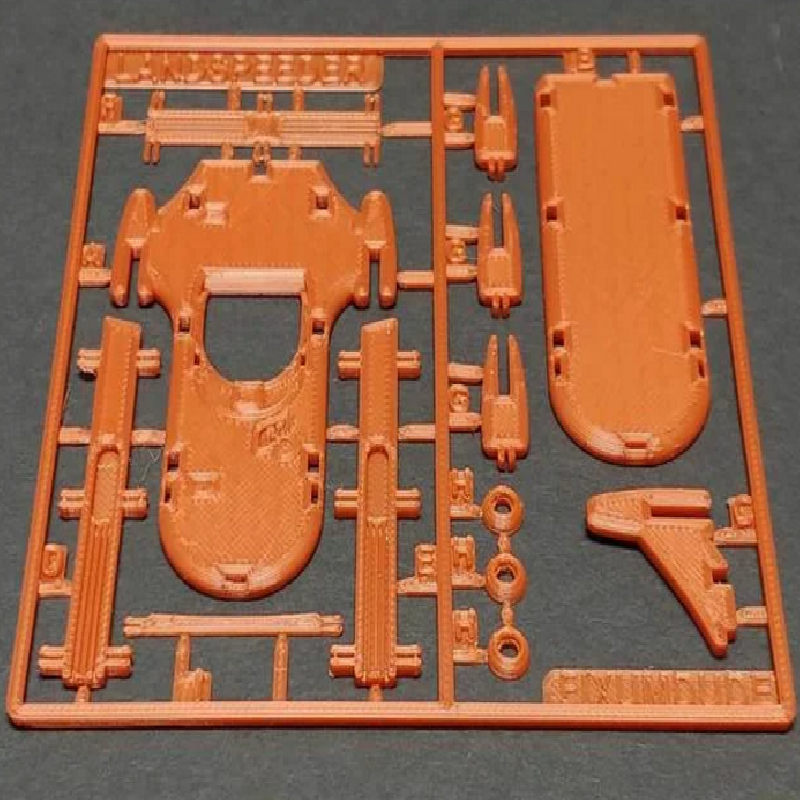

Printed card is 120mm X 120mm to fit on most printers.

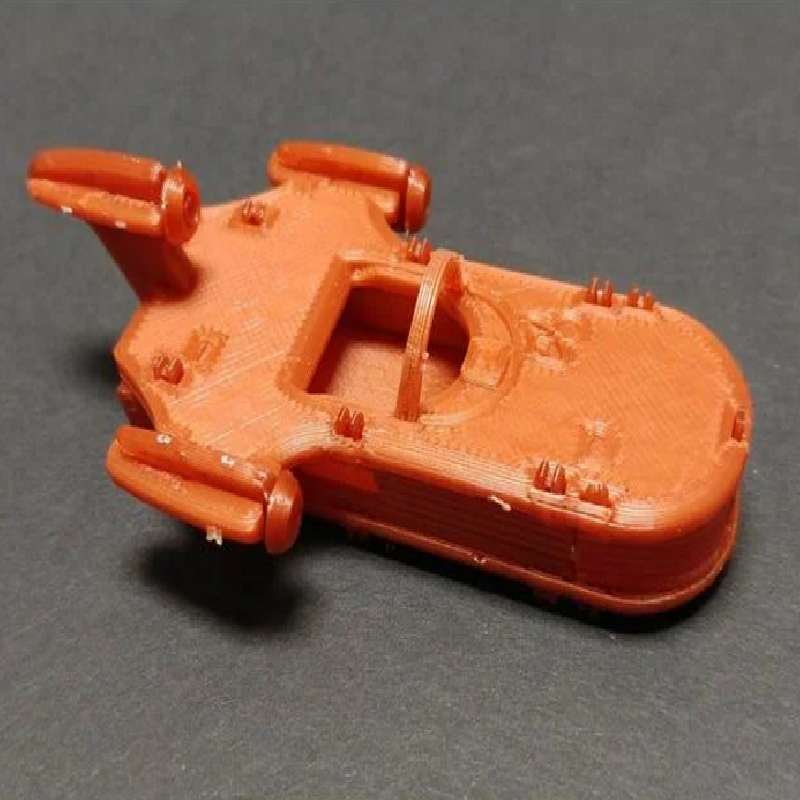

Assembled Model is roughly 91mm X 50mm X 27mm.
Print Settings
Printer:
Hypercube300
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
20%
Filament_brand:
3D Fuel Standard PLA
Filament_color:
Metallic Copper
Filament_material:
PLA
Notes:
A good first layer is important due to all of the small holes, etc. Printer in Metallic Copper 3D Fuel Standard PLA at 30mm/s at 200C with 55C heated bed. Example printed at 0.2mm layer height.
